28466

4040XP/4041DA

Drop Plate Installation Instructions

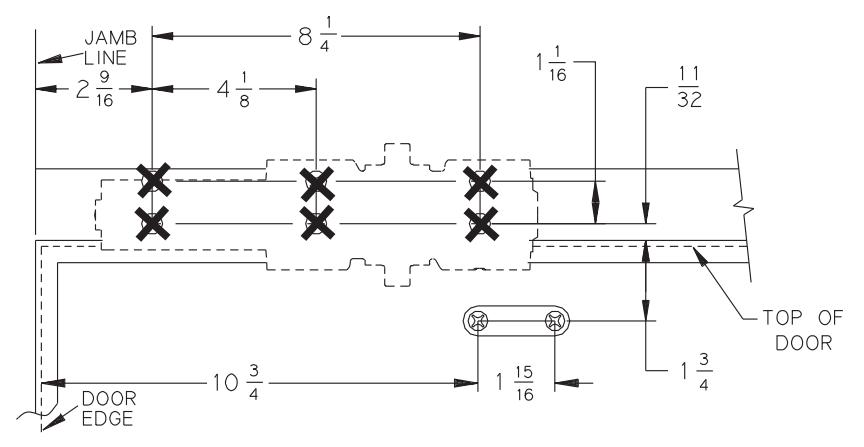

4040XP & 4041DA PUSH SIDE (TOP JAMB) DROP PLATE PERMITS 120° MAXIMUM OPENING

LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.

Locate drop plate & shoe from centerline of pivot or swing clear hinge pin when used.

DOOR

MAXIMUM REVEAL OF 2 9/16. FOR REVEALS 2 5/8 - 4 13/16 SPECIFY LONG ROD. FOR REVEALS 8" SPECIFY EXTRA LONG ROD.

PUSH SIDE MOUNT ON: 4040XP-18TJ DROP PLATE

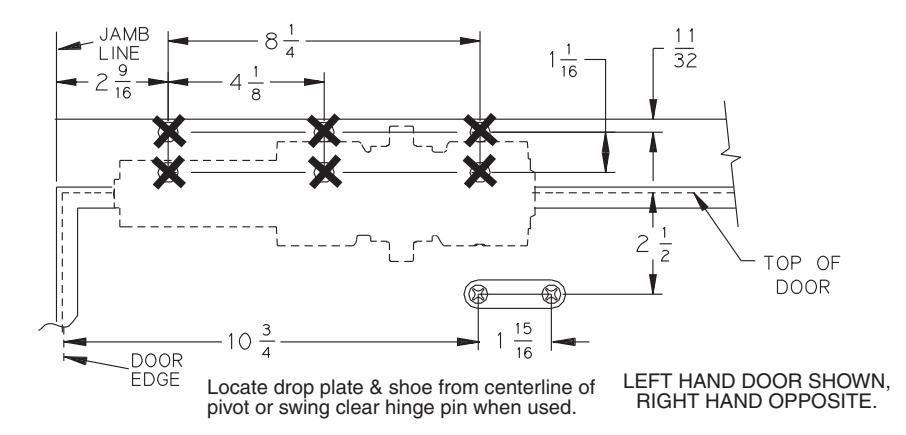

4040XP & 4041DA PUSH SIDE (TOP JAMB) DROP PLATE PERMITS 120° MAXIMUM OPENING FOR FLUSH CEILING

FLUSH CEILING PUSH SIDE MOUNT ON: 4040XP-18G DROP PLATE

MAXIMUM REVEAL OF 2 9/16. FOR REVEALS 2 5/8 - 4 13/16 SPECIFY LONG ROD. FOR REVEALS 8" SPECIFY EXTRA LONG ROD.

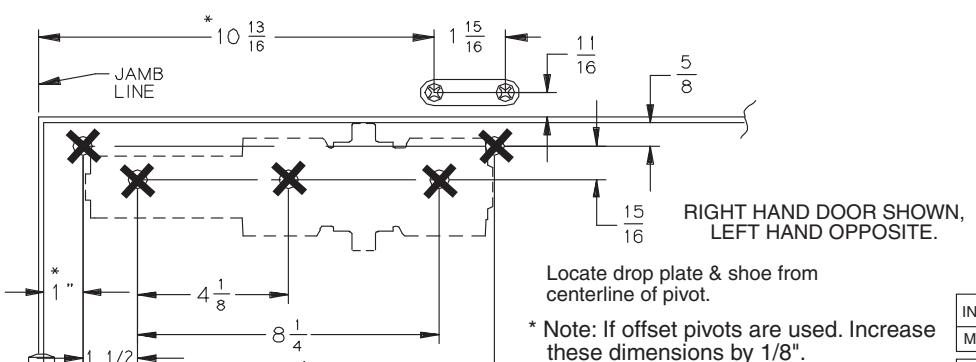

4040XP & 4041DA PULL SIDE (DOOR JAMB) DROP PLATE PERMITS 120° MAXIMUM OPENING

PULL SIDE MOUNT ON: 4040XP-18 DROP PLATE

INCH	11 32	5 8	11 16	15 16	1	1 1/16	1 1/2	1 3/4
M.M.	9	16	17	24	25	27	38	44
INCH	1 15 16	$2\backslash frac\{1\}\{2\}$	2 9 / 16	4 1 / 8	81/4	10 3 / 4	10 13 16	11 1 / 4
M.M.	49	64	65	105	210	273	275	286

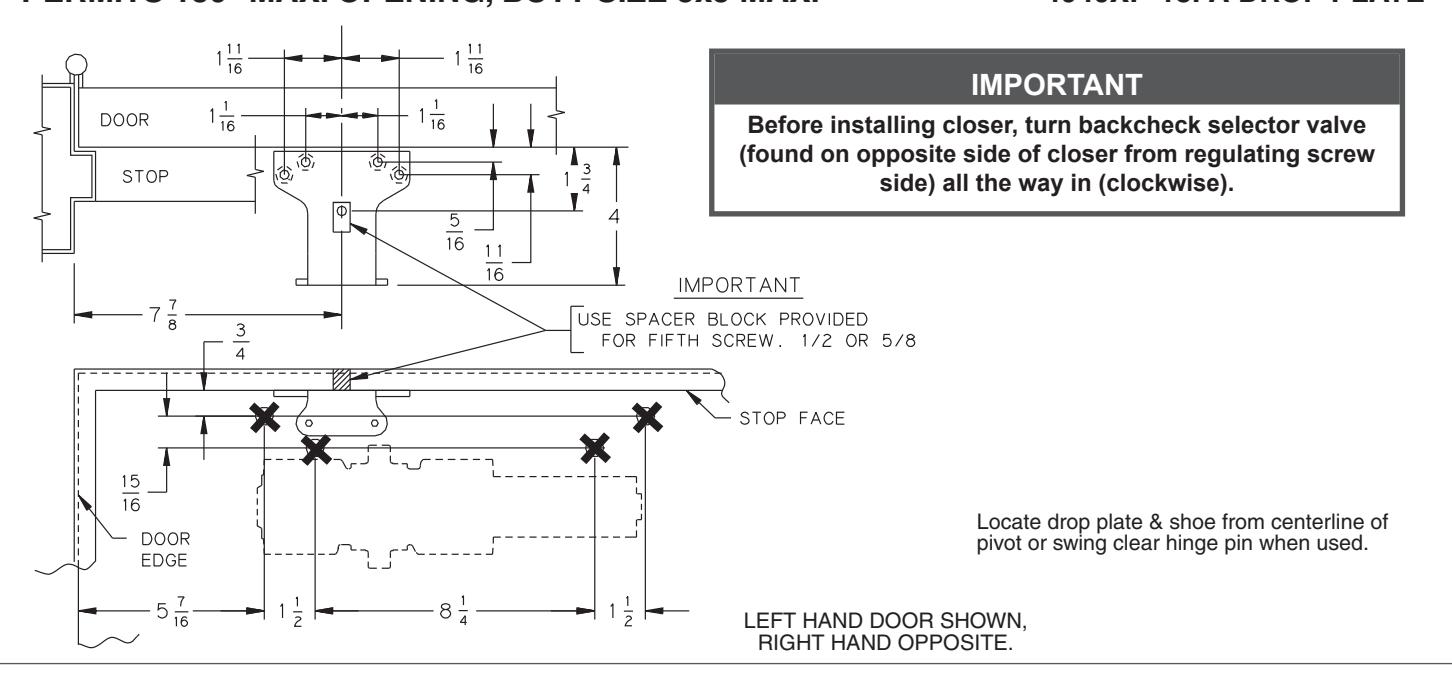

4040XP PA PUSH SIDE (DOOR MOUNT) DROP PLATE PERMITS 180° MAX. OPENING, BUTT SIZE 5x5 MAX.

PUSH SIDE MOUNT ON: 4040XP-18PA DROP PLATE

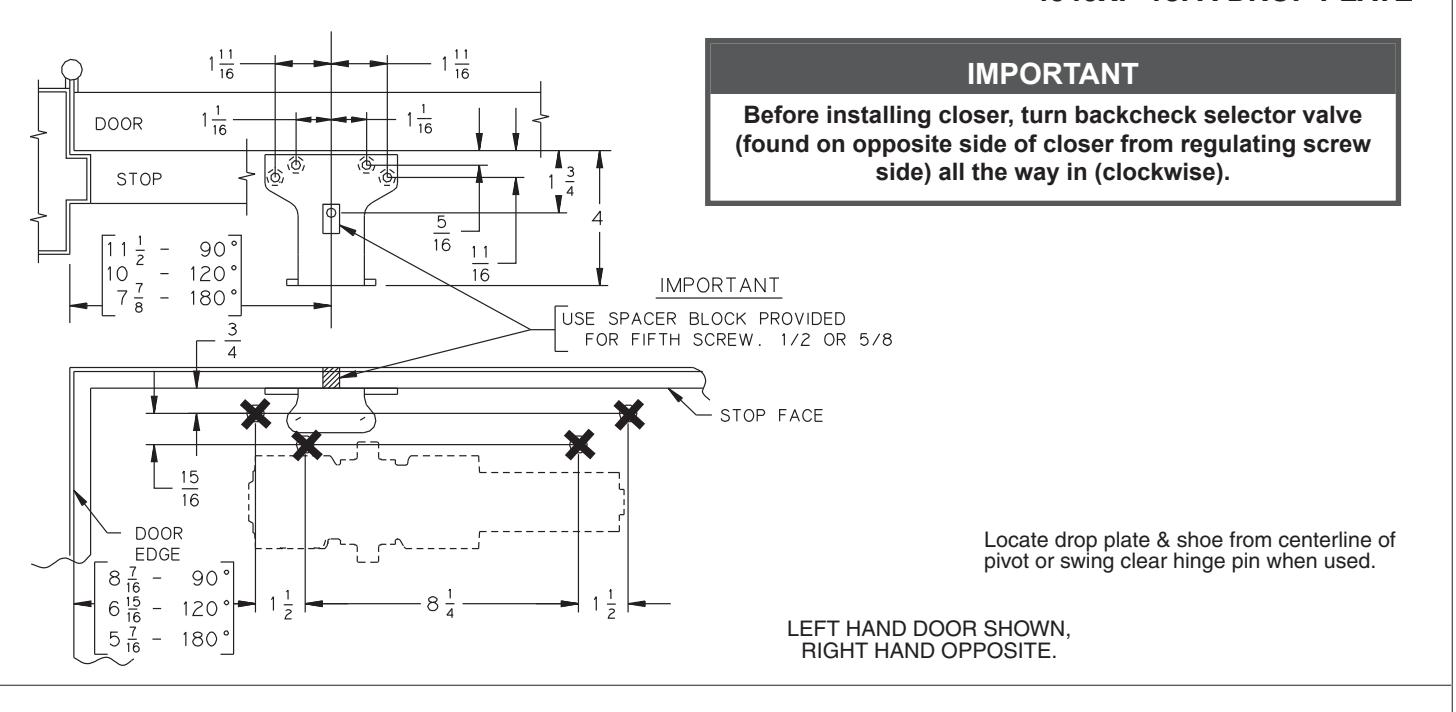

4041PA DELAY PUSH SIDE (DOOR MOUNT) DROP PLATE

PUSH SIDE MOUNT ON: 4040XP-18PA DROP PLATE

INCH	5 16	11 16	3 4	15 16	$1\backslash frac\{1\}\{16\}$	1 1/2	1 11 16	1 3/4
M.M.	8	17	19	24	27	38	43	44
INCH M.M.	4	5 7/16	6 15 / 16	$7\backslash frac\{7\}\{8\}$	$8\backslash frac\{1\}\{4\}$	8 7 / 16	10	11 1 / 2
M.M.	102	138	176	200	210	214	254	292

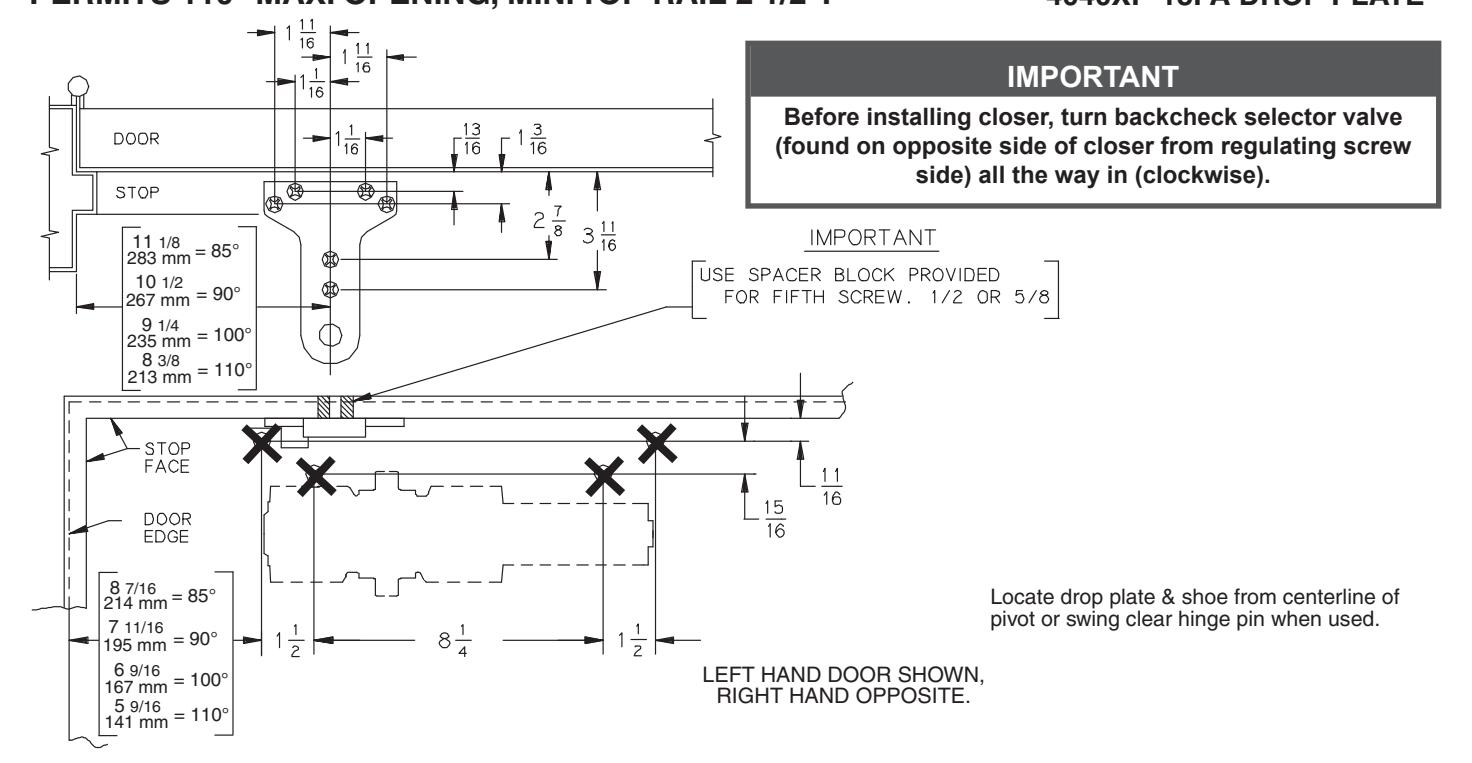

4040XP CUSH PUSH SIDE (DOOR MOUNT) DROP PLATE PERMITS 110° MAX. OPENING, MIN. TOP RAIL 2 1/2".

PUSH SIDE MOUNT ON: 4040XP-18PA DROP PLATE

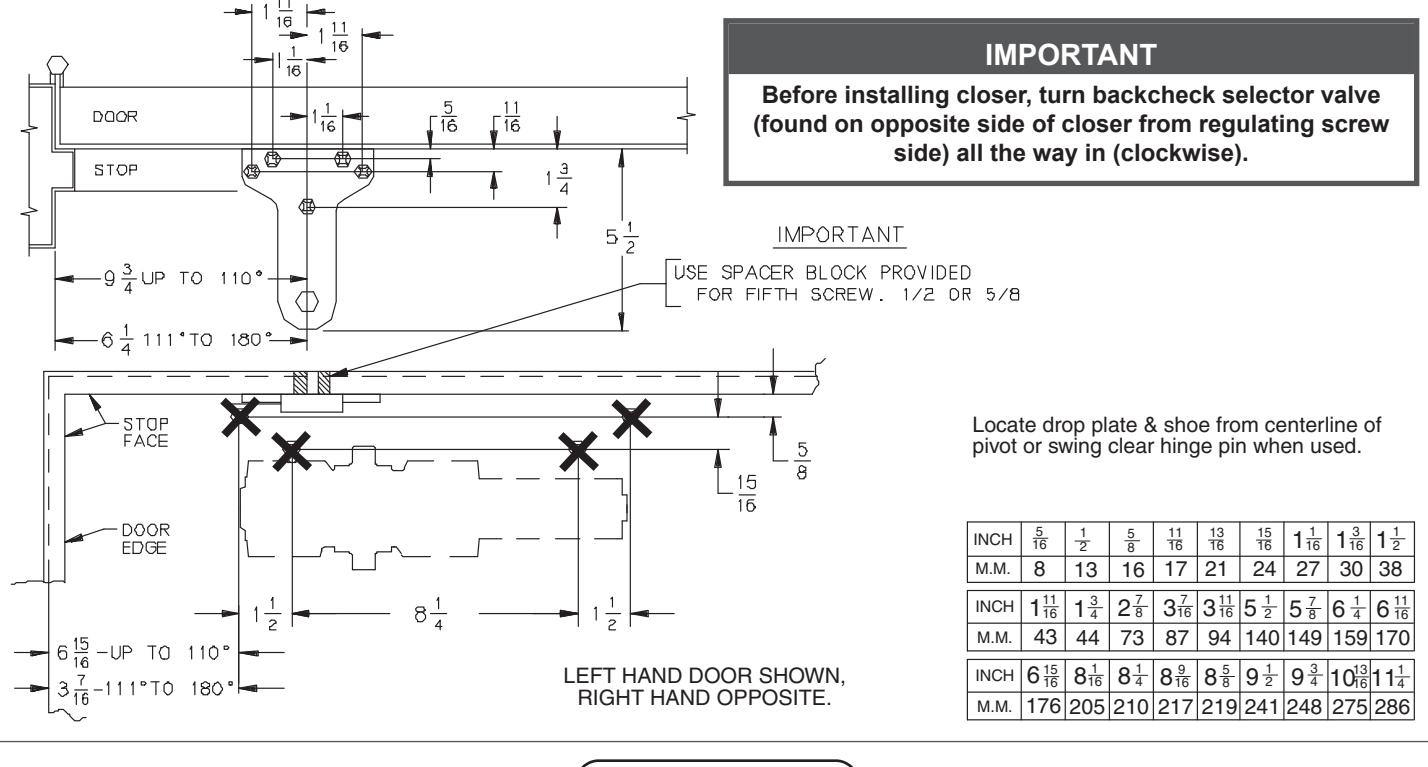

4040XP EDA PUSH SIDE (DOOR MOUNT) DROP PLATE PERMITS 180° MAX. OPENING, MIN. TOP RAIL 2 1/2".

PUSH SIDE MOUNT ON: 4040XP-18PA DROP PLATE

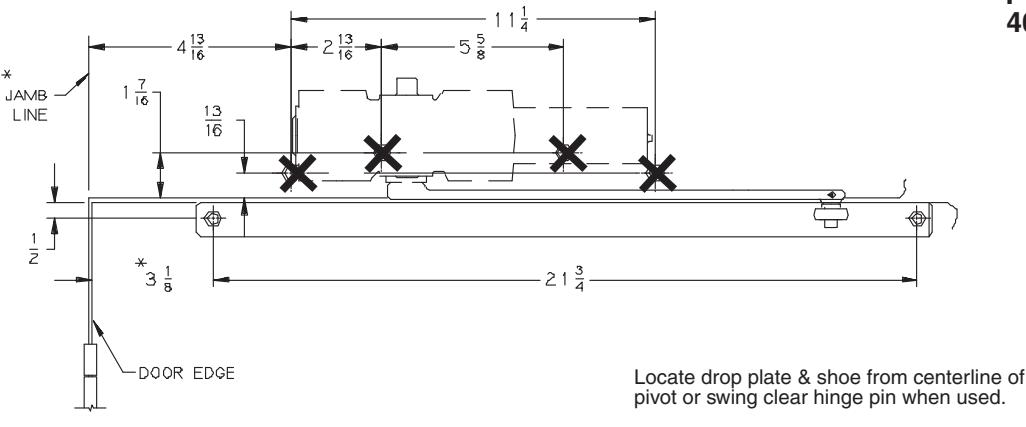

4040XPT PULL SIDE (TOP JAMB) DROP PLATE PERMITS 180° MAXIMUM OPENING, MIN. FACE OF FRAME 1 3/4"

PUSH SIDE MOUNT ON: 4040XPT-18TJ DROP PLATE

RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.

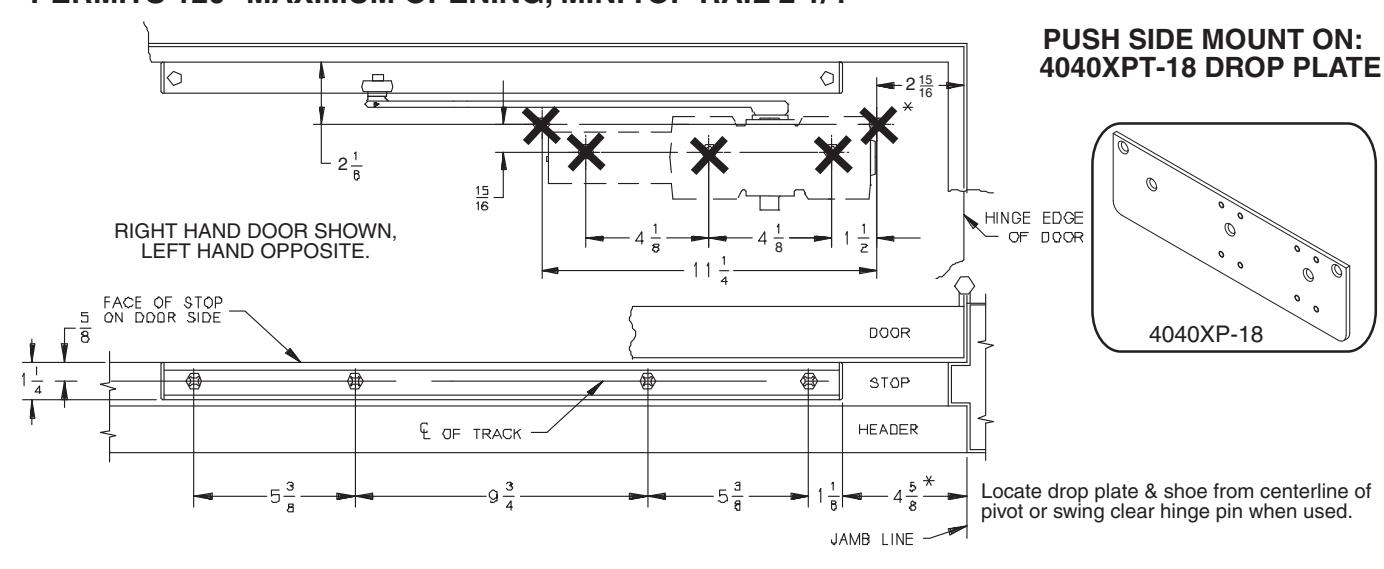

4040XPT PUSH SIDE (DOOR MOUNT) DROP PLATE PERMITS 120° MAXIMUM OPENING, MIN. TOP RAIL 2 1/4"

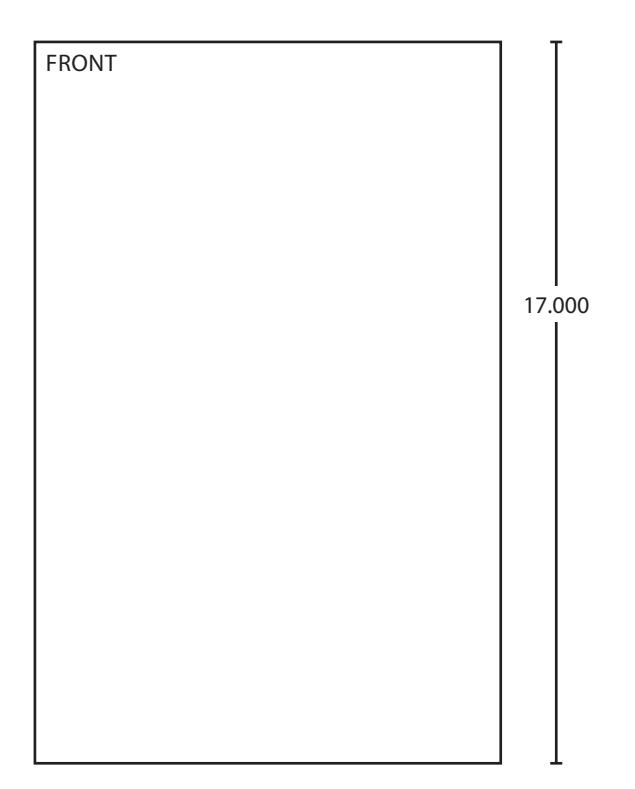

FRONT | 4.250

FOLDED SHEET

BEGINNING SHEET

Additional Notes:
1. None

Revision History						Revision Description:
J	К	L	М	N	Р	J > Revised artwork.
042801	073413					]
Material	Material White Paper					Edited By	Approved By	EC Number	Release Date
						D. Toppins	B. Grover	073413	09-01-17
Notes	Notes 1. printed two sides 2. printed black					Title
						4040XP/4041DA Drop Plates Instruction Sheet
3. tolerar						Creation Date	Number	Revision
	4. printed in country may vary 5. drawings not to scale					04-27-10	28466		K
