4040XP Series

Strong, reliable and built for the real world

Overview

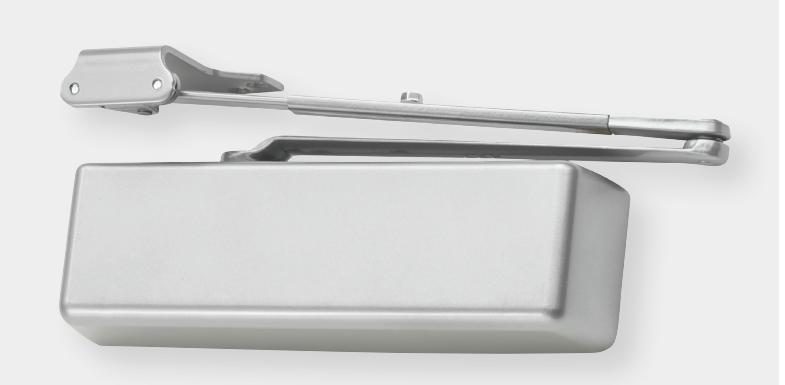

The LCN® 4040XP is our most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets the standard for reliability, longevity and value with a robust design and extraordinary performance testing. LCN goes beyond ANSI and BHMA industry standards with abuse-cycle and temperature testing to mimic what door closers encounter in high-abuse environments. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that's stronger and delivers remarkable value in a variety of applications.

The patented Green Dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won't let you down no matter how many people go through the door. When it comes to heavy-duty closers, no other closer performs like the LCN 4040XP.

Features and benefits

• § Cast iron
• § Forged steel arm
• § Double heat treated steel pinion
• § All weather fluid
• § Non-handed
• § LCN Green Dial spring force indicator
• § Peel-n-stick templates
• § UL and cUL Listed
• § 5⁄8" Journal diameter pinion
• § Full complement bearing
• § Tested and certified under ANSI standard A156.4, Grade 1
