Surface mounted closer

4040XP Series

Overview

The 4040XP is LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Cylinder

4040XP-3071

Cast iron cylinder assembly

Sizing Handing

Adjustable Spring Size 1-6 Non-handed

includes patented Green Dial

Available cylinder options

DEL Delayed action cylinder

Mounting

Hinge (pull side) Top jamb (push side)

Parallel arm (push side)

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

Brass

150+ additional custom colors available using the RAL numbering system

Metal plated fi nishes

632 Bright Brass

633 Satin Brass

639 Satin Bronze

643e Satin Bronze, Blackened

646 Satin Nickel

651 Bright Chrome

652 Satin Chrome

Available fi nish options

MTLPC

Brite metallic: Custom powder coat fi nish, which resembles that of US26 or US26D plated fi nish.

SRI

For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

Standard cover

4040XP-72

Plastic cover

• Non-handed
• Includes 4040XP-54 snap-on cover clip

Optional covers

4040XP-72MC

Metal cover

• Handed
• Required for plated fi nishes and custom powder coat fi nishes
• Optional

Arms

4040XP-3077 Regular arm

• Non-handed
• Mounts pull side or top jamb with shallow reveal P4041 closer includes PA SHOE, 4040XP-62PA required for parallel arm mounting

4040XP-3077L

• Long arm Non-handed
• Includes LONG ROD AND SHOE, 4040XP-79LR for top jamb mount
• Optional

4040XP-3077ELR Extra long arm

• Non-handed
• Includes EXTRA LONG ROD AND SHOE, 4040XP-79ELR for top jamb mount with deep reveal
• Optional

4040XP-3049 Hold-open arm

• Non-handed
• Mounts pull side or top jamb with shallow reveal, holdopen adjustable shoe
• 4040XP closer includes 4040XP-62PA shoe required for parallel arm mounting
• Optional

4040XP-3049L Long hold-open arm

• Non-handed
• Includes LONG HEAD AND TUBE, 4040XP-3048L for top jamb mount
• Optional

4040XP-3077EDA Extra duty arm

• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• Optional

4040XP-3049EDA Hold-open extra duty arm

• Handed
• Parallel arm features forged, solid steel main and forearm for potentially abusive installations
• Hold-open function is adjusted at the shoe
• Optional

4040XP-3077EDA/62G Extra duty arm with 62G

• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance
• Optional

4040XP-3049EDA/62G Hold-open extra duty arm with 62G

• Handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance. Holdopen function is adjusted at the shoe
• Optional

4040XP-3077CNS Cush-N-Stop® Arm

• Non-handed
• Features solid forged steel main arm and forearm with stop in soffi t shoe.
• Optional

4040XP-3049CNS HCUSH arm

• Non-handed
• Hold-open function with templated stop/hold-open points
• Handle controls hold-open function
• Optional

4040XP-3077SCNS Spring CUSH arm

• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffi t shoe
• Optional

Arms

4040XP-3049SCNS Spring HCUSH arm

• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffi t shoe
• Handle controls hold-open function
• Optional

Installation accessories

4040XP-18 Plate

• Required for hinge side mount where top rail is less than 3-3/4˝ (95 mm)
• Requires minimum 2˝ (51 mm) minimum top rail

4040XP-18G

Plate

• Locates top jamb mounted closer fl ush with top of head frame face in fl ush ceiling condition
• Requires 1-3/4˝ (44 mm) minimum head frame

4040XP-18TJ Plate

Centers top jamb mounted closer vertically on head frame where face is less than 3-1/2˝ (89 mm). Plate requires 1-3/4˝ (44 mm) minimum head frame

4040XP-18PA

Plate

• Required for parallel arm mounting where top rail is less than 5-1/2˝ (140 mm), measured from the stop
• Requires 2˝ (51 mm) minimum top rail

4040XP-62PA PA shoe

Required for parallel arm mounting

4040XP-30 CUSH shoe support

• Provides anchorage for fi ft h screw used with CUSH arms, where reveal is less than 3-1/16˝ (78 mm)
• Optional

4040XP-61 Blade stop spacer

• Required to lower parallel arm shoe to clear 1/2˝ (13 mm) blade stop
• Optional

4040XP-419

PA fl ush panel adapter

• Provides horizontal mounting surface for parallel arm shoe on single rabbeted or fl ush frame
• Optional

Installation accessories

4040XP-62A Auxiliary shoe

• Requires a top rail of 7˝ (178 mm)
• Shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop
• Optional

4040XP-54 Snap-on cover clip

Used to secure 4040XP-72 plastic cover to cylinder body

Fasteners

Self-reaming and tapping screws included standard

Fastener pack options

TBSRT	TB1 with self-reaming and tapping screws
WMS	Wood and machine screw
TBWMS	TB1 , wood and machine screw
TORX	TORX machine screw
TBTORX	TB1 and TORX machine screw

₁ Specify door thickness if other than 1-3/4˝

Dimensions and mounting

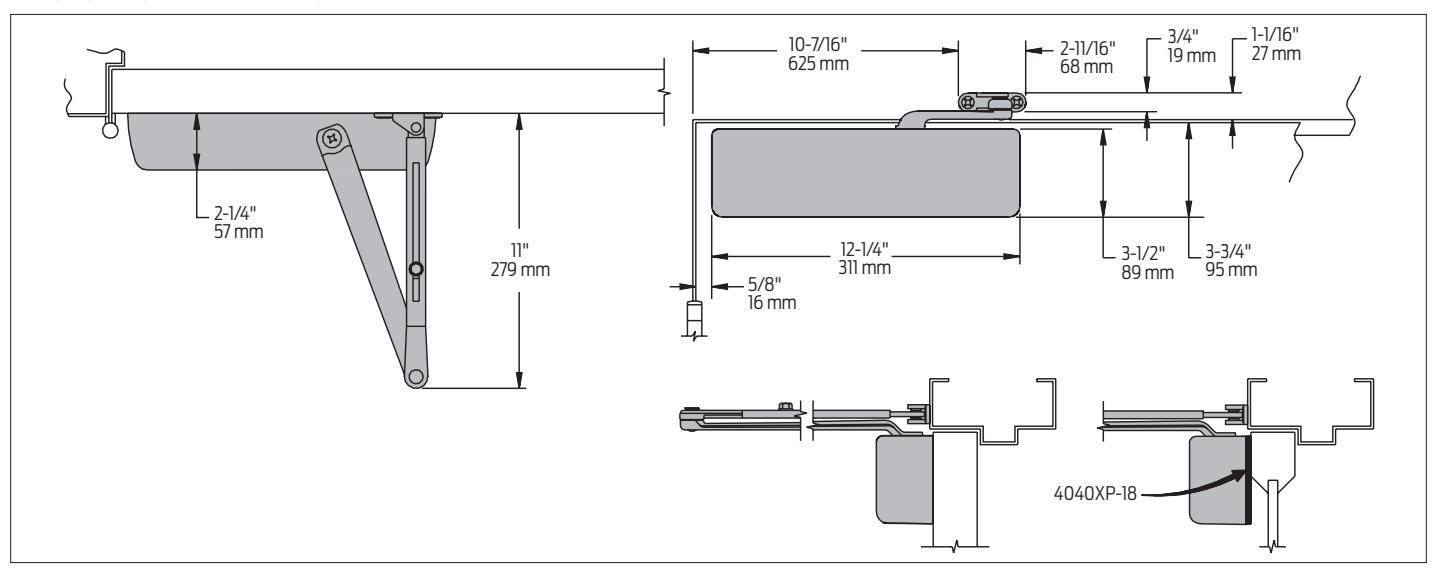

Hinge (pull) side mounting

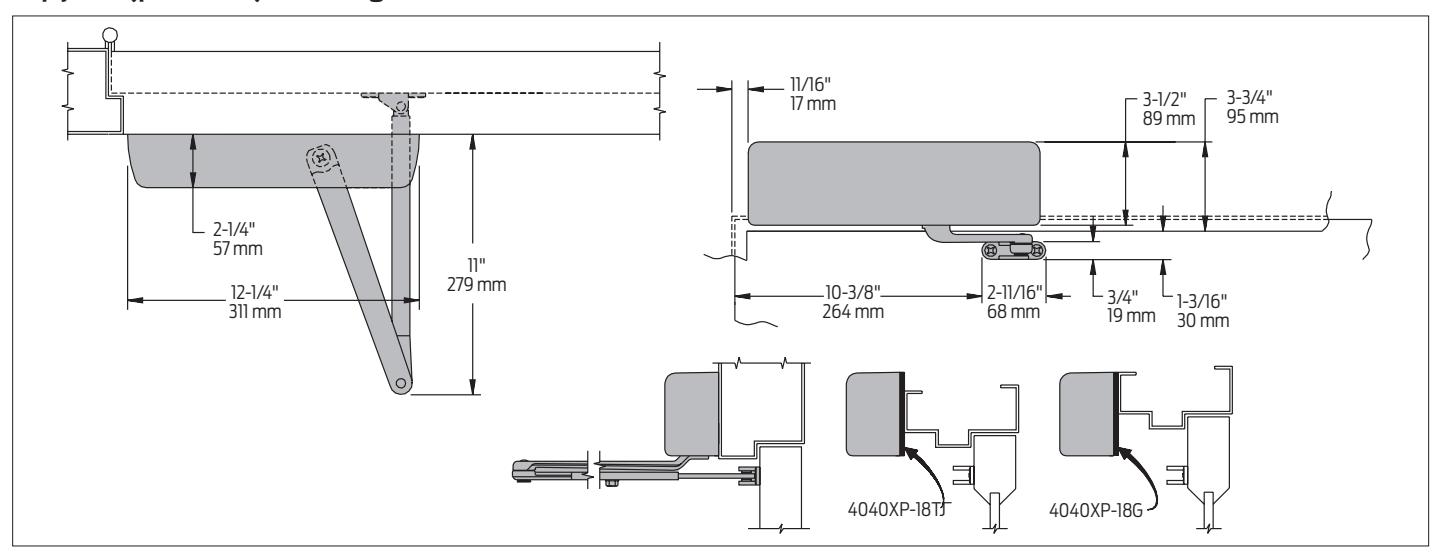

Top jamb (push side) mounting

Dimensions and mounting

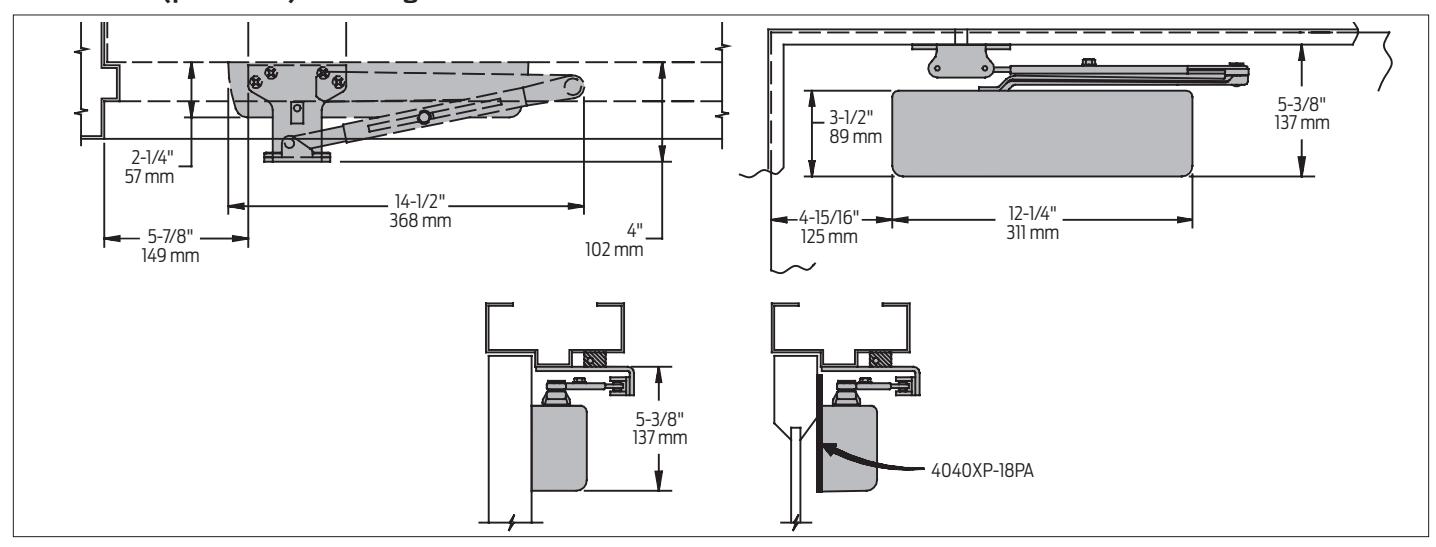

Parallel arm (push side) mounting

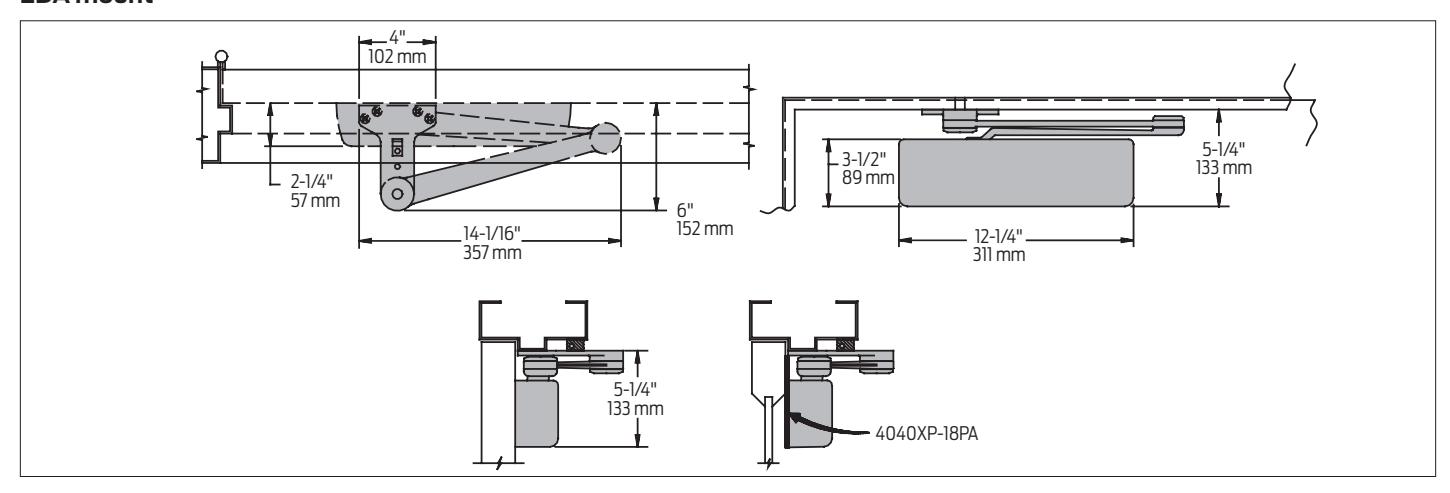

EDA mount

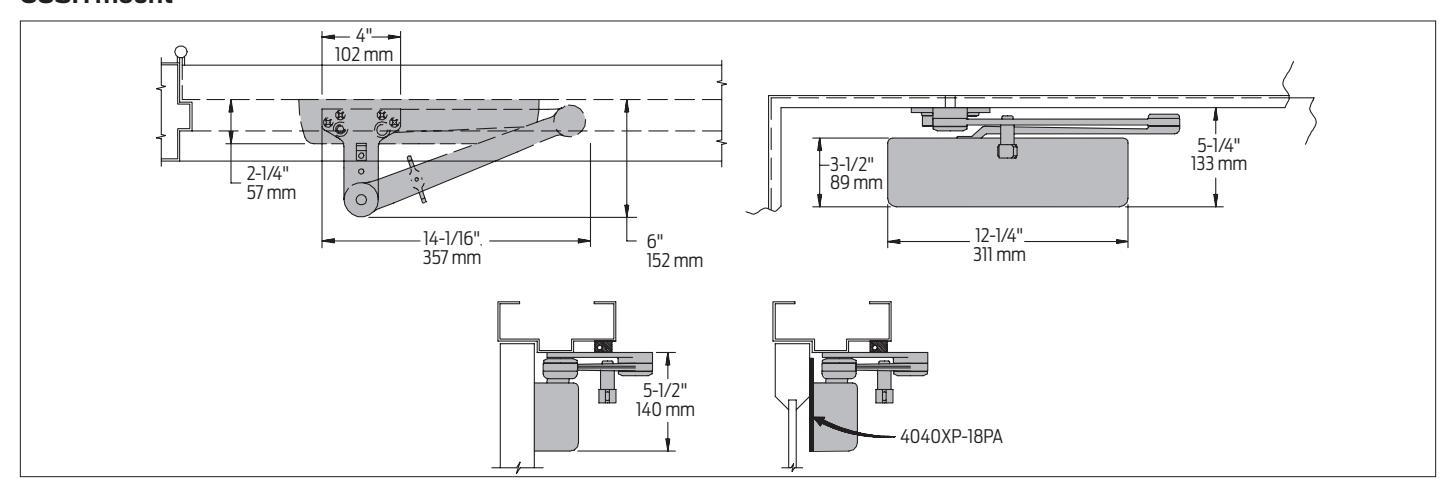

CUSH mount

Specifications

Accessibility	Available with less than 5.0 lbs. opening force on 36˝ door
Certifications/	ƒ Grade 1 - ANSI A156.4
approvals	ƒ UL 10C
		ƒ Meets BAA - Buy American Act
Degree of	Hinge (pull) side
operation	Max opening:	120°
	Hold open:	90-120°
	Top jamb (push side) mount
	Max opening:	120°
	Hold open:	85-120°
	Parallel arm with 62PA
	Max opening:	180°
	Hold open:	180°
	EDA
	Max opening:	180°
	Hold open:	180°
	Cush
	Max opening:	110°
	Hold open:	110°
Environmental	ƒ Approved for interior use
conditions	ƒ Approved for exterior use (SRI coated only)
	ƒ LCN's standard all weather fluid performs to
	temperature ranges from 120°F (49°C) to -30°F (-35°C)
	ƒ LCN's powder coat finish surpasses 100 hours
	of salt spray which is over four times the ANSI
	standard for corrosion resistance.
Warranty	30 years
Standard	ƒ Cast iron body
features	ƒ Full complement bearing
	ƒ 1-1/2˝ diameter piston
	ƒ 3/4˝ diameter double heat treated pinion
	journal
