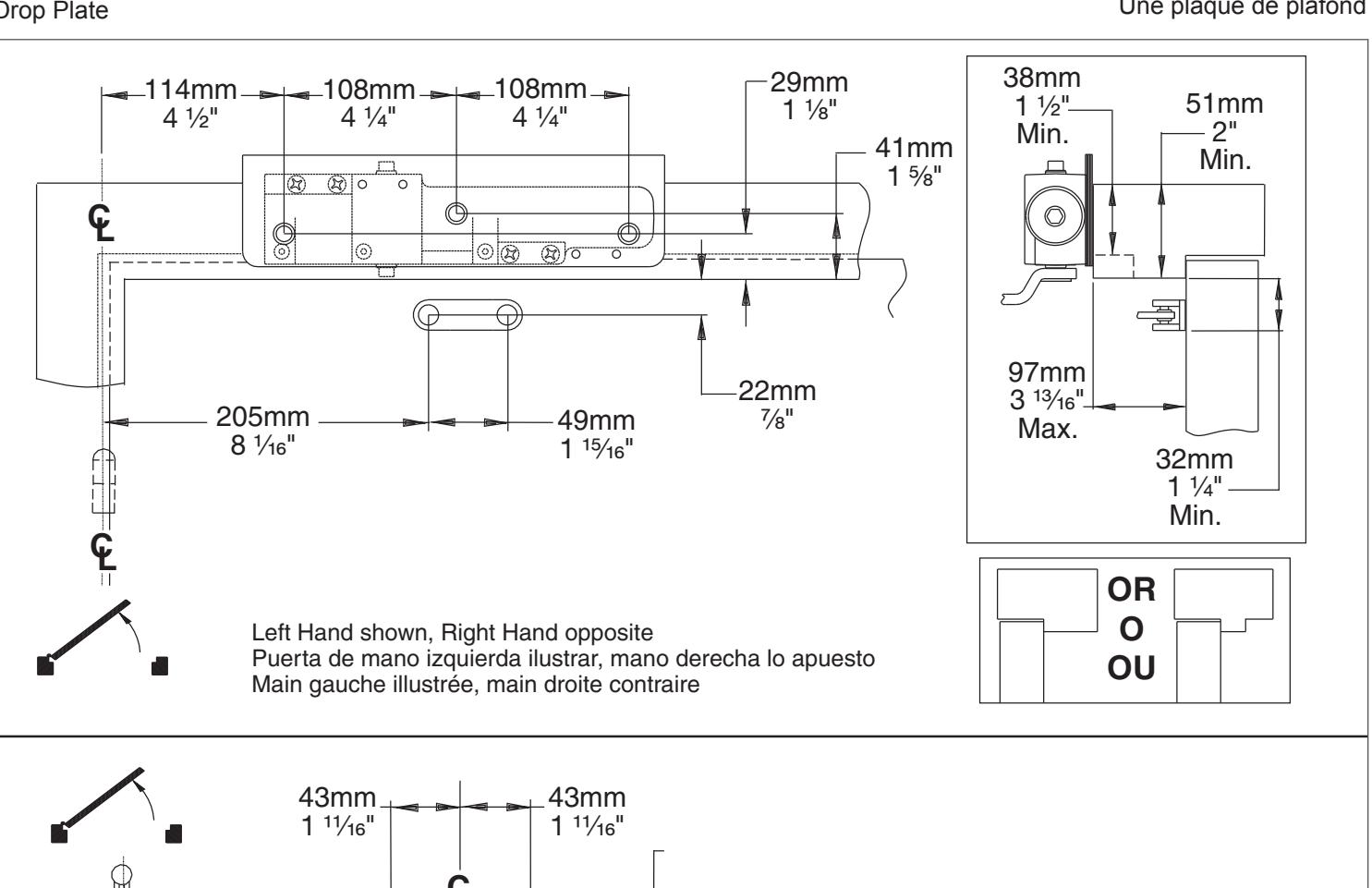

Drop Plate
Adapter Plate Template Instalada en la placa inferior Une plaque de plafond
Drop Plate
Spring Cush
Customer Service Servicio al cliente Service à la clientèle 1-877-671-7011 www.allegion.com/us

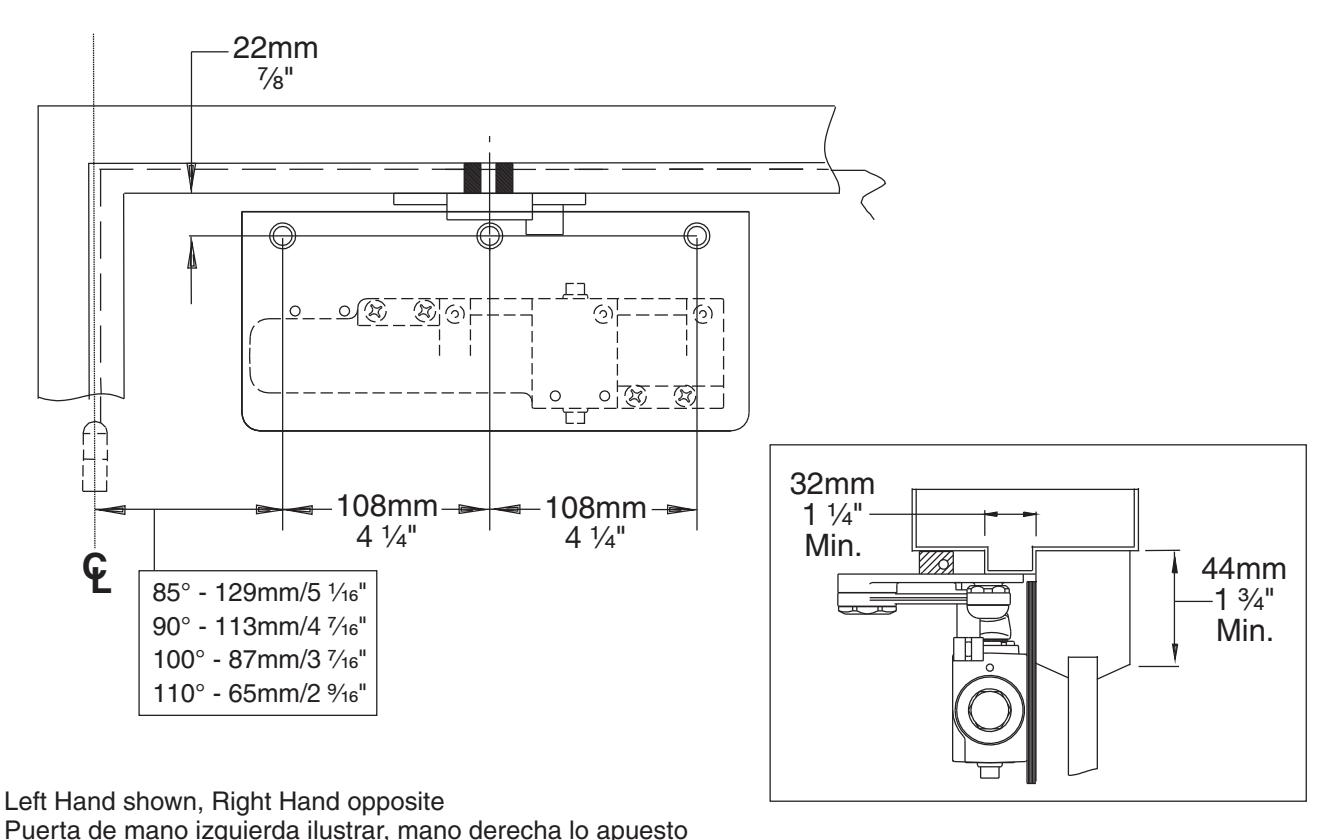

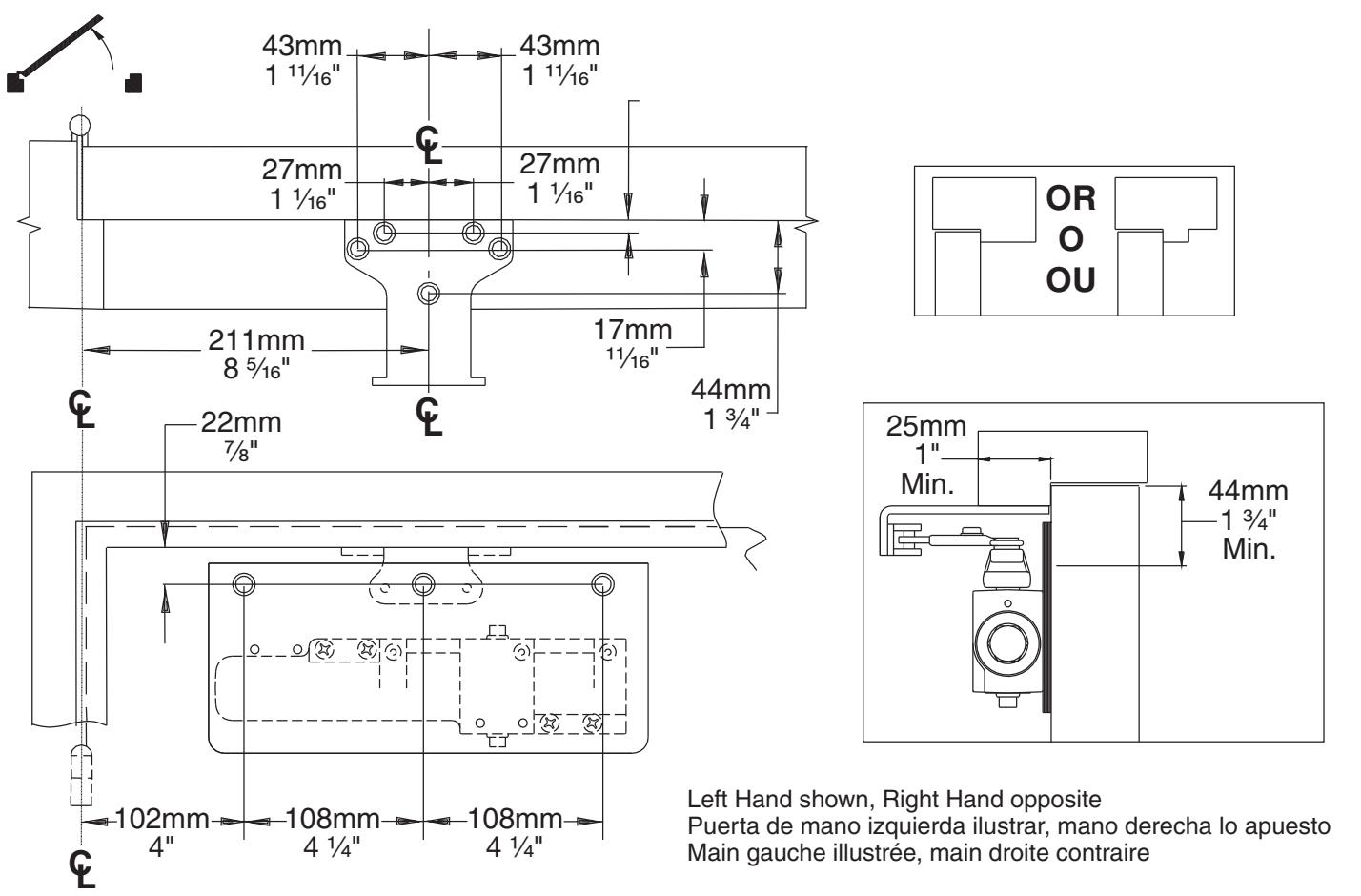

Main gauche illustrée, main droite contraire
| Additional Notes: | ||
|---|---|---|
| 1. None | ||
| Revision History | Revision Description: | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| А | В | С | D | Е | F | F > Revised artwork | ||||
| N/A | N/A | N/A | N/A | N/A | XXXXX | |||||
| Material White Paper | Edited By | Approved By | EC Number | Release Date | ||||||
| D. Myers | M. Sasso | xxxxx | 06-09-14 | |||||||

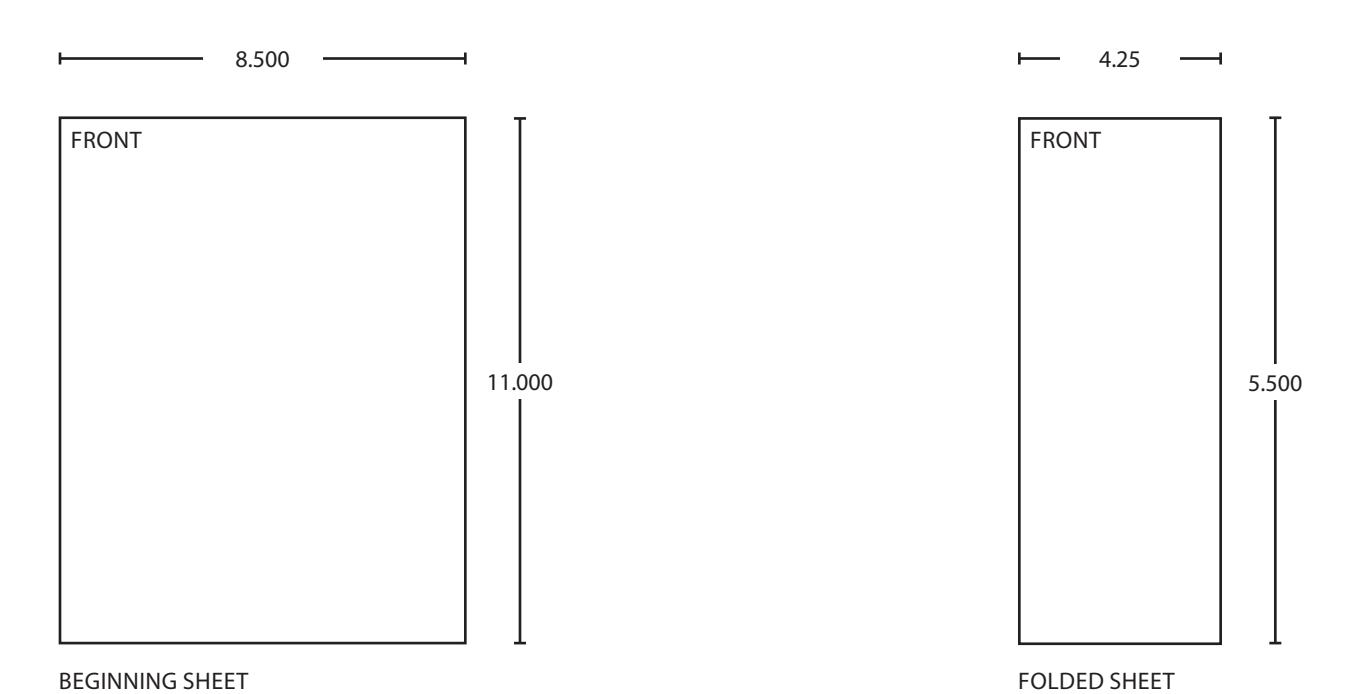

| Notes 1. printed two sides 2. printed black | Title 524 & 1521 Series Drop Plate Instruction Sheet | |||||||||
|
Creation Date
N/A |
Number Revision F |
Revision
F |
|||||||
| 3. Grawii | 5. drawings not to scale |
Created By
N/A |
Activity
3899 Hancock Expwy |
|||||||
| Software: InDesign CS6 | Security, CO 80911 | Allegion 2014 | ||||||||
