Surface mounted closer

4030

Overview

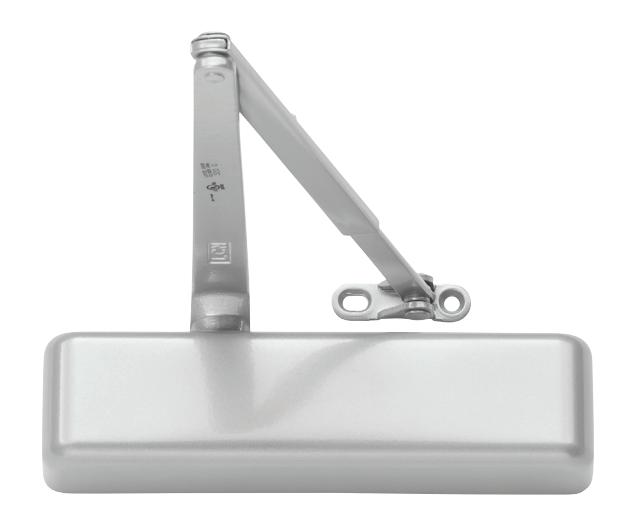

The 4030 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

Cylinder

4031-3071

Cast iron cylinder assembly

Sizing Handing

Adjustable Spring Size 1-4 Non-handed

Mounting

Hinge (pull side) Top jamb (push side)

Parallel arm (push side)

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

696 Brass

150+ additional custom colors available using the RAL numbering system

Metal plated fi nishes

632 Bright Brass

633 Satin Brass

639 Satin Bronze

643e Satin Bronze, Blackened

646 Satin Nickel

651 Bright Chrome

652 Satin Chrome

Available fi nish options

MTLPC

Brite metallic: Custom powder coat fi nish, which resembles that of US26 or US26D plated fi nish.

SRI

For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

Standard cover

4030-72MC Metal cover

Non-handed

Arms

4030-3077 Regular arm

• Non-handed
• Mounts hinge side or top jamb
• P4031 closer includes PA SHOE, 4030-62PA is required for parallel arm mounting

4030-3077LD Light duty arm

• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Optional

4030-3077L

Long arm

• Non-handed
• Includes LONG ROD AND SHOE, 4030-79LR for top jamb mount with deep reveals
• Optional

4030-3049 Hold-open arm

• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold-open adjustable at shoe
• Optional

4030-3049L Long hold-open arm

• Non-handed
• Includes LONG HEAD AND TUBE, 4030-3048L for top jamb mount with deep reveals
• Optional

4030-3077EDA Extra duty arm

• Non-handed
• Extra duty arm features solid forged steel main and forearm for potentially abusive installations
• Optional

4030-3049EDA Hold-open EDA arm

• Handed
• Arm, provides hold-open function adjustable at shoe
• Optional

4030-3077CNS Cush-n-Stop® arm

• Non-handed
• Solid forged steel main arm and forearm with stop in soffi t shoe
• Optional

4030-3049CNS Hold-open CUSH arm

• Non-handed
• Provides hold-open function with templated stop/holdopen points
• Handle controls hold-open function
• Optional

4030-3077SCNS Spring CUSH arm

• Non-handed
• For abusive applications
• Features solid forged steel main arm and forearm with spring loaded stop in the soffi t shoe
• Optional

4030-3049SCNS Spring HCUSH arm

• Non-handed
• For abusive applications
• Features solid forged steel main arm and forearm with spring loaded stop in the soffi t shoe
• Handle controls hold-open function
• Optional

Installation accessories

4030-18TJ Plate

• Required for top jamb mounting where head frame is less than 2-1/4˝ (57 mm) or fl ush ceiling condition exists
• Requires 1-1/2˝ (38 mm) minimum

4030-18PA

Plate

• Required for parallel arm mounting where top rail is less than 5˝ (127 mm), measured from the stop
• Rrequires 1-3/4˝ (44 mm) minimum

4030-30 CUSH shoe support

Provide anchorage for fi ft h screw used with CUSH arms where reveal is less than 3-1/16˝ (78 mm)

4030-61 Blade stop spacer

Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

4030-62A Auxiliary shoe

• Requires a top rail of 7˝ (178 mm)
• Replaces -62PA for parallel arm mounting of regular arm with some overhead holder/ stop
• Optional

4030-419 PA fl ush panel adapter

Provides horizontal mounting surface for PA or CUSH shoe on single rabetted or fl ush frame

4030-62PA PA shoe

Required for parallel arm mounting

Fasteners

Wood and self-tapping machine screw pack

Fastener pack options

TBWMS TB1

, wood and machine screw

₁ Specify door thickness if other than 1-3/4˝

Dimensions and mounting

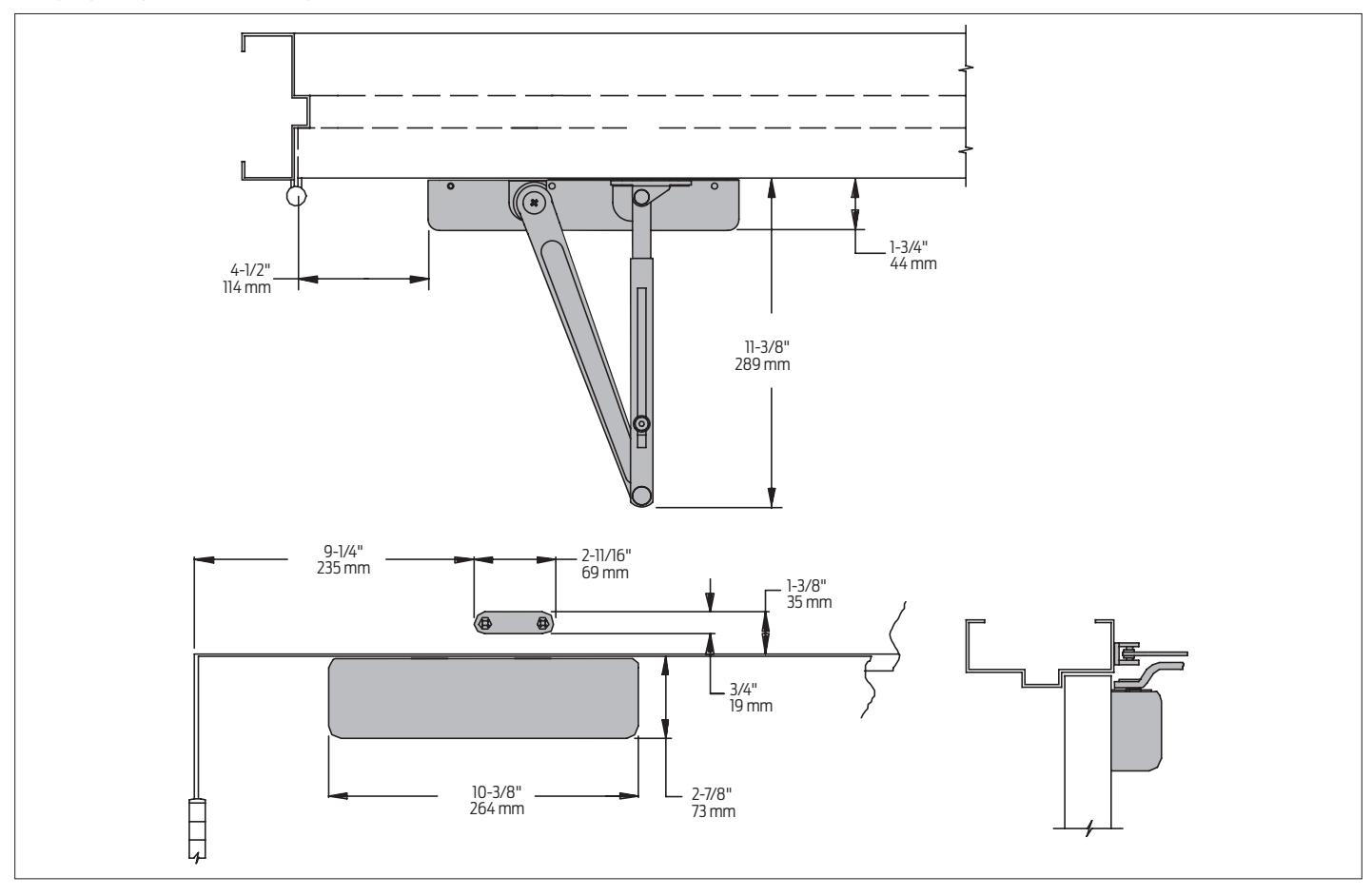

Hinge (pull) side mounting

Dimensions and mounting

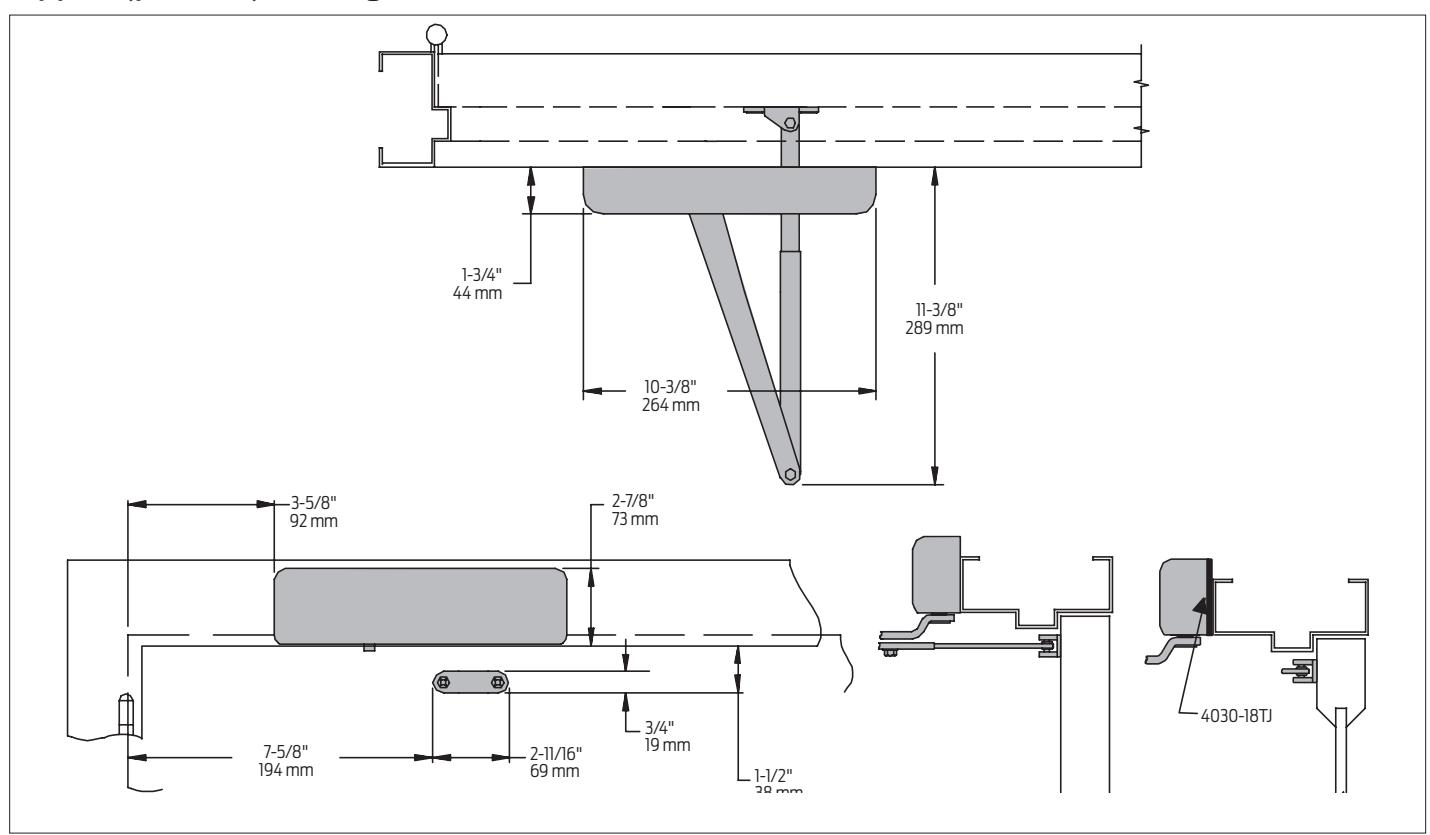

Top jamb (push side) mounting

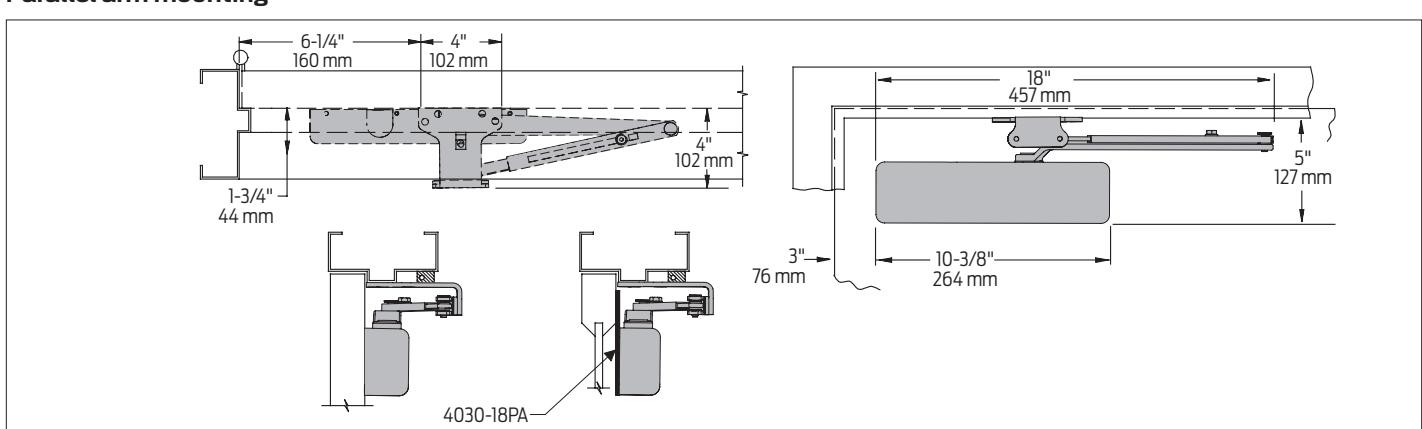

Parallel arm mounting

Dimensions and mounting

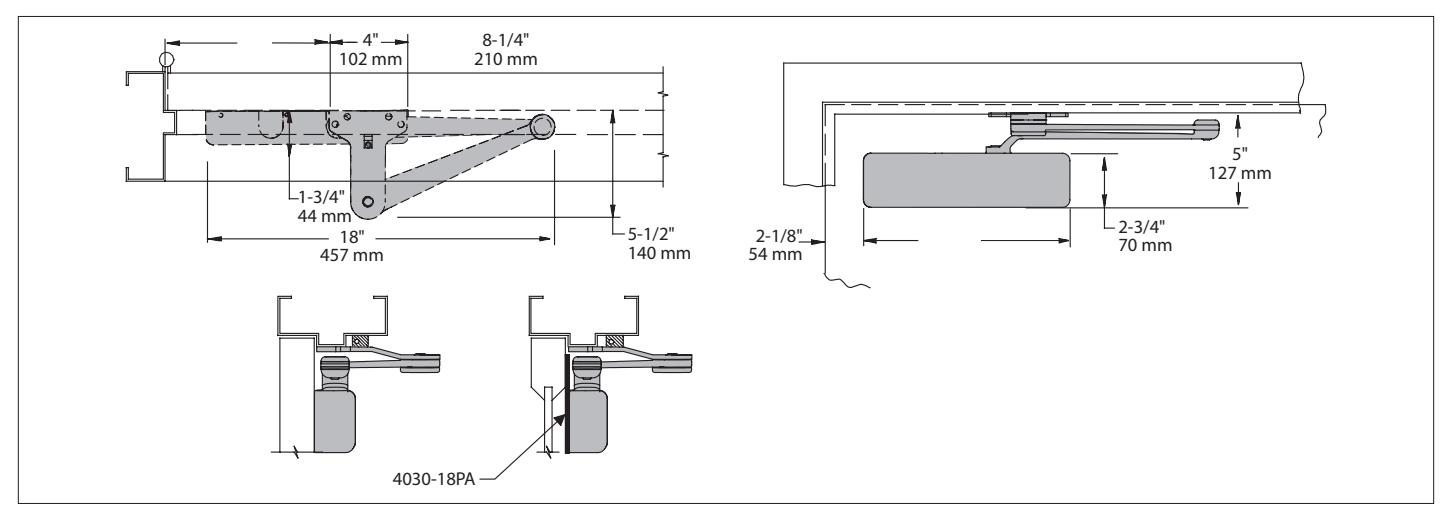

EDA mount

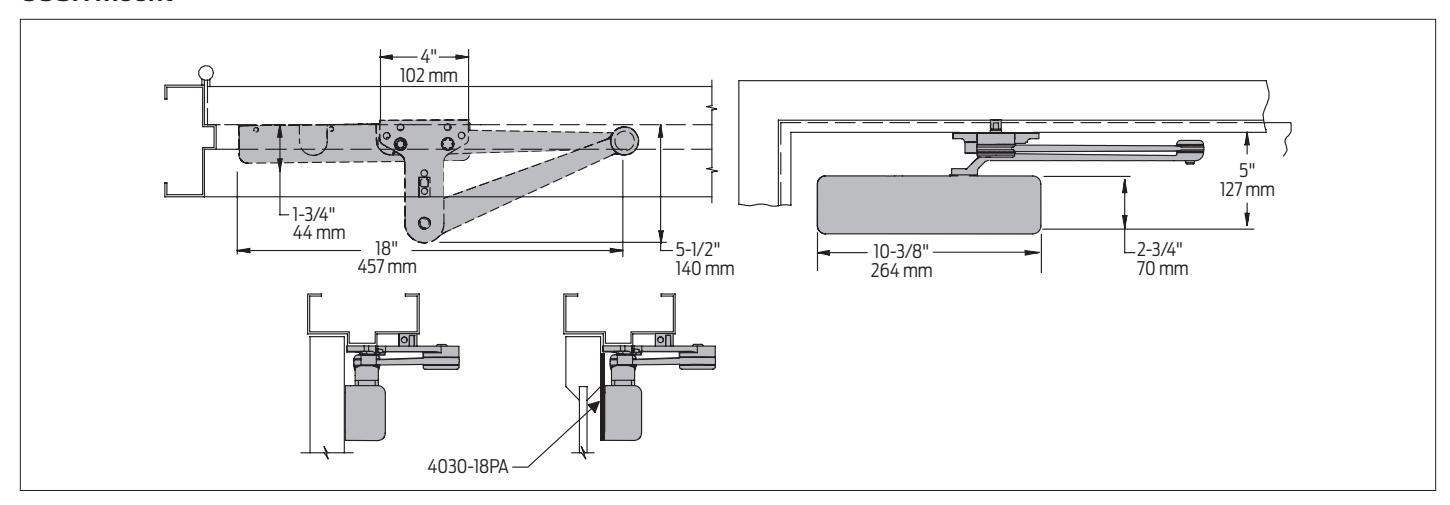

CUSH mount

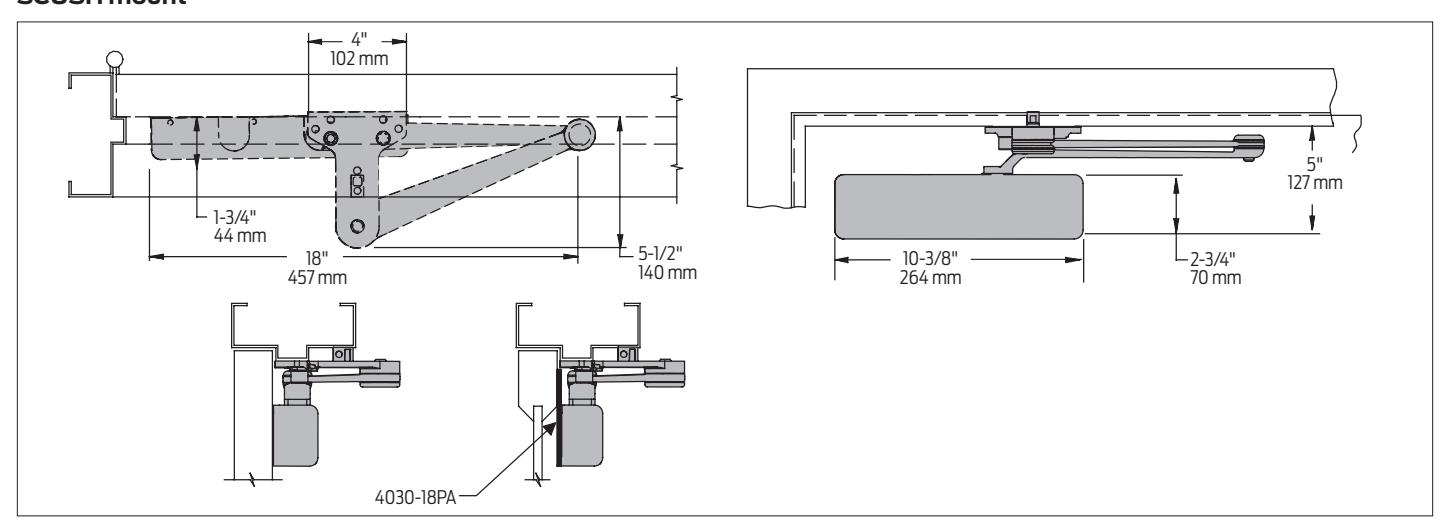

SCUSH mount

Specifications

Accessibility	Available with less than 5.0 lbs. opening force on 36˝ door
Certifications/	ƒ Grade 1 - ANSI A156.4
approvals	ƒ UL 10C
	ƒ Meets BAA - Buy American Act
Degree of	Hinge (pull) side
operation	Max opening: 180°
	Hold open: 180°
	Top jamb (push side) mount
	Max opening: 180°
	Hold open: 180°
	Parallel arm with 62PA
	Max opening: 180°
	Hold open: 180°
	EDA
	Max opening: 110°
	Hold open: 110°
	Cush and Spring cush
	Max opening: 100°
	Hold open: 100°
Environmental	ƒ Approved for interior use
conditions	ƒ Approved for exterior use (SRI coated only)
	ƒ LCN's standard all weather fluid performs to
	temperature ranges from 120°F (49°C) to
	-30°F (-35°C)
	ƒ LCN's powder coat finish surpasses 100 hours
	of salt spray which is over four times the ANSI
	standard for corrosion resistance.
Warranty	30 years
Standard	ƒ Cast iron body
features	ƒ Full complement bearing
	ƒ 1-1/8˝ diameter piston
	ƒ 1/2˝ diameter single heat treated pinion
	journal
