Drop Plates
4020, 4020T Installation Instructions

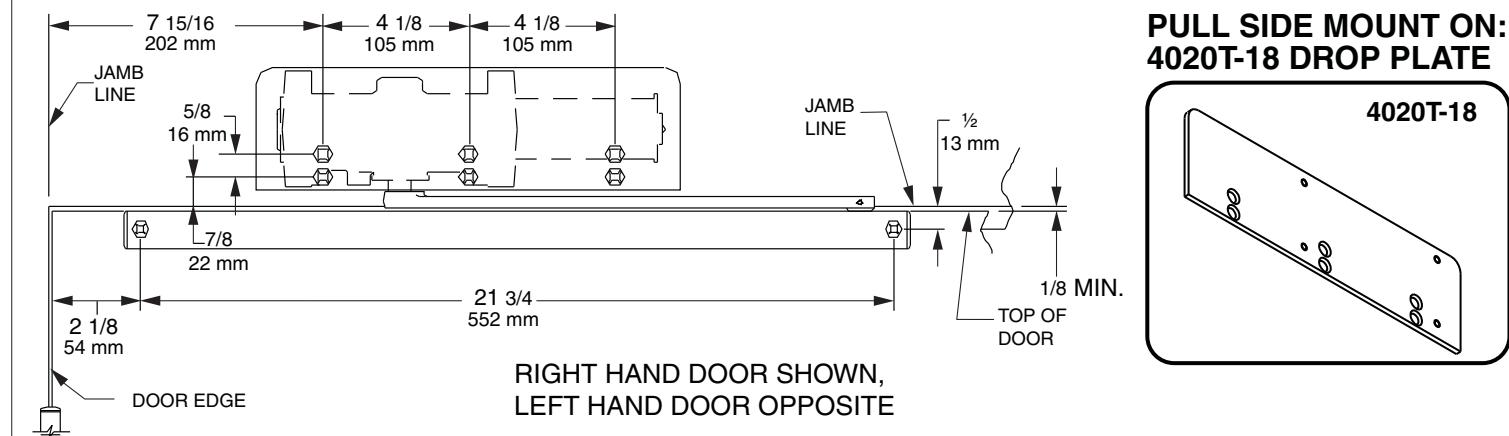

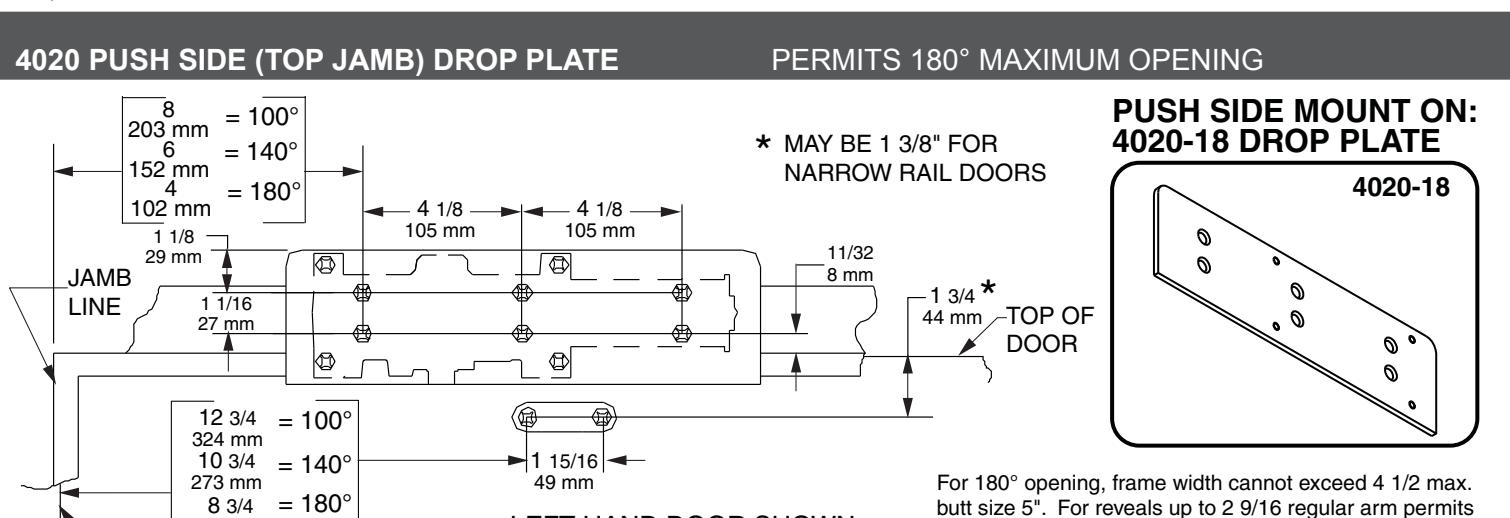

4020 PUSH SIDE (TOP JAMB) DROP PLATE
222 mm
DOOR EDGE

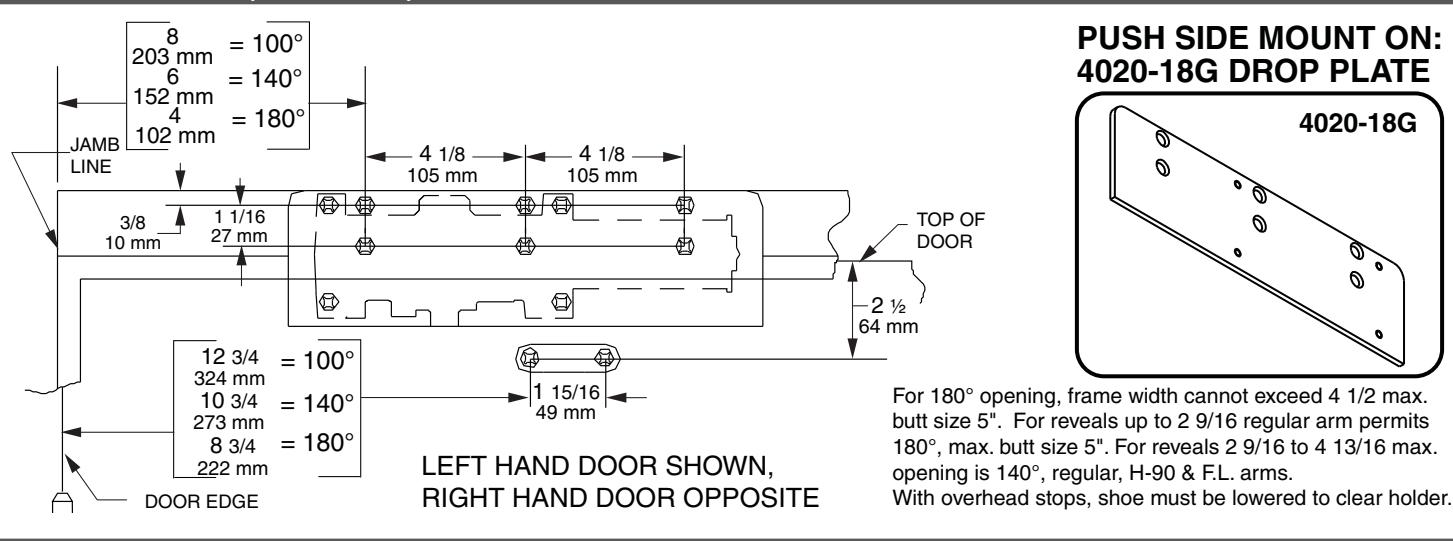

PERMITS 180° MAXIMUM OPENING
180°, max. butt size 5". For reveals 2 9/16 to 4 13/16 max.
opening is 140°, regular, H-90 & F.L. arms.
LEFT HAND DOOR SHOWN,
RIGHT HAND DOOR OPPOSITE
Customer Service
1-877-671-7011 www.allegion.com/us
| Additional Notes: | |
| 1. None | |
BEGINNING SHEET
| Revision History | Revision Description: | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Α | В | С | D | E | F | F > Revised artwork | ||||
| N/A | N/A | N/A | N/A | N/A | 043812 | ] | ||||
| Material | • | Edited By | Approved By | EC Number | Release Date | |||||
| White Paper | R. Byun | M. Sasso | 043812 | 01-01-14 | ||||||
| Notes | Title | |||||||||
| printed one side printed black | 4020 Series Drop Plate Instruction Sheet | |||||||||
| 3. tolerance ± .13 | Creation Date | Number | Revision | |||||||
|
04-27-10 | 28500 | F | |||||||
|
Created By
N/A |
Activity
3899 Hancock Expwy Security, CO 80911 |
|||||||||
| Software: InDesign CS6 | Allegion 2014 | |||||||||

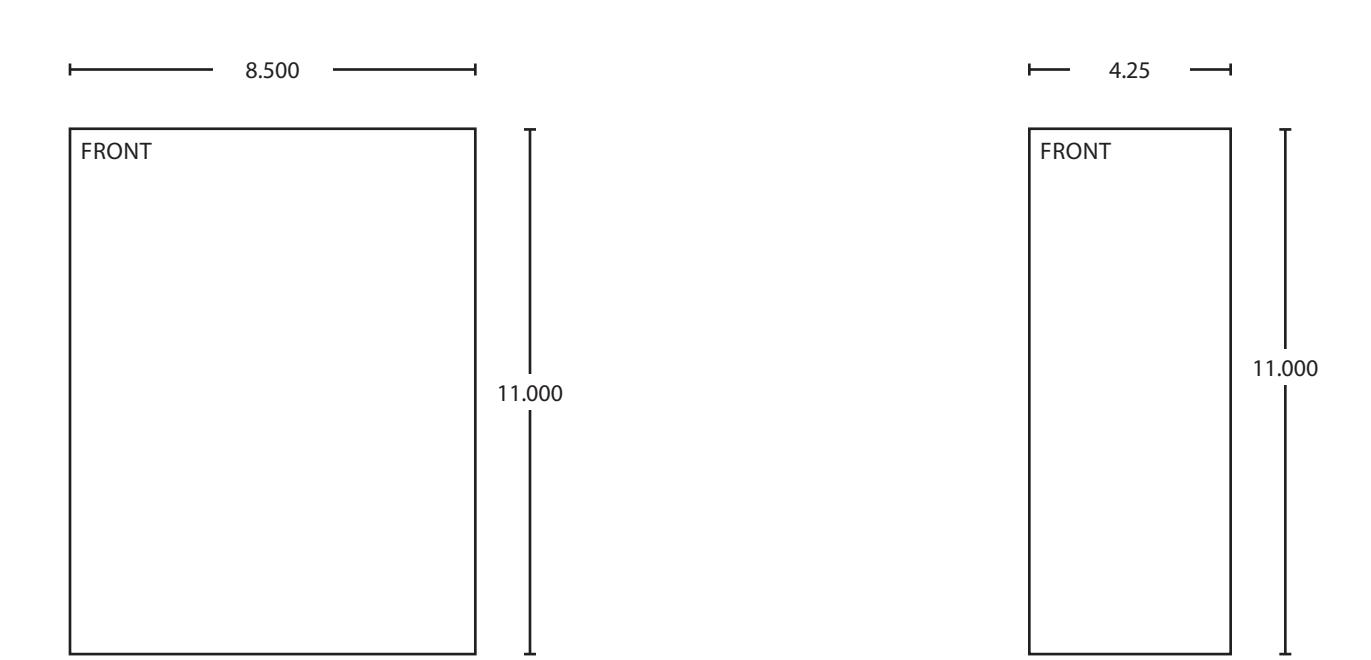

FOLDED SHEET
