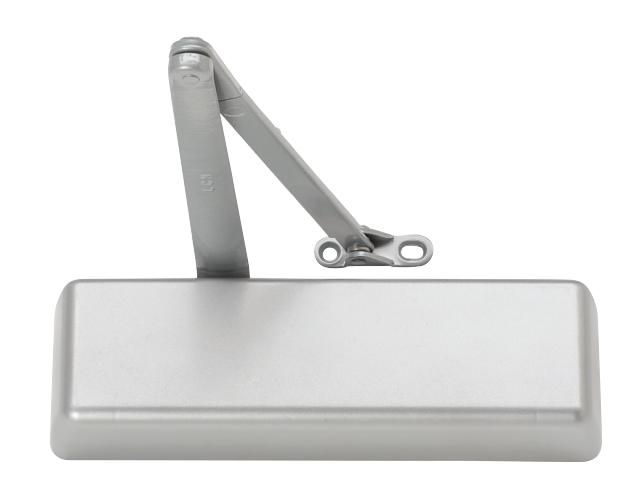

Surface mounted closer

4010 Series

Overview

The 4010 is LCN's best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Cylinder

4011(6)-3071

Cast iron cylinder assembly

Sizing Handing

Adjustable 1-5 or Sized 6 Handed

Adjustable size 1-5 - 4011

Size 6 - 4016

Available cylinder options

DEL Delayed action cylinder

Mounting

Hinge (pull side)

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

150+ additional custom colors available using the RAL numbering system

Metal plated fi nishes

632 Bright Brass

633 Satin Brass

639 Satin Bronze

643e Satin Bronze, Blackened

646 Satin Nickel

651 Bright Chrome

652 Satin Chrome

Available fi nish options

MTLPC	Brite metallic: Custom powder coat fi nish, which
	resembles that of US26 or US26D plated fi nish.
SRI	For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

Standard cover

4010-72 Plastic cover

Non-handed

Optional covers

4010-72MC Metal cover

• Handed
• Required for plated fi nishes and custom powder coat fi nishes
• Optional

Arms

4010-3077 Regular arm

Non-handed

4010-3049 Hold-open arm

• Handed
• Provides hold-open function, adjustable at elbow
• Optional

4010-3049FL Fusible link arm

• Handed
• Releases hold-open function when exposed to temperatures above 165° F. 1/8˝ (3 mm) maximum reveal
• Optional
• NOTE: Check local codes before specifying FL arms. NOT A life safety product!

Installation accessories

4010-18

Plate

• Required where top rail is less than 3-3/4˝ (95 mm)
• Requires minimum 2˝ (51 mm) top rail

Fasteners

Self-reaming and tapping screws included standard

Fastener pack options

TBSRT	TB1 with self-reaming and tapping screws
WMS	Wood and machine screw
TBWMS	TB1 , wood and machine screw
TORX	TORX machine screw
TBTORX	TB1 and TORX machine screw

₁ Specify door thickness if other than 1-3/4˝

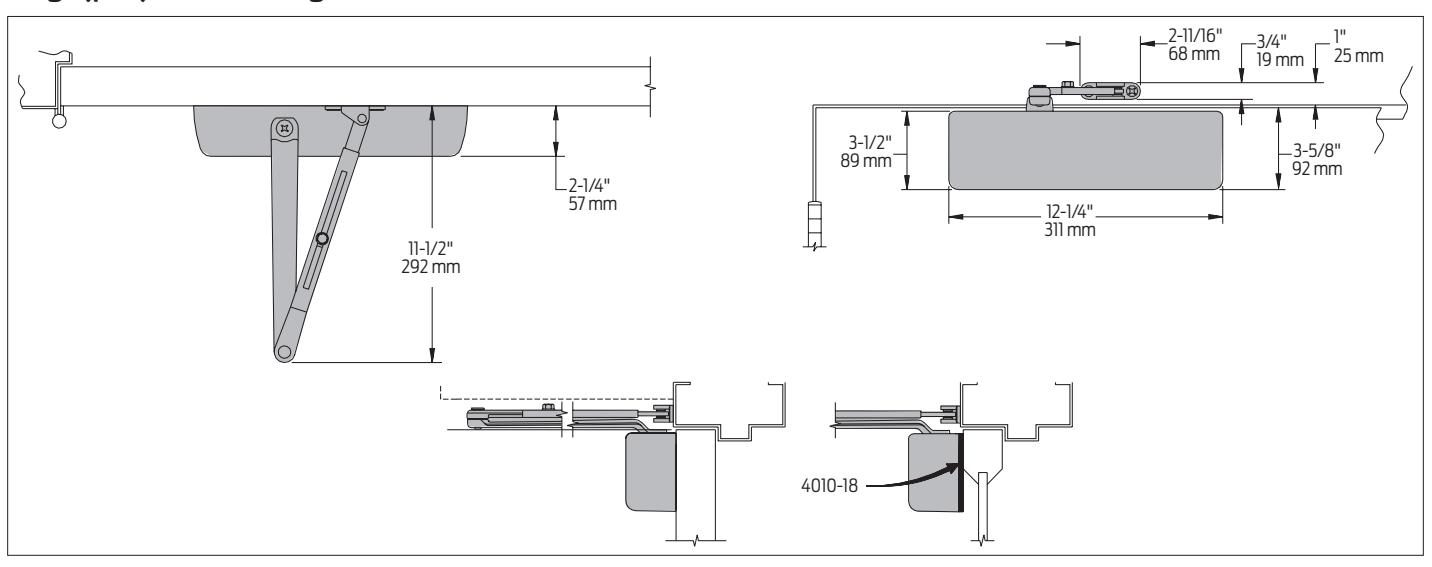

Dimensions and mounting

Hinge (pull) side mounting

Specifications

Accessibility	Available with less than 5.0 lbs. opening force on 36˝ door
Certifications/ approvals	ƒ Grade 1 - ANSI A156.4 ƒ UL 10C ƒ Meets BAA - Buy American Act
Degree of operation	Hinge (pull) side Max opening: 140° Hold open: 140°
Environmental conditions	ƒ Approved for interior use ƒ Approved for exterior use (SRI coated only) ƒ LCN's standard all weather fluid performs to temperature ranges from 120°F (49°C) to -30°F (-35°C) ƒ LCN's powder coat finish surpasses 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.
Warranty	30 years
Standard features	ƒ Cast iron body ƒ Full complement bearing ƒ 1-1/2˝ diameter piston ƒ 11/16˝ diameter double heat treated pinion journal
