LCN 4010 4010T 4510 4510T Series Drop Plate Installation Instructions 107177

Open the original PDF document

View PDF

Drop Plates

4010, 4510 Templates

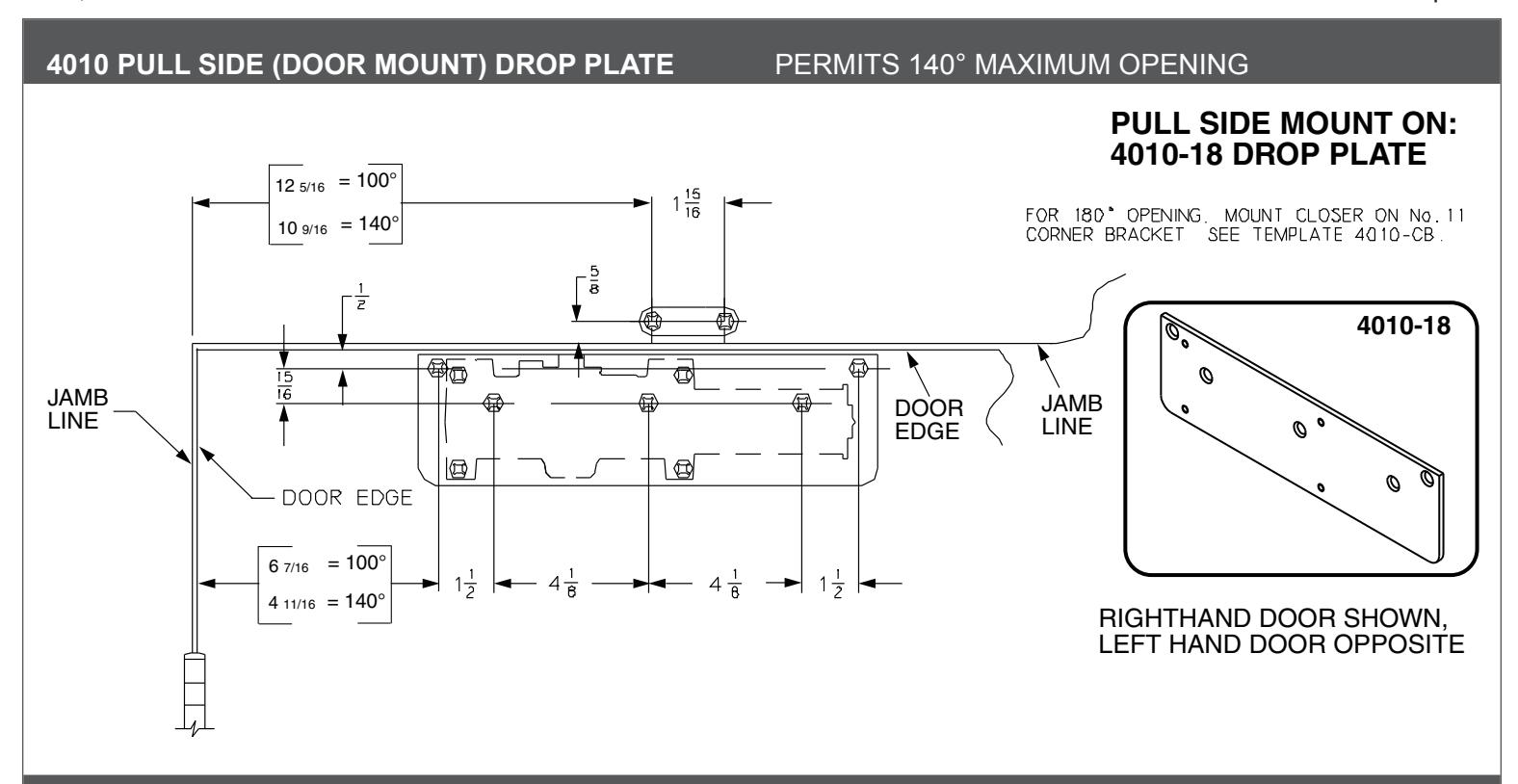

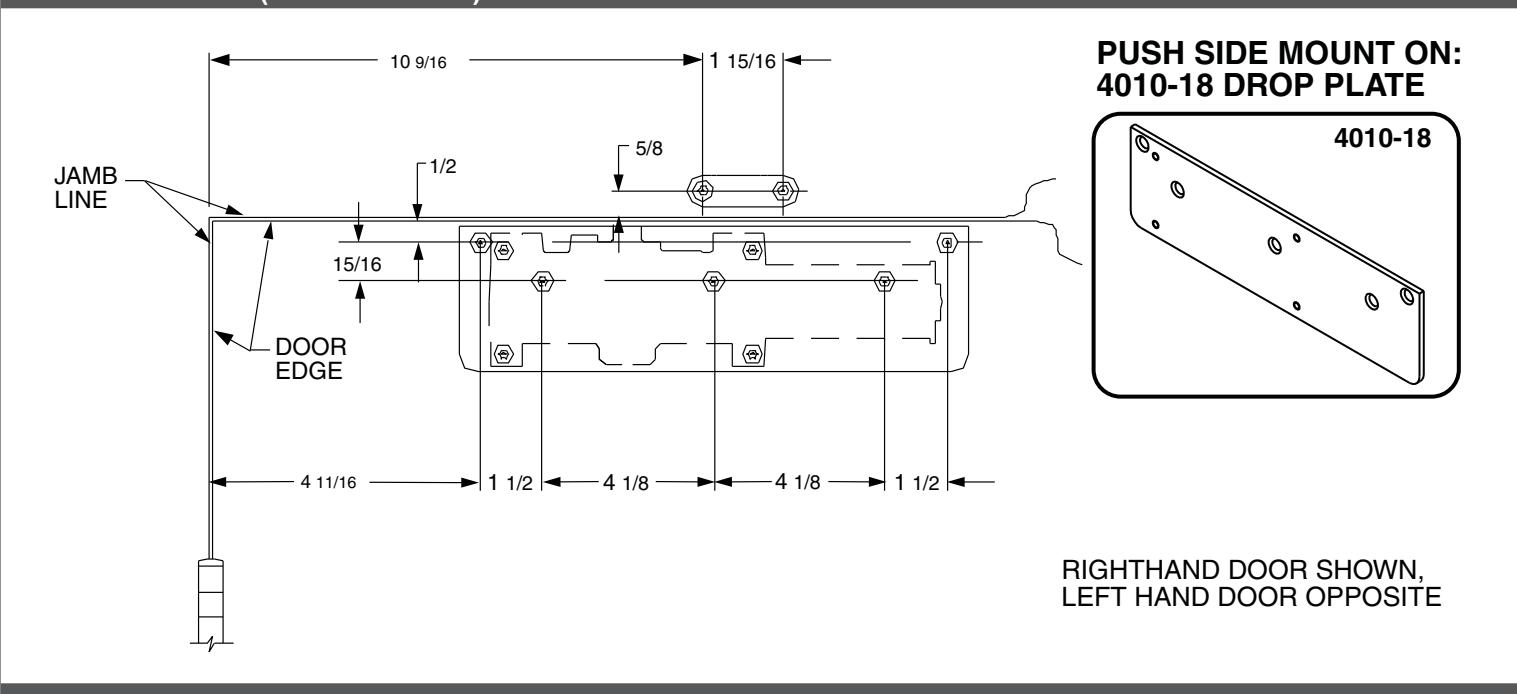

4510 PULL SIDE (DOOR MOUNT) DROP PLATE

PERMITS 140° MAXIMUM OPENING

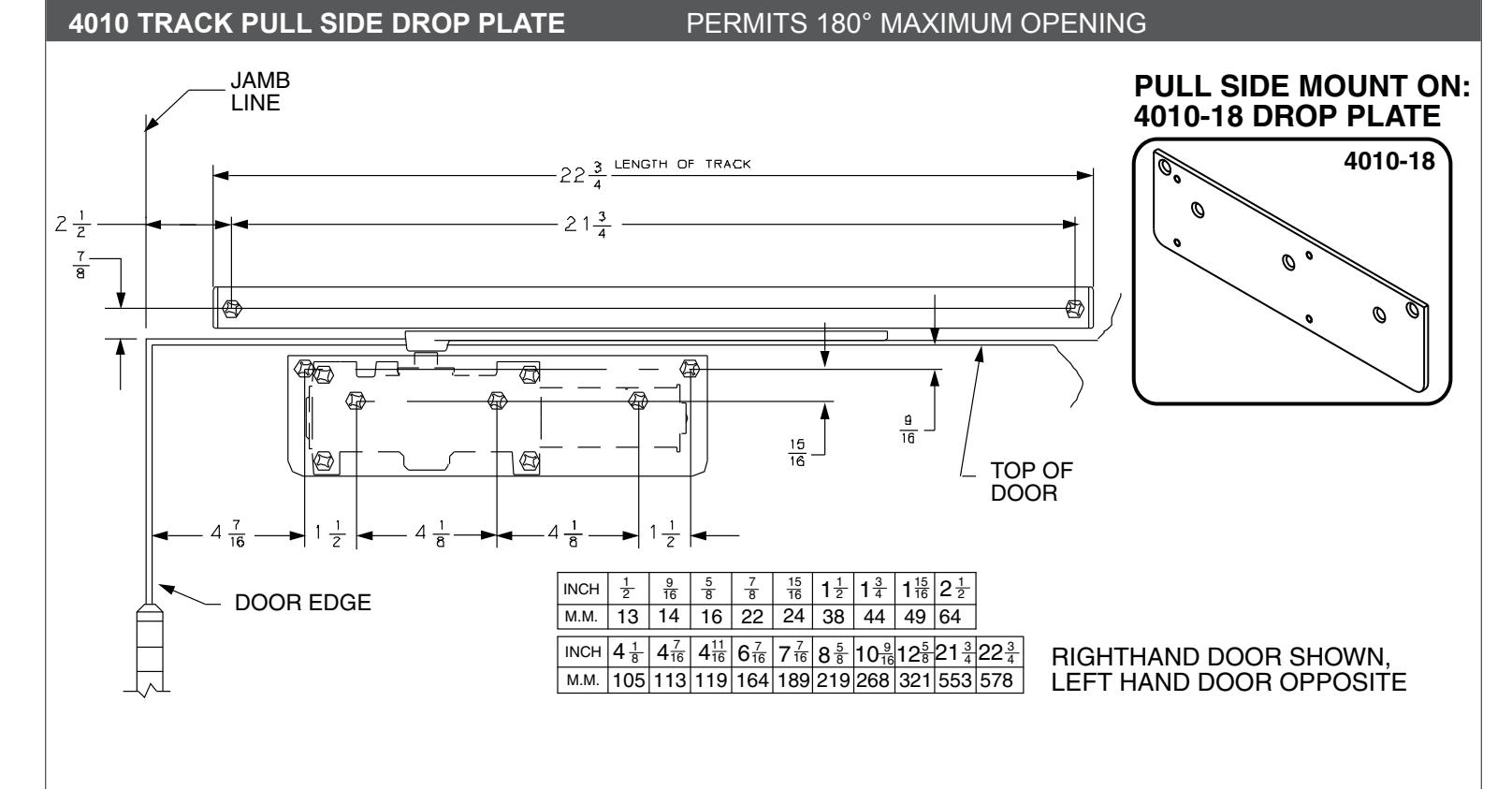

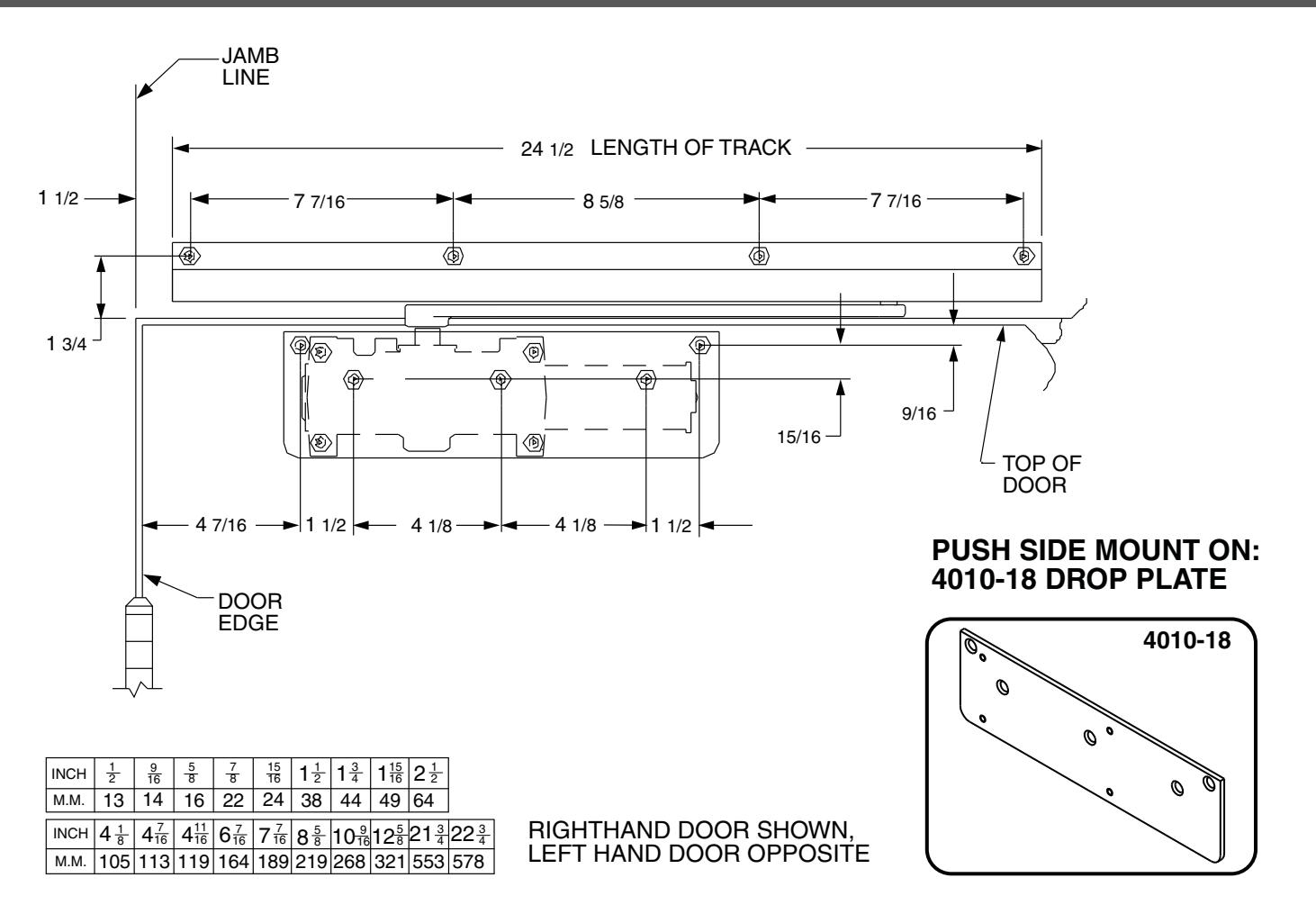

4510 TRACK PULL SIDE DROP PLATE

PERMITS 180° MAXIMUM OPENING

Additional Notes:
1. None
Revision History Revision Description:
Α В С D Е F E > Revised artwork
N/A N/A N/A 043812
Material Edited By Approved By EC Number Release Date
White Paper J. Ellis M. Roberts 06-09-15
1. printed two sides Title 4010 & 4510 Series Drop Plate Instruction Sheet
3. tolerar
4. printed
  1. printed black
  2. tolerance ± .13
  3. printed in country may vary
  4. drawings not to scale
Creation Date
04-27-10 		Number 28499 Revision
E
J. ulawii Created By
N/A 		Activity
3899 Hancock Expwy
Security, CO 80911
Software: InDesign CS6 Allegion 2015
