4003T/4004T

Installation Instructions

1 Installation

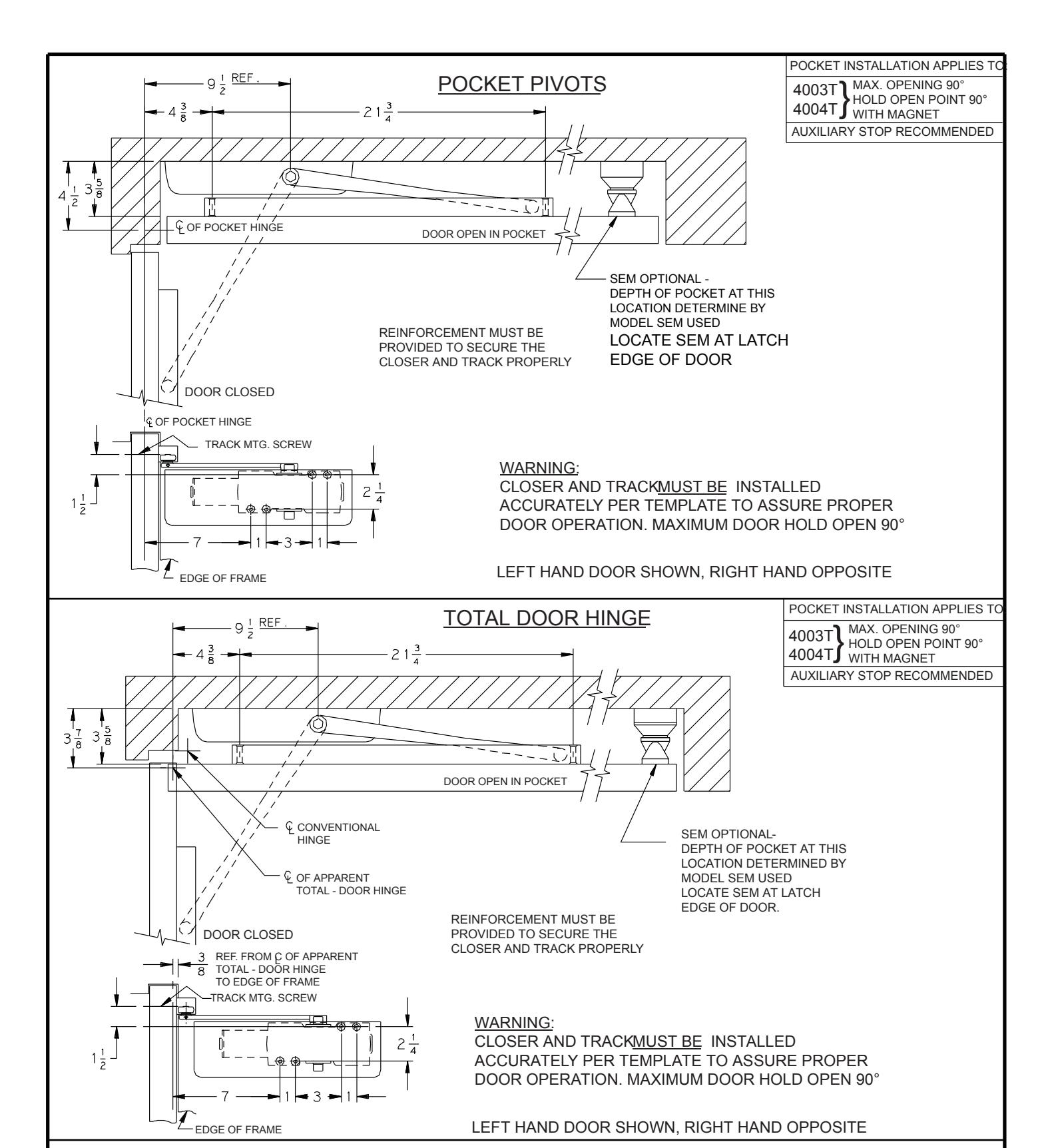

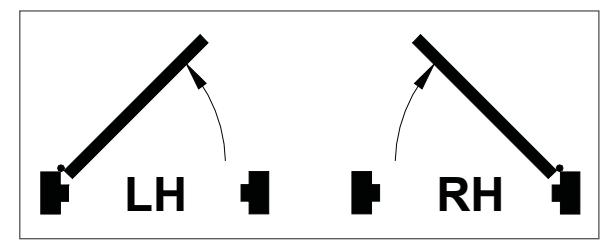

• 1a The 4000T Model is for a 90° Pocket Installation only. Determine required template for your installation, (see following pages) and mount closer on wall to dimensions shown. Secure with screws provided.

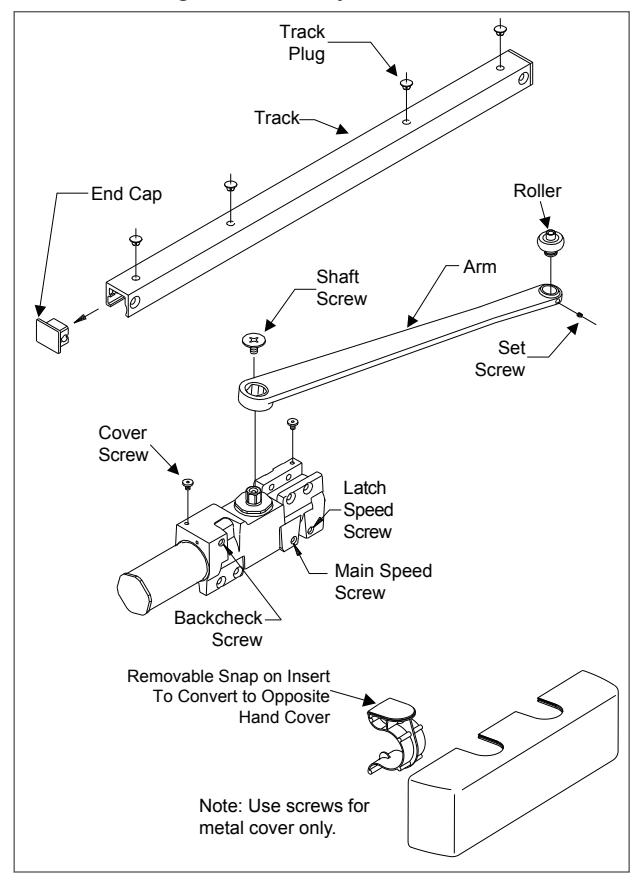

• 1b Remove end cap from track, and insert track roller. Replace end cap, then mount track on door to dimensions shown. Secure with screws provided. Place track plugs in holes on top of track.
• 1c Loosen set screw in arm. Connect arm to track roller, and tighten set screw firmly. DOOR MUST REMAIN IN CLOSED POSITION FOR

FOLLOWING ASSEMBLY STEPS.

• 1d Swing arm toward closer and rest the hub of the arm on top of the closer shaft.
• 1e Place a wrench on the bottom shaft of the closer, and rotate away from the hinge (approx. 30°). When the flats in the arm line up with first available flats of the shaft, slide the arm hub over the shaft. Insert the shaft screw and tighten securely.

Customer Service

1-877-671-7011 www.allegion.com/us

2 Regulation

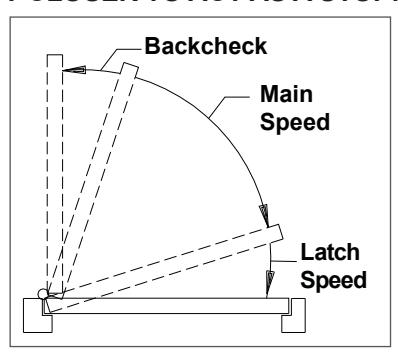

Do not allow door to slam into frame. A "normal" closing time from a 90° position is 5 to 7 seconds, equally divided between MAIN SPEED and LATCH SPEED. If adjustments are needed, use a 3/32" hex wrench. To adjust MAIN SPEED, turn regulating screw clockwise to slow door speed or c.c.w. increase speed. LATCH SPEED is adjusted in the same way. When adjusting the BACKCHECK, turn regulating screw clockwise to increase amount of force or c.c.w. to reduce the amount of force.

DO NOT USE ABRUPT BACKCHECK SETTING OR EXCEPT CLOSER TO ACT AS A STOP!

3 Attach Cover

3a With regulation done, place snap on clip insert into proper cutout then snap cover assembly onto spring tube.

A CAUTION A

Improper installation or regulation may result in personal injury or property damage. Follow all instructions carefully. For questions, call LCN at 877 - 671 - 7011

WARNING

Do not remove spring tube from this product extremely strong springs inside if repairs as necessary return to factory.

© Allegion 2014 Printed in U.S.A. 19580 Rev. 01/14-h

GENERAL NOTES:

• 1. CLOSER SIZE: 12 1/4 x 3 1/2 x 2 5/32.

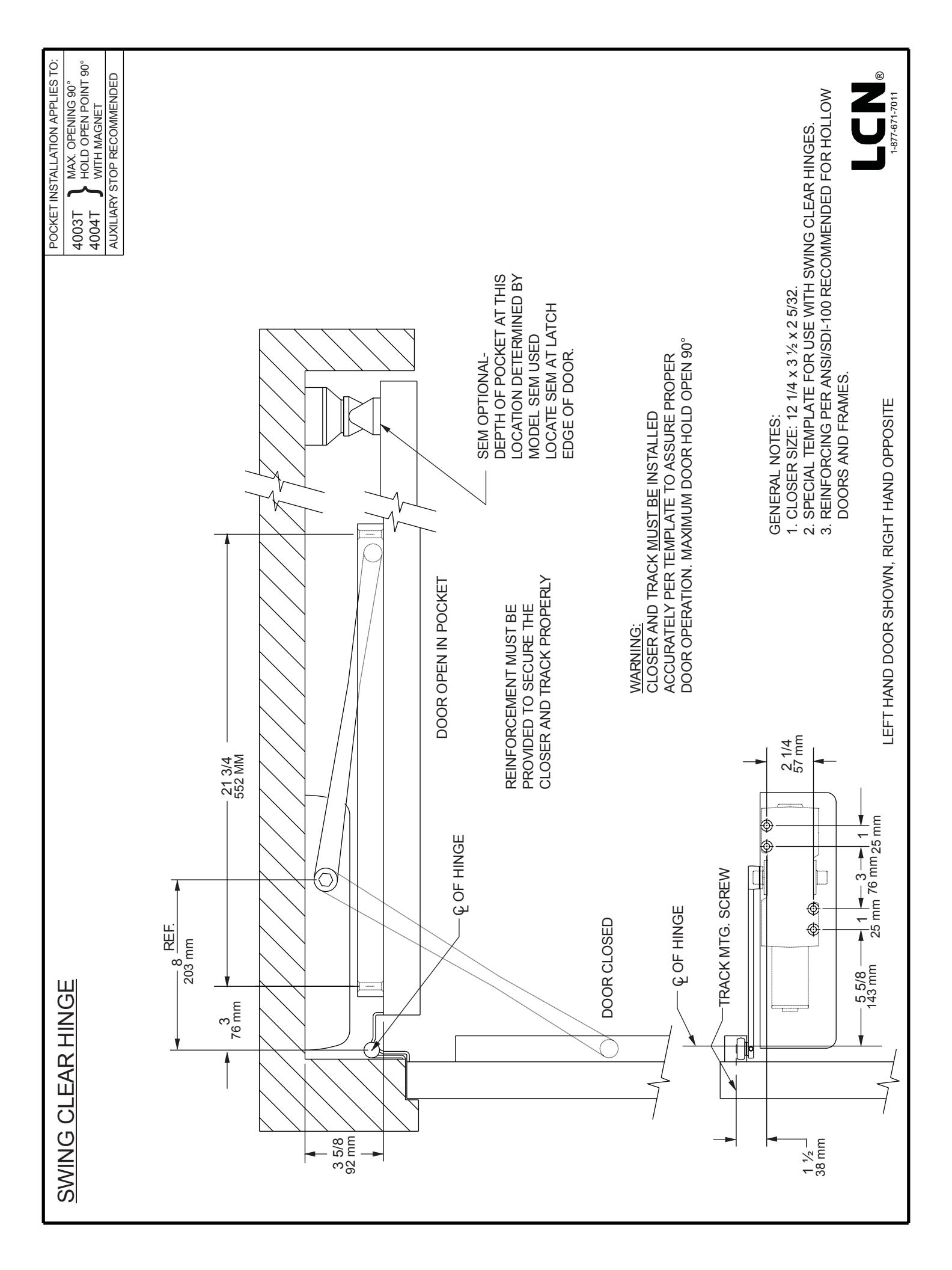

• 2. SPECIAL TEMPLATE FOR USE WITH SWING CLEAR HINGES.
• 3. REINFORCING PER ANSI/SDI-100 RECOMMENDED FOR HOLLOW DOORS AND FRAMES.

INCH	1/4	3 8	1	1 1/2	2 1 8	$2\backslash frac\{5\}\{32\}$	2 1/4	$2\backslash frac\{3\}\{8\}$	$2\backslash frac\{7\}\{8\}$
M.M.	6	10	25	38	54	55	57	60	73
INCH	3	3 1/2	3 5 8	3 7/8	4 3/8	4 1	7	9 1/2	121	2 1 3
М.М.	76	89	92	98	112	114	178	241	311	552

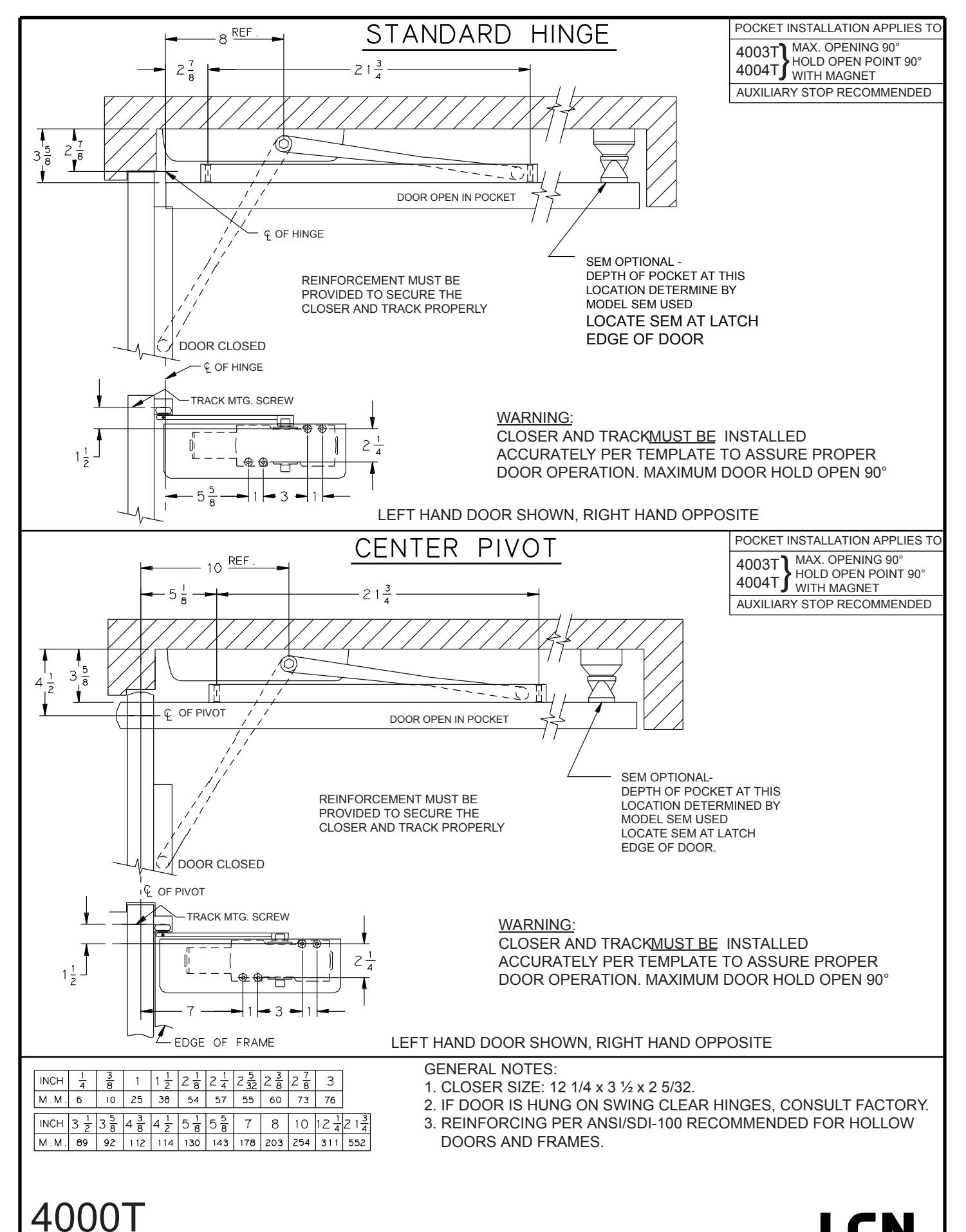

4000T

PULL SIDE MOUNT FOR 90° INSTALLATION

Additional Notes:
1. None

	Revision History					Revision Description:
Н	J	K	L	М	N	H > Revised artwork
043228
Material	Material White Paper					Edited By	Approved By	EC Number	Release Date
						D. Myers	M. Sasso	043228	01-01-14

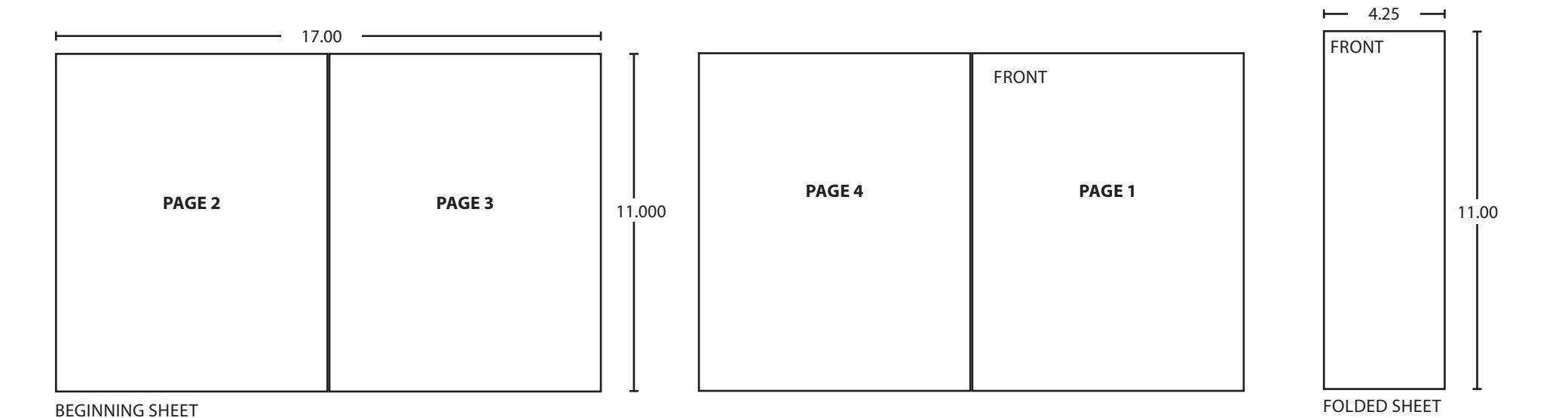

Notes	Notes 1. printed two sides 2. printed black 3. tolerance ± .13					Title
