Surface mounted closer

4000T Series

Overview

The 4000T is a heavy duty closer to reliably control fire and smoke barrier doors with maximum swing of 90°. Designed for use with an SEM 7850 wall magnet.

Cylinder

4003(4)T-3071

Cast iron cylinder assembly

Sizing Sized 3 or 4 Handing Non-handed

4003T 4004T

Available cylinder options

DEL	Delayed action cylinder
AVB	Advanced variable backcheck

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

696 Brass

150+ additional custom colors available using the RAL numbering system

Metal plated fi nishes

632 Bright Brass

633 Satin Brass

639 Satin Bronze

643e Satin Bronze, Blackened

646 Satin Nickel

651 Bright Chrome

652 Satin Chrome

Available fi nish options

MTLPC	Brite metallic: Custom powder coat fi nish, which resembles that of US26 or US26D plated fi nish.
SRI	For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

Standard cover

4000T-72 Plastic cover

Non-handed

Optional covers

4000T-72MC Metal Cover

Handed

• Required for plated fi nishes and custom powder coat fi nishes
• Optional

Arms

4000T-3077T

Standard Arm

• Non-handed
• Roller not included with arm

Tracks

4000T-3038 Standard Track

• Non-handed
• Non hold-open
• Will not accept hold-open clip or bumper assembly
• Standard

4000T-3034

Track Roller

• Quiet, low friction roller assembly
• Shoulder Dimension "X"= 1/8˝ (3 mm)

Fasteners

Self-reaming and tapping screws included standard

Fastener pack options

TBWMS	TB1 , wood and machine screw
TORX	TORX machine screw
TBTORX	TB1 and TORX machine screw

₁ Specify door thickness if other than 1-3/4˝

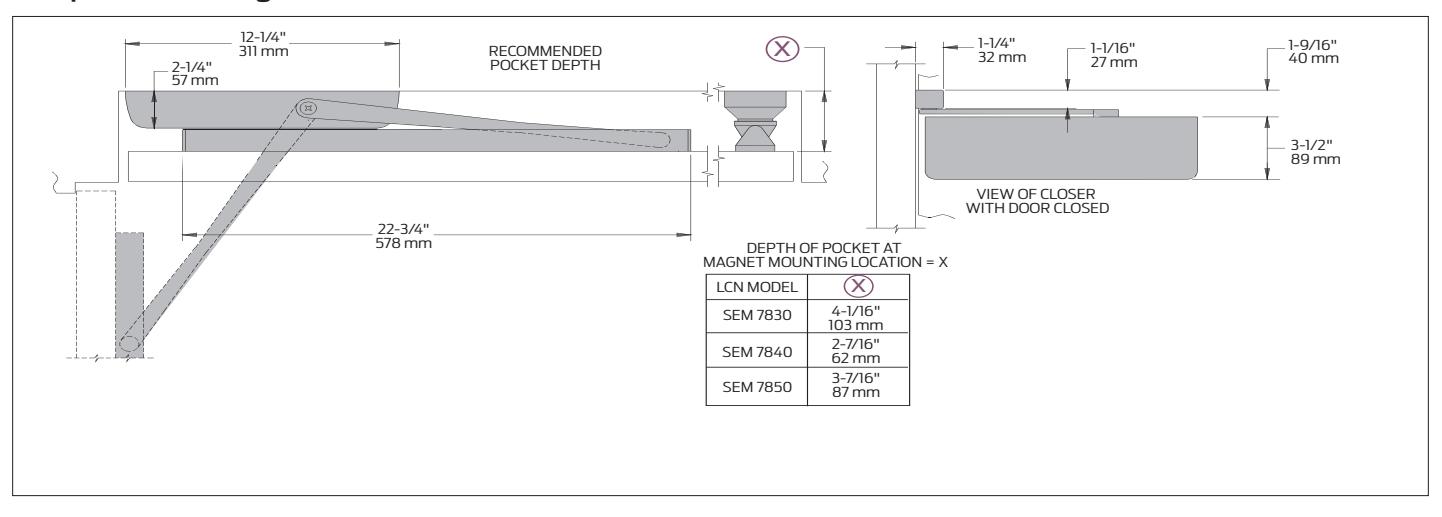

Dimensions and mounting

Wall pocket mounting

Specifications

Accessibility	Available with less than 5.0 lbs. opening force on 36˝ door
Certifications/ approvals	ƒ Grade 1 - ANSI A156.4 ƒ UL 10C ƒ Meets BAA - Buy American Act
Degree of operation	Wall pocket mount Max opening: 90° Hold open: 90° with magnet
Environmental conditions	ƒ Approved for interior use ƒ Approved for exterior use (SRI coated only) ƒ LCN's standard all weather fluid performs to temperature ranges from 120°F (49°C) to -30°F (-35°C) ƒ LCN's powder coat finish surpasses 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.
Warranty	30 years
Standard features	ƒ Cast iron body ƒ Full complement bearing ƒ 1-1/2˝ diameter piston ƒ 3/4˝ diameter double heat treated pinion journal
