4000 Series

Metal templates for easy installation

Overview

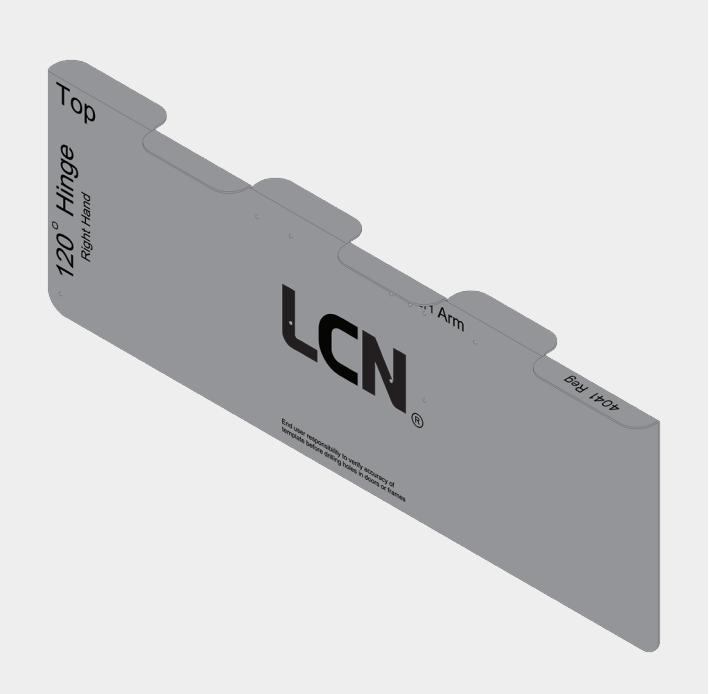

Reduce installation time with more consistent and accurate pre-drilling using the LCN metal installation template. The use of the template takes the guessing out of installing a door closer by adding labeled dimensions as well as eliminating the use of a paper template that could shift during the door prep. These metal installation templates accommodate several different types of installation from pull side of the door to push side by providing easy to read labels on the template.

Features and benefits

• § Reduced installation time with accurate markings on metal installation templates
• § Pre-marked drilling holes on templates take the guess work out of the installation process
• § More consistent installation with easy to read labeling
• § Metal installation templates eliminate worry about paper template shifting

Templates and kits

There are kits available to purchase, as well as the ability to purchase a single template; each sold separately.

Description	Part number
4040XP Metal template kit Four (4) template kit (includes 4040XP 107REG, -107PA, -107EDA and -107CUSH)	4040XP-3107
4040XP Metal template – REG (regular arm only)	4040XP-107REG
4040XP Metal template – Rw/PA (regular arm w/PA only)	4040XP-107PA
4040XP Metal template – EDA (extra duty arm only)	4040XP-107EDA
4040XP Metal template – CUSH (Cush-n-Stop arm only)	4040XP-107CUSH
4110 Metal template kit Two (2) template kit (includes 4110-107EDA and -107CUSH)	4110-3107
4110 Metal template – EDA (extra duty arm only)	4110-107EDA
4110 Metal template – CUSH (Cush-n-Stop arm only)	4110-107CUSH
4010 Metal template – REG (regular arm only)	4010-107REG
