LCN 1461 Designer Series Cover Installation Instructions 107158
Open the original PDF document
View PDF
Designer Series Cover
1461 Series Installation Instructions

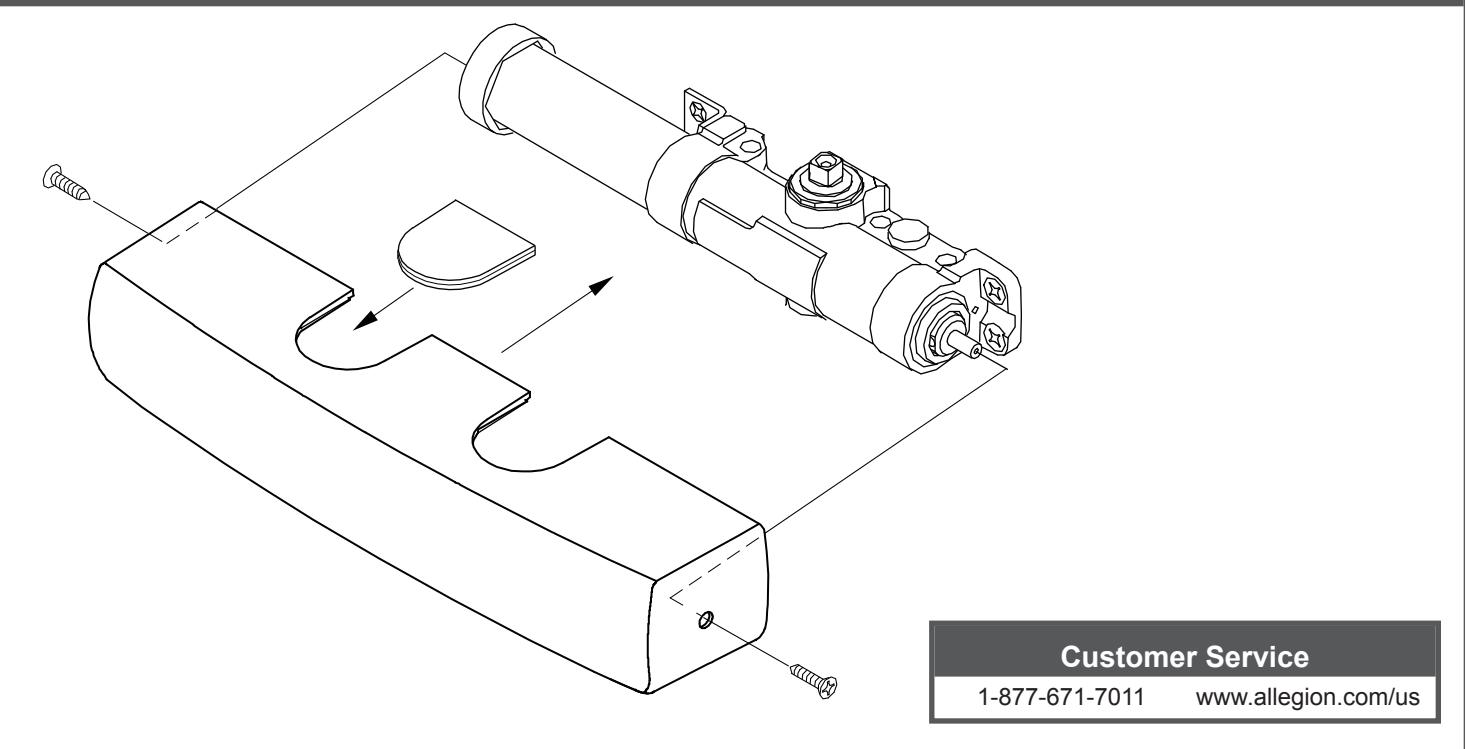

- 2 Fit insert into proper cutout in cover.
- 3 Fit cover over closer body, aligning holes in ends of cover with holes in cover adapters.
4 Insert & tighten screws provided.
