LCN 1460 Parallel Arm Template

Mounting details

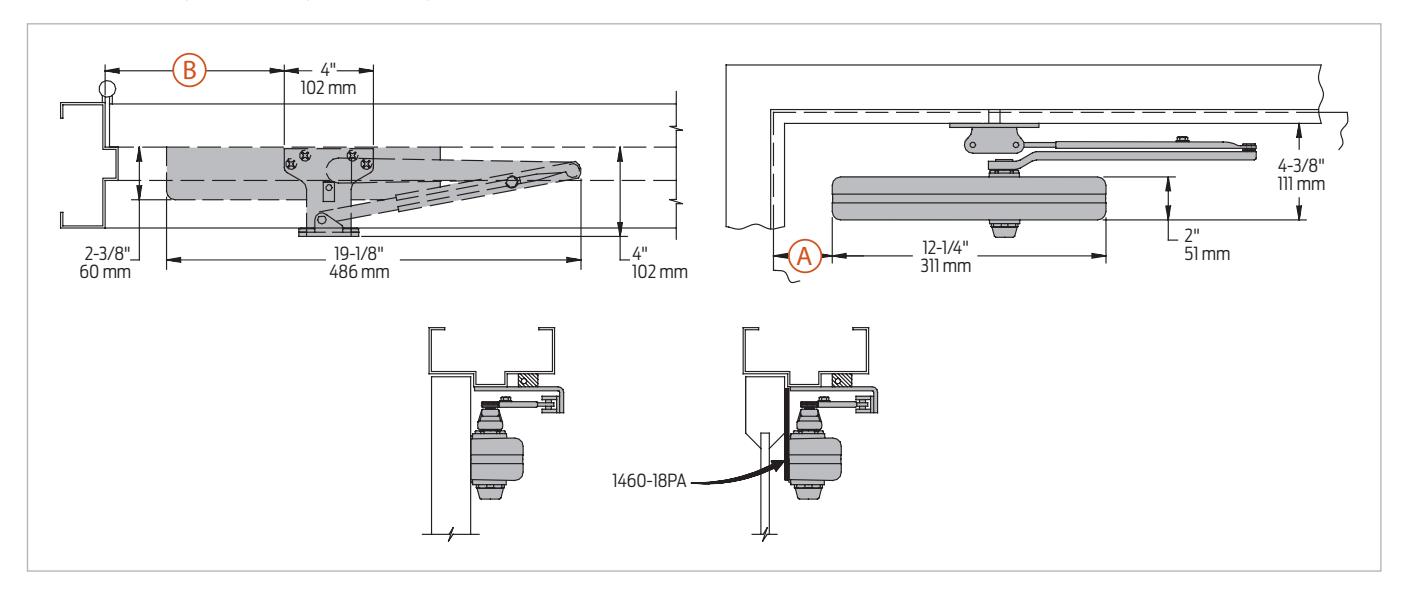

Parallel arm (push side) mounting

Butt hinges	Should not exceed 5" (127 mm) in width
Auxiliary stop	Recommended at hold open point, where a door cannot swing 180°, or where Cush-n-Stop Arm is not used
Top rail	ƒ Less than 4 3⁄8" (111 mm) measured from the stop requires plate, 1460-18PA.
	With Full Cover, use plate, 1460-18PAFC
	ƒ Plate requires 1 3⁄4" (44 mm) minimum. Plate requires 1 1 ⁄4" (32 mm) minimum
	ƒ With Designer Series Metal Cover, use plate, 1460-18PADS1
Clearance	1460-62PA shoe projects 4" (102 mm) from door face
Head frame	Flush or single rabbeted requires PA shoe adapter, 1460-419
Stop width	Minimum 1" (25 mm)
Blade stop	Clearance, requires 1 ⁄2" (13 mm) blade stop spacer, 1460-61
Auxiliary shoe	ƒ 1460-62A allows installation of regular arm with overhead holder/stop
	ƒ Special templating required
Delay action	ƒ Add suffix "CYLDEL" to selected cylinder
	ƒ Delays closing from maximum opening to approximately 75°
	ƒ Delay time adjustable up to approximately 1 minute
Maximum opening	Regular or Hold Open Arm can be templated to
	100°: A = 4 1 ⁄4" (108 mm)
	B = 9 1 ⁄4" (235 mm)
	or 180°: A= 1 3⁄4" (44 mm)
	B = 6 3⁄4" (171 mm)

Notes: Hold open points up to maximum opening with Hold Open Arm. Optional mounting requires PA shoe, 1460-62PA for Regular or Hold Open Arms. Add prefix "P" to closer description (e.g. P1460). P1460 closer includes 1460-201 fifth hole spacer to support PA shoe.
