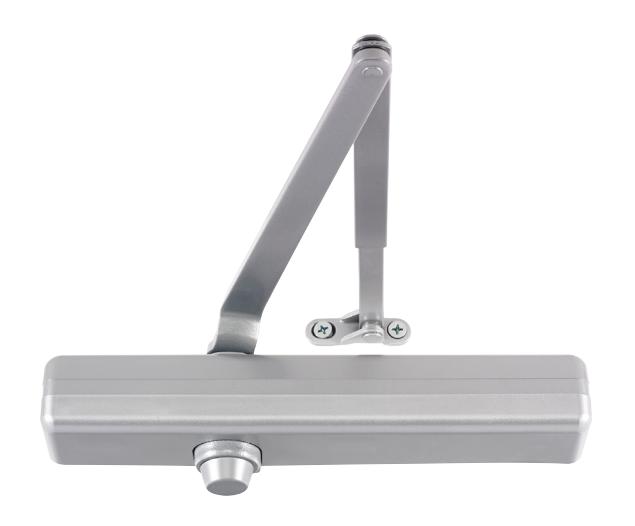

Surface mounted closer

1460 Series

Overview

Designed for maximum versatility, the 1460, available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and fast and accurate installation.

Cylinder

1461-3071

Cast iron cylinder assembly

Handing Sizing

Non-handed Adjustable spring size 1-6

Includes patented Green Dial

Mounting

Hinge (pull side) Top jamb (push side)

Parallel arm (push side)

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

696 Brass

150+ additional custom colors available using the RAL numbering system

Available fi nish options

MTLPC	Brite metallic: Custom powder coat fi nish, which resembles that of US26 or US26D plated fi nish.
SRI	For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

Standard cover

1460-72 Slim line plastic cover

Non-handed

Optional covers

1460-72FC Full plastic cover

• Non-handed
• Optional

1460-72DS

Designer series metal cover

• Non-handed
• Provides complete enclosure with a stylish look
• Required for plating and custom powder coat option
• Optional

Arms

1460-3077 Regular arm

• Non-handed
• Mounts hinge side or top jamb
• P1460 closer includes PA SHOE, 1460-62PA required for parallel arm mounting

1460-3077L Long arm

• Non-handed
• Includes LONG ROD AND SHOE, 1460-79LR for top jamb mount with deep reveals
• Optional

1460-3077HD Heavy duty regular arm

• Non-handed
• Mounts hinge side, top jamb or parallel arm
• Optional

1460-3077HDL Heavy duty long arm

• Non-handed
• Includes long rod and shoe, 1460-79LR for top jamb mounts with deep reveals
• Optional

1460-3049 Hold-open arm

• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold-open adjustable at shoe
• Optional

1460-3049L Long hold-open arm

• Non-handed
• Includes LONG HEAD AND TUBE, 1460-3048L for top jamb mount with deep reveals
• Optional

1460-3077EDA Extra duty arm

• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• Optional 1460-3077EDA/62G for blade stop clearance

1460-3077EDA/62G Extra duty arm with 62G

• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations

1460-3049EDA Hold-open extra duty arm

• Handed
• Provides hold-open function adjustable at shoe
• Optional

1460-3077CNS Cush-n-Stop® Arm

• Non-handed
• Features solid forged steel main arm and forearm with stop in soffi t shoe
• Optional

1460-3049CNS HCUSH Arm

• Non-handed
• Provides hold-open function with templated stop/holdopen points
• Handle controls hold-open function
• Optional

1460-3077SCNS Spring CUSH arm

• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffi t shoe
• Optional

Arms

1460-3049SHCNS Spring HCUSH arm

• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffi t shoe. Handle controls hold-open function
• Optional

Installation accessories

1460-18

Plate

• Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
• Required for top jamb mounting where head frame is less than 1-3/4˝ (44 mm) or fl ush ceiling condition exists
• Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame
• With full cover, use plate 1460- 18FC
• With Designer Series metal cover use plate 1460-18DS1

1460-18PADS1 Plate

• Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm), measured from the stop
• Requires 1-3/4˝ (44 mm) minimum top rail
• With full cover, use plate 1460-18PAFC
• For use with Designer Series metal cover

1460-18DS1

Plate

• Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
• Required for top jamb mounting where head frame is less than 1-3/4˝ (44 mm) or fl ush ceiling condition exists
• Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame
• For use with Designer Series metal cover
• Will not work in top jamb application

1460-18PAFC Plate

• Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm), measured from the stop
• Requires 1-3/4˝ (44 mm) minimum top rail
• For use with full cover
• With Designer Series metal cover, use plate 1460- 18PADS1

1460-18FC Plate

• Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
• Required for top jamb mounting where head frame is less than 1-3/4˝ (44 mm) or fl ush ceiling condition exists
• Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame
• For use with full cover
• With Designer Series metal cover, use plate 1460-18DS1
• Will not work in top jamb application

1460-30 Cush shoe support

Provide anchorage for fi ft h screw used with CUSH arm where reveal is less than 3-1/16˝ (78 mm)

1460-18PA

Plate

• Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm), measured from the stop
• Requires 1-3/4˝ (44 mm) minimum top rail
• With full cover, use plate 1460-18PAFC
• With Designer Series metal cover, use plate 1460- 18PADS1

1460-30A

Mounting bracket

• Bracket to be used when installing cylinder body
• Included with cylinder when ordered

Installation accessories

1460-61 Blade stop spacer

Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

1460-62A Auxiliary shoe

• Requires a top rail of 7˝ (178 mm)
• Optional shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop

1460-419 PA fl ush panel adapter

Provides horizontal mounting surface for PA, EDA, or CUSH shoe on single rabbeted or fl ush frame

1460-62PA PA shoe

Required for parallel arm mounting

Fasteners

Self-reaming and tapping screws included standard

Fastener pack options

TBSRT	TB1 with self-reaming and tapping screws
WMS	Wood and machine screw
TBWMS	TB1 , wood and machine screw
TORX	TORX machine screw
TBTORX	TB1 and TORX machine screw

₁ Specify door thickness if other than 1-3/4˝

Dimensions and mounting

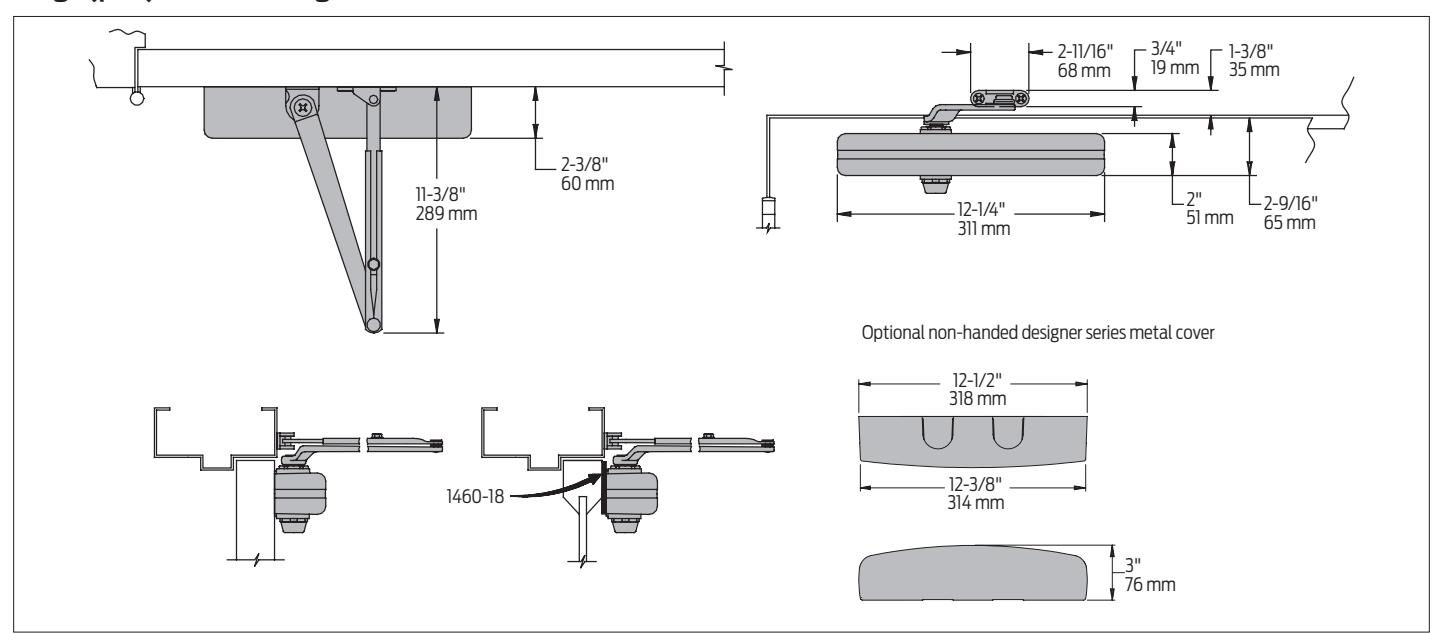

Hinge (pull) side mounting

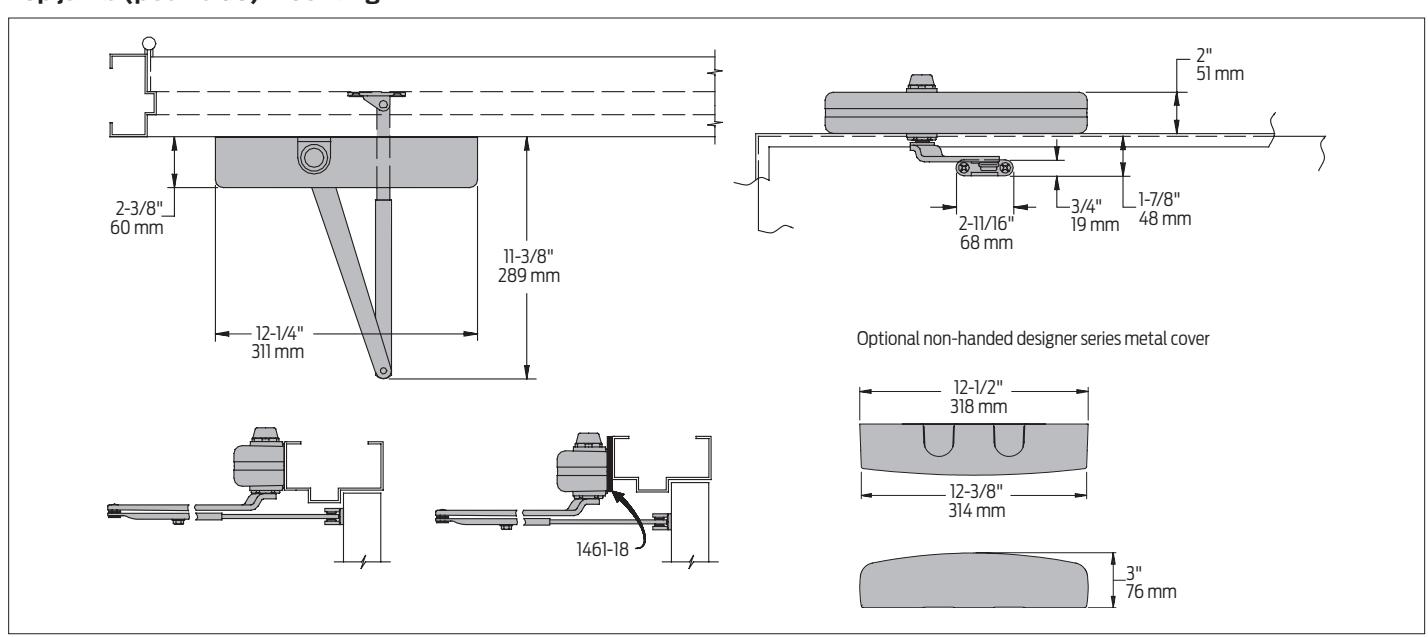

Top jamb (push side) mounting

Dimensions and mounting

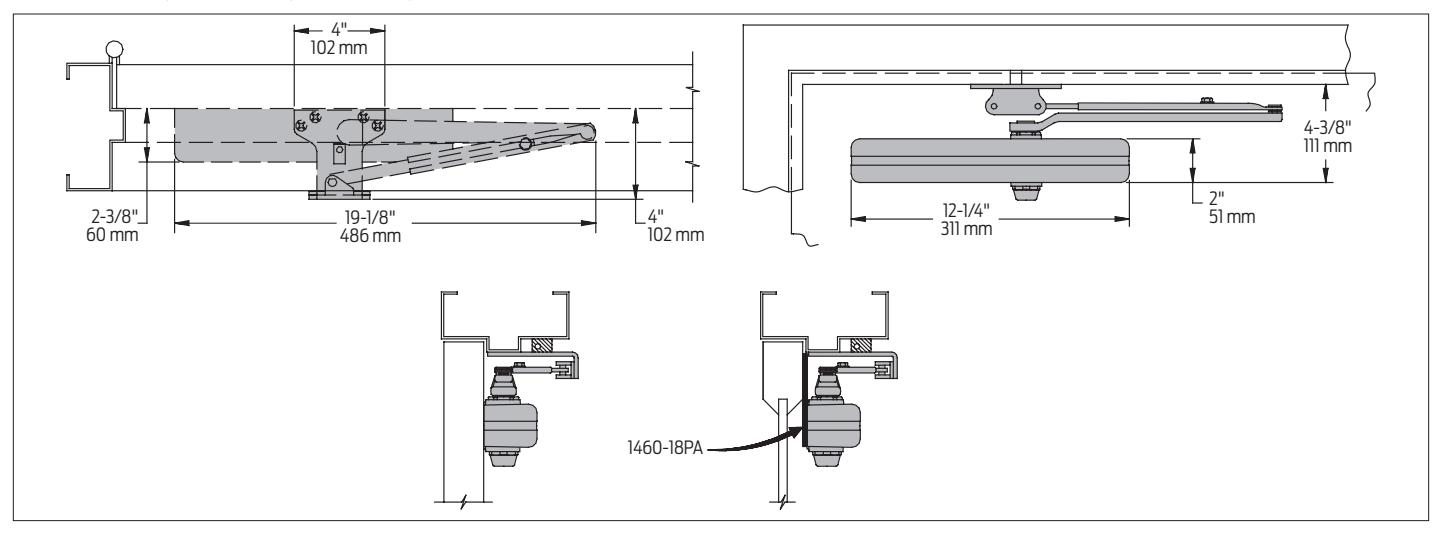

Parallel arm (push side) mounting

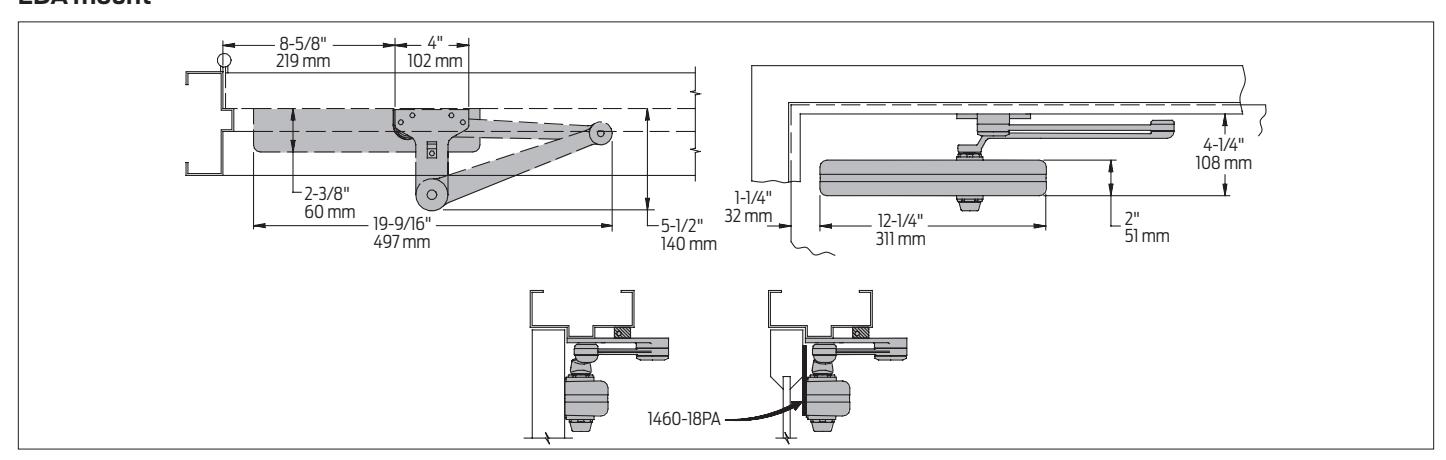

EDA mount

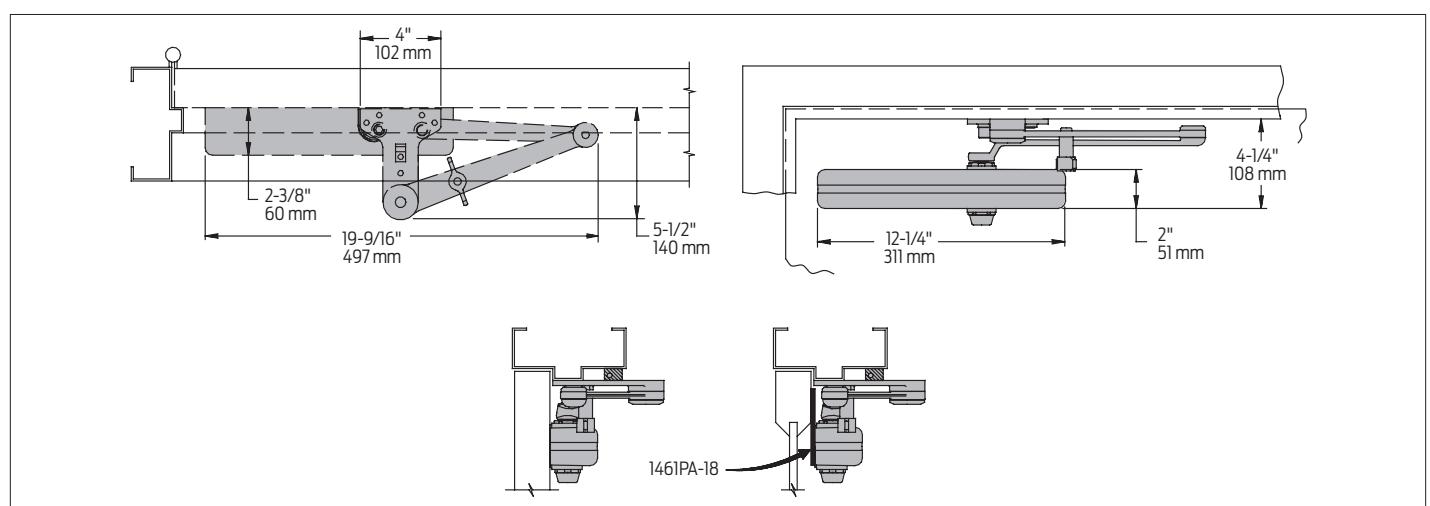

CUSH

Specifications

Accessibility	Available with less than 5.0 lbs. opening force on 36˝ door
Certifications/	ƒ Grade 1 - ANSI A156.4
approvals	ƒ UL 10C
		ƒ Meets BAA - Buy American Act
Degree of	Hinge (pull) side
operation	Max opening:	180°
	Hold open:	180°
	Top jamb (push side) mount
	Max opening:	180°
	Hold open:	120°
	Parallel arm with 62PA
	Max opening:	180°
	Hold open:	180°
	EDA
	Max opening:	110°
	Hold open:	110°
	Cush
	Max opening:	100°
	Hold open:	100°
Environmental	ƒ Approved for interior use
conditions	ƒ Approved for exterior use (SRI coated only)
	ƒ LCN's standard all weather fluid performs to
	temperature ranges from 120°F (49°C) to -30°F (-35°C)
	ƒ LCN's powder coat finish surpasses 100 hours
	of salt spray which is over four times the ANSI
	standard for corrosion resistance.
Warranty	30 years
Standard	ƒ Cast iron body
features	ƒ Full complement bearing
	ƒ 1-1/4˝ diameter piston
	ƒ 5/8˝ diameter single heat treated pinion
	journal
