1460 Series

Drop Plate Installation Instructions

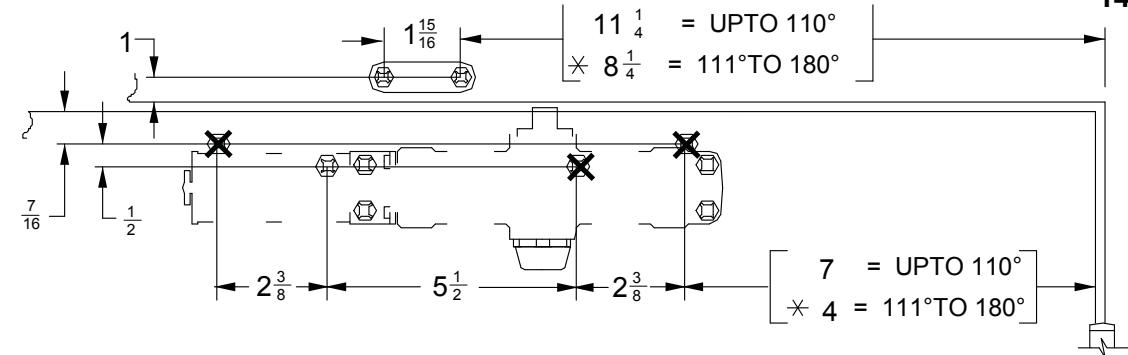

Pull side Arm Mounted On: 1461-18 Drop Plate 1461-18FC Drop Plate 1461-18DS1 Drop Plate

Left Hand Door Shown Right Hand Door Opposite

NOTES-

1. MINIMUM TOP RAIL WIDTH IS $1\frac{1}{2}$ . $\pm$ 2. TRIM. FRAME, AND HINGE PERMITTING

Left Hand Door Shown Right Hand Door Opposite

1.MINIMUM FRAME FACE OF $1\frac{1}{4}$ " REQUIRED.

$\pm$ 2.INCREASE THIS DIMENSION 1 $\frac{1}{2}$ FOR DELAYED ACTION WHEN DOOR CAN ONLY OPEN 90°.

INCH M.M.	7 16	1 2	1	$1\frac{1}{4}$	1 1 2	1 15 16	$2\frac{3}{8}$	$2\frac{3}{4}$	4
М.М.	11	13	25	32	38	49	60	70	102
INCH M.M.	4 1 8	5 ¹ / ₂	7	7 3/4	7 7 8	8 1/4	11 ¹ / ₄	11 ⁵ / ₈	12 ³ / ₄
М.М.	105	140	178	197	200	210	286	295	324

1. On Top Jamb & Hinge Face Mounts. Locate Closer & Shoe From © Of Pivot or Swing Clear Hinge Pin When Used.
2. On Top Jamb Mounting When Overhead Stop is Used, Shoe Must Be Lowered To Clear Holder.
3. For 180° Opening On Hinge Face Mounts, Max Buttsize Is 5" X 5"
4 Reinforcing Per ANSI/SDI-100 Recommended For Hollow Metal Doors and Frames.
5. Closer Size Is $12\frac{3}{4} \times 2\frac{3}{4} \times 2\frac{3}{8}$

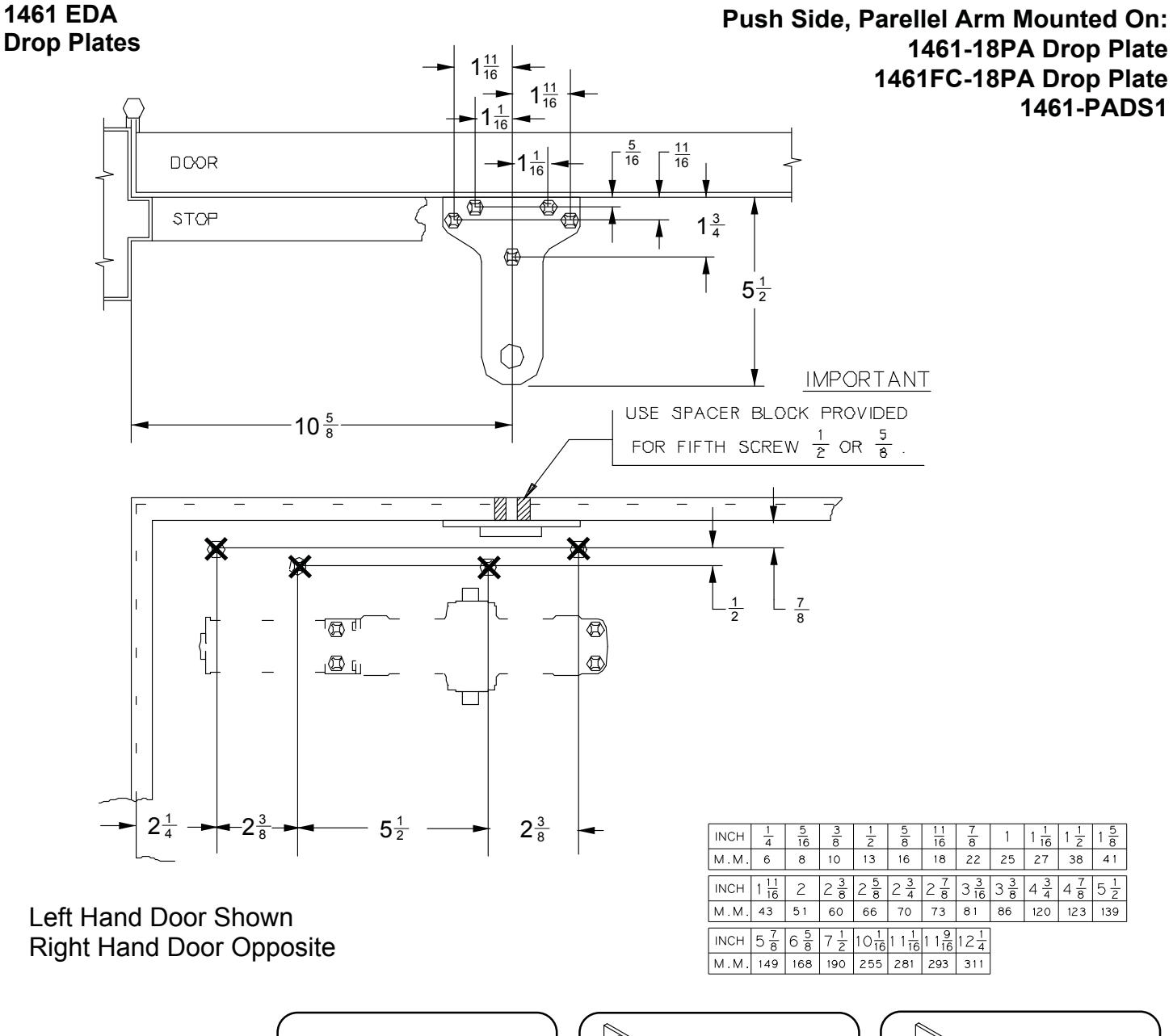

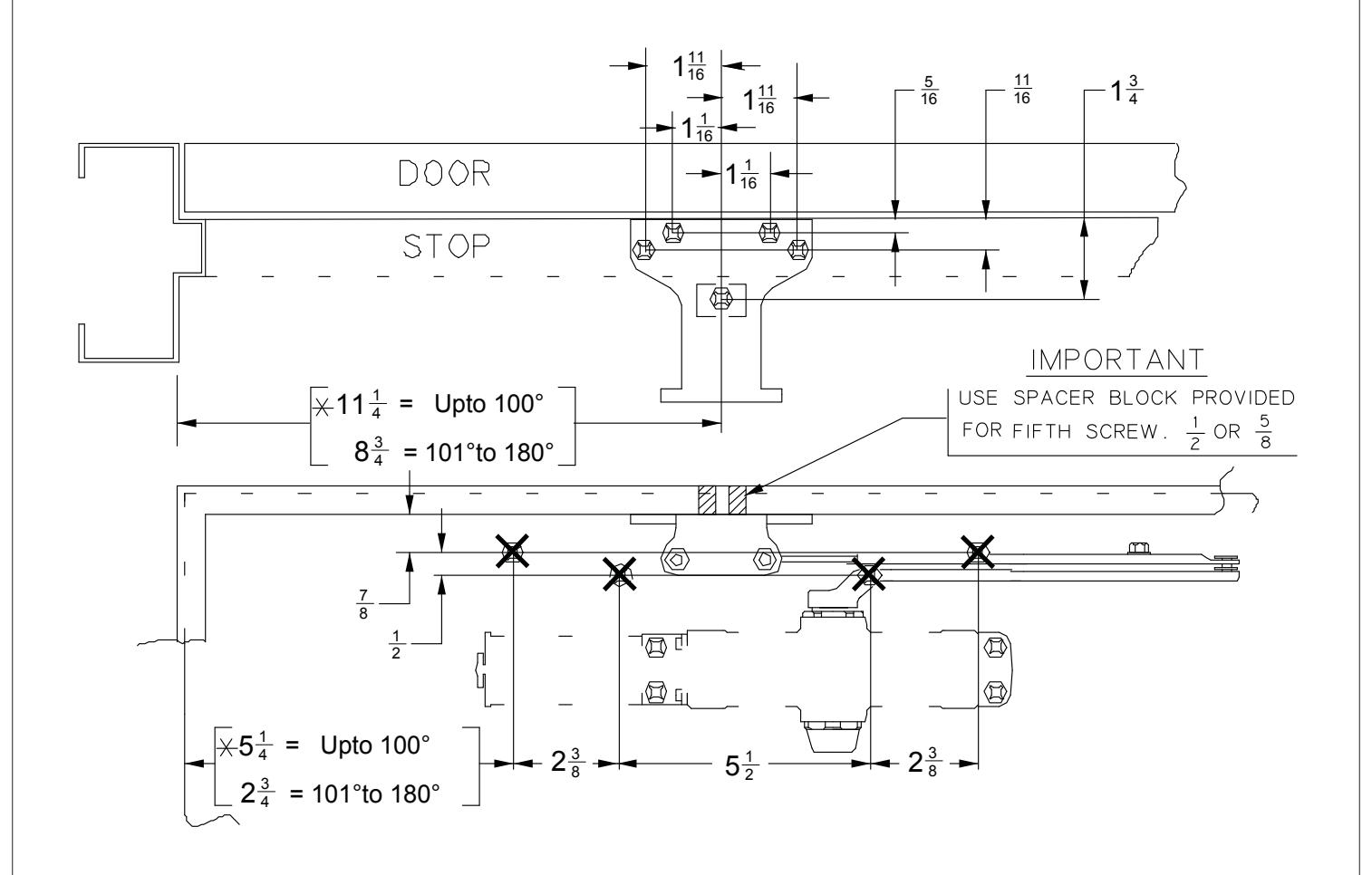

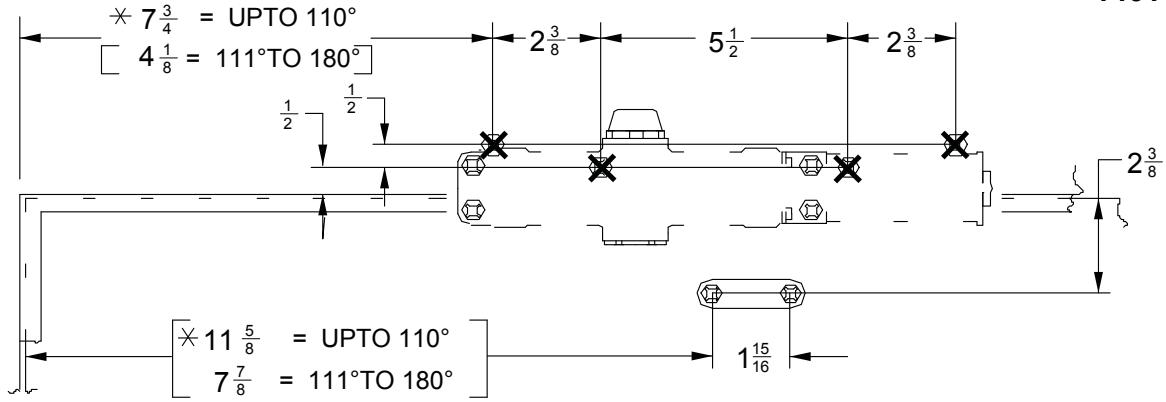

Push Side Parellel Arm Mounted On: 1461-18PA Drop Plate 1461FC-18PA Drop Plate 1461-PADS1 Drop Plate

Left Hand Door Shown Right Hand Door Opposite

1. MINIMUM TOP RAIL WIDTH IS $2\frac{1}{4}$ ".

$\frac{1}{2}$ 2. INCREASE THIS DIMENSION $1\frac{1}{2}$ FOR DELAYED ACTION WHEN DOOR CAN ONLY OPEN 90°.

INCH	5	1 2	11	7 8	1 1 1 1 1 1 1 1 1 1 1 1	111/16	13/4	2 ³ / ₈	$2\frac{3}{4}$
М.М.	8	13		22		43	44	60	70
INCH	3 1/2	5 1/4	5 ¹ / ₂	8 3/4	11 ¹ / ₂	12 ³ / ₄
М.М.	89	133	140	222	292	324

1. On Top Jamb & Hinge Face Mounts. Locate Closer & Shoe From $\[mathcap{Q}$ Of Pivot Or Swing Clear Hinge Pin When Used.
On Top Jamb Mounting When Overhead Stop Is Used, Shoe Must Be Lowered To Clear Holder. For 180° Opening On P1460, Max Butt Size Is 5" X 5", Max. Reveal For P1460 Mount Is 3 1/2.
4 Reinforcing Per ANSI/SDI-100 Recommended For Hollow Metal Doors And Frames.
5. Closer Size Is $12\frac{3}{4}X2\frac{3}{4}X2\frac{3}{8}$

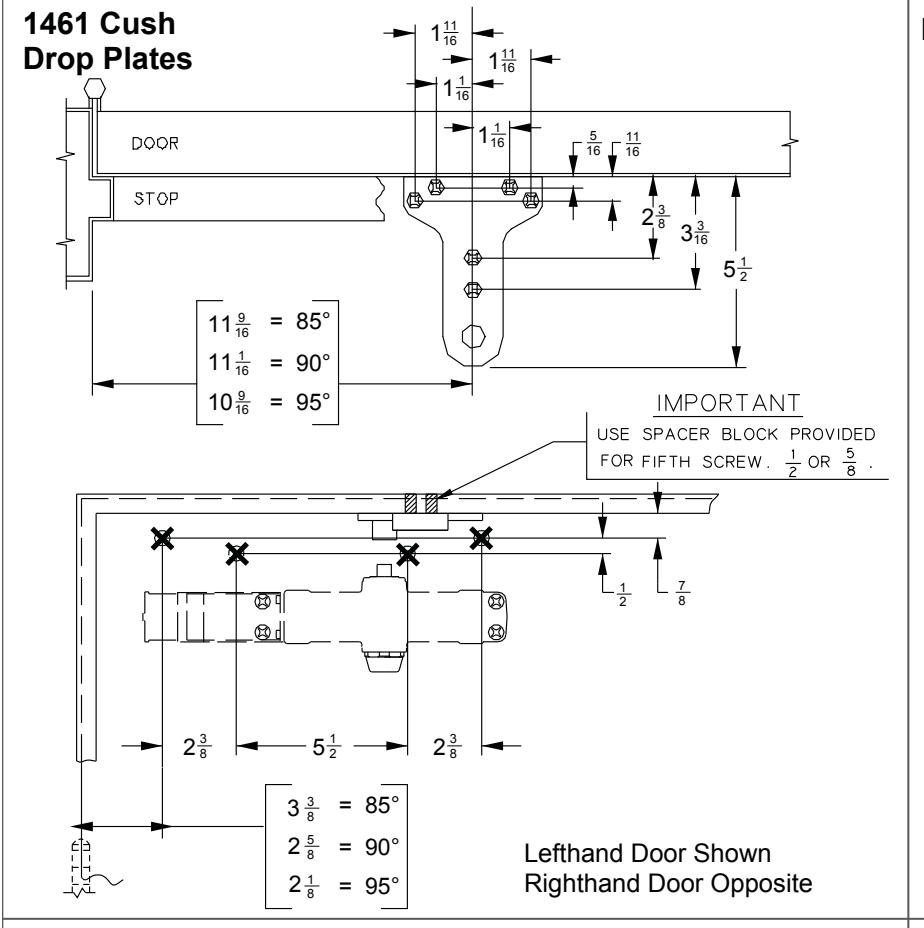

If door is hung on pivots Locate closer and shoe from Q of pivot point.
2. Closer size 12 1/4 x 2 3/4 x 2 3/8.
3.Top rail less than 4 3/4 Requires drop plate.
4.All dimensions applicable For hold open or dead stop.
5. Delayed action optional.
6. Reinforcing per. ANSI/SDI-100 Recommended for hollow Metal door and frames.
7. 5/8 maximum allowable side Stop.
Using fasters prodvided Mount drop plate with (4) 1/4 - 14 x 1 3/8 S.R.T. Mount closer to drop plates (4) 1/4 - 20 x 1/2 P.H.M.S.

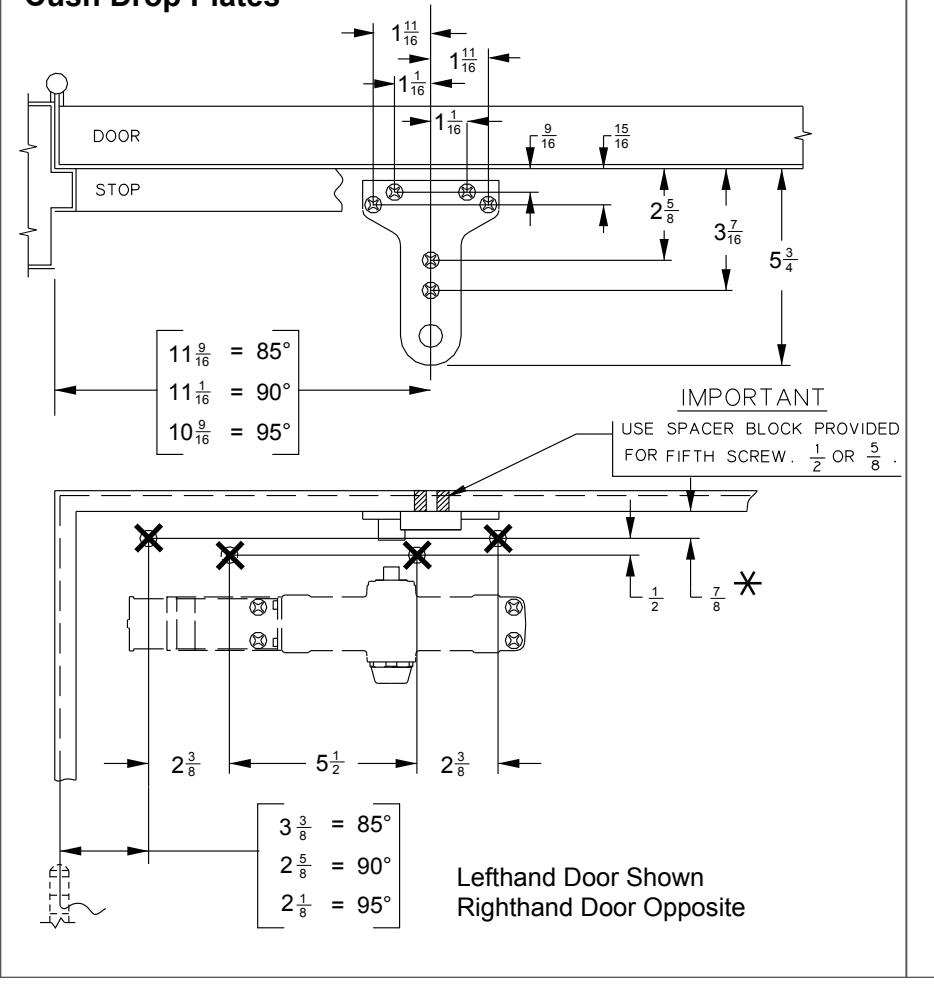

★Increase this dimension to 15/16 for spring cush FC

1. If door is hung on pivots locate closer and shoe from c of pivot point. (consult factory if using swing clear hinges.)
2. Closer size 12 1/4 x 2 3/4 x 2 3/8.
3. Top rail less than 4 3/4 requires drop plate.
4. All dimensions applicable for hold open.
5. Delayed action optional.
6. Reinforcing per ANSI/SDI-100 recommended for hollow metal door and frames.
7. 5/8 maximum allowable side stop.
8. Using fasters provided mount drop plate with (4) 1/4 14 x 1 3/8 S.R.T. mount closer to drop plates with (4) 1/4 20 x 1/2 p.H.M.S. Max. Butt hinge size 5 x 5.

Pull Side Arm Mounted On: 1461-18 Drop Plate 1461-18FC Drop Plate 1461-18DS1 Drop Plate

Right Hand Door Shown Left Hand Door Opposite

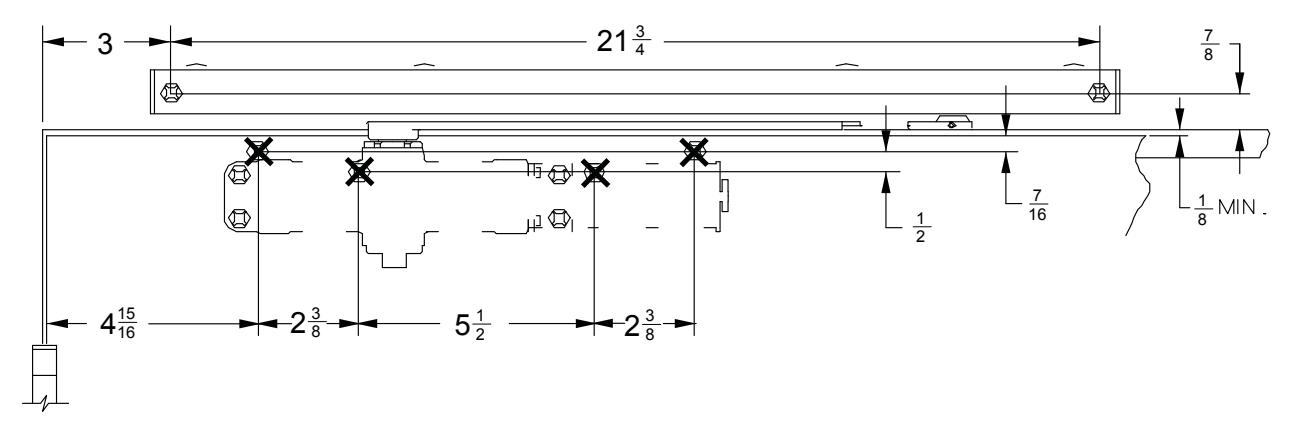

Push Side Arm Mounted On: 1461-18 Drop Plate 1461-18FC Drop Plate

Right Hand Door Shown Left Hand Door Opposite

INCH	1 8	7 16	1 2	13 16	7 8	1	$2\frac{3}{8}$	2 ⁵ / ₈	$2\frac{3}{4}$
М.М.	3	11	13	21	22	51	60	67	70
INCH	3	4 15 16	$5\frac{1}{2}$	$12\frac{3}{4}$	$21\frac{3}{4}$
М.М.	76	125	140	324	552

1. Locate closer & track from $\mathbb{C}$ of pivot or swing clear hinge pin when used.
2. If butt, frame and wall conditions permit. Pull side mountings allow 180° of opening.
3. Optional hold-open available. Adjustable from 85° 100°.
4 Reinforcing per ANSI/SDI-100 recommended for hollow metal doors and frames.
5. Closer size is $12\frac{3}{4} \times 2\frac{3}{4} \times 2\frac{3}{8}$
6. Delay action optional.

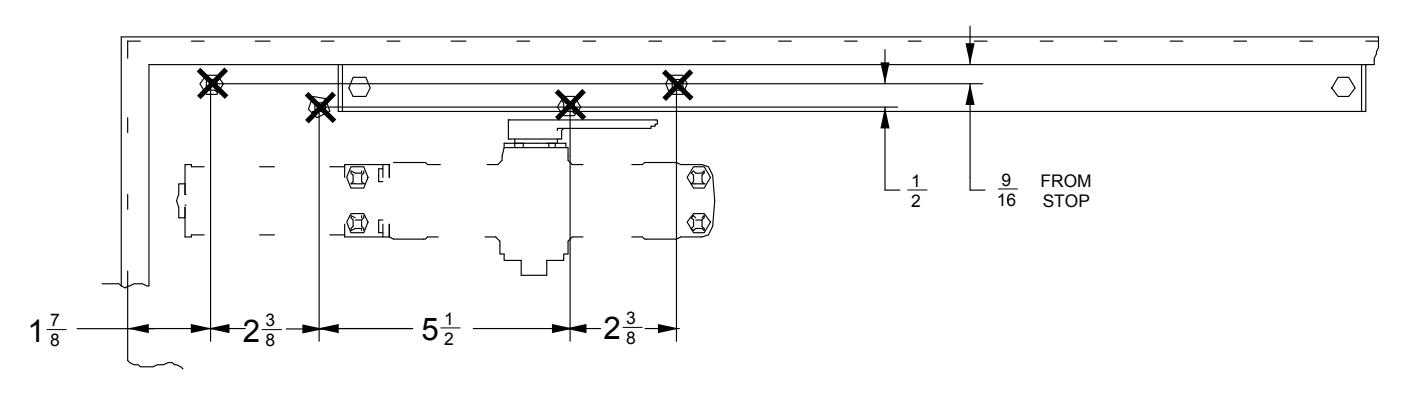

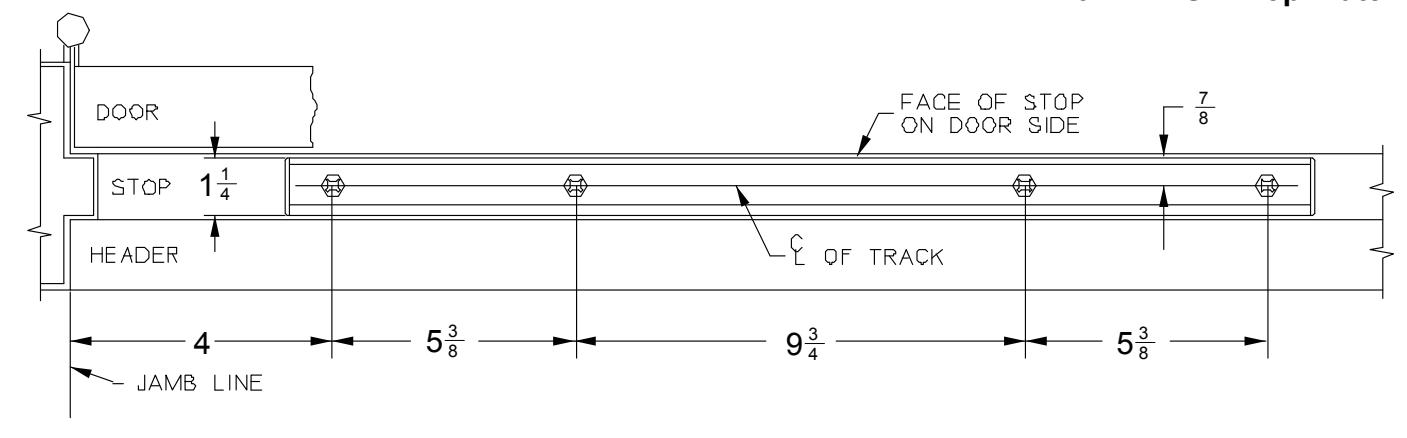

Push Side Parellel Arm Mounted On: 1461-18PA Drop Plate 1461FC-18PA Drop Plate 1461-PADS1 Drop Plate

Left Hand Door Shown Right Hand Door Opposite

INCH	1/2	9 16	7 8	$1\frac{1}{4}$	$1\frac{7}{8}$	$2\frac{3}{8}$	$2\frac{3}{4}$
М.М.	13	14	22	32	44	60	70
INCH	4	$5\frac{3}{8}$	5 ¹ / ₂	9 3/4	12 ³ / ₄
М.М.	102	137	140	248	324

1. Locate closer & track from $\mathbb Q$ of pivot or swing clear hinge pin when used. 2. If butt, frame and wall conditions permit. Pull side mountings allow 180° of opening.
3. Optional hold-open available. Adjustable from 85° 100°.
4 Reinforcing per ANSI/SDI-100 recommended for hollow metal doors and frames.
5. Closer size is $12\frac{3}{4} \times 2\frac{3}{4} \times 2\frac{3}{8}$
6. Delay action optional.

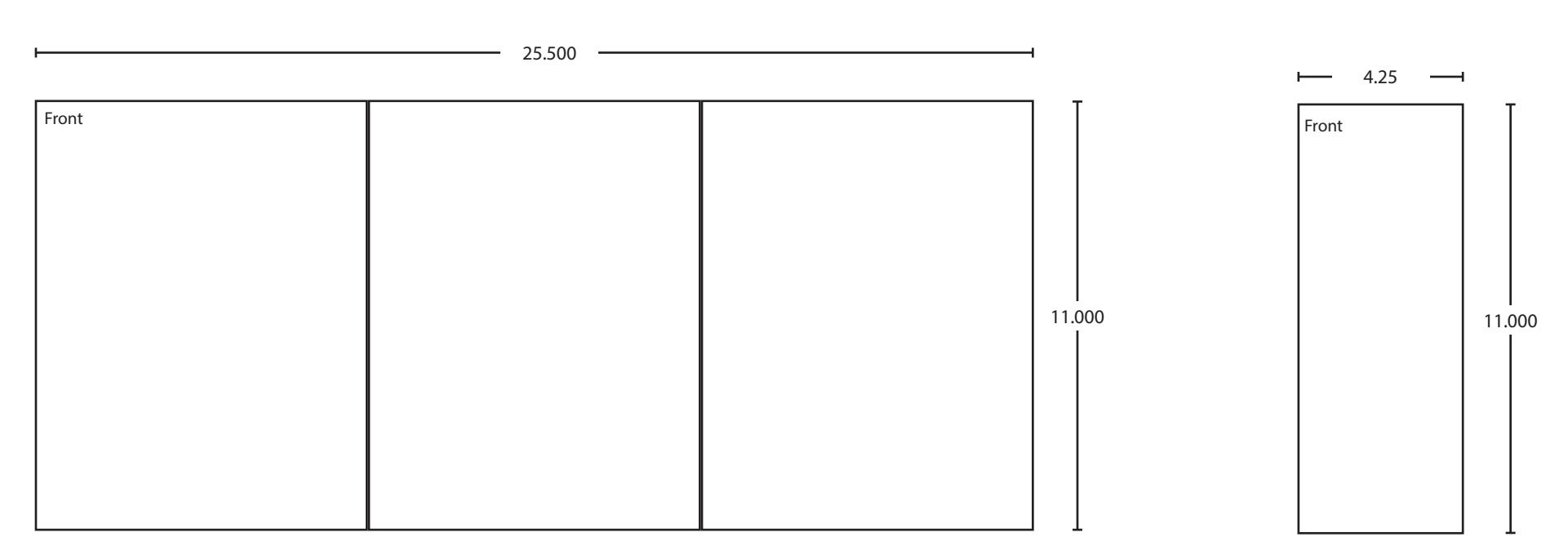

BEGINNING SHEET FOLDED SHEET
