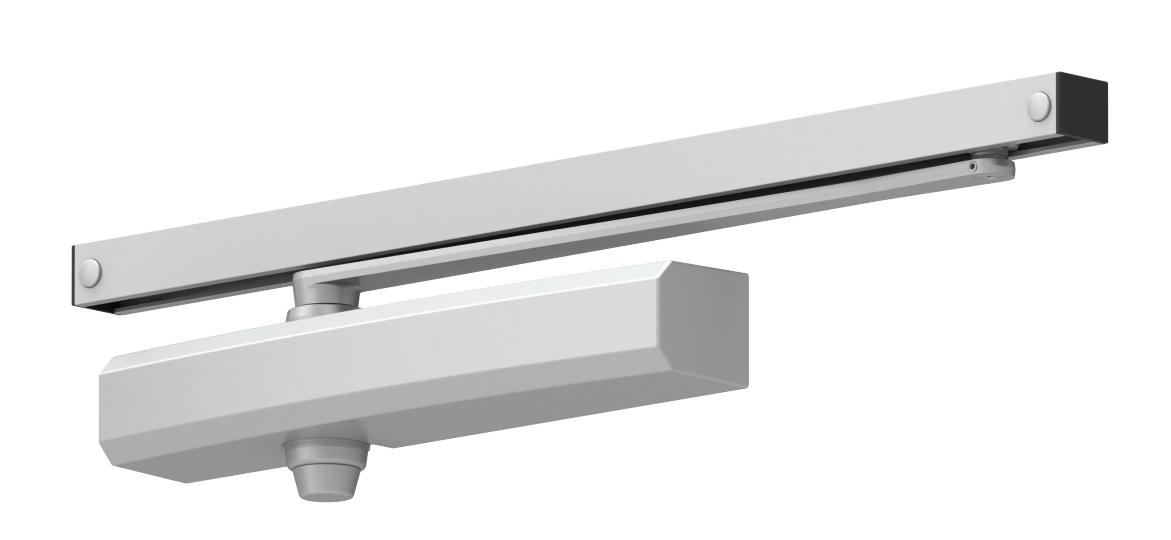

The 1450T is a fully universal slim line, single lever (track) arm closer designed for interior use on narrow head frames and top rails. Our patented appearance maintains the integrity of the building design making it a great choice for interior doors.

Certifications	Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	n Cast Aluminum Body n Full Complement Bearing n 1-1/4˝ Diameter Piston n 5/8˝ Diameter Single Heat Treated Pinion Journal
		Finishes/Colors/
Fluid	All Weather Fluid	Powder Coat
Handing	Non-Handed
Templating	3/4˝ x 12˝ Mounting Hole Pattern
Size	n Adjustable Spring Size 2-3
Warranty	25 years

Cover	n Alternate Plastic Cover n Slim Line, Standard n Full Plastic or Full Metal, Optional
Fasteners	Universal Screw Pack (UNIV)
Mounting	Pull side on door, push side on door
Arms	Single levertrack arm with track roller
Finishes/Colors/ Powder Coat	n Aluminum (689) n Statuary Bronze (690) n Light Bronze (691) n Black (693) n Dark Bronze (695) n Brass (696) n Custom colors optional
	n Optional SRI primer- powder coat only

Special Templates

NOT AVAILABLE

Customized installation templates or products may be available to solve unusual applications. Contact LCN Product Supportfor assistance.

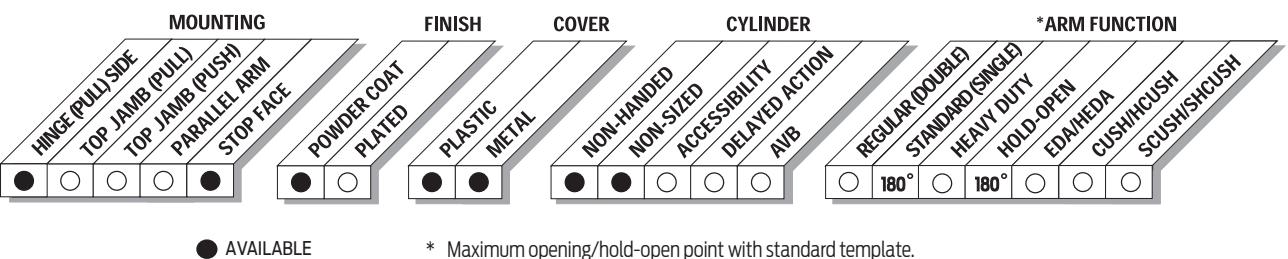

* Maximum opening/hold-open point with standard template.

Mounting details

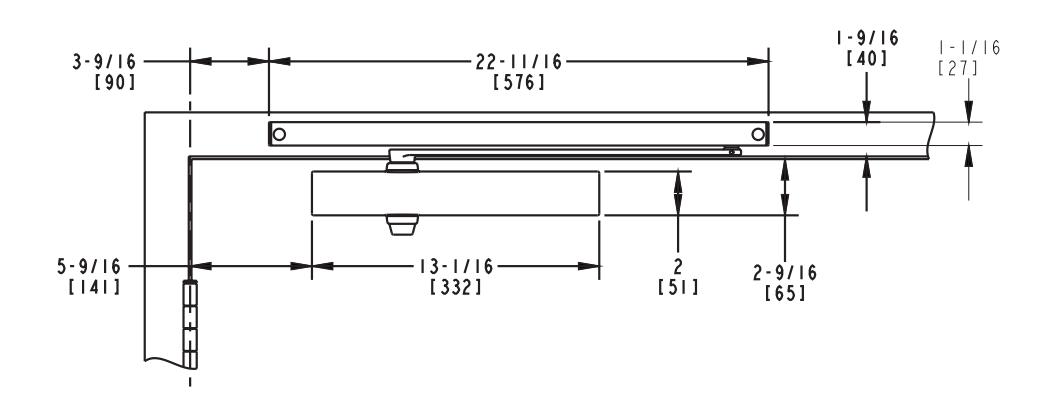

Hinge (Pull) Side Mounting

Butt Hinges	Should not exceed 5˝ (127 mm)in width
Auxiliary Stop	n Recommended where a door cannot swing 180° n Optionaltrack bumper assembly assists backcheck in cushioning the opening swing ofthe door. Itis notintended to replace an auxiliary stop
Reveal	Should not exceed 1/8˝ (3 mm)
Top Rail	n Less than 2-3/8˝ (60 mm)requires PLATE 1450T-18 n Plate requires 1-5/8˝ (41 mm) minimum top rail n With Full cover, use PLATE, 1450T-18FC
Clearance	2-5/8˝ (67 mm) behind door required for installation
Maximum opening	n Templating allows up to 180°,trim and frame permitting, limited to 120° when optional bumper is installed n Be aware thatthe majority oftrack style closers are attheir weakest closing force in the 180°-130° range n Consultfactory for applications where an exterior or large/heavy door must swing 180°

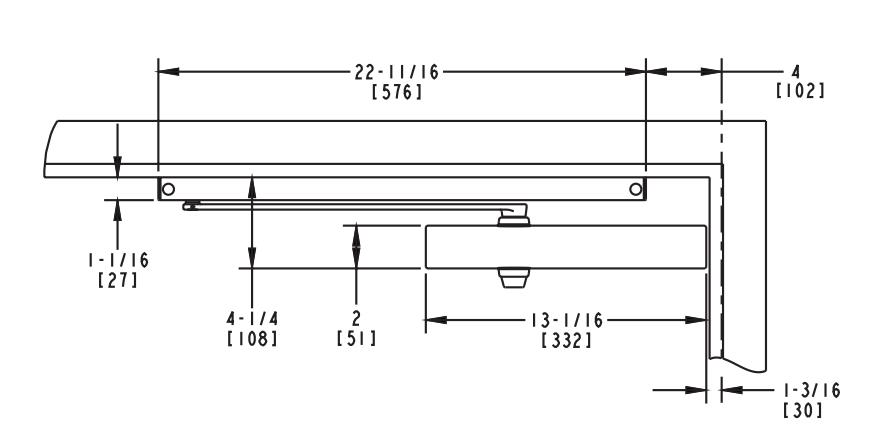

Mounting details

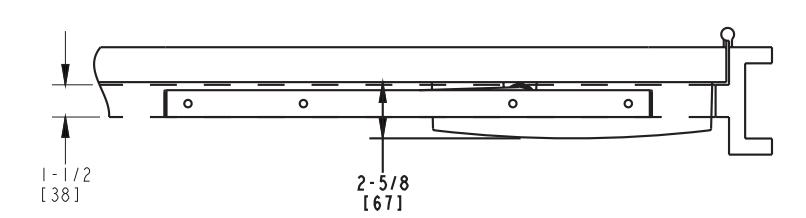

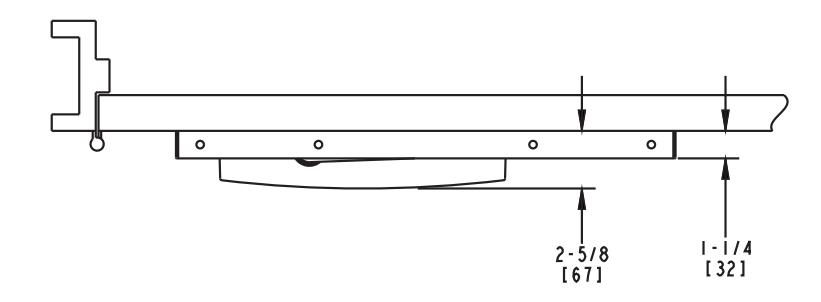

Stop Face (Push Side) Mounting

Butt Hinges	Should not exceed 5˝ (127 mm)in width
Auxiliary Stop	n Recommended where a door cannot swing 120° n Track bumper assembly assists backcheck in cushioning the opening swing ofthe door. Itis notintended to replace an auxiliary stop
Top Rail	n Less than 4-1/16˝ (103 mm)requires PLATE, 1450T-18. Plate requires 3-1/16˝ (78 mm) minimum top rail. n With Full cover, use PLATE, 1450T-18PAFC
Clearance	Projects 2-5/8˝ (67 mm)from face of door
Stop Width	Minimum 1-1/4˝ (32 mm)
Maximum opening	n Templating allows 120°, limited to 100° when optional bumper is installed n Variable hold-open angles with infinite options

Accessories

Cylinders Covers

1450T-3071

Cast Aluminum Cylinder Assembly

• ⁿ Non-handed
• ⁿ Standard

1450T-72

Slim Line Plastic Cover

• ⁿ Non-handed
• ⁿ Standard

1450T-72FC

Full Plastic Cover

• ⁿ Non-handed
• ⁿ Optional

Right hand shown

1450T-72MC

Metal Cover

• ⁿ Handed
• ⁿ Optional

Alternate Cover

1450-72ALT

Alternate Cover

• ⁿ Non-handed
• ⁿ Optional, sold separately (not packed with closer)

Arm

Standard Arm

• ⁿ Non-handed
• ⁿ Arm does not include track roller

1450T-3077T

Tracks

1450T-3038

Standard Track

• ⁿ Non-handed
• ⁿ Non hold-open
• ⁿ Will accept hold-open clip and/ or bumper assembly
• ⁿ Standard

1450T-3038B

Standard Track with Bumper

• ⁿ Non-handed
• ⁿ Non hold-open
• ⁿ Will accept hold-open clip
• ⁿ Optional

1450T-3038H

Hold-Open Track

• ⁿ Non-handed
• ⁿ With hold-open clip installed
• ⁿ Will accept bumper assembly
• ⁿ Optional

1450T-3038HB

Hold-Open Track with Bumper

• ⁿ Non-handed
• ⁿ With hold-open clip and bumper assembly installed
• ⁿ Optional

Accessories

Installation Accessories

1450T-18 / 1450T-18FC

Plate

• ⁿ Required for pull side (door mount) where top rail is less than 2-3/8˝ (60 mm)
• ⁿ Requires minimum 1-5/8˝ (41 mm)top rail
• ⁿ Required for push side (door mount) where top rail is less than 4-1/16˝ (103 mm) measured from the stop
• ⁿ Requires minimum 3-1/16˝ (78 mm)top rail

1450T-169 Track Bumper

• ⁿ Mounts in track to assist backcheck, does notreplace auxiliary stop
• ⁿ Limits maximum opening
• ⁿ Consists of bumper, bumper post, and mounting screw

1450T-3054 Hold-Open Clip

• ⁿ Mounts in track to provide hold-open function
• ⁿ Hold-open point controlled by clip location
• ⁿ Consists of clip and mounting screws
• ⁿ Requires 1450T-3034H Hold-Open Track Roller

1450T-3034H

Hold-Open Track Roller

• ⁿ Quiet, low friction roller assembly
• ⁿ Shoulder dimension "X" = 1/8˝ (3 mm)
• ⁿ Can be used without hold open clip

Accessories

How-to-order 1450T Series closers

1. Select finish

Standard Powder Coat__________ Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer will be shipped with:

• Standard cover
• Standard cylinder
• Standard track arm
• Standard track
• Track roller
• Universal Screw Pack (UNIV)

Closer options

Cover

Full Plastic Cover(FC)

Metal(Specify right or left handed)(MC)

Alternate Cover(ALT)(sold separately from product)

Finish

Custom Powder Coat(RAL)___________

(Metal cover required)

SRI primer(for use with powder coatfinishes only)

Track

Regular with Bumper(BUMPER)

Hold-Open (HO)

Hold-Open with Bumper(HBUMPER)

Installation accessories

Plate, 1450T-18 Plate, 1450T-18FC

Special template

ST-________

Table of sizes

• ⁿ Select closer based on width of door.
• ⁿ Non-sized 1450T cylinder is adjustable from sizes 2 thru 3 and is shipped setto size 2.

Interior door width

Notes
