1450 Series

Drop Plate Installation Instructions

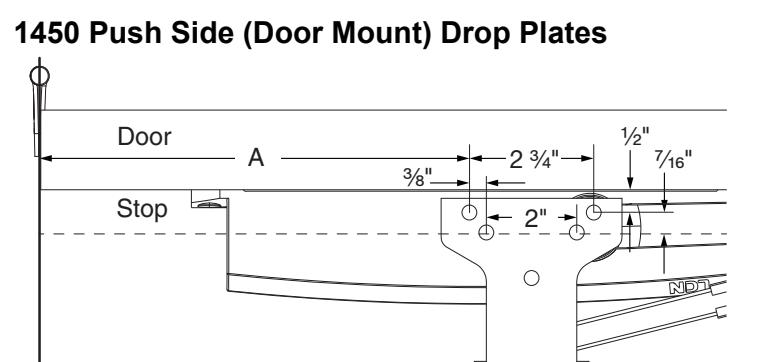

1450 PULL SIDE (DOOR MOUNT) DROP PLATES Pull side Arm Mounted On: 1450-18 Drop Plate 1450-18FC Drop Plate Opening Dimension A To 100° 7 ½" 100° -130° 6" Over 130° 4 ½"

NOTES 1.MINIMUM TOP RAIL WIDTH IS $1\frac{1}{2}$ .

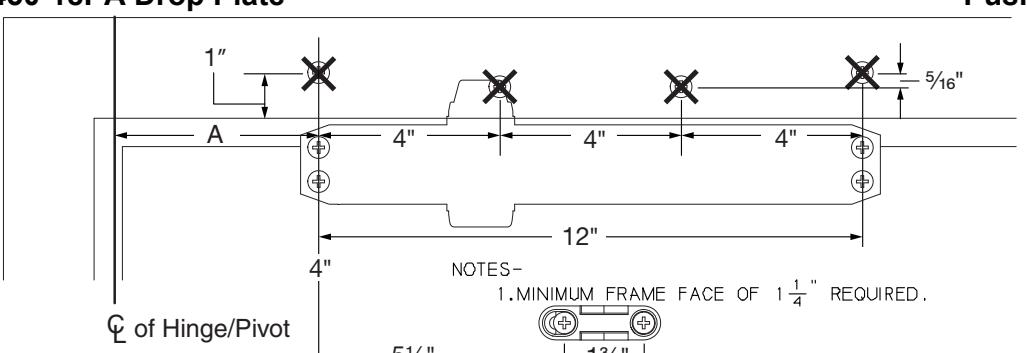

1450 PUSH SIDE (TOP JAMB) DROP PLATES 1450-18 Drop Plate

C of Hinge/Pivot

5/8" A 4" 4" 5/16" 12" NOTES-

Left Hand Door Shown

Right Hand Door Opposite

Right Hand Door Shown

Left Hand Door Opposite

Push Side Arm Mounted On: 1450-18 Drop Plate


Opening	Dimension A
To 100°	7 1/2"
100° -130°	6"
Over 130°	4 1/2"

1. MINIMUM FRAME FACE OF 7/8" REQUIRED.

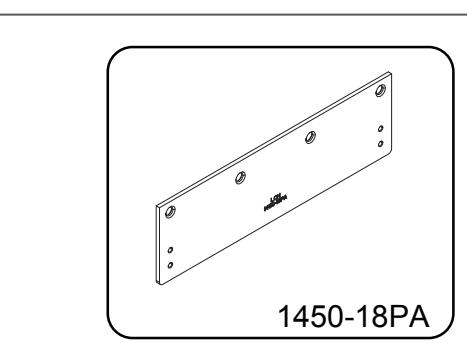

1450-18PA Drop Plate

€ of Hinge/Pivot

Push Side Arm Mounted On: 1450-18PA Drop Plate

Opening	Dimension A
To 100°	7 ½"
100° -130°	6"
Over 130°	4 1/2"

Left Hand Door Shown Right Hand Door Opposite

INCH	7 16	1 2	1	$1\frac{1}{4}$	1 1 2	1 ¹⁵ / ₁₆	$2\frac{3}{8}$	$2\frac{3}{4}$	4
М.М.	11	13	25	32	38	49	60	70	102
INCH	4 1/8	$5\frac{1}{2}$	7	$7\frac{3}{4}$	$7\frac{7}{8}$	8 1/4	11 ¹ / ₄	11 ⁵ / ₈	$12\frac{3}{4}$
М.М.

General Notes:

1. On Top Jamb & Hinge Face Mounts. Locate Closer & Shoe From Q Of Pivot or Swing Clear Hinge Pin When Used.
2. On Top Jamb Mounting When Overhead Stop is Used, Shoe Must Be Lowered To Clear Holder.
3. For 180° Opening On Hinge Face Mounts, Max Buttsize Is 5" X 5"
4 Reinforcing Per ANSI/SDI-100 Recommended For Hollow Metal Doors and Frames.

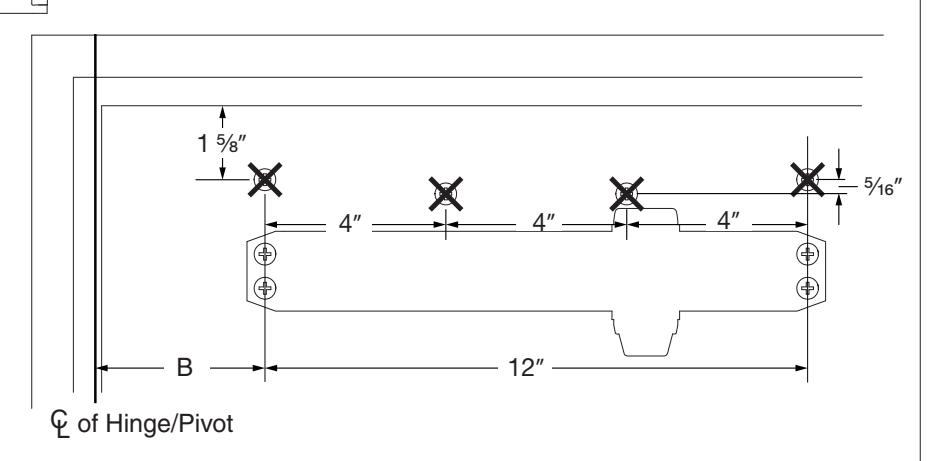

Push Side Parellel Arm Mounted On: 1450-18PA Drop Plate 1450-18PAFC Drop Plate

	Opening	Dimension A	Dimension B
	To 100°	9 ½"	3 3/4"
I	Over 130°	7"	1 1/4"

Ç of Hinge/Pivot

Left Hand Door Shown Right Hand Door Opposite

NOTES-

1.MINIMUM TOP RAIL WIDTH IS 17/8"

INCH	5 16	1/2	11 16	7 8	$1\frac{1}{16}$	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1	$1\frac{3}{4}$	$2\frac{3}{8}$	$2\frac{3}{4}$
M.M.	8	13	17	22	27	43	44	60	70

M.M. 89 133 140 222 292 324

General Notes:

1. On Top Jamb & Hinge Face mounts. Locate closer & shoe from @ of pivot or swing clear hinge pin when used.
2. On Top Jamb mounting when overhead stop is used, shoe must be lowered to clear holder.
3. Reinforcing Per ANSI/SDI-100 recommended for hollow metal doors and frames.

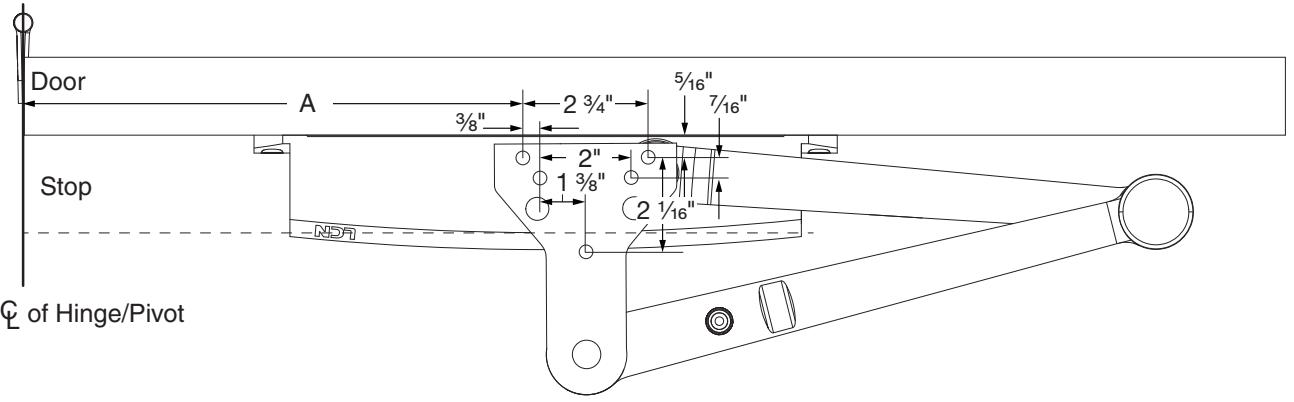

1450 Cush Drop Plates

Push Side, Parellelarm Mounted On: 1450-18PA Drop Plate 1450-18PAFC Drop Plate

B 12" ⁵⁄₁₆" 4" 4" 4" 1 ¹⁄₄"

IMPORTANT

Use spacer block provided for Fifth screw ¹⁄₂" or ⁵⁄₈"

Notes:

1. Minimum Top Rail Width is 1 ¹⁄₂"

CL of Hinge/Pivot

General Notes:

1. If door is hung on pivots Locate closer and shoe from C of pivot point. L
2. Top rail less than 4 3/4 Requires drop plate.
3. All dimensions applicable For hold open or dead stop.
4. Delayed action optional.
5. Reinforcing per. ANSI/SDI-100 Recommended for hollow Metal door and frames.
6. 5/8 maximum allowable side Stop.
7. Using fasters prodvided Mount drop plate with (4) 1/4 - 14 x 1 3/8 S.R.T. Mount closer to drop plates (4) 1/4 - 20 x 1/2 P.H.M.S.
Increase this dimension to 15/16 for spring cush FC *

Opening	Dimension A	Dimension B
85°	11"	5 ¹⁄₂"
90°	10 ¹⁄₄"	4 ³⁄₄"
95°	9 ¹⁄₂"	4"
100°	8 ⁷⁄₈"	3 ³⁄₈"
105°	8 ¹⁄₄"	2 ³⁄₄"
110°	7 ⁵⁄₈"	2 ¹⁄₈"


INCH	1/4	5 16	3	1/2	5	11 16	7/8	1	$1\frac{1}{16}$	$1\frac{1}{2}$	1 5
М.М.	6	8	10	13	16	18	22	25	27	38	41
INCH	1 11/16	2	$2\frac{3}{8}$	$2\frac{5}{8}$	$2\frac{3}{4}$	$2\frac{7}{8}$	$3\frac{3}{16}$	3 3/8	$4\frac{3}{4}$	$4\frac{7}{8}$	5 ½
М.М.	43	51	60	66	70	73	81	86	120	123	139
INCH	5 7	6 5 8	$7\frac{1}{2}$	10 1	1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1	1 1 9	121/4

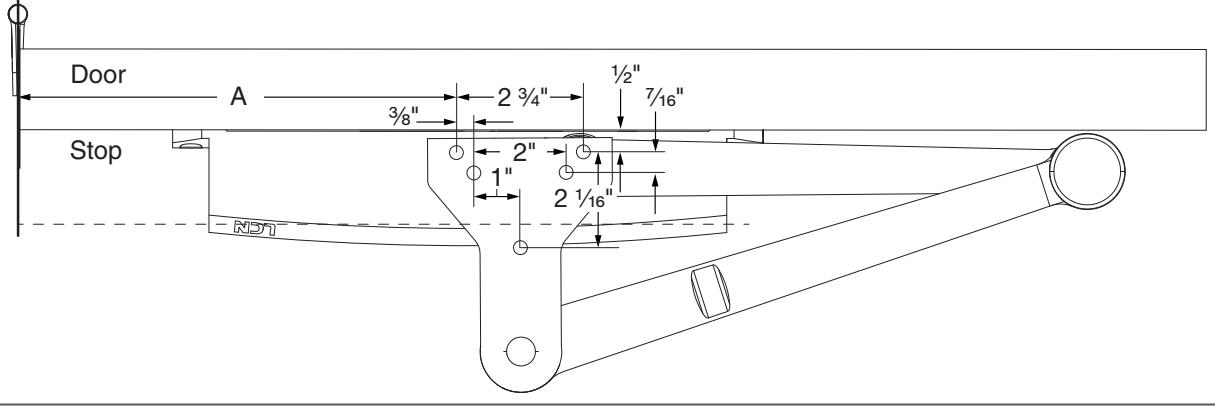

1450 EDA Drop Plates

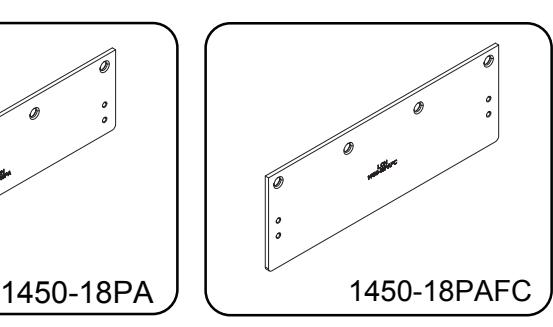

Push Side, Parellel Arm Mounted On: 1450-18PA Drop Plate 1450-18PAFC Drop Plate

B 12" ⁵⁄₁₆" 4" 4" 4" 1 ¹⁄₄"

IMPORTANT

Use spacer block provided for Fifth screw ¹⁄₂" or ⁵⁄₈"


INCH	1/4	5 16	3 8	1/2	5 8	11 16	7/8	1	1 1/16	1 1/2	1 5 8
М.М.	6	8	10	13	16	18	22	25	27	38	41
INCH	1 11 16	2	$2\frac{3}{8}$	$2\frac{5}{8}$	$2\frac{3}{4}$	2 7/8	3 3 16	3 3 8	$4\frac{3}{4}$	$4\frac{7}{8}$	5 ½
М.М.	43	51	60	66	70	73	81	86	120	123	139
INCH	5 7/8	6 5	$7\frac{1}{2}$	10 1	1 1 1 16	1 1 9	121/4
NA NA	140	168	100	255	281	203	311

Opening	Dimension A	Dimension B
To 100°	9 ¹⁄₂"	3 ³⁄₄"
Over 120°*	7"	1 ¹⁄₄"

* Door openings to 180˚ conditions permitting

General Notes:

1. If door is hung on pivots locate closer and shoe from C of pivot point. (consult factory if using swing clear hinges.) L
2. Closer size 12 1/4 x 2 3/4 x 2 3/8.

Left Hand Door Shown

Right Hand Door Opposite

CL of Hinge/Pivot

3. Top rail less than 4 3/4 requires drop plate.
4. All dimensions applicable for hold open.
5. Delayed action optional.
6. Reinforcing per ANSI/SDI-100 recommended for hollow metal door and frames.
7. 5/8 maximum allowable side stop.
8. Using fasters provided mount drop plate with (4) 1/4 14 x 1 3/8 S.R.T. mount closer to drop plates with (4) 1/4 - 20 x 1/2 p.H.M.S. Max. Butt hinge size 5 x 5.
