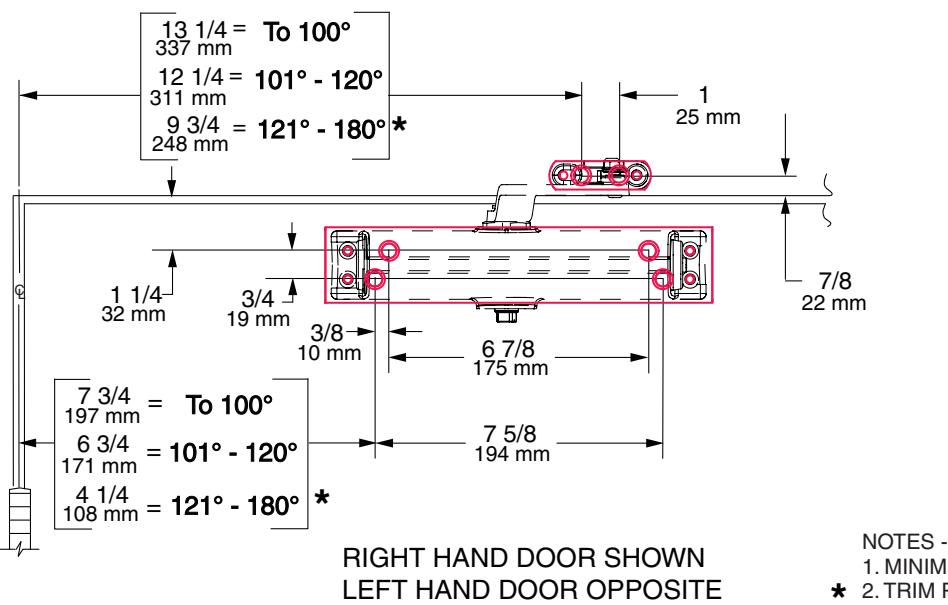

1260 PULL SIDE (DOOR MOUNT) QUICK FIX BRACKETS

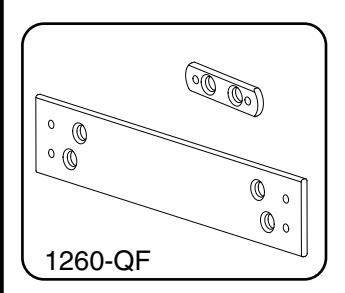

PULL SIDE ARM MOUNTED ON: 1260-QF PLATES

1. MINIMUM TOP RAIL HEIGHT 2 1/4. 2. TRIM PERMITTING. *

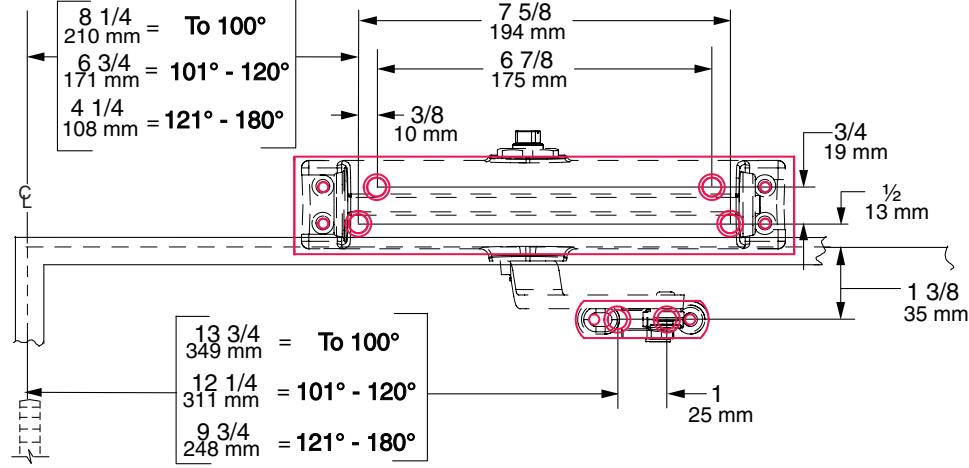

1260 PUSH SIDE (TOP JAMB) QUICK FIX BRACKETS PUSH SIDE ARM MOUNTED ON:

1260-QF PLATES

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

The Quick Fix bracket is to be used when preexisting holes are stripped out.

GENERAL NOTES:

• 1. LOCATE CLOSER & SHOE FROM CENTERLINE OF PIVOT OR SWING CLEAR HINGE PIN WHEN USED.
• 2. ON TOP JAMB MOUNTING WHEN OVERHEAD STOP IS USED, SHOE MUST BE LOWERED TO CLEAR HOLDER.
• 3. FOR 180° OPENING, MAX BUTT SIZE IS 5" X 5"
• 4 REINFORCING PER ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOORS AND FRAMES.
• 5. CLOSER SIZE IS 10" x 2 1/4" x 2 7/8".

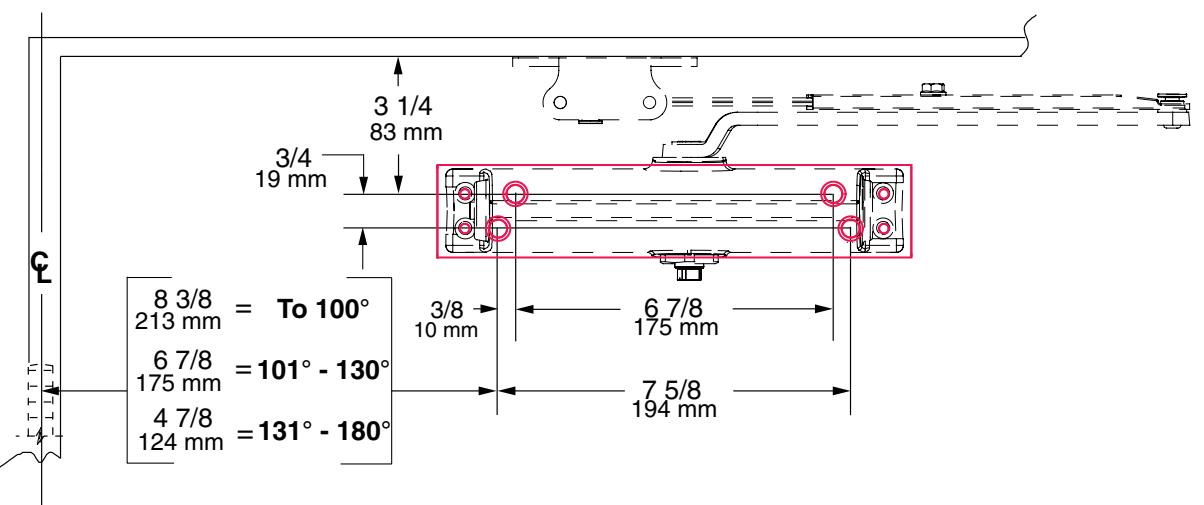

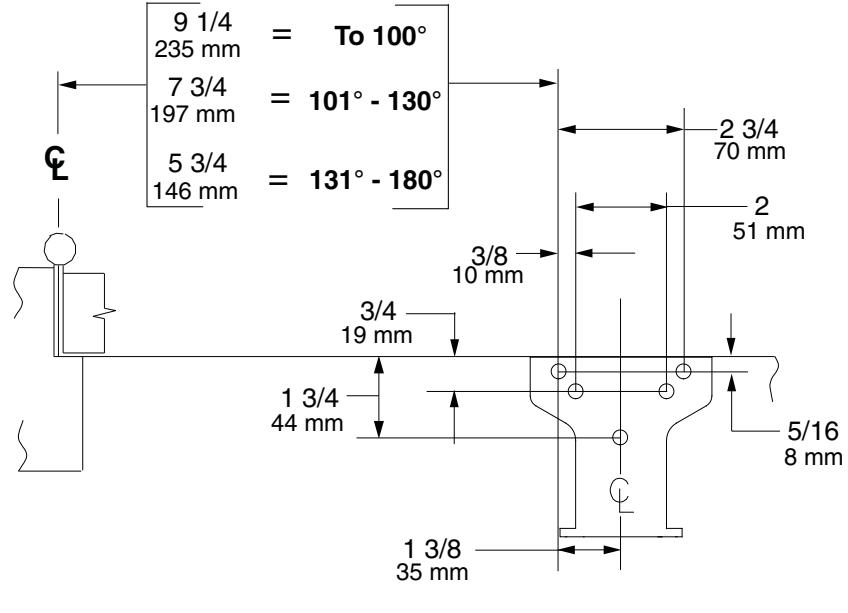

P1260 PUSH SIDE (DOOR MOUNT) QUICK FIX BRACKET

PUSH SIDE PARALLEL ARM MOUNTED ON: 1260-QF PLATE

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

The Quick Fix bracket is to be used when preexisting holes are stripped out.

GENERAL NOTES:

• 1. LOCATE CLOSER & SHOE FROM CENTERLINE OF PIVOT OR SWING CLEAR HINGE PIN WHEN USED.
• 2. FOR 180° OPENING ON HINGE FACE MOUNTS, MAX BUTT SIZE IS 5" X 5" $\backslash ,$
• 3 REINFORCING PER ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOORS AND FRAMES.
• 4. CLOSER SIZE IS 10" x 2 1/4" x 2 7/8".
