1260 Series

Installation Instructions

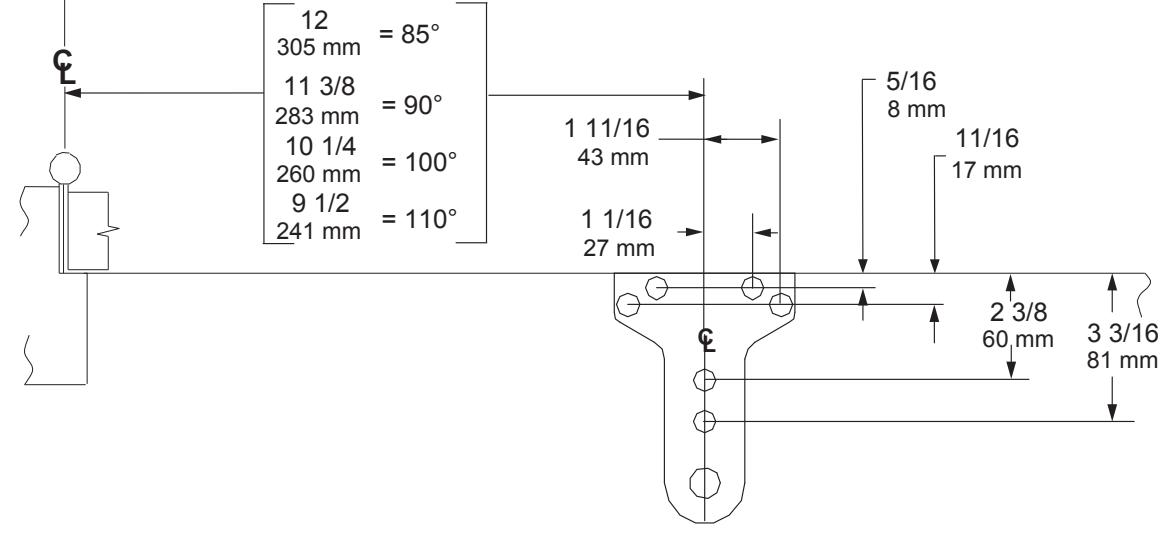

1260 PULL SIDE (DOOR MOUNT) DROP PLATES

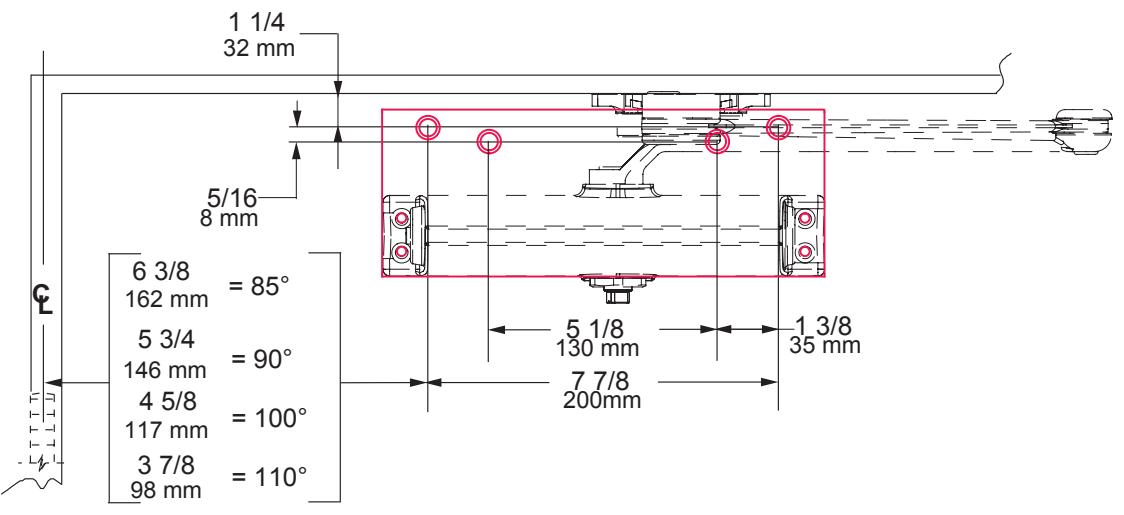

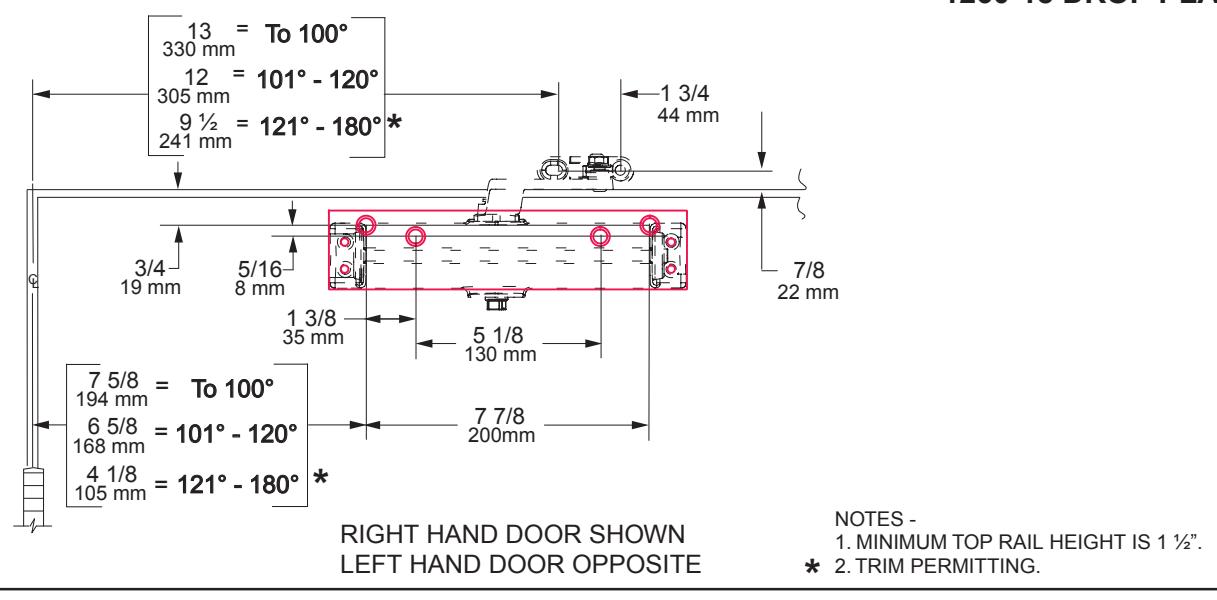

PULL SIDE ARM MOUNTED ON: 1260-18 DROP PLATE

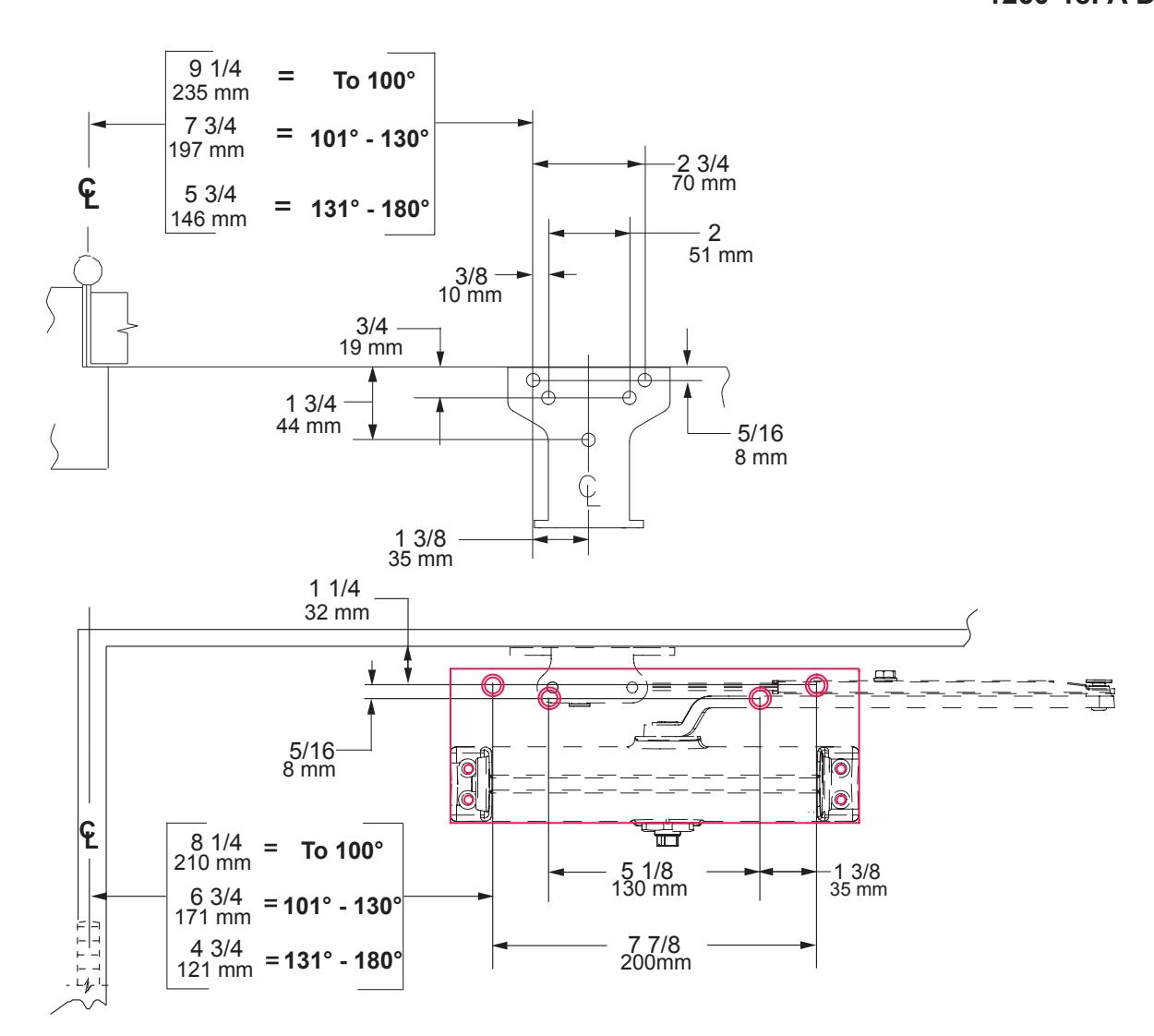

1260 PUSH SIDE (TOP JAMB) DROP PLATES PUSH SIDE ARM MOUNTED ON:

1260-18 DROP PLATE

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

NOTES -

1. MINIMUM FACE FRAME IS 1 3/8".

• 1. ON TOP JAMB & HINGE FACE MOUNTS. LOCATE CLOSER & SHOE FROM CENTERLINE OF PIVOT OR SWING CLEAR HINGE PIN WHEN USED.
• 2. ON TOP JAMB MOUNTING WHEN OVERHEAD STOP IS USED, SHOE MUST BE LOWERED TO CLEAR HOLDER.
• 3. FOR 180° OPENING, MAX BUTT SIZE IS 5" X 5"
• 4 REINFORCING PER ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOORS AND FRAMES.
• 5. CLOSER SIZE IS 10" x 2 1/4" x 2 7/8".

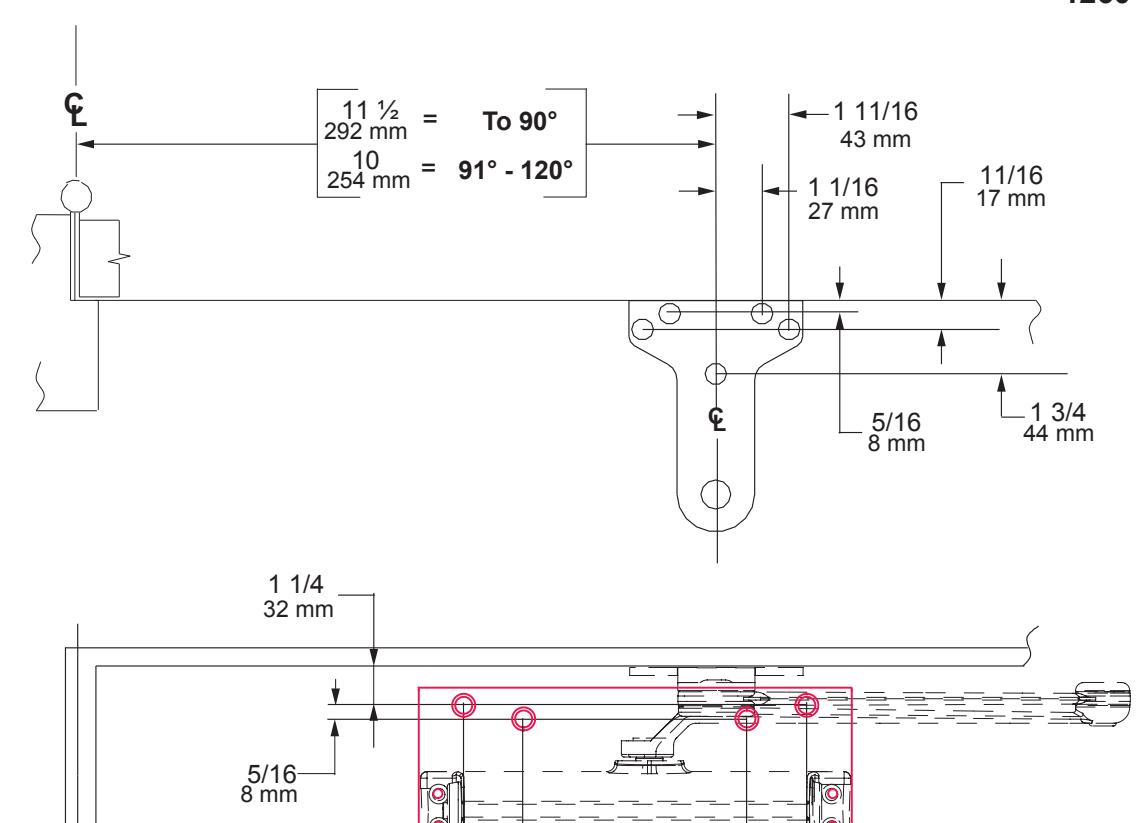

P1260 PUSH SIDE (DOOR MOUNT) DROP PLATES

PUSH SIDE PARALLEL ARM MOUNTED ON: 1260-18PA DROP PLATE

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

NOTES - 1. MINIMUM TOP RAIL 2 ½".

• 1. LOCATE CLOSER & SHOE FROM CENTERLINE OF PIVOT OR SWING CLEAR HINGE PIN WHEN USED.
• 2. FOR 180° OPENING ON HINGE FACE MOUNTS, MAX BUTT SIZE IS 5" X 5"
• 3 REINFORCING PER ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOORS AND FRAMES.
• 4. CLOSER SIZE IS 10" x 2 1/4" x 2 7/8".

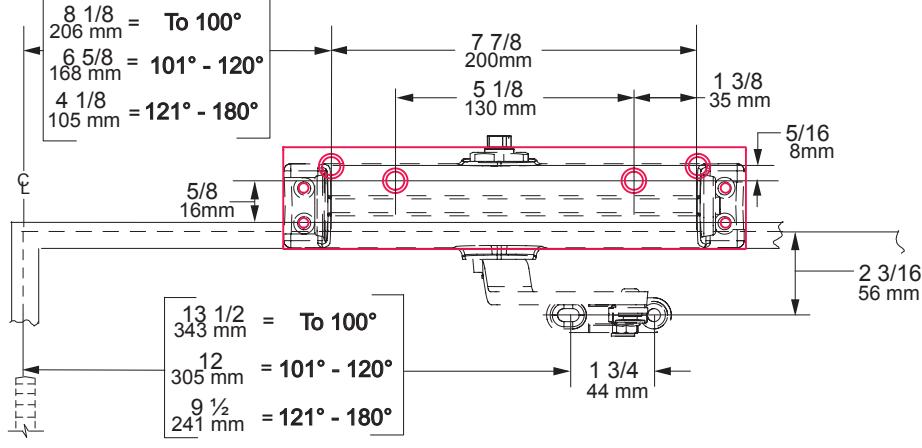

1260 EDA DROP PLATES

PUSH SIDE, PARALLEL ARM MOUNTED ON: 1260-18PA DROP PLATE

5 1/8 130 mm

7 7/8 200mm

-1.3/8 35 mm

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

5 7/8 =

149 mm

111mm

To 90°

4 3/8 = 91° - 120°

NOTES -1. MINIMUM TOP RAIL 2 ½".

• 1. IF DOOR IS HUNG ON PIVOTS OR SWING CLEAR HINGES LOCATE CLOSER AND SHOE FROM CENTER LINE OF PIVOT POINT.
• 2. CLOSER SIZE 10" x 2 1/4" x 2 7/8".
• 3. TOP RAIL LESS THAN 4 3/4 REQUIRES DROP PLATE.
• 4. ALL DIMENSIONS APPLICABLE FOR HOLD OPEN.
• 5. DELAYED ACTION OPTIONAL.
• 6. REINFORCING PER. ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOOR AND FRAMES.
• 7. USING FASTERS PROVIDED MOUNT DROP PLATE WITH (4) 1/4 14 X 1 3/8 S.R.T. MOUNT CLOSER TO DROP PLATES WITH (4) 1/4 20 X 1/2 P.H.M.S. MAX. BUTT HINGE SIZE 5 x 5.

1260 CUSH DROP PLATES

PUSH SIDE, PARALLEL ARM MOUNTED ON: 1260-18PA DROP PLATE

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

NOTES - 1. MINIMUMTOP RAIL 2 ½".

• 1. IF DOOR IS HUNG ON PIVOTS OR SWING CLEAR HINGES LOCATE CLOSER AND SHOE FROM CENTER LINE OF PIVOT POINT.
• 2. CLOSER SIZE. 10"x 2 1/4"x 2 7/8"
• 3. TOP RAIL LESSTHAN 4 3/4 REQUIRES DROP PLATE.
• 4. ALL DIMENSIONS APPLICABLE FOR HOLD OPEN OR DEAD STOP.
• 5. DELAYED ACTION OPTIONAL.
• 6. REINFORCING PER. ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOOR AND FRAMES.

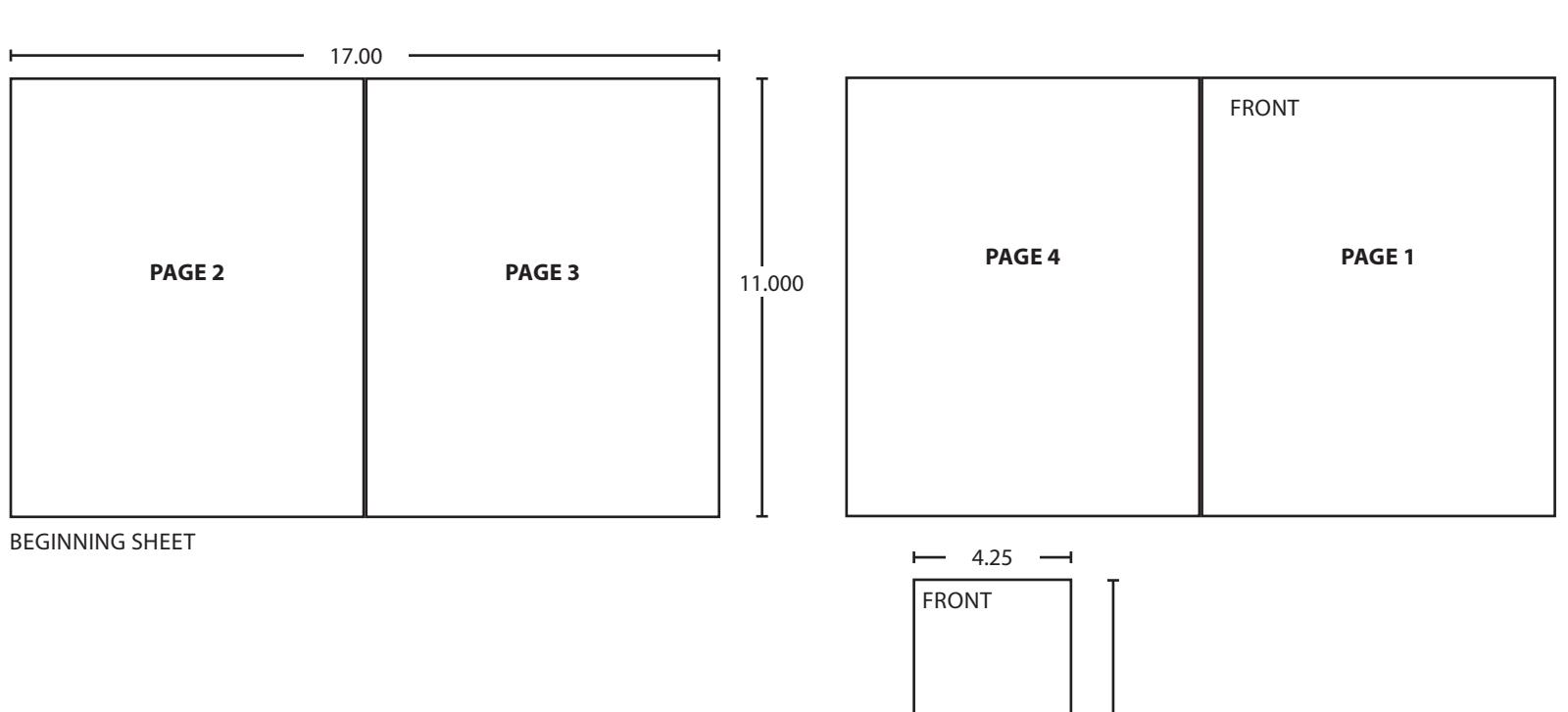

FRONT
