LCN 1260 Parallel Arm
Open the original PDF document

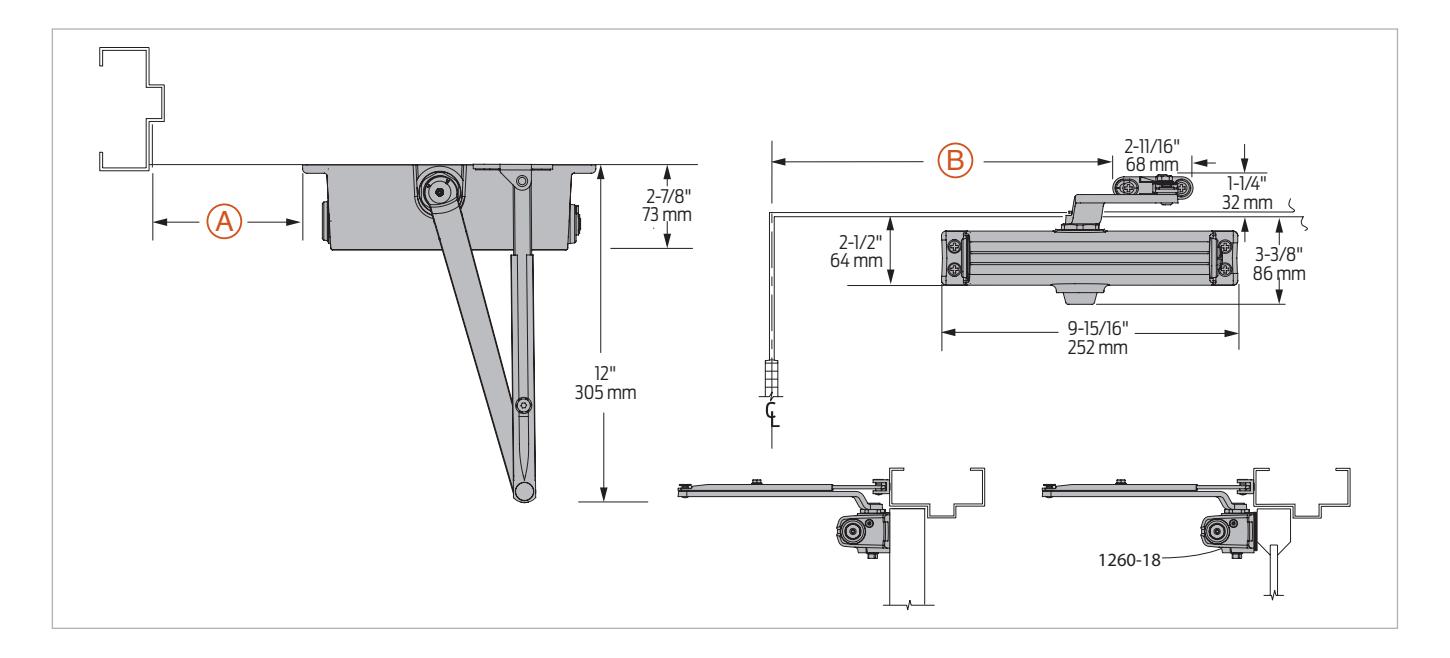

View PDFMounting details
Hinge (pull) side mounting
| Butt hinges | Should not exceed 5" (127 mm) in width | ||
|---|---|---|---|
| Auxiliary stop | Recommended at hold open point or where a door cannot swing 180° | ||
| Reveal |
Should not exceed 3⁄4" (19 mm) for regular arm or 1
⁄2" (13 mm) for Hold Open Arm |
||
| Top rail | Less than 2 1 | ⁄2" (64 mm) requires plate, 1260-18 | |
| Clearance | 2 7 | ⁄8" (73 mm) behind door required for installation | |
| Maximum opening | 110°: |
A = 6 9⁄16" (167 mm)
B = 12 7 ⁄16" (316 mm) |
|
| 101° to 120°: |
A= 5 9⁄16" (141 mm)
B = 11 7 ⁄16" (291 mm) |
||
| or *121° to 180°: A= 3 1 |
⁄16" (78 mm)
B = 8 15⁄16" (227 mm) |
||
Note: Hold open points up to maximum opening with Hold Open Arm.
* Frame and trim permitting.
