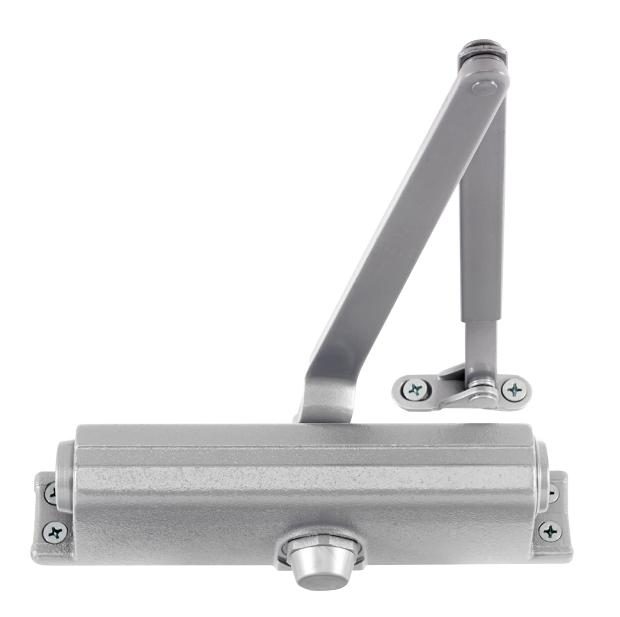

Surface mounted closer

1260 Series

Overview

The 1260 is a light to medium duty cast iron closer designed to fit into the most common commercial foot print. The 1260 is adjustable for spring sizes 1-5. The 1260 also features a complete line of regular and extra duty arms, LCN's peel-n-stick installation templates, a convenient spring adjust pointer, and an optional Quick Fix™ bracket kit.

Cylinder

1261(2)(3)(4)(5)-3071

Cast iron cylinder assembly

Handing Sizing

Non-handed Adjustable spring size 1-6

Mounting

Hinge (pull side) Top jamb (push side)

Parallel arm (push side)

Finishes Covers

Powder coat fi nishes

690 Statuary Bronze

691 Light Bronze

693 Black

695 Dark Bronze

696 Brass

150+ additional custom colors available using the RAL numbering system

Available fi nish options

MTLPC

Brite metallic: Custom powder coat fi nish, which resembles that of US26 or US26D plated fi nish.

SRI

For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat fi nish of your choice, or a custom powder coat fi nish for a nominal additional cost. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated fi nishes.

Standard cover

None

Optional covers

1260-72 Slim line plastic cover

• Non-handed
• Optional

Arms

1260-3077 Regular arm w/PA

• Non-handed
• Mounts hinge side or top jamb
• Parallel Arm includes PA SHOE, 1260-62PA required for parallel arm mounting

1260-3077L Long arm

• Non-handed
• Includes LONG ROD AND SHOE, 1260-79LR for top jamb mount with deep reveals
• Optional

1260-3049 Hold-open arm

• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold-open adjustable at shoe
• Optional

1260-3049L Long hold-open arm

• Non-handed
• Includes LONG HEAD AND TUBE, 1260-3048L for top jamb mount with deep reveals
• Optional

1260-3077EDA Extra duty arm

• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• Optional 1260-3077EDA/G for blade stop clearance

1260-3077EDA/62G Extra duty arm with 62G

• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations

1260-3049EDA Hold-open extra duty arm

• Handed
• Provides hold-open function adjustable at shoe
• Optional

1260-3077CNS Cush-n-Stop® Arm

• Non-handed
• Features solid forged steel main arm and forearm with stop in soffi t shoe
• Optional

1260-3049CNS HCUSH Arm

• Non-handed
• Provides hold-open function with templated stop/holdopen points
• Handle controls hold-open function
• Optional

Installation accessories

1260-18 Plate

• Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
• Required for top jamb mounting where head frame is less than 1-3/4˝ (44 mm) or fl ush ceiling condition exists
• Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head frame

1260-18PA Plate

• Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm), measured from the stop
• Requires 1-3/4˝ (44 mm) minimum top rail

1260-18QF Quick Fix™ bracket kit

• Optional kit includes retro-fi t mounting plates for 1371 closer cylinder and shoe
• Useful in applications when previously drilled holes are damaged

1260-30 CUSH shoe support

Provide anchorage for fi ft h screw used with CUSH arms where reveal is less than 3-1/16˝ (78 mm)

1260-61 Blade stop spacer

Lowers parallel arm shoe to clear 1/2˝ (13 mm) blade stop

1260-62A Auxiliary shoe

• Requires a top rail of 7˝ (178 mm)
• Optional shoe replaces-62PA for parallel arm mounting of regular arm with overhead holder/stop

1260-419 PA fl ush panel adapter

Provides horizontal mounting surface for PA, EDA or CUSH shoe on single rabbeted or fl ush frame

1260-62PA PA shoe

Required for parallel arm mounting

Fasteners

Self-reaming and tapping screws included standard

Fastener pack options

TBSRT	TB1 with self-reaming and tapping screws
WMS	Wood and machine screw
TBWMS	TB1 , wood and machine screw
TORX	TORX machine screw
TBTORX	TB1 and TORX machine screw

Dimensions and mounting

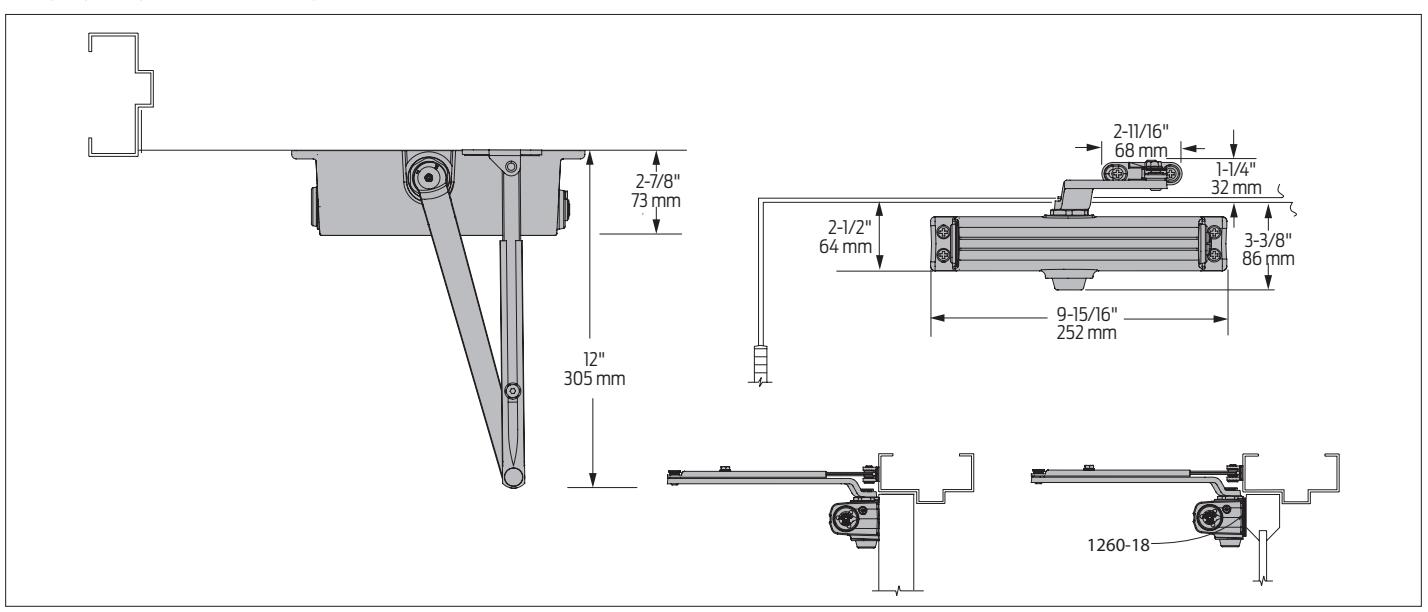

Hinge (pull) side mounting

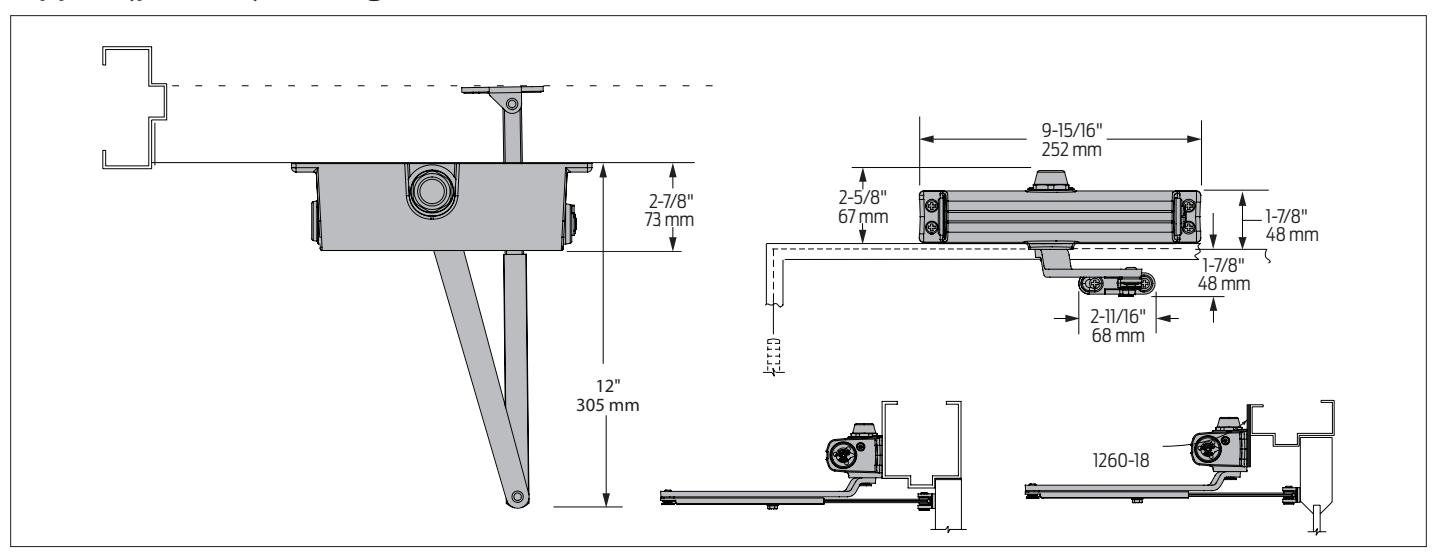

Top jamb (push side) mounting

Dimensions and mounting

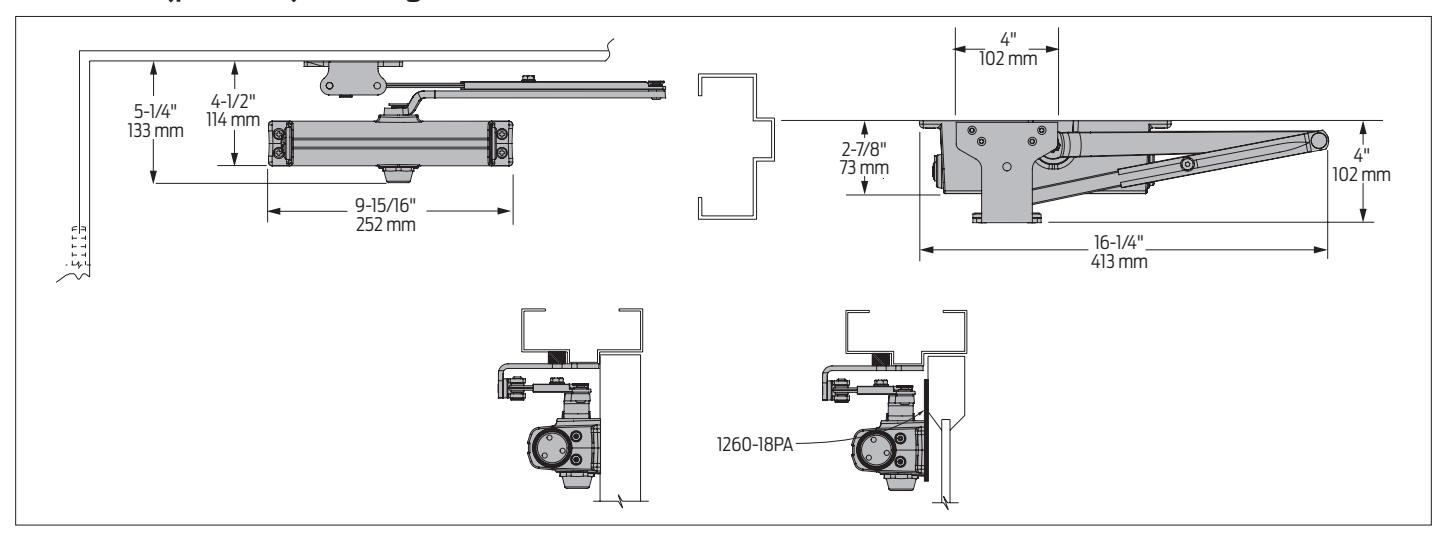

Parallel arm (push side) mounting

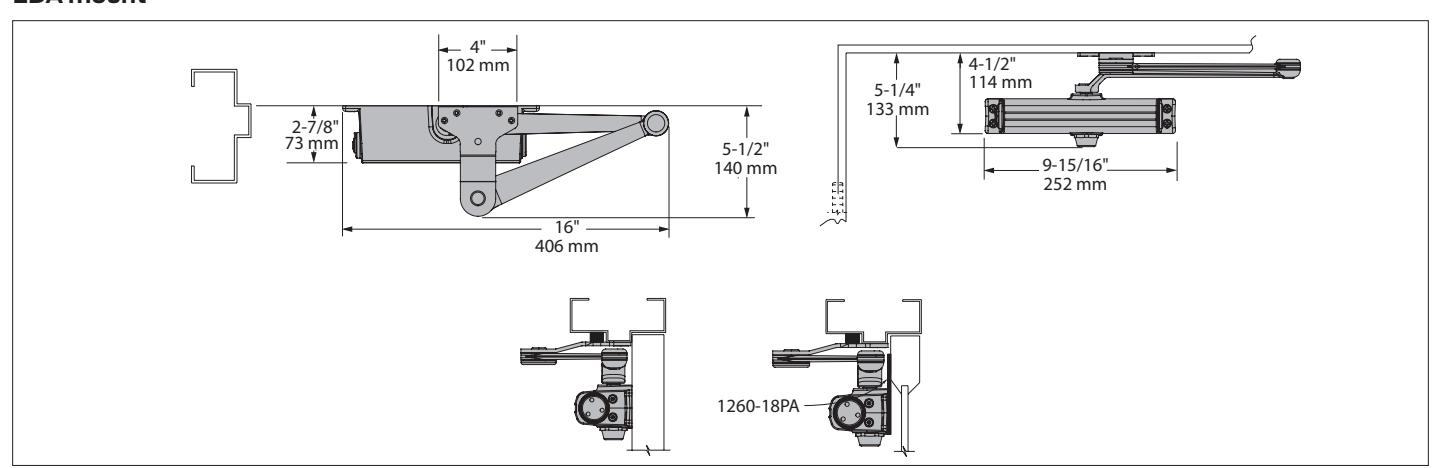

EDA mount

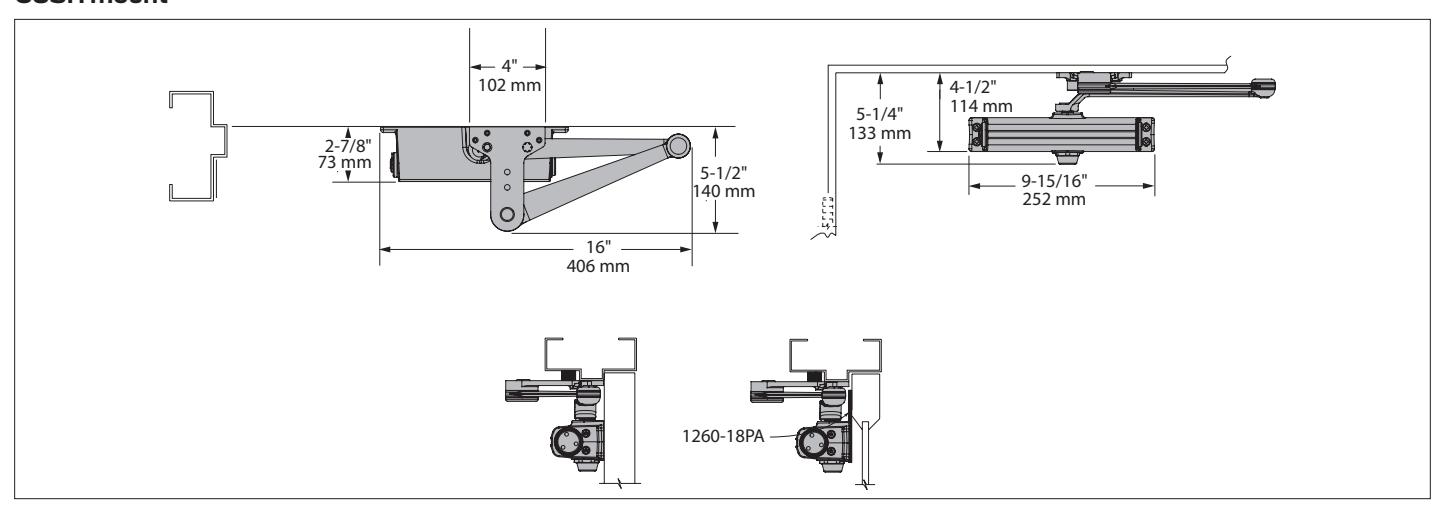

CUSH mount

Specifications

Accessibility	Available with less than 5.0 lbs. opening force on 36˝ door
Certifications/	ƒ Grade 1 - ANSI A156.4
approvals	ƒ Meets BAA - Buy American Act
Degree of	Hinge (pull) side
operation	Max opening:	180°
	Hold open:	180°
	Top jamb (push side) mount
	Max opening:	180°
	Hold open:	180°
	Parallel arm with 62PA
	Max opening:	180°
	Hold open:	180°
	EDA
	Max opening:	120°
	Hold open:	120°
	Cush
	Max opening:	110°
	Hold open:	110°
Environmental conditions	ƒ Approved for interior use ƒ Approved for exterior use (SRI coated only) ƒ LCN's standard all weather fluid performs to temperature ranges from 120°F (49°C) to -30°F (-35°C) ƒ LCN's powder coat finish surpasses 100 hours of salt spray which is over four times the ANSI standard for corrosion resistance.
Warranty	20 years
Standard	ƒ Cast iron body
features	ƒ Full complement bearing
	ƒ 1-3/8˝ diameter piston
	ƒ 5/8˝ diameter single heat treated pinion journal
