1250 Series

Installation Instructions

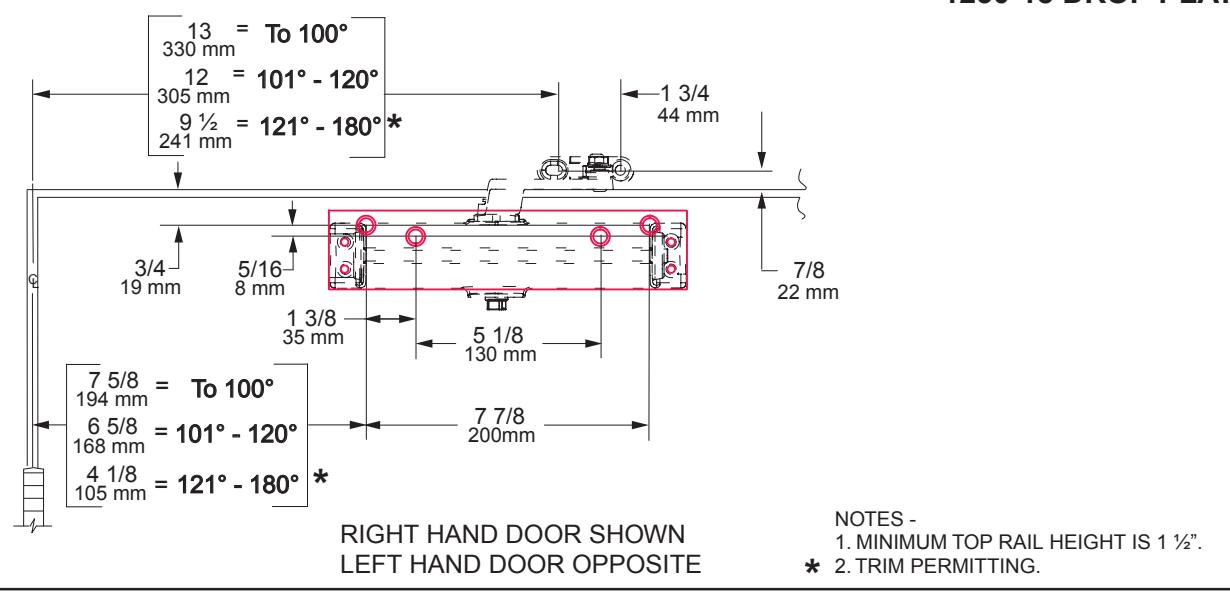

1250 PULL SIDE (DOOR MOUNT) DROP PLATES

PULL SIDE ARM MOUNTED ON: 1250-18 DROP PLATE

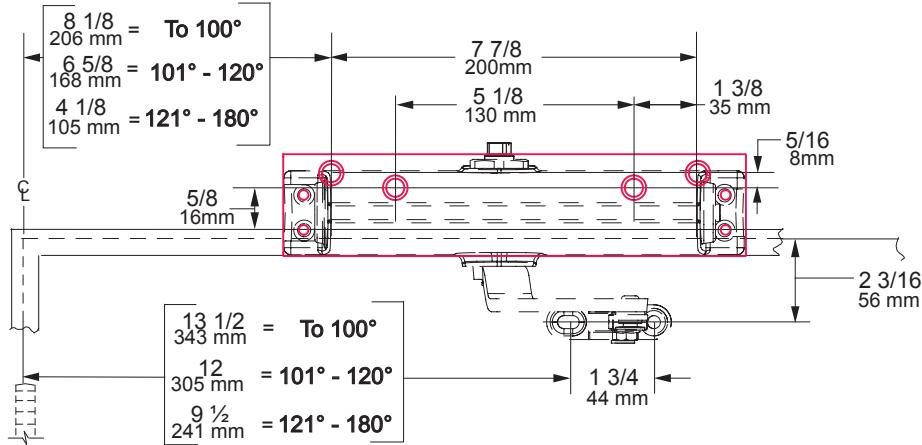

1250 PUSH SIDE (TOP JAMB) DROP PLATES PUSH SIDE ARM MOUNTED ON:

1250-18 DROP PLATE

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

NOTES -

1. MINIMUM FACE FRAME IS 1 3/8".

• 1. ON TOP JAMB & HINGE FACE MOUNTS. LOCATE CLOSER & SHOE FROM CENTERLINE OF PIVOT OR SWING CLEAR HINGE PIN WHEN USED.
• 2. ON TOP JAMB MOUNTING WHEN OVERHEAD STOP IS USED, SHOE MUST BE LOWERED TO CLEAR HOLDER.
• 3. FOR 180° OPENING, MAX BUTT SIZE IS 5" X 5"
• 4 REINFORCING PER ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOORS AND FRAMES.

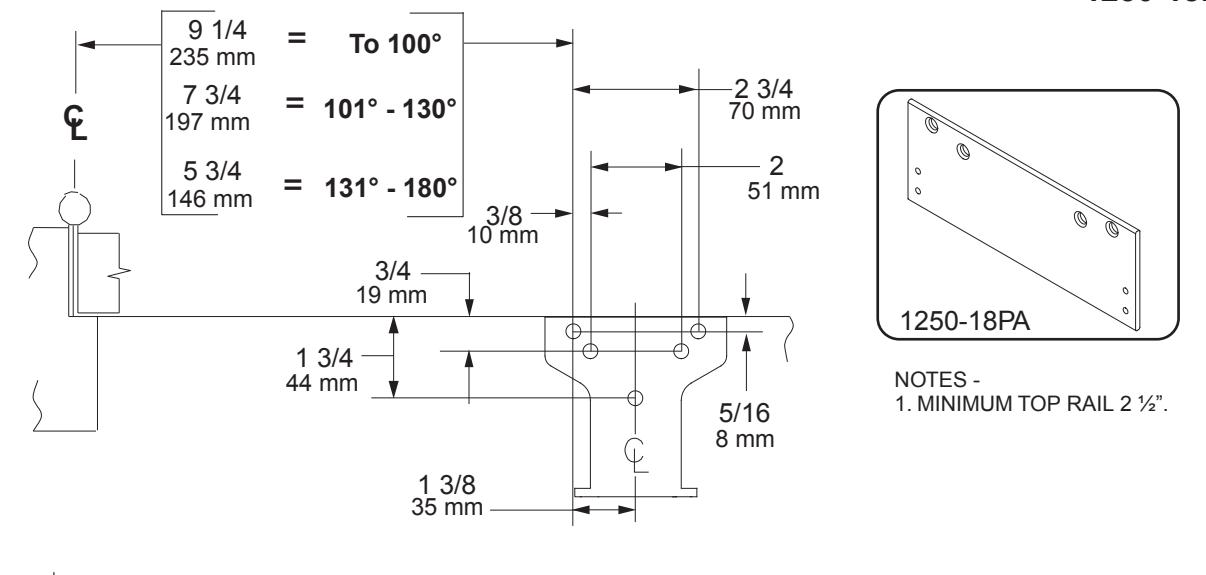

1250 PUSH SIDE (DOOR MOUNT) DROP PLATES PUSH SIDE PARALLEL ARM MOUNTED ON: 1250-18PA DROP PLATE

• Locate closer & shoe from centerline of pivot or swing clear hinge pin when used.
• 2. For 180° opening on hinge face mounts, max butt size is 5" x 5".
• Reinforcing per ANSI/SDI-100 recommended for hollow metal doors and frames.

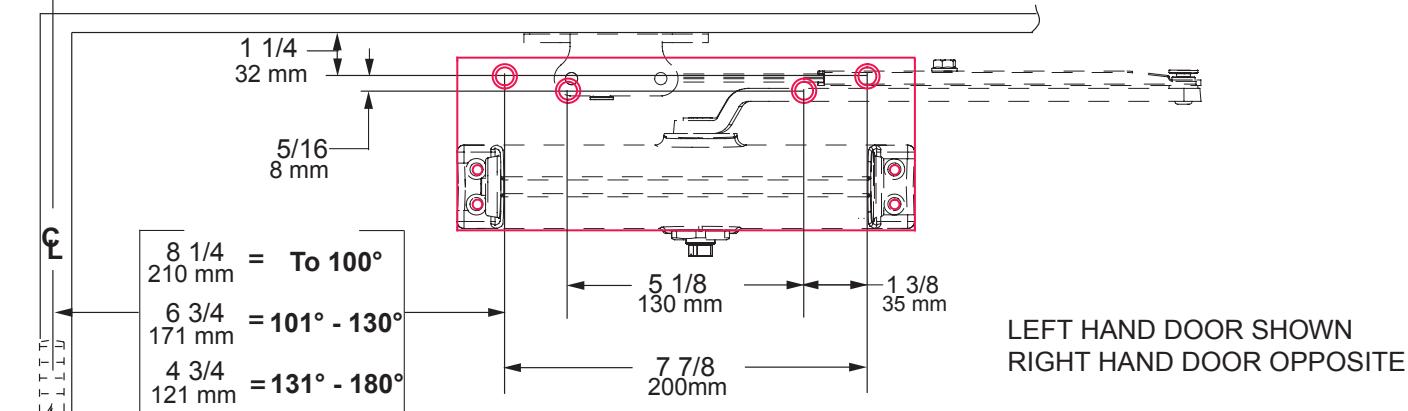

PUSH SIDE, PARALLEL ARM MOUNTED ON: 1250-18PA DROP PLATE 1250 EDA DROP PLATES 6 3/4 = 100°-130° 8 1/4" = To 100° 6 1/8 = 130°-180° 8 1/8 = 100°-130° 9 5/8 = To 100° 11/16 5/16 5 1/8 1 3/8 L C 2 3/4 ² 3/8 7/16 15/16 1 3/8 2 1/16 L C

7 7/8

4 3/4 = 130°-180°

NOTES - 1. MINIMUM TOP RAIL 2 ½".

• 1. IF DOOR IS HUNG ON PIVOTS OR SWING CLEAR HINGES LOCATE CLOSER AND SHOE FROM CENTER LINE OF PIVOT POINT.
• 2. TOP RAIL LESS THAN 4 3/4 REQUIRES DROP PLATE.
• 3. ALL DIMENSIONS APPLICABLE FOR HOLD OPEN.
• 4. REINFORCING PER. ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOOR AND FRAMES.
• 5. USING FASTERS PROVIDED MOUNT DROP PLATE WITH (4) 1/4 14 X 1 3/8 S.R.T. MOUNT CLOSER TO DROP PLATES WITH (4) 1/4 - 20 X 1/2 P.H.M.S. MAX. BUTT HINGE SIZE 5 x 5.

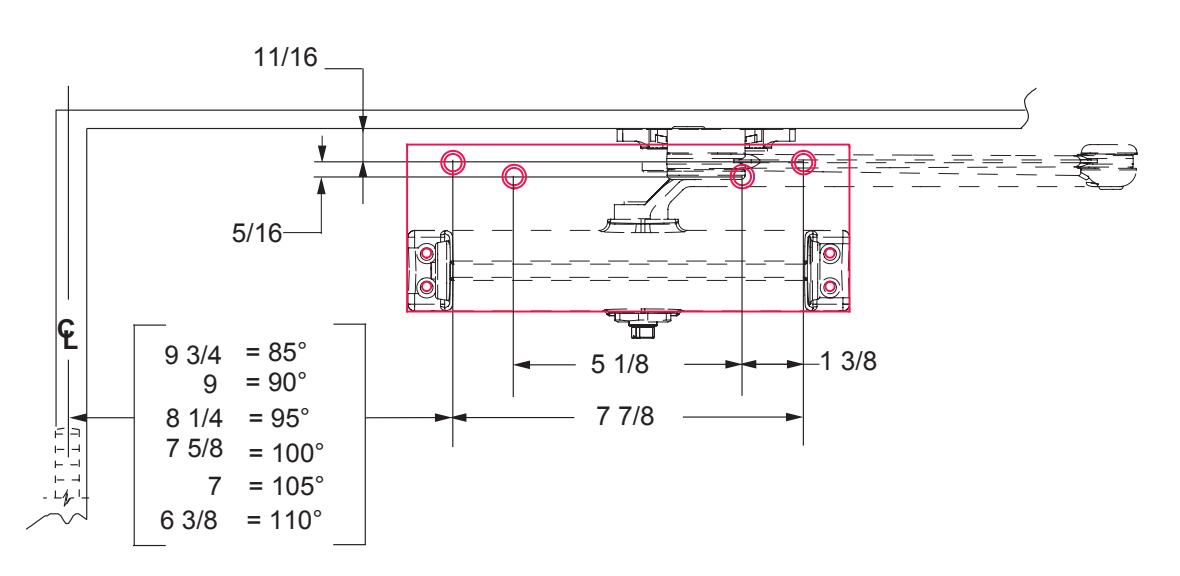

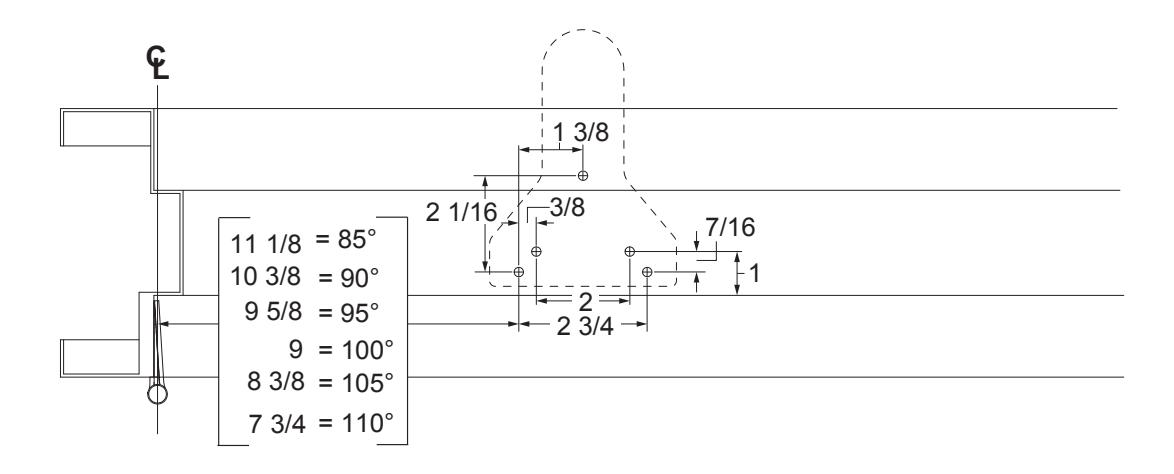

1250 CUSH DROP PLATES

PUSH SIDE, PARALLEL ARM MOUNTED ON: 1250-18PA DROP PLATE

LEFT HAND DOOR SHOWN RIGHT HAND DOOR OPPOSITE

NOTES - 1. MINIMUMTOP RAIL 2 ½".

• 1. IF DOOR IS HUNG ON PIVOTS OR SWING CLEAR HINGES LOCATE CLOSER AND SHOE FROM CENTER LINE OF PIVOT POINT.
• 2. TOP RAIL LESSTHAN 4 3/4 REQUIRES DROP PLATE.
• 3. ALL DIMENSIONS APPLICABLE FOR HOLD OPEN OR DEAD STOP.
• 4. REINFORCING PER. ANSI/SDI-100 RECOMMENDED FOR HOLLOW METAL DOOR AND FRAMES.
