LAB 003 VS 005 Pin Compare Catalog

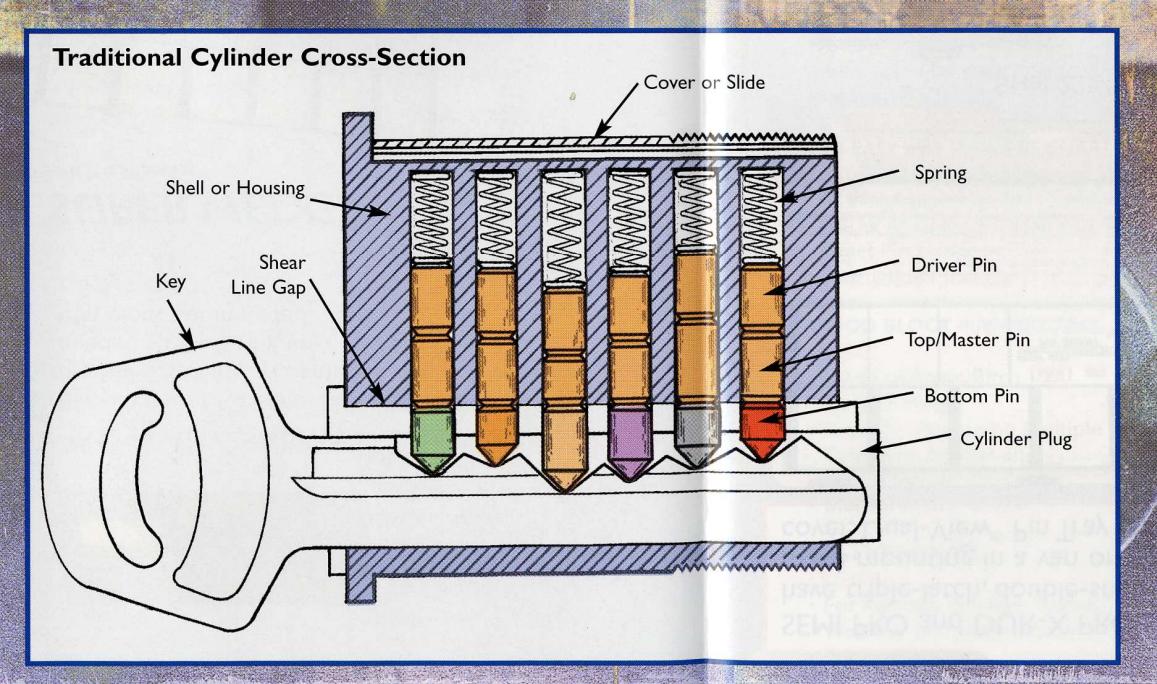

Anatomy of a Cylinder...

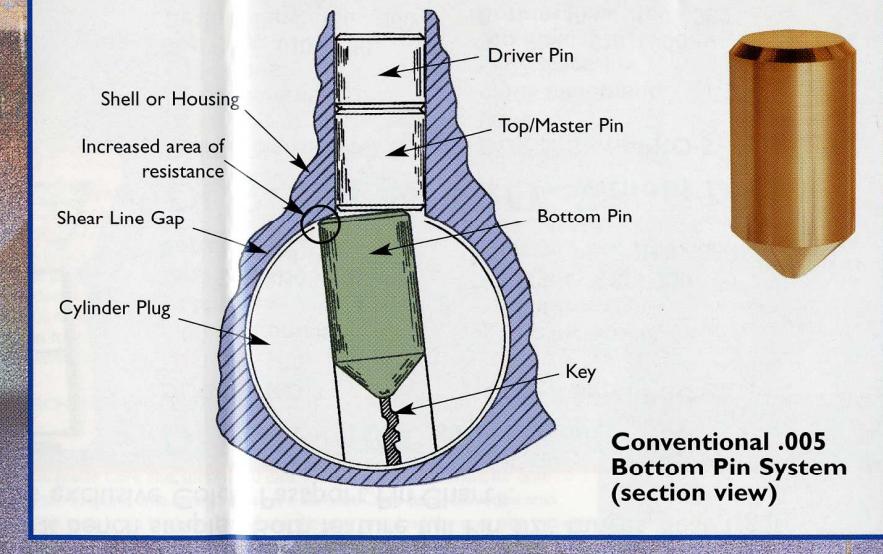

Showing the advantages of LAB's Universal .003© pin system versus the traditional .005 pin system.

700 EMMETT ST. BRISTOL CT 06010 U.S.A. 1-800-243-8242 Website: www.labpins.com

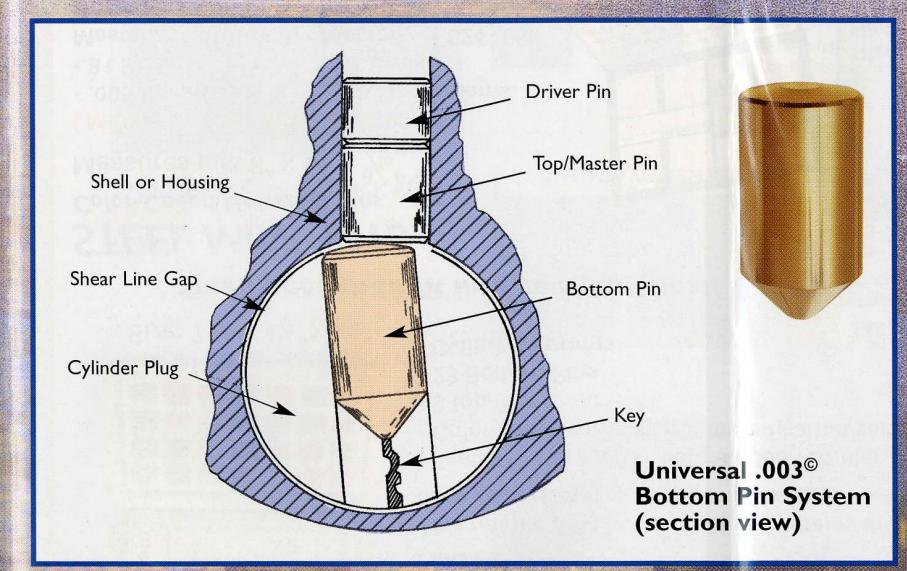

Universal .003° Bottom Pin System with Crown Design

Benefits:

• Increased repinning accuracy no more filing
• Reduces shear line binding or interference
• Nose profile designed to decrease key insertion forces
• Radiused Crown blending to flat eliminate master pin tipping or rolling
• Reduces top edge interference with bottom pin and shell

Illustrations by G. Lloyd Wellnitz

Schlage, Kwikset, Weiser, Corbin Russwin, Best, Falcon, Master, Arrow, Weslock, Yale, CCL, National, Sargent, Ace, Delrin products of DuPont and other tradenames and trademarks used in this catalog are owned by the respective manufacturers of such products. LAB products are sold only through qualified Security Wholesale Distributors. Please log on to our website or call for a distributor in your area.
