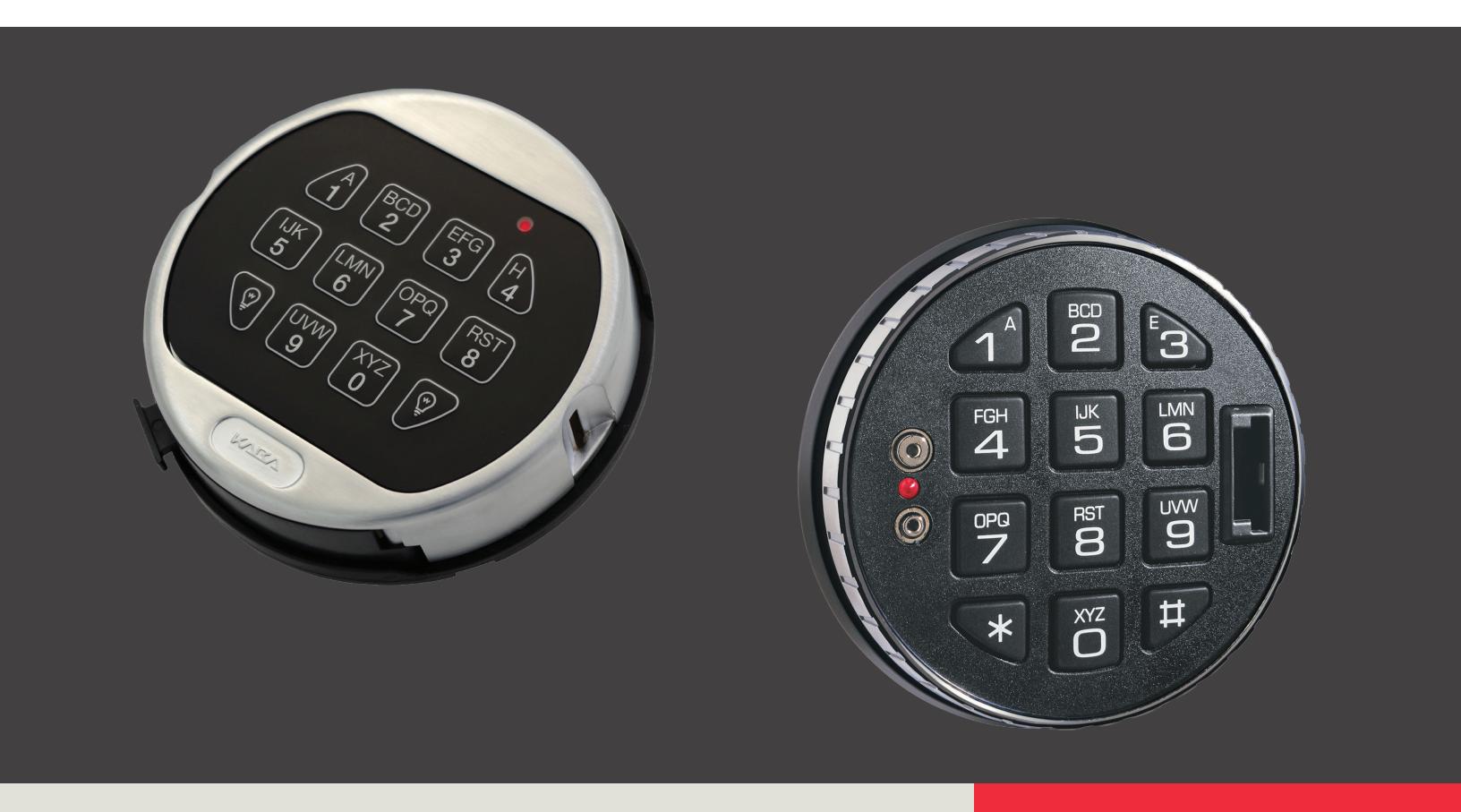

LA GARD ComboGard Pro Series

Programmable Electronic Combination Locks

LA GARD ComboGard Pro Series at a Glance

The ComboGard Pro Series electronic combination lock is a multi-user lock (1 Manager and 9 Users) that may be programmed either at the keypad or with a PC. The ComboGard Pro was developed to address the security requirements of a broad range of commercial and industrial markets.

The Windows™ based ComboGard Pro setup software has a user-friendly interface, allowing you to configure the lock and upload the information directly from the PC to the lock. The software features variable combination lengths, user activation with or without codes, lock mode selection, external signal modes (used with the 2789 and 4002 alarm boxes) and the ability to set time delay values. Also included with the ComboGard Pro setup software is the ComboGard Pro Audit View software, which provides a record of the last 63 lock events.

The ComboGard Pro may also be set up using the key pad only. Using the key pad setup option, the Lock Manager can choose variable combination lengths, activate up to nine users, select the lock modes and set time delay values.

The ComboGard Pro is the logical choice for retail security needs, whether as a new installation or lock replacement. The quick install, easy setup and option for allowing multiple users make this lock ideal for most retail applications. The ComboGard Pro provides an economical solution that is configurable to your business requirements.

Retail Commercial Financial

A major benefit to using the ComboGard Pro in commercial applications is that Manufacturers and Distributors can quickly program the lock to suit the specific needs of each customer. Using the ComboGard Pro Setup Software to program the lock saves both time and money, allowing customer expectations to be not only met, but exceeded.

The ComboGard Pro has many financial applications including securing cash drawers and ATMs. The ComboGard Pro provides multiple user Access Control and Audit capabilities. With programmable features such as delayed openings, dual mode and silent alarm signal, the ComboGard Pro is an ideal solution for your financial Access Control needs.

Secure and reliable Discreet and elegant Quick and customer friendly

ComboGard Pro Series Features

Product Features

Low Battery Signal Wrong Try Penalty

Programmable Features

Super Master Reset (SMR)

Manager Mode

Allows the Manager to add/delete or enable/disable 9 additional Users.

Dual Mode

Requires the use of two valid combinations to open the lock.

Time Delay

Entering a valid combination will begin the delay period. The lock can not be opened until the delay period ends.

• Delay Period: 1-99 minutes

• Open Period: 1-19 minutes

Time Delay Override Mode

Enable User 9 to override the delay period.

Swing Bolt

Dead Bolt

Redundant Mechanical 4-Wheel

Recommended

5750-K Round Entry

Optional

Silent Alarm

(Alarm box 2789 or 4002 required) Duress signal is sent to alarm box if the last number of the combination is entered either one number higher or lower. Lock will then open without indication that duress signal has been sent to the alarm system.

Lock Disable

(Alarm box 2789 or 4002 required) Input signal to the Alarm Box will disable opening of the lock by a valid combination.

Audits

63 Audit Events via software

Lock Types Available

4300M Swing Bolt Lock 6040M Dead Bolt Lock 6441 Redundant Mechanical 4-Wheel Lock

Functionality Variety of Lock Types Multiple Entry Options

Entries

Recommended:

• 5750-K Round Entry
• 3125 Round Entry

Optional (no audit): 5750 3035

Certifications

UL Listing, Type 1 VdS Listing, Class 2

Options & Accessories

• 701104 Software Implementation Kit
• 2788 Small Battery/Alarm Box
• 4001 Large Battery/Alarm Box
• Backlit Keypad Standard on Models 5750, 5750-K

dormakaba USA Inc. 749 W. Short St. Lexington KY 40508 T: 859 253 4744 F: 859 255 2655

Toll-free: 877 522 2627

www.dormakaba.us
