L019 Template – 3by4 Offset Intermediate Pivot for Lead-Lined Door

L019 INTERMEDIATE PIVOT FOR LEADLINED, $\backslash frac\{3\}\{4\}$ " OFFSET, HANDED

NOTES:

• 1. PIVOTS DRILLED FOR 1/4-20 x 3/4 FHMS OR #14 x 2" FHWS
• 2. REINFORCING BY OTHERS.
• 3. IT IS THE DOOR AND FRAME MANUFACTURERS RESPONSIBILITY TO CHECK THE HARDWARE SCHEDULE AND PREP THE DOORS AND FRAMES.
• 4. MAXIMUM DEGREE OF OPENING, 180°, TRIM PERMITTING.
• 5. RIGHT HAND SHOWN.

CENTERLINE OF TOP

PIVOT MUST LINE UP WITH CENTERLINE OF

INTERMEDIATE PIVOT &

BOTTOM PIVOT/CLOSER (L0147 BOTTOM PIVOT

SHOWN FOR EXAMPLE)

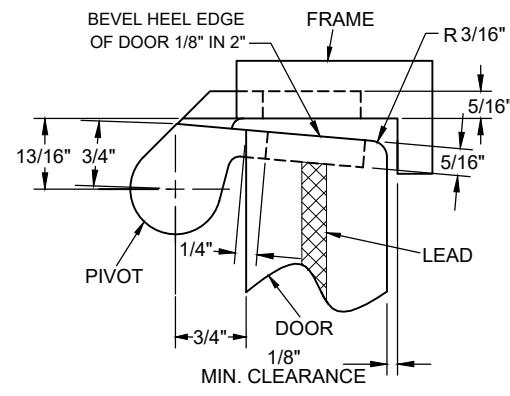

TOP VIEW

INSTALLATION INSTRUCTIONS

NOTE: DOOR SHOULD ALREADY BE HUNG WITH TOP PIVOT AND BOTTOM PIVOT (OR FLOOR CLOSER).

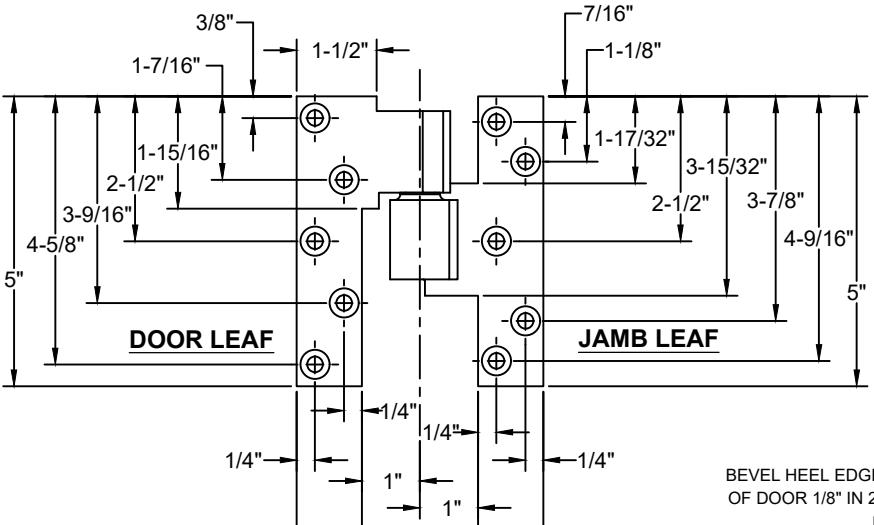

• 1. MORTISE DOOR & FRAME PER TEMPLATE ABOVE.
• 2. INSTALL L019 DOOR & FRAME PIVOT LEAVES.
• 3. ALIGN PIVOT POINT FROM TOP PIVOT TO BOTTOM ARM (SEE DRAWING).
• 4. REMOVE 019 END CAP.
• 5. TURN 019 RETAINER SCREW CLOCKWISE TO RAISE THE DOOR OR COUNTERCLOCKWISE TO LOWER DOOR UNTIL YOU REACH THE DESIRED HEIGHT.
• 6. TURN 019 RETAINER SCREW.
• 7. TIGHTEN 019 RETAINER SCREW UNTIL YOU FEEL RESISTANCE.
• 8. REPLACE 019 END CAP.

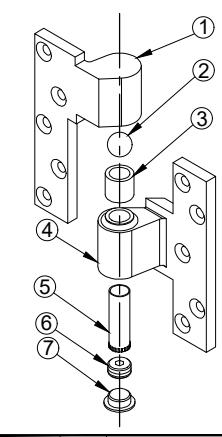

ITEM NO.	QTY.	PART NO.
1	1	L019 Door Leaf
2	1	019 Alignment Ball
3	1	019 Needle Bearing
4	1	L019 Jamb Leaf
5	1	019 Pivot Pin
6	1	019 Retainer Screw
7	1	019 End Cap

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

L019-02.DWG

L019 PAGE 1 OF 1
