View PDFL019-1.5 INTERMEDIATE PIVOT, 1-1/2" OFFSET, HANDED
• 1-3/4" LEAD LINED DOOR UP TO 3/4" CLADDING ON PULL SIDE
INSTALLATION INSTRUCTIONS
NOTE: DOOR SHOULD ALREADY BE HUNG WITH TOP PIVOT AND BOTTOM PIVOT (OR FLOOR CLOSER).

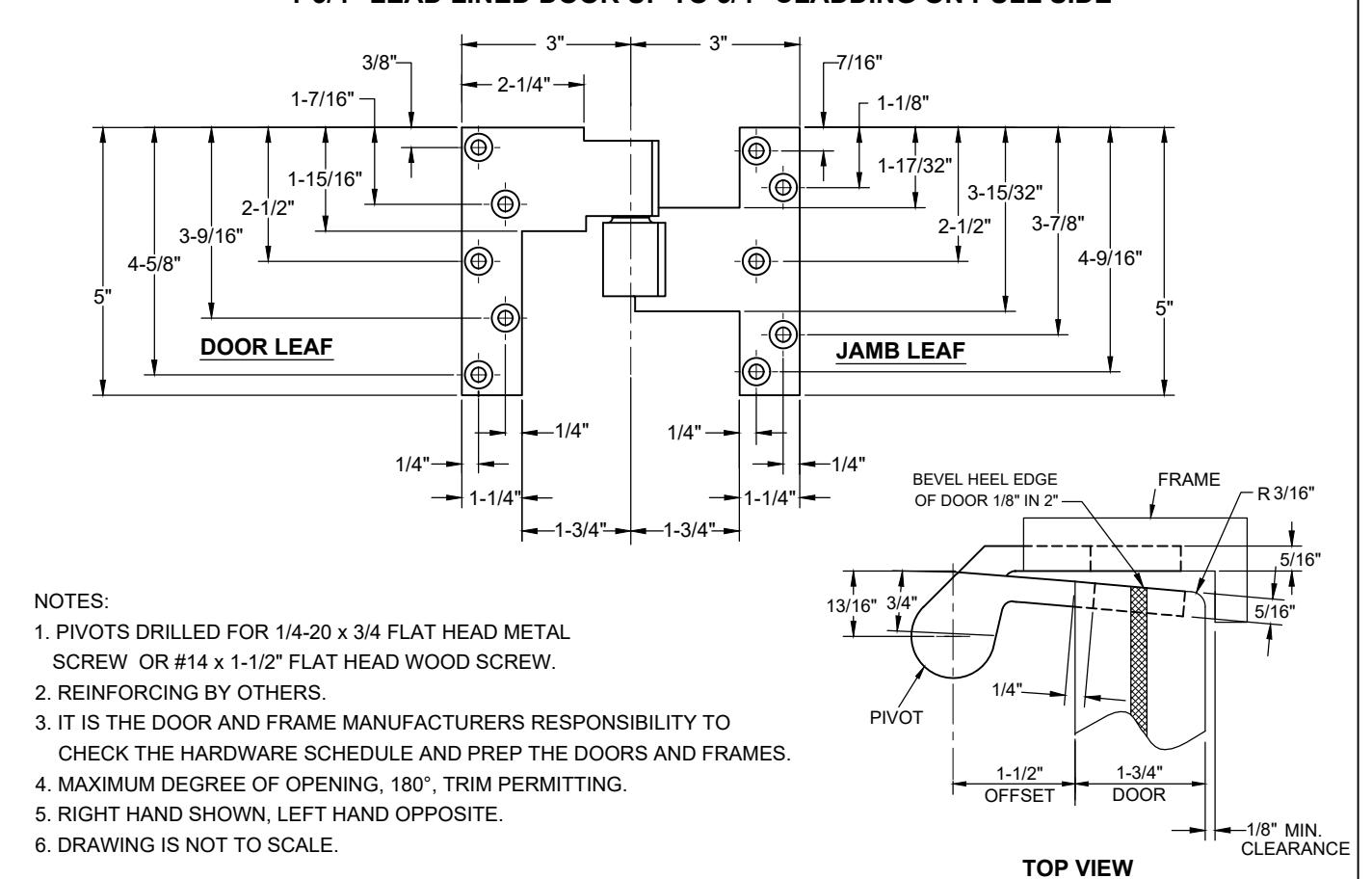

- 1. MORTISE DOOR & FRAME PER TEMPLATE ABOVE.
- 2. INSTALL L019-1.5 DOOR & FRAME PIVOT LEAVES.

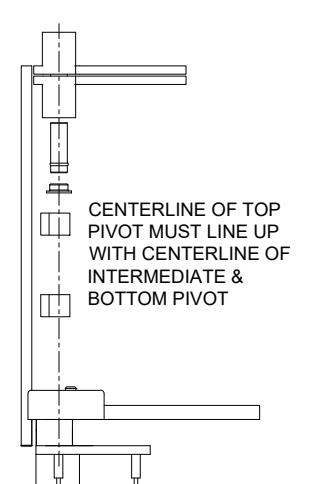

- ALIGN PIVOT POINT FROM TOP PIVOT TO BOTTOM ARM (SEE DRAWING).
- 4. REMOVE 019 END CAP.
- 5. TURN 019 RETAINER SCREW CLOCKWISE TO RAISE THE DOOR OR COUNTERCLOCKWISE TO LOWER DOOR UNTIL YOU REACH THE DESIRED HEIGHT.
- 6. TIGHTEN 019 RETAINER SCREW UNTIL YOU FEEL RESISTANCE.
- 7. REPLACE 019 END CAP.
|

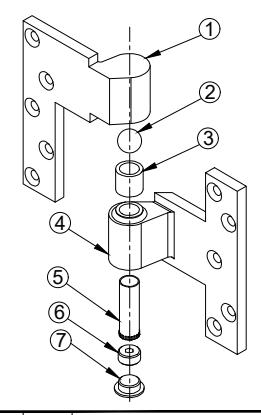

ITEM
NO. |
QTY. | PART NO. |
|---|---|---|
| 1 | 1 | L019-1.5 Door Leaf |
| 2 | 1 | 019 Alignment Ball |
| 3 | 1 | 019 Needle Bearing |
| 4 | 1 | L019-1.5 Jamb Leaf |
| 5 | 1 | 019 Pivot Pin |
| 6 | 1 | 019 Retainer Screw |
| 7 | 1 | 019 End Cap |
Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.
www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
L019-1.5.01 DWG
L019-1.5
PAGE 1 OF 1 REVISED 10-21-20
