L0180 Template – 3by4 Offset Top Pivot for Lead-Lined Doors

L0180 TOP PIVOT, 3/4" OFFSET, NON-HANDED FOR 1-3/4" LEAD-LINED DOORS

L0180 TOP PIVOT

NOTES:

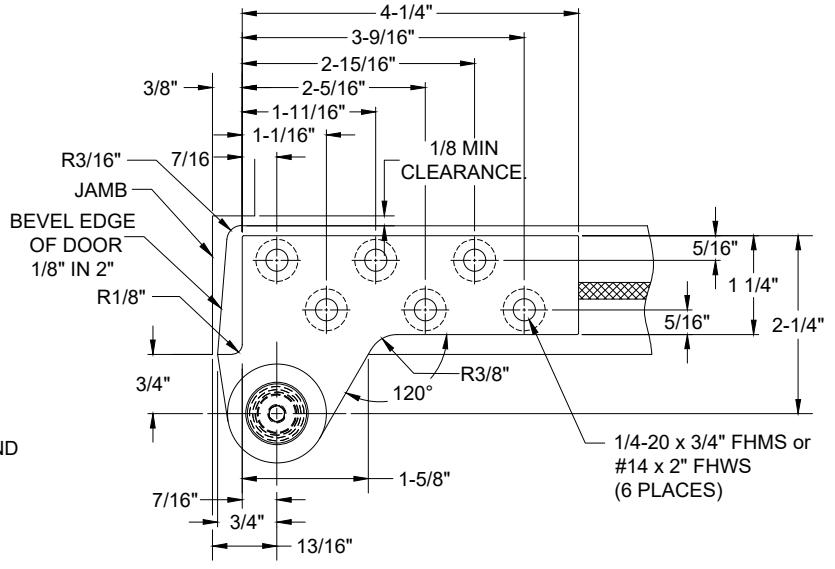

• 1. PIVOTS DRILLED FOR 1/4-20 x 3/4 FHMS OR #14 x 2" FHWS.
• 2. REINFORCING BY OTHERS.
• 3. IT IS THE DOOR AND FRAME MANUFACTURERS RESPONSIBILITY TO CHECK THE HARDWARE SCHEDULE AND PREP THE DOORS AND FRAMES.
• 4. MAXIMUM DEGREE OF OPENING, 180°, TRIM PERMITTING.

INSTALLATION INSTRUCTIONS

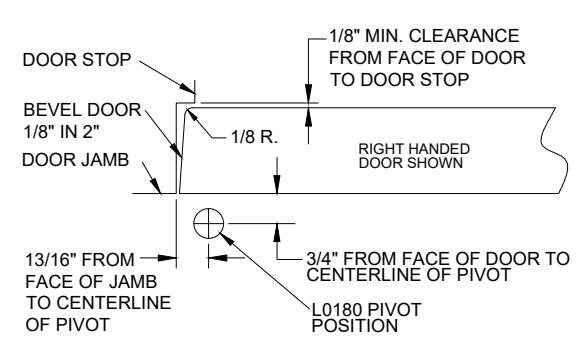

• 1. MEASURE 13/16" OUT FROM DOOR JAMB.
• 2. ALLOW 1/8" MIN CLEARANCE FROM DOOR STOP TO DOOR FACE. MEASURE DOOR THICKNESS AND ADD 3/4".

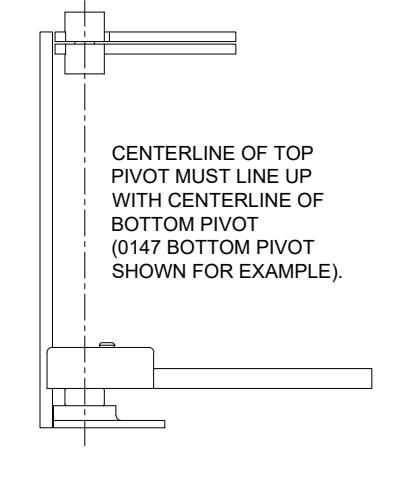

• 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERLINE OF THE PIVOT POINT.

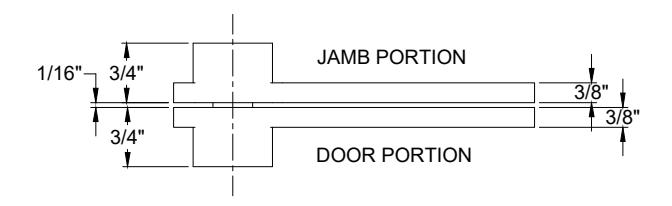

• 4. INSTALL L0180 DOOR PORTION PER TEMPLATE
• 5. INSTALL L0180 JAMB PORTION PER TEMPLATE.
• 8. PUSH L0180 PIVOT PIN IN PLACE AND SECURELY TIGHTEN 0180 END CAP.

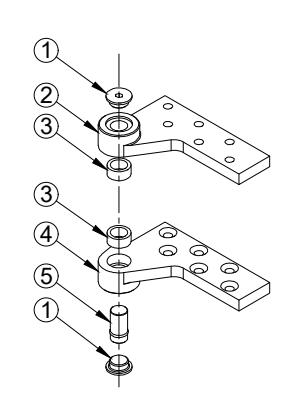

ITEM NO.	QTY.	PART NO.
1	2	L0180 END CAP
2	1	L0180 JAMB PORTION
3	2	L0180 NEEDLE BEARING
4	1	L0180 DOOR PORTION
5	1	I 0180 DIVOT DIN

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

L0180-03.DWG

L0180

PAGE 1 OF 1 REVISED 10-21-20
