L0147 Template – 3by4 Offset Top and Bottom Pivot Set for Lead-Lined Door
Open the original PDF document

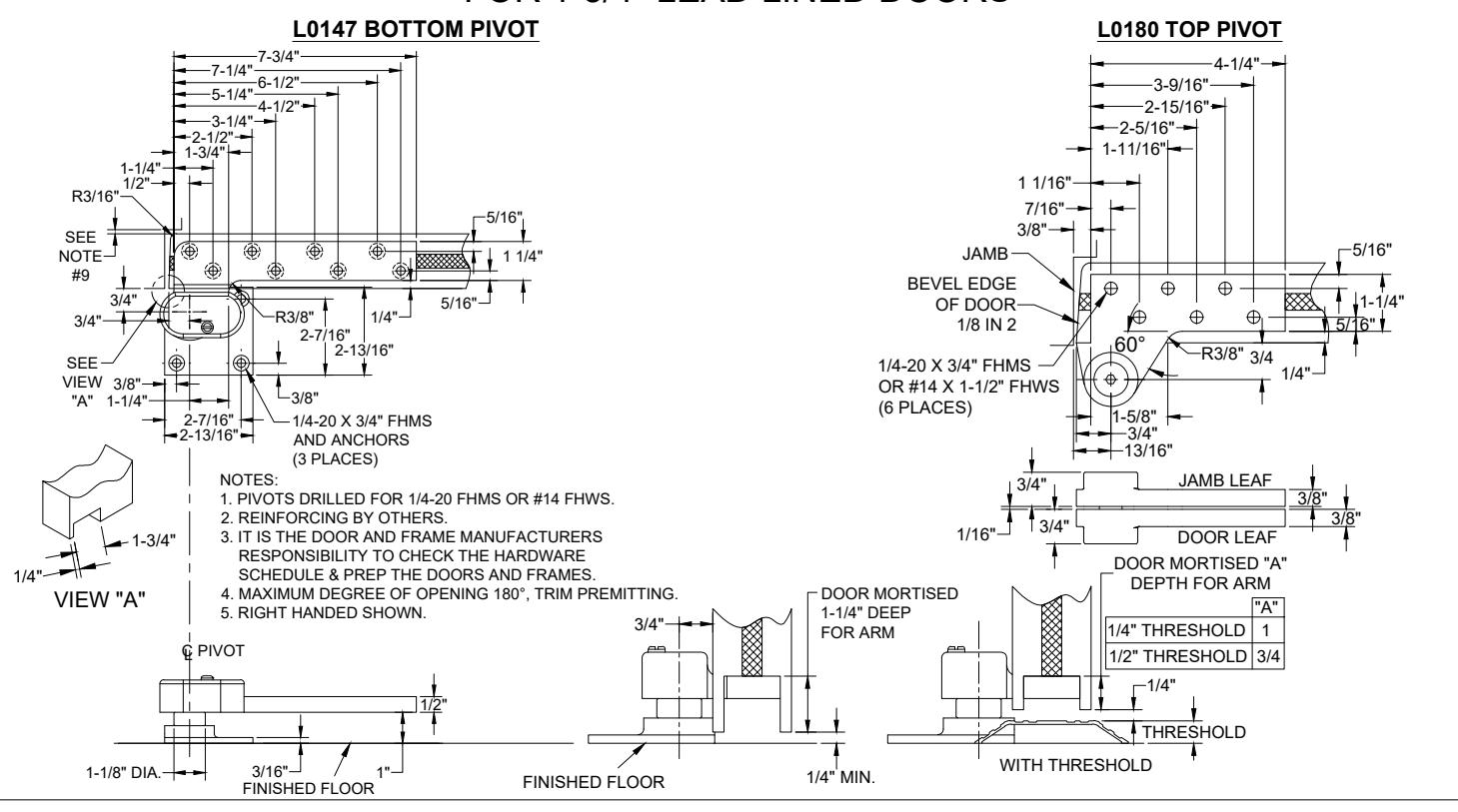

View PDFL0147 PIVOT SET, 3/4" OFFSET, HANDED FOR 1-3/4" LEAD LINED DOORS
INSTALLATION INSTRUCTIONS

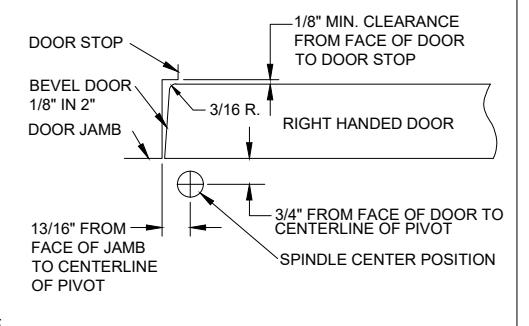

- 1. MEASURE 13/16" OUT FROM DOOR JAMB.
- 2. ALLOW " MIN CLEARANCE FROM DOOR STOP TO DOOR FACE. MEASURE DOOR THICKNESS AND ADD 3/4".
- 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERI INF OF THE PIVOT POINT
- 4. FLOOR PORTION MUST BE INSTALLED COMPLETELY LEVEL IN BOTH DIRECTIONS PER ILLUSTRATION.
- 5. INSTALL L0180 DOOR PORTION PER TEMPLATE
-
AND L0147 DOOR 6. INSTALL L0180 JAMB PORTION PER TEMPLATE.

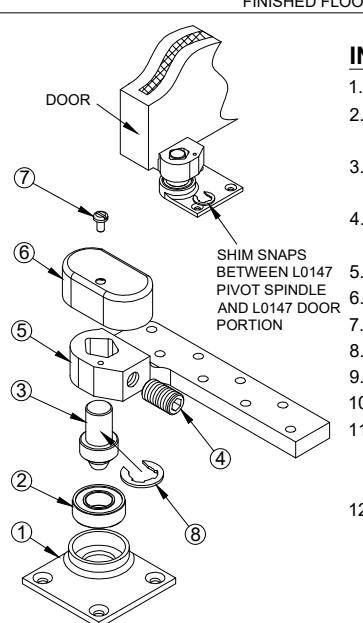

- 7. INSTALL L0147 DOOR PORTION PER TEMPLATE.
- 8. IF L019 INTERMEDIATE PIVOT IS USED, SEE SEPARATE TEMPLATE.
- 9. SET DOOR ON L0147 FLOOR PORTION BEARING
- 10. PUSH L0180 PIVOT PIN IN PLACE AND SECURELY TIGHTEN 0180 END CAP
- 11. IF DOOR DRAGS AT FLOOR (OR THRESHOLD, IF USED) LOOSEN SET SCREW AND RAISE DOOR TO DESIRED CLEARANCE AND INSERT 1/16" THICK SHIM. RETIGHTEN SET SCREW SECURELY.
- 12. PUT L0147 COVER ON AND SECURE TIGHTLY WITH L0147 COVER SCREW.

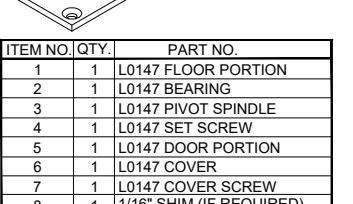

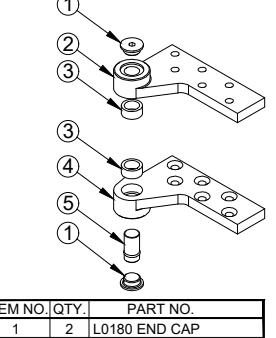

| ITEM NO. | QTY. | PART NO. |
|---|---|---|
| 1 | 2 | L0180 END CAP |
| 2 | 1 | L0180 JAMB PORTION |
| 3 | 2 | L0180 NEEDLE BEARING |
| 4 | 1 | L0180 DOOR PORTION |
| 5 | 1 | L0180 PIVOT PIN |
Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630,875,9900; FAX 800,9FAXABH (932,9224)
L0147-04.DWG
I 0147 PAGE 1 OF 1
