Pivots & Pivot Sets

Offset Pivot Sets

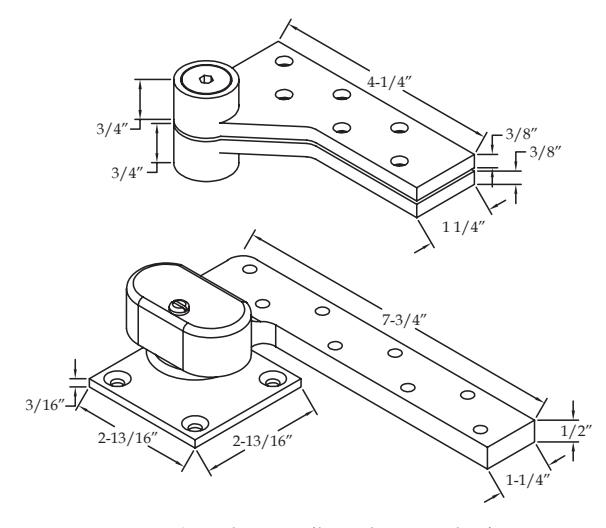

L0147 Pivot Set - ¾" Offset

Standard Features

• L0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• L0147 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Handed Specify LH or RH
• • For use on 1-¾" lead-lined doors
• Maximum door load 800 pounds
• Maximum door width 48"
• Standard
• Heavy duty bearings 3/16"
• Stainless steel base material

Options

• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • EXTP Extended Pin on top pivot (up to 3/4" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

Meets or exceeds ANSI C07162 & C07202

• L019 intermediate pivot required (order seperately)
• Doors ranging from 60" to 90" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in height.

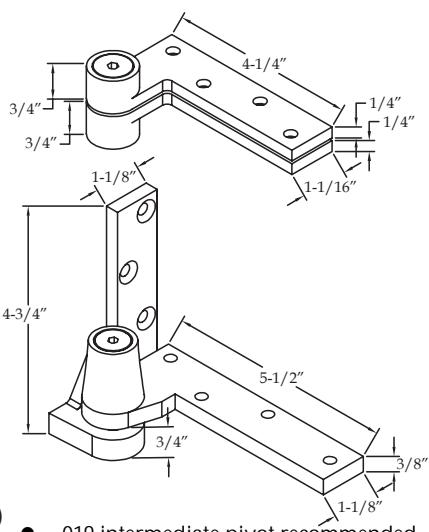

0195 Pivot Set - ¾" Offset

Standard Features

• 0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• 0195 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Handed Specify LH or RH
• Maximum door load 450 pounds
• Maximum door width 48"
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Options

• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

Meets or exceeds ANSI C07131

• 019 intermediate pivot recommended (order seperately)
• Doors ranging from 60" to 90" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in height.
