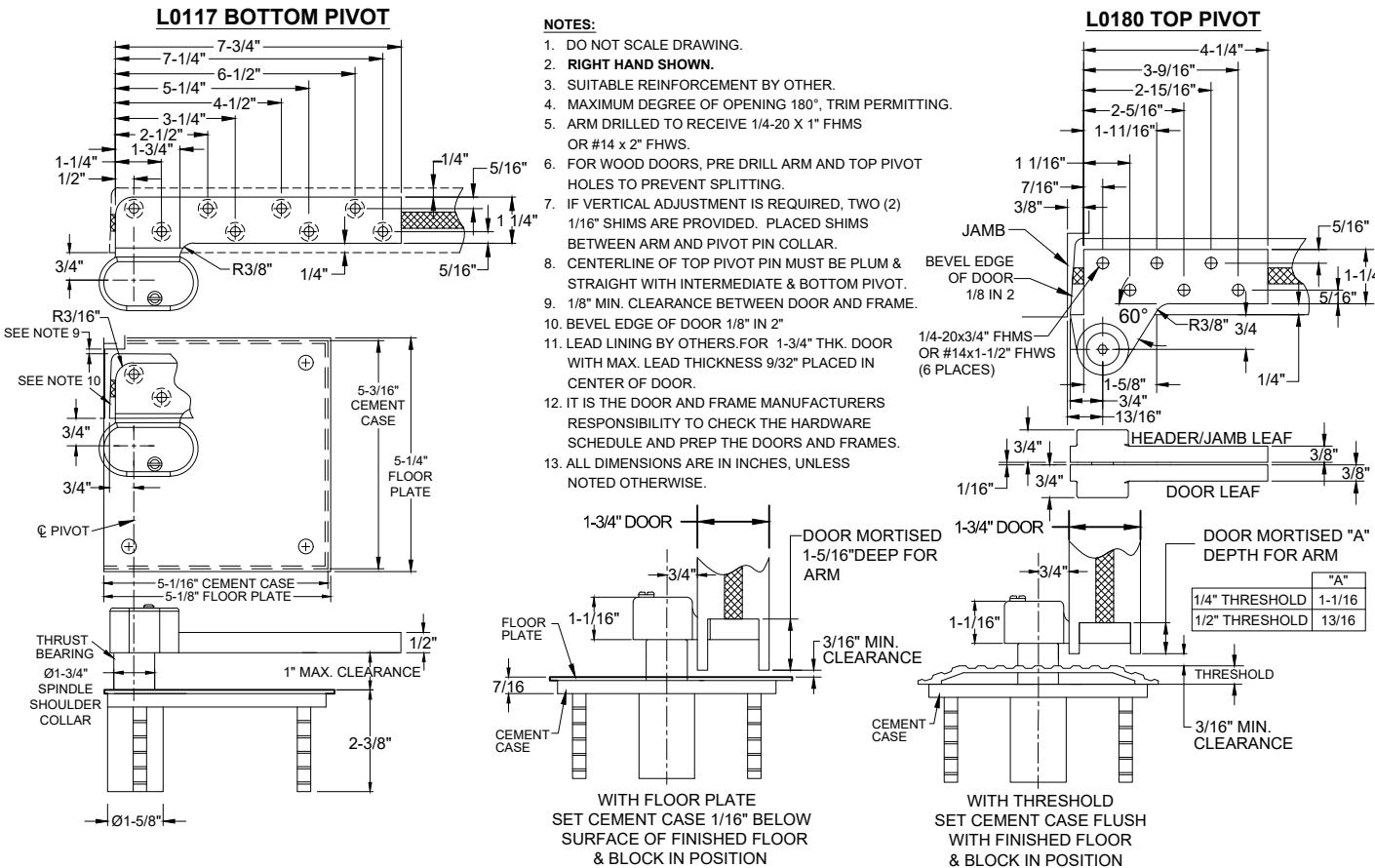

L0117 Template – 3by4 Offset Top and Bottom Pivot Set for Lead-Lined Door, Extra Heavy Duty

L0117 PIVOT SET, 3/4" OFFSET, HANDED FOR 1-3/4" LEAD LINED DOORS DO NOT SCALE DRAWING. 2. RIGHT HAND SHOWN

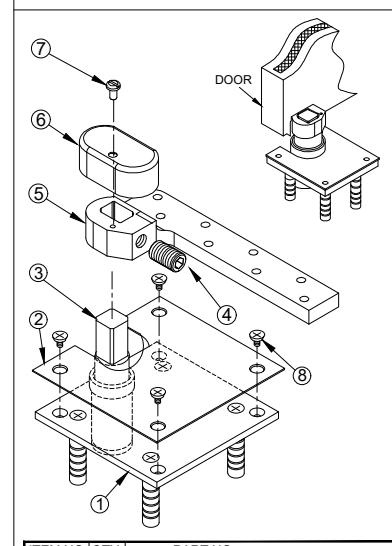

L0117 CEMENT CASE

L0117 PIVOT PIN L0117 SET SCREW

L0117 COVER SCREW

L0117 ARM

L0117 COVER

INSTALLATION INSTRUCTIONS

• 1. MEASURE 13/16" OUT FROM DOOR JAMB
• 2. ALLOW 1/8" MIN CLEARANCE FROM DOOR STOP TO DOOR FACE MEASURE DOOR THICKNESS AND ADD 3/4"
• 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERLINE OF THE PIVOT POINT.

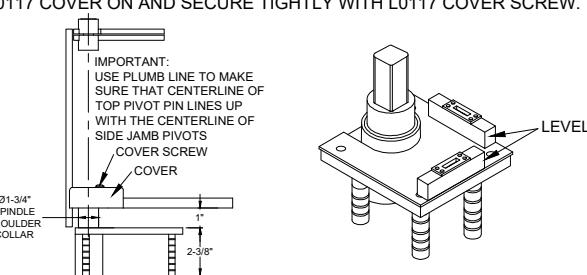

• 4. FLOOR PORTION (CEMENT CASE) SHOULD BE PARALLEL WITH CENTERLINE & MUST BE INSTALLED COMPLETELY LEVEL IN BOTH DIRECTIONS PER ILLUSTRATION

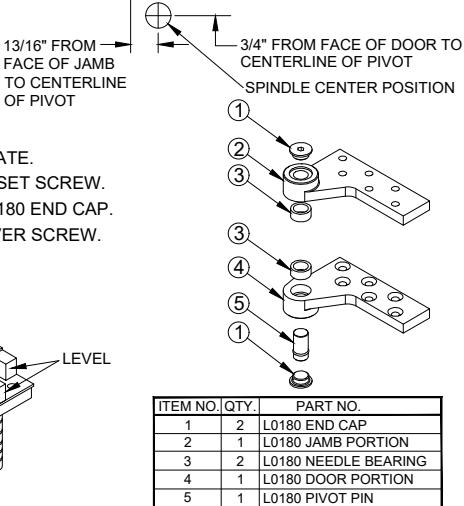

• 5. INSTALL L0180 DOOR PORTION PER TEMPLATE
• 6. INSTALL L0180 JAMB PORTION PER TEMPLATE.
• 7. INSTALL L0117 DOOR PORTION PER TEMPLATE.
• 8. IF L019 INTERMEDIATE PIVOT IS USED, SEE SEPARATE TEMPLATE.
• 9. SET DOOR ON L0117 PIVOT SET SPINDLE AND TIGHTEN L0117 SET SCREW.
• 10. PUSH L0180 PIVOT PIN IN PLACE AND SECURELY TIGHTEN L0180 END CAP.
• 11. PUT L0117 COVER ON AND SECURE TIGHTLY WITH L0117 COVER SCREW.

1/8" MIN. CLEARANCE

FROM FACE OF DOOR TO DOOR STOP

RIGHT HANDED DOOR

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

L0117-1-3/4" REVISED 10-21-20

DOOR STOP

BEVEL DOOF

DOOR JAMB

OF PIVOT

1/8" IN 2"
