Keedex Door Loop Mounting Instructions

Mounting Instructions For Keedex Door Loops

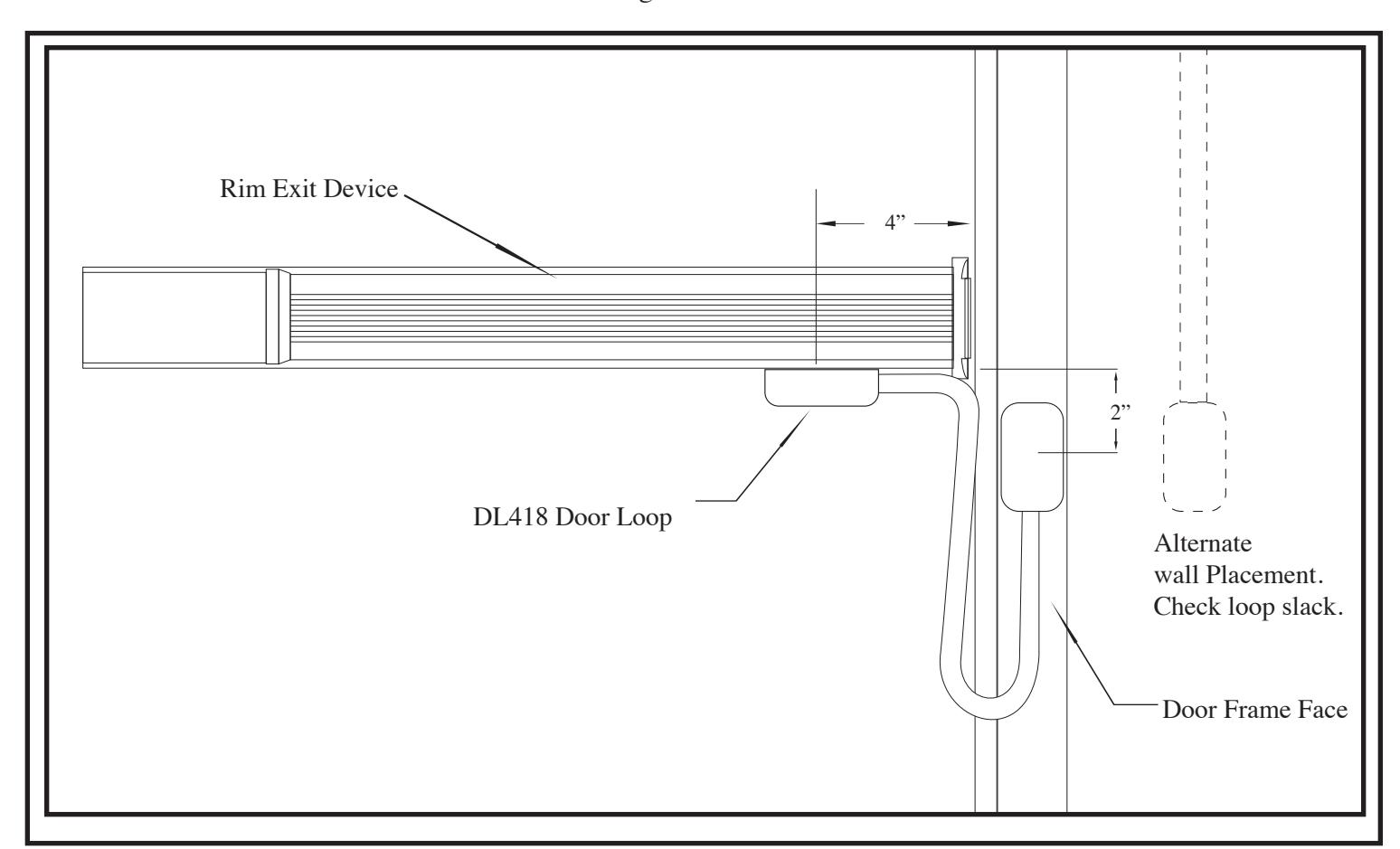

THIS DIAGRAM APPLIES TO

all Keedex DL Series Door Loops

• 1- Locate the centerline of the door loop on the underside of the Exit Device Housing
• 4" from soffit of frame and 1" from face of door
• 2- Locate the centerline of the door loop for the face of frame 2" down from the edge of the Exit Device

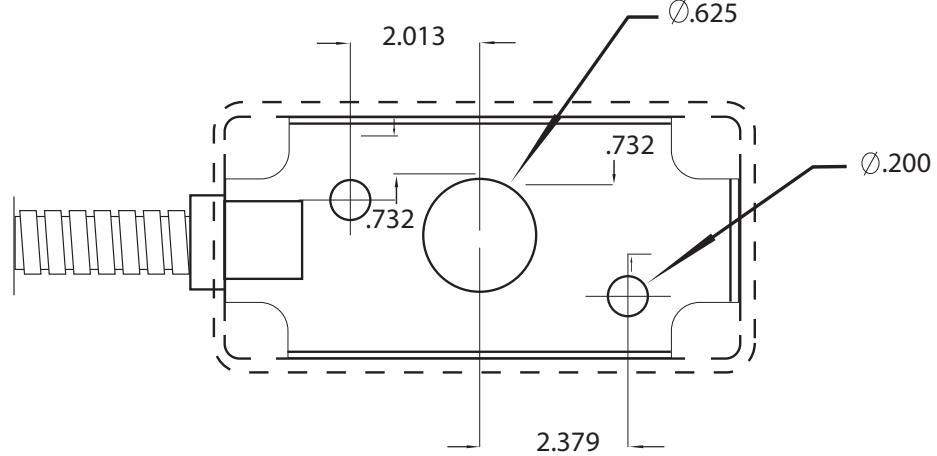

• 3- Drill pilot holes (#24 drill) to mount the base and a 5/8" hole for wire conduit.
• 4- Mount base using #10 SMS.
• 5- Thread electrical wires through door loop.
• 6- Install covers with #8 SMS screws

NOTE: Maximum electrical wires: 7 ea. 18 awg 10 ea. 22 awg
