EC-97912-040 CONTENTS

SERVICE PARTS

Hinging / Pivoting Hardware
Locking Hardware
Exit Devices
Push / Pull Hardware
Closer Arms
Sliding Door / Mall Front Hardware
Miscellaneous Hardware

TO LOCATE YOUR KAWNEER REPRESENTATIVE, VISIT OUR WEB SITE AT kawneer.com

Kawneer reserves the right to change configuration without prior notice when deemed

Hinging and Pivoting Hardware
Offset Pivots 3, 4 Intermediate Offset Pivots5, 6 Butt Hinges / Continuous Geared Hinges / Electric Hinges7, 8 Center Pivots9, 10
Locking Hardware
Standard Locks 11 Short Throw Locks12 Hookbolt Locks 13 Latch Locks14 Latch Lock Accessories 15, 16 Flushbolts / Controller Locking / 3 Point Locking 17, 18 Electric Strikes 20 Cylinders / Thumbturns 21 Miscellaneous 22, 23
Exit Devices
Rim Panics24-28 Concealed Panics29-33 PanelineTM and Panic GuardTM34 Removable Mullions and Miscellaneous 35 Push / Pull Hardware
Push / Pulls36, 37 Push / Pull Fasteners 38-40
Closer Arms
Closer Arms and Mounting Trays41, 42 Sliding Door and Mall Front Hardware
Sliding Door Hardware43-45 Casters and Rollers46 Miscellaneous Hardware
Thresholds 47, 48 Bumper Bars, Door Stops, and Miscellaneous Other 49, 50 Gaskets and Weatherings51, 52

NOTICE!

Laws and building and safety codes governing the design and use of glazing entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefore.

It is the responsibility of the owner, the architect, and the installer to make these selections in strict conformity to all applicable laws and building codes.

HINGING & PIVOTING

and assumes no responsibility therefor.

OFFSET PIVOTS

TOP PIVOT 1 Frame Portion Price includes: Top pivot frame portion and screws	050321	R.H. BOTTOM PIVOT Frame Portion for use with Threshold Price includes: Bottom frame portion and screws	050324
TOP PIVOT 1 Door Portion Price includes: Top pivot door portion, reinforcing plate, and screws	050320	L.H. BOTTOM PIVOT Frame Portion for use with Threshold Price includes: Bottom frame portion and screws	050325
TOP OFFSET PIVOT PACKAGE 1 Price includes: Top pivot door and frame portion, reinforcing plate, and screws	050322	TOP PIVOT 1 Frame Portion for S/A Offset Arm Price includes: Top pivot frame portion Use with pre 1998 doors	041927
TOP DOOR PIVOT RETRO FIT PACKAGE Price includes: Reinforcing plate, attachment screws, and installation instructions Use with 050320, or 050322 for pre 1989 doors	050319	0.188" THICK BOTTOM PIVOT SHIM Price includes: Shim 0.250" THICK BOTTOM PIVOT SHIM Price includes: Shim	047602 047603
MODIFIED TOP PIVOT 1 Frame Portion for TrifabTM VG 451T Frame Price includes: Top pivot frame portion and screws	452181	0.312" THICK BOTTOM PIVOT SHIM Price includes: Shim 0.500" THICK BOTTOM PIVOT SHIM Price includes: Shim	047604 047605
BOTTOM PIVOT 1 Door Portion Price includes: Bottom pivot door portion, reinforcing plate, and screws	050323	TOP PIVOT Frame Portion for TufflineTM Door Price includes: Top pivot frame portion	118400
R.H. BOTTOM PIVOT 1 Door and Frame Portion for use with threshold Price includes: Bottom pivot door & frame portion, reinforcing plate, and screws	050326	TOP PIVOT Door Portion for TufflineTM Door Price includes: Top pivot door portion	118401
L.H. BOTTOM PIVOT 1 Door and frame portion for use with threshold Price includes: Bottom pivot door & frame portion, reinforcing plate, and screws	050327	BOTTOM PIVOT Door Portion for TufflineTM Door Price includes: Bottom pivot door portion	118409
BOTTOM PIVOT Frame Portion for use without threshold Price includes: Bottom pivot frame portion, screws, and anchors	035506	BOTTOM PIVOT Frame Portion for TufflineTM Door Price includes: Bottom pivot frame portion	118411

Refer to General Information pages 18 and 19 for paint option information.

OFFSET PIVOTS

EC-97912-040

BOTTOM PIVOT Threshold fastened Price includes: Bottom pivot and screws (Use with thresholds on page 48)	450526

and assumes no responsibility therefor.

PIVOTING

Service Parts

INTERMEDIATE OFFSET PIVOTS

KAWNEER STANDARD INTERMEDIATE OFFSET PIVOT PACKAGE 1 Price includes: Door portion pivot, frame portion pivot, reinforcement plate, plug cap, and screws	050331	OPTIONAL INTERMEDIATE OFFSET PIVOT (R.H.) Price includes: Intermediate pivot and screws	037233
STANDARD INTERMEDIATE PIVOT 1 Door Portion Price includes: Intermediate pivot door portion	050305	OPTIONAL INTERMEDIATE OFFSET PIVOT (L.H.) Price includes: Intermediate pivot and screws	037234
STANDARD INTERMEDIATE PIVOT 1 Frame Portion Price includes: Intermediate pivot frame portion	050309	DOOR REINFORCING for Optional Intermediate Pivot Price includes: Reinforcing plate	047141
FRAME REINFORCEMENT for Kawneer Standard Intermediate Pivot Price includes: Frame reinforcement	200483	FRAME REINFORCING for Optional Intermediate Pivot Price includes: Frame reinforcement	047814
R.H. STANDARD ELECTRIC TRANSFER OFFSET PIVOT 1, 2 Price includes: Door and frame portion pivots with wiring harness	050392	R.H. OPTIONAL ELECTRIC TRANSFER EL INTERMEDIATE OFFSET PIVOT Price includes: Door portion pivot, frame portion pivot, and screws	050397
L.H. STANDARD ELECTRIC TRANSFER OFFSET PIVOT 1, 2 Price includes: Door and frame portion pivots with wiring harness	050393	L.H. OPTIONAL ELECTRIC TRANSFER EL INTERMEDIATE OFFSET PIVOT Price includes: Door portion pivot, frame portion pivot, and screws	050398
FRAME REINFORCING for Standard Electric Transfer Offset Pivot Price includes: Frame reinforcement	200483EL	SHIM for Optional Intermediate Pivot and Optional EL Intermediate Pivot with 350 Heavy Wall Door Price includes: Shim	049876
PLUG CAP for Standard Intermediate Offset Pivot Price includes: Plug cap (Package quantity is 10 each)	118404	DOOR REINFORCING for Optional EL Intermediate Pivot Price includes: Reinforcing plate	047141EL
		FRAME REINFORCING (.094 WALL) for Optional EL Intermediate Pivot Price includes: Frame reinforcement	047814EL

Refer to General Information pages 18 and 19 for paint option information.

For eight wire electric transfer consult factory.

INTERMEDIATE OFFSET PIVOTS

EC-97912-040

FRAME REINFORCING (.125 WALL) for EL Optional Intermediate Pivot Price includes: Frame reinforcement	047142EL
INTERMEDIATE PIVOT 1 Door Portion for TufflineTM Door Price includes: Door portion pivot	118405
INTERMEDIATE PIVOT 1 Frame Portion for TufflineTM Door Price includes: Frame portion intermediate pivot	118403
FASTENER 1 for Offset Pivots and Pivot Reinforcing Price includes: #12-24 x 9/16" with self-locking patch	028848

Refer to General Information pages 18 and 19 for paint option information.

and assumes no responsibility therefor.

Kawneer reserves the right to change configuration without prior notice when deemed necessary for product improvement.

BUTT HINGES & CONTINUOUS GEARED HINGES

A18/7 HINGING & PIVOTING

Laws and building and safety codes governing the design and use of glazed entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefor.


Kawneer reserves the right to change configuration without prior notice when deemed

	necessary for product improvement.


STAINLESS STEEL 4-1/2" X 4" NRP BUTT HINGE PACKAGE Price includes: NRP butt hinge and screws (stainless steel painted to blend with entrance)	037950	4-1/2" x 4" ELECTRIC TRANSFER EL BUTT HINGE 2 Price includes: Hinge and wiring harness (stainless steel painted to blend with entrance)	037238
HINGE REINFORCING for Door or 1/8" Tube Frame Price includes: Hinge reinforcing and (4) screws	037422	FRAME REINFORCING (.094 WALL) for EL Butt Hinge Price includes: Frame reinforcement	049900EL
HINGE REINFORCING for TrifabTM Frame or 3/32" Tube Frame Price includes: Hinge reinforcing and (4) screws	037423	DOOR and FRAME REINFORCING (.125 WALL) for EL BUTT HINGE Price includes: Frame reinforcement	048239EL
4-1/2" x 4" NRP BUTT HINGE PACKAGE Price includes: NRP butt hinge and screws (stainless steel with US32D finish)	050385	VON DUPRIN EPT 2 (Two - 18 gauge wires) Price includes: (Electric power transfer) EPT-2 and screws	050405
CANADA HINGE REINFORCING for TrifabTM VG 451T Frame Price includes: Hinge reinforcing and screws	452183	VON DUPRIN EPT 10 (Ten - 24 gauge wires) Price includes: (Electric power transfer) EPT-10 and screws	050406
CANADA HINGE REINFORCING Price includes: Hinge reinforcing and screws	452185	MOUNTING CLIP for Von Duprin EPT Price includes: Mounting clip (Note: Uses 028848 fasteners)	050407
SHIM for 350 Heavy Wall Door Price includes: Shim	049875	SECURITRON EPT Price includes: (Electric power transfer) EPT and screws
FASTENER for Butt Hinges and Hinge Reinforcing Price includes: #12-24 x 9/16" with self-locking patch	028848		050396
		SP-1000X POWER SUPPLY Hardware to ship loose	050412

For eight wire electric transfer consult factory.

PIVOTING

EC-97912-040

BUTT HINGES & CONTINUOUS GEARED HINGES

5" x 4-1/2" BUTT HINGE for TufflineTM Door Price includes: Butt hinge (plated finish to blend with entrance)	118421	CONTINUOUS GEARED HINGE for Doors up to 7'0" Price includes: Continuous hinge and screws	050820
NRP 5" x 4-1/2" BUTT HINGE for TufflineTM Door Price includes: Butt hinge (plated finish to blend with entrance)	118423	CONTINUOUS GEARED HINGE for Doors up to 7'0" to 8'0" Price includes: Continuous hinge and screws	050821
		CONTINUOUS GEARED HINGE for Doors up to 10'0" Price includes: Continuous hinge and screws	050822
		FASTENER for Continuous Geared Hinge Price includes: #12-24 x 11/16" undercut flat head, self drilling.	128445

Laws and building and safety codes governing the design and use of glazed entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefor.

Laws and building and safety codes governing the design and use of glazed entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefor.

Kawneer reserves the right to change configuration without prior notice when deemed necessary for product improvement.

(See Page 35 for Arms)

EC-97912-040


WALKING BEAM TOP PIVOT Frame Portion Price includes: Top pivot, finishing plate, and screws	037648	BOTTOM CENTER PIVOT REPLACEMENT PACKAGE Price includes: Door portion and frame portion	050355
CLIP for WALKING BEAM PIVOT Price includes: Clip	038542	REPLACEMENT PIN ASSEMBLY for Bottom Center Pivot Frame Portion to Convert Pre-1994 Pivot to New Door Price includes: Pivot pin and pivot pin cap	050375
SCREW for WALKING BEAM CLIP Price includes: #10-32 x 1/2" FHMS	028236	WEATHERED FILLER DRESS CAP for 190 Door Price includes: Filler cap assembly, mounting clip, and screws	038352
ADJUSTABLE TOP CENTER PIVOT PKG. Door Portion for 190 Door Price includes: Top center pivot and screws	037942	WEATHERED FILLER DRESS CAP for 350/500 Door Price includes: Filler cap assembly and screws	038353
TOP CENTER PIVOT PACKAGE Door Portion for 350/500 Door Price includes: Top center pivot and screws	037823	DRESS CAP CLIP for 038353 Filler Dress cap Price includes: dress cap clip	048290
BOTTOM CENTER PIVOT Door & Frame Portion for use with Threshold Price includes: Door portion assembly, frame portion assembly, and screws	050350	WEATHERED FILLER DRESS CAP for Pre-1993 190 Door Price includes: Filler dress cap	048291
BOTTOM CENTER PIVOT Door Portion for use with Threshold Price includes: Door portion assembly and screws	050351	WEATHERED FILLER DRESS CAP for Pre-1993 350/500 Doors Note: Parts are ordered individually 048383 Filler Cap 048382 Weathering	048383 048382
BOTTOM CENTER PIVOT Frame Portion for use with Threshold Price includes: Frame portion assembly and lock nut	050360	WRENCH for Concealed Closer Floor Pivot Price includes: Wrench	047956
BOTTOM CENTER PIVOT ASSEMBLY Frame Portion for use w/o Threshold Price includes: Pivot Assembly, plastic anchor, pivot shim, and screws	050370

CENTER PIVOTS

EC-97912-040


0.188" THICK BOTTOM PIVOT SHIM Price includes: Shim	047602
0.250" THICK BOTTOM PIVOT SHIM Price includes: Shim	047603
0.312" THICK BOTTOM PIVOT SHIM Price includes: Shim	047604
0.500" THICK BOTTOM PIVOT SHIM Price includes: Shim	047605
FINGER GUARD - 7 ft. Length Price includes: Finger guard and screws	038365
FINGER GUARD - 8 ft. Length Price includes: Finger guard and screws	038152

and assumes no responsibility therefor.

STANDARD LOCKING

31/32" Backset M.S. LOCK PACKAGE for Pre-1989 - 190 Doors Price includes: Lock and screws	047252	RADIUS FACE PLATE for Standard M.S. Lock Price includes: Face plate and screws Available only in gray or black	035136
1-1/8" Backset M.S. LOCK PACKAGE for Standard Doors and 350 HW Doors after 1989 Price includes: Lock and screws	050100	HIGH PILE FACE PLATE for Standard M.S. Lock Price includes: Face plate and screws Available only in gray or black	035186
1-1/2" Backset M.S. LOCK PACKAGE for EntaraTM, TufflineTM, and Pre-1989 350/500 Doors Price includes: Lock and screws	035099	R.H. BEVEL FACE PLATE for Standard M.S. Lock Price includes: Face plate and screws	035137
		L.H. BEVEL FACE PLATE for Standard M.S. Lock Price includes: Face plate and screws	035138
		FLAT FACE PLATE for Standard M.S. Lock Price includes: Face plate	091143

SHORT THROW LOCKS

EC-97912-040

31/32" Backset M.S. SHORT THROW LOCK PACKAGE for Pre-1989 - 190 Doors Price includes: Lock and screws	035126	FLAT FACE PLATE for M.S. Short Throw Lock Price includes: Face plate	035131
1-1/8" Backset M.S. SHORT THROW LOCK PACKAGE for Standard Doors and 350 HW Doors after 1989 Price includes: Lock and screws	050101	R.H. BEVEL FACE PLATE for M.S. Short Throw Lock Price includes: Face plate	035132
1-1/2" Backset M.S. SHORT THROW LOCK PACKAGE for EntaraTM TufflineTM, and Pre-1989 350/500 Doors Price includes: Lock and screws	035127	L.H. BEVEL FACE PLATE for M.S. Short Throw Lock Price includes: Face plate	035133
#4070 DEAD LOCK with Flat Face Plate Price includes: Lock, face plate, and screws	037280	RADIUS FACE PLATE for M.S. Short Throw Lock Price includes: Face plate and screws Available only in gray or black	035139
		HIGH PILE FACE PLATE for M.S. Short Throw Lock Price includes: Face plate and screws Available only in gray or black	035187

and assumes no responsibility therefor.

HOOKBOLT LOCKS


31/32" Backset M.S. 1850A-505 HOOKBOLT LOCK PKG for Pre-1989 - 190 Doors Price includes: Lock and screws	092147	FLAT FACE PLATE for M.S. 1850A-505 Hookbolt Lock Price includes: Face plate	035131
1-1/8" Backset M.S. 1850A-505 HOOKBOLT LOCK PKG for Standard Doors and 350 HW Doors after 1989 Price includes: Lock and screws	050102	R.H. FACE PLATE for M.S. 1850A-505 Hookbolt Lock Price includes: Face plate	035132
1-1/2" Backset M.S. 1850A-505 HOOKBOLT LOCK PKG for EntaraTM, TufflineTM, and Pre-1989 350/500 Doors Price includes: Lock and screws	047716	L.H. FACE PLATE for M.S. 1850A-505 Hookbolt Lock Price includes: Face plate	035133
31/32" Backset M.S. + 1893 LATCHLOCK Price includes: Lock and screws	047218 R.H.	RADIUS FACE PLATE for M.S. 1850A-505 Hookbolt Lock Price includes: Face plate and screws Available only in gray and black	035139
	047217 L.H.		035139
1-1/8" Backset M.S. + 1893 LATCHLOCK Price includes: Lock and screws	050105 R.H.	HIGH PILE FACE PLATE for M.S. 1850A-505 Hookbolt Lock Price includes: Face plate and screws	035187
	050106 L.H.	Available only in gray and black
1-1/2" Backset M.S. + 1893 LATCHLOCK for Pre-1989 - 190 Doors Price includes:	047220 R.H.	R.H. BEVELED FACE PLATE for M.S. 1893 Latch Locks Price includes: Face plate and screws	047214
Lock and screws	047219 L.H.
		L.H. BEVELED FACE PLATE for M.S. 1893 Latch Locks Price includes: Face plate and screws	047216
		WEATHERED RADIUS FACE PLATE for M.S. 1893 Latch Locks Price includes: Face plate and screws	047215

LATCH LOCKS

EC-97912-040

	31/32" Backset A/R #4510 LATCH LOCK (L.H. Outswing) for Pre-1989 - 190 Doors Price includes: Lock and screws	037313	RADIUS FACE PLATE for Latch Locks Price includes: Face plate and screws Available only in gray or black	035139
See chart below	31/32" Backset A/R #4510 LATCH LOCK (R.H. Outswing) for Pre-1989 - 190 Doors Price includes: Lock and screws	037314	HIGH PILE FACE PLATE for Latch Locks Price includes: Face plate and screws Available only in gray or black	035187
	1-1/8" Backset A/R #4510 LATCH LOCK (R.H.) for Standard doors after 1989 and 350 HW Doors Price includes: Lock and screws	050103	R.H. BEVELED FACE PLATE for Latch Locks Price includes: Face plate and screws	035140
See chart below	1-1/8" Backset A/R #4510 LATCH LOCK (L.H.) for Standard doors after 1989 and 350 HW Doors Price includes: Lock and screws	050104	L.H. BEVELED FACE PLATE for Latch Locks Price includes: Face plate and screws	035141
	1-1/2" Backset A/R #4510 LATCH LOCK (L.H. Outswing) for EntaraTM, TufflineTM, and Pre-1989 350/500 Doors Price includes: Lock and screws	035103
See chart below	1-1/2" Backset A/R #4510 LATCH LOCK (R.H. Outswing) for EntaraTM, TufflineTM, and Pre-1989 350/500 Doors Price includes: Lock and screws	035104

and assumes no responsibility therefor.

EC-97912-040

LATCH LOCK ACCESSORIES

LOCKING

Laws and building and safety codes governing the design and use of glazed entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefor.


		necessary for product improvement.		Kawneer reserves the right to change configuration without prior notice when deemed

R.H. THUMBTURN LEVER HANDLE for Latch Locks on 1-3/4" Doors Price includes: Thumbturn, cam disc, washers, and screws	037110	R.H. LEVER HANDLE for Latch Locks on 1-3/4" Doors Price includes: Lever handle, cam disc, washers, and screws	037114
L.H. THUMBTURN LEVER HANDLE for Latch Locks on 1-3/4" Doors Price includes: Thumbturn, cam disc, washers, and screws	037112	L.H. LEVER HANDLE for Latch Locks on 1-3/4" Doors Price includes: Lever handle, cam disc, washers, and screws	037115
THUMBTURN LEVER HANDLE for M.S. 1893 Latch Locks on 1-3/4" Doors Price includes: Thumbturn, washers, and screws	047223	R.H. LEVER HANDLE for Latch Locks on INSULCLADTM Doors Price includes: Lever handle, cam disc, washers, and screws	116500
		L.H. LEVER HANDLE for Latch Locks on INSULCLADTM Doors Price includes: Lever handle, cam disc, washers, and screws	116501
		LEVER HANDLE for M.S. 1893 Latch Locks on 1-3/4" Doors Price includes: Lever handle, washers, and screws	047221
		DELRIN LEVER HANDLE for M.S. 1893 Latch Locks on 1-3/4" Doors Price includes: Lever handle, washers, and screws	047222

LATCH LOCK ACCESSORIES

EC-97912-040

R.H. PADDLE DEVICE (PULL) for Latch Locks Price includes: Paddle device, cam disc, binder post, speed nuts, pivot pin, and screws	037288	L.H. PADDLE DEVICE (PUSH) for 4510 Latch Locks on InsulcladTM Doors Price includes: Paddle device, cam disc, and screws	116170
L.H. PADDLE DEVICE (PULL) for Latch Locks Price includes: Paddle device, cam disc, binder post, speed nuts, pivot pin, and screws	037292	R.H. PADDLE DEVICE (PUSH) for 1890 Latch Locks on InsulcladTM Doors Price includes: Paddle device, cam disc, and screws	116171
R.H. PADDLE DEVICE (PUSH) for Latch Locks Price includes: Paddle device, cam disc, binder post, speed nuts, pivot pin, and screws	037290	L.H. PADDLE DEVICE (PUSH) for 1890 Latch Locks on InsulcladTM Doors Price includes: Paddle device, cam disc, and screws	116172
L.H. PADDLE DEVICE (PUSH) for Latch Locks Price includes: Paddle device, cam disc, binder post, speed nuts, pivot pin, and screws	037295
R.H. PADDLE DEVICE (PUSH) for M.S. + 1893 Latch Locks Price includes: Paddle device, binder post, speed nuts, pivot pin, and screws	037291
L.H. PADDLE DEVICE (PUSH) for M.S. + 1893 Latch Locks Price includes: Paddle device, binder post, speed nuts, pivot pin, and screws	037296
R.H. PADDLE DEVICE (PUSH) for 4510 Latch Locks on InsulcladTM Doors Price includes: Paddle device, cam disc, and screws	116169

and assumes no responsibility therefor.

Service Parts

Laws and building and safety codes governing the design and use of glazed entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefor.

Kawneer reserves the right to change configuration without prior notice when deemed necessary for product improvement.

CONTROLLERTM ASSEMBLY for Std. Height Door Opening (7'0") Price includes: Top & bottom arm assembly, and plate assembly	137342	CONTROLLERTM CENTER ASSEMBLY Price includes: Center plate assembly (No top or bottom arms)
Pre 2001	137322		137218
Pre 1992	137222
CONTROLLERTM ASSEMBLY for Variable Height Door Price includes: Top & bottom arm assembly, and plate assembly (Specify door height)	137343	ROUND FACE FLUSH BOLT Price includes: Flush bolt and mounting screws	037227
Pre 2001	137323	HURRICANE ROUND FACE FLUSH BOLT Price includes: Flush bolt only
Pre 1992	137223		050079
CONTROLLERTM FE-ASSEMBLY for Std. Height Door Opening (7'0") Price includes: Top & bottom arm assembly, and plate assembly	137344	FLUSH BOLT GUIDE Price includes: Flush bolt	047230
Pre 2001	137422	SCREW for FLUSH BOLT GUIDE Price includes: Mounting screw (2 required)	028218
CONTROLLERTM FE-ASSEMBLY for Variable Height Door Price includes: Top & bottom arm assembly, and plate assembly (Specify door height)	137345	FLUSH BOLT FLOOR STRIKE Price includes: Floor strike	049027
Pre 2001	137423

FLUSH BOLTS / CONTROLLERTM / 3-POINT LOCKING

EC-97912-040

Laws and building and safety codes governing the design and use of glazed	entrance, window, and curtain wall products vary widely. Kawneer does not control	the selection of product configurations, operating hardware, or glazing materials,	and assumes no responsibility therefor.
Kawneer reserves the right to change configuration without prior notice when deemed	necessary for product improvement.		© Kawneer Company, Inc., 2014

ADAMS RITE #4085-01 HEADER BOLT for 3 Point Lock (Doors up to 7'0") Price includes: Header bolt assembly and screws	035128	ADAMS RITE #4016 TOP BOLT ASSEMBLY 8' for 3 Point Lock Price includes: Top rod with hex bolt, AR custom guide bracket, connection pin, and rod silencer (For use with 350IR entrances add
ADAMS RITE #4085-04 HEADER BOLT for 3 Point Lock (Doors up to 7'0") Price includes: Header bolt assembly and screws	035179	050075 and 050081)	050078
ADAMS RITE #4056 THRESHOLD BOLT for 3 Point Lock (Pre-1992 with 50-5/16" lock height) Price includes: Slide & rod assembly, bottom guide assembly, roll pin, tube spacer, and screws		350IR HEX BOLT GUIDE Price includes: AR Guide bracket, nylon bushing, guide spacer, and screws (For use with 050079 hurricane round face flush bolt)	050075
	037362	350IR HEX BOLT GUIDE SPACER (For use with 050079 hurricane round face flush bolt)	050081
ADAMS RITE #4056 THRESHOLD BOLT for 3 Point Lock Price includes: Slide & rod assembly, bottom guide assembly, roll pin, tube spacer, and screws	037368

ADAMS RITE #4016 TOP BOLT ASSEMBLY 7' for 3 Point Lock Price includes: Top rod with hex bolt, AR custom guide bracket, connection pin, and rod silencer (For use with 350IR entrances add 050075 and 050081)	050077

and assumes no responsibility therefor.

EC-97912-040

BLANK PAGE

THIS PAGE LEFT INTENTIONALLY BLANK

ELECTRIC STRIKES

EC-97912-040

ADAMS RITE ELECTRIC STRIKE #7130 for Frames (for Single Acting Doors Only) 24 VAC/12 VDC Price includes: Electric strike and face plate	037284
ADAMS RITE ELECTRIC STRIKE #7131 for Inactive Door Leaf 24 VAC/12 VDC Price includes: Electric strike and face plate	037285	047796
ADAMS RITE ELECTRIC STRIKE #7130 for Center Hung Door (4" Frame) Price includes: Electric strike and face plate	047795

and assumes no responsibility therefor.

Laws and building and safety codes governing the design and use of glazed entrance, window, and curtain wall products vary widely. Kawneer does not control the selection of product configurations, operating hardware, or glazing materials, and assumes no responsibility therefor.


Kawneer reserves the right to change configuration without prior notice when deemed




	necessary for product improvement.


CYLINDER - (15/16" Long, 0.800 Cam) Keyed Individually Price includes: (1) cylinder, (1) cylinder ring, and (2) keys	035001		RIM CYLINDER - (1-5/32" Dia.) Keyed Individually for Panics Price includes: Rim cylinder, cylinder ring, and (2) keys	037305
CYLINDER - (15/16" Long, 0.800 Cam) Keyed Alike in Groups of 50 Price includes: (1) cylinder, (1) cylinder ring, and (1) key	037177		RIM CYLINDER - (1-5/32" Dia.) Keyed Alike in Groups of 50 for Panics Price includes: Rim cylinder, cylinder ring, and (2) keys	037341
CYLINDER - (15/16" Long, 0.800 Cam) Keyed in Pairs Price includes: (2) cylinders, (2) cylinder rings, and (2) keys	037175		CYLINDER - (1-1/8" Long, 0.800 Cam) Keyed in Pairs for EntaraTM Doors Price includes: (2) cylinders, (2) cylinder ring, and (2) keys	037155
THUMBTURN - (15/16" Long, 0.800 Cam) Used in Place of 035001, 037175, or 037177 Price includes: Thumbturn and cylinder ring	037176		CYLINDER - (15/16" Long, 0.950 Cam) Keyed Individually for PanelineTM Price includes: (1) cylinder, (1) cylinder ring, and (1) key	037172
DUMMY CYLINDER - (15/16" Long) Used in Place of Standard Cylinders Price includes: Dummy cylinder, and cylinder ring	037174		CYLINDER - (15/16" Long, 0.950 Cam) Keyed Alike in Groups of 50 for PanelineTM Price includes: (1) cylinder, (1) cylinder ring, and (2) keys	037173
CYLINDER - (1" Long, 0.850 Cam) Keyed in Pairs for A/R #4073 Lock Price includes: (2) cylinders, (2) cylinder rings, and (2) keys	047774		CYLINDER GUARD PACKAGE Price includes: Cylinder guard, retaining ring, and spacer rings	035143
CYLINDER - (1" Long, 0.850 Cam) Keyed Alike in Groups of 50 for #4073 Dead Lock Price includes: (1) cylinder, (1) cylinder ring, and (1) key	047825		CYLINDER GUARD PACKAGE for 350 HW, TufflineTM and EntaraTM Doors Price includes: Cylinder guard, retaining ring, and spacer rings	035144
CYLINDER PACKAGE (1-1/8" Long, 0.800 Cam) for InsulcladTM Door Keyed in Pairs Price includes: (2) cylinders, (2) cylinder rings, and (2) keys	249237	Kawneer	CYLINDER GUARD PACKAGE for PanelineTM Panic with CPN Pull Price includes: Cylinder guard and screw	233520
CYLINDER - (1-1/8" Long) Keyed Individually for PanelineTM in TufflineTM Door Price includes: (1) cylinder, (1) cylinder ring, and (1) key	118223

MISCELLANEOUS

EC-97912-040

EXIT INDICATOR Price includes: Exit indicator and screws	037131	ADAMS RITE #4505-21 STRIKE for Inactive Door Leaf with M.S. +1893 Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	047213
ADAMS RITE #4501 FLAT STRIKE for Single Acting Door with Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	035113	COMPRESSION SPRING for Locks in Standard Doors Price includes: Spring	047332
ADAMS RITE #4501-2 RADIUS STRIKE for Inactive Door Leaf with Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	035114	SPACER / RETAINER for Compression Spring Price includes: Spacer / retainer	050050
A/R #4501-22 LONG LIP FLAT STRIKE for Center Hung 4-1/2" Frame with Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	035115	FASTENER for Face Plate Price includes: #8 x 32 flat head fastener	028728
ADAMS RITE #4505-01 STRIKE for Single Acting Door with M.S. +1893 Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	047208
ADAMS RITE #4505-03 STRIKE for TufflineTM Door with M.S. +1893 Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	047209
ADAMS RITE #4505-09 STRIKE for EntaraTM Single Acting Door with M.S. +1893 Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	047210
ADAMS RITE #4505-17 STRIKE for Center Hung 4" Frame with M.S. +1893 Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	047211
ADAMS RITE #4505-21 STRIKE for Center Hung 4-1/2" Frame with M.S. +1893 Latch Lock Price includes: Strike plate, mounting plate, dust box, and screws	047212

and assumes no responsibility therefor.

MISCELLANEOUS

EC-97912-040

LOCKING

necessary for product improvement. © Kawneer Company, Inc., 2014


LOCK SPACER for 190 Door Price includes: Lock spacer	050055
LOCK SPACER for 350 Door Price includes: Lock spacer	050056
LOCK SPACER for 500 Door Price includes: Lock spacer	050057

RIM EXIT DEVICE

EC-97912-040

and assumes no responsibility therefor.


	KAWNEER 1786 RIM EXIT DEVICE for 3'0" Door Price includes: Touch bar device and loose parts package	133580	KAWNEER 1786 LEVER HANDLE for Standard 190/350/500 Doors, AA250/425 Doors, and 350/500 Heavy Wall Doors.	133648
	KAWNEER 1786 RIM EXIT DEVICE for 3'6" Door Price includes: Touch bar device and loose parts package	133581	FRAME STRIKE PACKAGE for Kawneer 1786 Rim Exit Device Price includes: Strike, mounting plate and screws	133588
	KAWNEER 1786 RIM EXIT DEVICE for 4'0" Door Price includes: Touch bar device and loose parts package	133582	REMOVABLE MULLION ASSEMBLY for Kawneer 1786 Rim Panic Device Standard Height Door (82-7/16") Price includes: Removable Mullion, adaptor plate, top bracket, top bracket cover, bottom bracket, stabilizers, and fasteners	133586
	KAWNEER 1786 CYLINDER DOGGING RIM EXIT DEVICE for 3'0" Door Price includes: Touch bar device and loose parts package	133580CD	REMOVABLE MULLION ASSEMBLY for KAWNEER 1786 Rim Panic Device Variable Height Door up to 8'0" Price includes: Removable mullion, adaptor plate, top bracket, top bracket cover, bottom bracket, stabilizers, and fasteners	133587
	KAWNEER 1786 CYLINDER DOGGING RIM EXIT DEVICE for 3'6" Door Price includes: Touch bar device and loose parts package	133581CD	1786 EXIT DEVICE LATCH MECHANISM PACKAGE Price includes: 1786 latch assembly and fasteners	133633
	KAWNEER 1786 CYLINDER DOGGING RIM EXIT DEVICE for 4'0" Door Price includes: Touch bar device and loose parts package	133582CD	1786 HOUSING COVER/HINGE END CAP PACKAGE Price includes: Metal housing cover (black matte finish), hinge/pivot end cap (black matte finish), and fasteners	133637
	KAWNEER 1786 ELECTRIC RIM EXIT DEVICE for 3'0" Door Price includes: Touch bar device and loose parts package	133580EL	1686/1786 DOGGING DEVICE PACKAGE Price includes: Dogging device latch, dogging key, and fasteners	133636
Note: Must use PS1, PS5-4, or PS5-6 power	KAWNEER 1786 ELECTRIC RIM EXIT DEVICE for 3'6" Door Price includes: Touch bar device and loose parts package	133581EL
supply.	KAWNEER 1786 ELECTRIC RIM EXIT DEVICE for 4'0" Door Price includes: Touch bar device and loose parts package	133582EL

RIM EXIT DEVICE

EC-97912-040

EXIT DEVICES

necessary for product improvement.

FALCON 1790 RIM EXIT DEVICE for 3'0" Door Price includes: Touch bar device and loose parts package	133480	FALCON 2090 RIM EXIT DEVICE PACKAGE for Pair of Doors Price includes: (2) inactive housing assemblies, (2) active housing assemblies, loose parts package, and custodian tag (Order crossbar from page 35)	033537
FALCON 1790 RIM EXIT DEVICE for 3'6" Door Price includes: Touch bar device and loose parts package	133481	FALCON 2090 HOUSING ASSEMBLY for L.H. Door Price includes: Active housing assembly	033538
FALCON 1790 RIM EXIT DEVICE FOR 4'0" Door Price includes: Touch bar device and loose parts package	133482	FALCON 2090 HOUSING ASSEMBLY for R.H. Door Price includes: Active housing assembly	033539
EL FALCON 1790 RIM EXIT DEVICE for 3'0" Door Price includes: Touch bar device and loose parts bag	133480EL	FRAME STRIKE PACKAGE for Falcon 2090 Rim Exit Device Price includes: Strike, mounting plate, and screws	033570
EL FALCON 1790 RIM EXIT DEVICE for 3'6" Door Price includes: Touch bar device and loose parts bag	133481EL	RETRACTOR for Falcon 2090 Rim Panics Price includes: Retractor	033486
EL FALCON 1790 RIM EXIT DEVICE for 4'0" Door Price includes: Touch bar device and loose parts bag	133482EL
FRAME STRIKE PACKAGE for Falcon 1790 and EL Falcon 1790 Rim Exit Device Price includes: Strike, mounting plate, and screws	133479
FALCON 2090 RIM EXIT DEVICE PACKAGE for L.H. Door Price includes: Inactive housing assembly, active housing assembly, strike package, loose parts package, and custodian tag (Order crossbar from page 35)	033535
FALCON 2090 RIM EXIT DEVICE PACKAGE for R.H. Door Price includes: Inactive housing assembly, active housing assembly, strike package, loose parts package, and custodian tag (Order crossbar from page 35)	033536

On pairs with Rim Panics the strike is included with the removable mullion (see page 29).

BLANK PAGE

EC-97912-040

THIS PAGE LEFT INTENTIONALLY BLANK

Kawneer reserves the right to change configuration without prior notice when deemed necessary for product improvement.

and assumes no responsibility therefor.

BLANK PAGE

EC-97912-040

necessary for product improvement. © Kawneer Company, Inc., 2014

Kawneer reserves the right to change configuration without prior notice when deemed

THIS PAGE LEFT INTENTIONALLY BLANK

RIM EXIT DEVICE

EC-97912-040

LOOSE PARTS PACKAGE for Falcon 2090 Rim Panics Price includes: Housing mounting stud, dogging key, 1/8" Allen wrench, dogging key tag, fasteners, and installation instructions	033541	ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for R.H. 3'0" InsulcladTM Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050462
	033541	ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for L.H. 3'0" InsulcladTM Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050463
		ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for R.H. 3'6" InsulcladTM Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050464
		ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for L.H. 3'6" InsulcladTM Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050465
		DEADLATCH FACE PLATE Radius with Weather Strip for Adams Rite 8400 Exit Device Price includes: Lock Spacer	048964
ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for R.H. 3'0" Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050450
ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for L.H. 3'0" Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050451
ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for R.H. 4'0" Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050452
ADAMS RITE 8400 MORTISE TYPE EXIT DEVICE for L.H. 4'0" Door Price includes: Touch bar, latch lock, face plate, and loose parts bag	050453

and assumes no responsibility therefor.

kawneer.com

EC-97912-040

and assumes no responsibility therefor.

CONCEALED EXIT DEVICE EXIT DEVICES

	KAWNEER 1686 CONCEALED PANIC for 3'0" Door Price Includes:	133620 (R.H.)	KAWNEER 1686 LEVER HANDLE for Standard 190/350/500 Doors and AA250/425 Doors	133647
	Touch bar device and loose parts bag	133621 (L.H.)	for Heavy Wall 350/500 Doors	133647HW
	KAWNEER 1686 CONCEALED PANIC for 3'6" Door Price Includes: Touch bar device and loose parts bag	133622 (R.H.)	CYLINDER MOUNTING PAD for Kawneer 1686 Panic Price includes:
		133623 (L.H.)	Cylinder pad, cylinder retaining ring, (2) screws for 1-3/4" door, and (2) screws for 2" door	133626
	KAWNEER 1686 CONCEALED PANIC for 4'0" Door Price Includes:	133624 (R.H.)	1686 TOP and BOTTOM BOLT GUIDE PACKAGE Price includes:
	Touch bar device and loose parts bag	133625 (L.H.)	1686 top guide bolt, bottom guide bolt, and fasteners	133630
	KAWNEER 1686 CYLINDER DOGGING CONCEALED PANIC for 3'0" Door Price Includes:	133620CD (R.H.)	1686 CENTER ROD ASSEMBLY PACKAGE Price includes: 1686 center rod assembly with standard top bolt, bottom flat end hex bolt, spacer	133631
	Touch bar device and loose parts bag	133621CD (L.H.)	plate, and fasteners
	KAWNEER 1686 CYLINDER DOGGING CONCEALED PANIC for 3'6" Door Price Includes: Touch bar device and loose parts bag	133622CD (R.H.)	1686 EXIT DEVICE LATCH MECHANISM PACKAGE Price includes: 1686 latch assembly and fasteners	133632 (R.H.)
		133623CD (L.H.)		133629 (L.H.)
	KAWNEER 1686 CYLINDER DOGGING CONCEALED PANIC for 4'0" Door Price Includes: Touch bar device and loose parts bag	133624CD (R.H.)	1686 HINGE/LATCH FILLER PLATE PACKAGE Price includes: Hinge/pivot filler plate and latch	133634
		133625CD (L.H.)	filler plate
	KAWNEER 1686 ELECTRIC CONCEALED PANIC for 3'0" Door Price Includes:	133620EL (R.H.)	1686 HOUSING COVER/HINGE END CAP PACKAGE Price includes: Metal housing cover (black matte finish), hinge/pivot end cap (black matte finish), and fasteners	133635
	Touch bar device and loose parts bag	133621EL (L.H.)
	KAWNEER 1686 ELECTRIC CONCEALED PANIC for 3'6" Door	133622EL (R.H.)	1686/1786 DOGGING DEVICE PACKAGE Price includes: Dogging device latch, dogging key, and	133636
Note: Must use PS1, PS5-4, or PS5-6 power supply.	Price Includes: Touch bar device and loose parts bag	133623EL (L.H.)	fasteners
	KAWNEER 1686 ELECTRIC CONCEALED PANIC for 4'0" Door Price Includes:	133624EL (R.H.)	1686 HUMP BACK STRIKE Price includes: Strike plate and fasteners	133646
	Touch bar device and loose parts bag	133625EL (L.H.)	1686/1786 DOGGING KEY Price includes: Dogging key	133627

CONCEALED EXIT DEVICE

EC-97912-040

FALCON 1690 CONCEALED PANIC for 2'6" Door Price includes: Touch bar device and loose parts bag	133498 (R.H.)		LOOSE PARTS PACKAGE for FALCON 1690 TOUCH BAR PANIC Price includes: All parts shown below
	133499 (L.H.)
FALCON 1690 CONCEALED PANIC for 3'0" Door Price includes: Touch bar device and loose parts bag	133500 (R.H.)
	133501 (L.H.)	Rod Bearing	Rod Retaining Ring	Allen Dogging Key
FALCON 1690 CONCEALED PANIC for 3'6" Door Price includes: Touch bar device and loose parts bag	133502 (R.H.)
	133503 (L.H.)	Pinion Gear	Pinion Bearing	Pinion Gear Retainer	133469
FALCON 1690 CONCEALED PANIC for 4'0" Door Price includes: Touch bar device and loose parts bag	133504 (R.H.)
	133505 (L.H.)	Retainer Screw	Retractor	Traveler

EL FALCON 1690 CONCEALED PANIC for 2'6" Door Price includes:	133498EL (R.H.)	Latch Housing Screws	FALCON 1690/1790 DOGGING KEY Price includes: Dogging key	Attachment Screws
Touch bar device and loose parts bag	133499EL (L.H.)			133478
EL FALCON 1690 CONCEALED PANIC for 3'0" Door Price includes: Touch bar device and loose parts bag	133500EL (R.H.)
	133501EL (L.H.)
EL FALCON 1690 CONCEALED PANIC for 3'6" Door Price includes:	133502EL (R.H.)
Touch bar device and loose parts bag	133503EL (L.H.)
EL FALCON 1690 CONCEALED PANIC for 4'0" Door Price includes:	133504EL (R.H.)
Touch bar device and loose parts bag	133505EL (L.H.)

and assumes no responsibility therefor.

kawneer.com

EC-97912-040 BLANK PAGE

necessary for product improvement. © Kawneer Company, Inc., 2014

Kawneer reserves the right to change configuration without prior notice when deemed

THIS PAGE LEFT INTENTIONALLY BLANK

CONCEALED EXIT DEVICE

EC-97912-040

	FALCON 1990 L.H. HOUSING ASSEMBLY (Shown) Price includes: Housing assembly (Order crossbar from page 35)	033531
	FALCON 1990 R.H. HOUSING ASSEMBLY (Opposite shown) Price includes: Housing assembly (Order crossbar from page 35)	033532
	UPPER ROD ASSEMBLY for Falcon 1690 & 1990 Panic Std. 7'0" Door Opening Height Price includes: Upper rod assembly	033466
	UPPER ROD ASSEMBLY for Falcon 1690 & 1990 Panic 7'0" to 8'0" Door Opening Height Price includes: Upper rod assembly	033467
	UPPER ROD ASSEMBLY for Falcon 1690 & 1990 Panic 8'0" to 9'0" Door Opening Height Price includes: Upper rod assembly	033468
	UPPER ROD ASSEMBLY for Falcon 1690 & 1990 Panic 9'0" to 10'0" Door Opening Height Price includes: Upper rod assembly	033469
	UPPER ROD ASSEMBLY for Falcon 1690 & 1990 Panic on InsulcladTM Door, 7'0" Door Opening Height Price includes: Upper rod assembly	033448
	UPPER ROD ASSEMBLY for Falcon 1690 & 1990 Panic on InsulcladTM Door, 7'0" to 8'0" Door Opening Height Price includes: Upper rod assembly	033449

and assumes no responsibility therefor.

CONCEALED EXIT DEVICE

EC-97912-040

EXIT DEVICES

	LOWER ROD ASSEMBLY for Falcon 1690 & 1990 Panic Price includes: Lower rod assembly	033530	ADAMS RITE 8600 CONCEALED PANIC for 3'0" Doors (Up to 9'0" opening height) Price includes: Touch bar device, top and bottom rods, and loose parts bag	050454
	LOWER ROD ASSEMBLY for Falcon 1690 & 1990 Panic on InsulcladTM Door Price includes: Lower rod assembly	033447	ADAMS RITE 8600 CONCEALED PANIC for 3'6" Doors (Up to 8'0" opening height) Price includes: Touch bar device, top and bottom rods, and loose parts bag	050455
	TOP STRIKE PACKAGE for Falcon 1690 & 1990 Panic Device Price includes: Top strike, shims, and screws	033920	ADAMS RITE 8600 CONCEALED PANIC for 4'0" Doors (Up to 9'0" opening height) Price includes: Touch bar device, top and bottom rods, and loose parts bag	050456
	LOOSE PARTS PACKAGE for Falcon 1990 Concealed Panic Price includes: All parts shown below		ADAMS RITE 8600 CONCEALED PANIC for 3'0" InsulcladTM Doors (Up to 8'0" opening height) Price includes: Touch bar device, top and bottom rods, and loose parts bag	050466
Housing Mounting Stud	Rod Allen Rod Bearing Retaining Dogging Key Ring	033533	ADAMS RITE 8600 CONCEALED PANIC for 3'6" InsulcladTM Doors (Up to 8'0" opening height) Price includes: Touch bar device, top and bottom rods, and loose parts bag	050468
Pinion Gear	Pinion Retractor Traveler Bearing		ESCUTCHEON PLATE CYLINDER GUARD for Adams Rite 8600 Concealed Panic Price Includes: Cylinder guard	050460

PANELINETM AND PANIC GUARDTM

EC-97912-040

PANELINETM CHASSIS ASSEMBLY REPLACEMENT PACKAGE Price includes: Chassis assembly, washers, and screws	233532 (R.H. Door) 233533 (L.H. Door)	PANELINETM 4'0" FILLER PLATE Lock Stile Price includes: Filler plate	233457
PANELINETM CYLINDER DOGGING CHASSIS ASSEMBLY REPLACEMENT PACKAGE Price includes: Chassis assembly, washers, screws, and cylinder dogging.	233532CD (R.H. Door) 233533CD (L.H. Door)	"PUSH" PANEL INSERT for PanelineTM Exit Device Specify finish at time of ordering #29 = (#17 clear letters with #29 black background) on #17 finish door #26 = (#29 black letters with #26 bronze background) on #29 & #40 finish door	233455 (R.H. Door)
PANELINETM EL CHASSIS ASSEMBLY RETRO FIT PACKAGE Price includes: Chassis assembly, washers, screws, and blank filler plate	233532EL (R.H. Door) 233533EL (L.H. Door)	Price includes: Panel insert	233456 (L.H. Door)
CLIP PACKAGE for PanelineTM Exit Device Price includes: Cross rail spring clip (Package quantity is (8) each)	233577	"POUSSEZ" PANEL INSERT for PanelineTM Exit Device Specify finish at time of ordering #29 = (#17 clear letters with #29 black background) on #17 finish door #26 = (#29 black letters with #26 bronze background) on #29 & #40 finish door Price includes: Panel insert	233499 (R.H. Door)
PUSH PANEL DRESS CAP		PANELINETM ALLEN DOGGING KEY	233500 (L.H. Door)
for PanelineTM Exit Device Price includes: Dress cap	033118	Price includes: Dogging key	033435
PANELINETM 3'0" FILLER PLATE Pivot Stile Price includes: Filler plate	233494	PANELINETM SOLENOID Price includes: Solenoid	233237
PANELINETM 3'6" FILLER PLATE Pivot Stile Price includes: Filler plate	233495
PANELINETM 4'0" FILLER PLATE Pivot Stile Price includes: Filler plate	233496

and assumes no responsibility therefor.

kawneer.com

Service Parts

EC-97912-040 REMOVABLE MULLIONS & MISCELLANEOUS


REMOVABLE MULLION ASSEMBLY for Touch Bar Rim Panic Device Standard Height Door (82-7/16") Price includes: Removable mullion, adaptor plate, top bracket, top bracket cover, bottom bracket, stabilizers, and fasteners	133486	MULLION STABILIZER Price includes: Door block, mullion block, and fasteners	033600
REMOVABLE MULLION ASSEMBLY for Touch Bar Rim Panic Device Variable Height Door up to 8'0" Price includes: Removable mullion, adaptor plate, top bracket, top bracket cover, bottom bracket, stabilizers, and fasteners	133487	CROSS BAR (48" Long) for Falcon 1990 and 2090 Exit Devices Price includes: Cross bar	233174
REMOVABLE MULLION ASSEMBLY for Falcon 2090 Rim Panic Device Standard Height Door (82-7/16") Price includes: Removable mullion, adaptor plate, top bracket, top bracket cover, bottom bracket, stabilizers, and fasteners	033542
REMOVABLE MULLION ASSEMBLY for Falcon 2090 Rim Panic Device Variable Height Door up to 8'0" Price includes: Removable mullion, adaptor plate, top bracket, top bracket cover, bottom bracket, stabilizers, and fasteners	033543

PUSH / PULL HARDWARE

EC-97912-040

ARCHITECTS CLASSIC CO-9 PULL / CP-II PUSH PACKAGE for Single Acting 3'0" Door Price includes: Pull handle, push bar, and fasteners	137700	ARCHITECTS CLASSIC CO-12 PULL / CP PUSH PACKAGE for Single Acting 3'0" Door Price includes: Pull handle, push bar, and fasteners	137709
ARCHITECTS CLASSIC CO-9 PULL / CP-II PUSH PACKAGE for Single Acting 3'6" Door Price includes: Pull handle, push bar, and fasteners	137701	ARCHITECTS CLASSIC CO-12 PULL / CP PUSH PACKAGE for Single Acting 3'6" Door Price includes: Pull handle, push bar, and fasteners	137710
ARCHITECTS CLASSIC CO-9 PULL / CP-II PUSH PACKAGE for Variable Size up to 4'0" Single Acting Door Price includes: Pull handle, push bar, and fasteners	137702	ARCHITECTS CLASSIC CO-12 PULL / CP PUSH PACKAGE for Variable Size up to 4'0" Single Acting Door Price includes: Pull handle, push bar, and fasteners	137711
ARCHITECTS CLASSIC CO-9 PULL / CP PUSH PACKAGE for Single Acting 3'0" Door Price includes: Pull handle, push bar, and fasteners	137703	ARCHITECTS CLASSIC CP-II / CP-II PUSH PACKAGE for Single Acting 3'0" Door Price includes: Front bar, back bar, and fasteners	137715
ARCHITECTS CLASSIC CO-9 PULL / CP PUSH PACKAGE for Single Acting 3'6" Door -Price includes: Pull handle, push bar, and fasteners	137704	ARCHITECTS CLASSIC CP-II / CP-II PUSH PACKAGE for Single Acting 3'6" Door Price includes: Front bar, back bar, and fasteners	137716
ARCHITECTS CLASSIC CO-9 PULL / CP PUSH PACKAGE for Variable Size up to 4'0" Single Acting Door Price includes: Pull handle, push bar, and fasteners	137705	ARCHITECTS CLASSIC CP-II / CP-II PUSH PACKAGE for Variable Size up to 4'0" Single Acting Door Price includes: Front bar, back bar, and fasteners	137717
ARCHITECTS CLASSIC CO-12 PULL / CP-II PUSH PACKAGE for Single Acting 3'0" Door Price includes: Pull handle, push bar, and fasteners	137706	ARCHITECTS CLASSIC CP / CP PUSH PACKAGE for Double Acting 3'0" Single Door Price includes: Front bar, back bar, and fasteners	137718
ARCHITECTS CLASSIC CO-12 PULL / CP-II PUSH PACKAGE for Single Acting 3'6" Door Price includes: Pull handle, push bar, and fasteners	137707	ARCHITECTS CLASSIC CP / CP PUSH PACKAGE for Double Acting 3'6" Single Door Price includes: Front bar, back bar, and fasteners	137719
ARCHITECTS CLASSIC CO-12 PULL / CP-II PUSH PACKAGE for Variable Size up to 4'0" Single Acting Door Price includes: Pull handle, push bar, and fasteners	137708	ARCHITECTS CLASSIC CP / CP PUSH PACKAGE for Double Acting Variable Size Single Door up to 4'0" Price includes: Front bar, back bar, and fasteners	137720

and assumes no responsibility therefor.

kawneer.com

EC-97912-040

PUSH / PULL HARDWARE

Service Parts

PUSH / PULL

Kawneer reserves the right to change configuration without prior notice when deemed necessary for product improvement.

ARCHITECTS CLASSIC CO-9 / CO-9 PULL PACKAGE for Double Acting Single Door Price includes: (2) Pull handles and fasteners	137725	ARCHITECTS CLASSIC CP-II PUSH BAR for Auto Showroom Inactive Leaf for Variable Size up to 5'0" Price includes: Push bar and fasteners	137740
ARCHITECTS CLASSIC CO-12 / CO-12 PULL PACKAGE for Double Acting Single Door Price includes: (2) Pull handles and fasteners	137726
ARCHITECTS CLASSIC CO-9 PULL for Single Acting Door with Panic Price includes: (1) Handle and fasteners	137730
ARCHITECTS CLASSIC CO-12 PULL for Single Acting Door with Panic Price includes: (1) Handle and fasteners	137731
CPN PULL PACKAGE PanelineTM Offset Pull (R.H. Single Door) Price includes: Pull handle and fasteners	137732
CPN PULL PACKAGE PanelineTM Offset Pull (L.H. Single Door) Price includes: Pull handle and fasteners	137733
CPN PULL PACKAGE Dummy PanelineTM Offset Pull (R.H. Single Door) Price includes: Pull handle and fasteners	137734
CPN PULL PACKAGE Dummy PanelineTM Offset Pull (L.H. Single Door) Price includes: Pull handle and fasteners	137735

POST SEPTEMBER 2001 FASTENERS

EC-97912-040


THROUGH BOLT at Pivot Stile for Single Acting - Single Bend Architects Classic Pull Price includes: 3/8"-24 x 2-3/8" through bolt	128512
THROUGH BOLT for Architects Classic Push Bar Price includes: 3/8"-24 x 2-5/8" through bolt	128513
THROUGH BOLT for Architects Classic Push Bar on InsulcladTM and EntaraTM Doors Price includes: 3/8"-24 x 2-7/8" through bolt	128514
THROUGH BOLT on Pivot Stile for D/A Single Bend Architects Classic Push Bar Price includes: 3/8"-24 x 3-5/16" through bolt	128515
THROUGH BOLT on Pivot Stile for D/A Single Bend Architects Classic Push Bar on InsulcladTM and EntaraTM Doors Price includes: 3/8"-24 x 3-9/16" through bolt	128516
THROUGH BOLT MOUNTING STUD for Architects Classic Push Bar Price includes: 3/8"-24 x 2-5/8" through bolt	128517
THROUGH BOLT MOUNTING STUD for Architects Classic Push Bar on InsulcladTM and EntaraTM Doors Price includes: 3/8"-24 x 2-7/8" through bolt	128518
MOUNTING STUD for Single Acting Architects Classic Pull Handle Price includes: 1/4"-20 x .688" through bolt	128519
RIVNUT for Push/Pulls Price includes: 1/4"-20 x 11/16" rivnut	028343

and assumes no responsibility therefor.

Service Parts

MOUNTING STUD for Double Acting L Push Bars Price includes: Mounting stud	028357	SHORT MOUNTING STUD for Architects Classic Push/Pulls Price includes: Mounting Stud	128294
LONG MOUNTING STUD for Style T Pull and Architects Classic Push Bar Price includes: Mounting stud	028775	LONG MOUNTING STUD for Architects Classic Push/Pulls Price includes: Mounting stud	128295
MOUNTING STUD for Push Bars at Pivot Stile Price includes: Mounting stud	028367	MOUNTING STUD for Back to Back Architects Classic Pulls Price includes: Mounting stud	128296
2-7/32" LONG MOUNTING STUD for Push/Pulls Price includes: Sex bolt	028553	2-5/8" LONG MOUNTING STUD for Architects Classic Push/Pulls on InsulcladTM Doors Price includes: Mounting stud	128234
THREADED SPACER for Push/Pulls Price includes: Threaded spacer	028560	2-5/16" LONG MOUNTING STUD for Architects Classic Push/Pulls on TufflineTM Doors Price includes: Mounting stud	128318
MOUNTING STUD for Double Acting F-2 Push Price includes: Mounting stud	028770	RIVNUT for Push/Pulls Price includes: 1/4"-20 x 11/16" Rivnut	028343
MOUNTING STUD for Double Acting G-2 Push Price includes: Mounting stud	128201	TRUSS HEAD MACHINE SCREW Used on Single Acting Standard Doors at the Pivot Stile, for Push Bar (Style C, Y, and Y3) Price includes: 1/4"-28 x 1" THMS / 1/2" shoulder	028364
		BARREL NUT Used on Single Acting Standard Doors at the Pivot Stile, for Back to Back Push Bars (Style C, Y, and Y3) Price includes: 1/4"-28 x 1-3/8" barrel nut	028365
		LONG MOUNTING STUD Used on Double Acting Standard Doors at the Lock Stile, for (Style C) Push Bars - back to back Price includes: Mounting stud	028366

PRE SEPTEMBER 2001 FASTENERS

EC-97912-040

TRUSS HEAD MACHINE SCREW Used on Double Acting Standard Doors at the Pivot Stile (For style C push bars - back to back) Price includes: 1/4"-28 x 1" THMS / 5/8" shoulder	029211	SPRING LOCK WASHER (For style U) Price includes: 1/4" lock washer	028279
LONG MOUNTING STUD (3.348") Used on InsulcladTM Door (For style C, V, T, and T/V) Price includes: Mounting stud	029221	SOCKET HEAD SET SCREWS Used on Double Acting Standard Doors, for Push Bars Back to Back Price includes: 1/4"-20 x 3/8" socket head set screw	028341
SPACER (2.218") Used on InsulcladTM Door (For Style C) Price includes: 1/4"-20 spacer	029223
BARREL NUT Used on Double Acting Standard Doors at the Pivot Stile (For style C push bars - back to back) Price includes: 1/4"-20 x 1-5/8" barrel nut	029250
TRUSS HEAD MACHINE SCREW Used on InsulcladTM Door (For style C, V, T, T/V, Arch. Classic, and PanelineTM Classic) Price includes: 1/4"-20 x 3/4" THMS	028769
DOOR MOUNTING STUD Used on InsulcladTM Door (For style Architects Classic and PanelineTM Classic) Price includes: Mounting stud	128298
SET SCREW (For Architects Classic and PanelineTM Classic) Price includes: Set screw	128319
HEXAGON SOCKET BUTTON HEAD CAP SCREW Used on Single or Double Acting Standard Doors at the Lock Stile (For style Y and Y3) Price includes: Truss head machine screw	128366
HEX HEAD CAP SCREW (For style C, V, and U) Price includes: 1/4"-20 x 7/8" HHCS	028552

and assumes no responsibility therefor.

ARMS

EC-97912-040

CLOSER ARMS, MOUNTING TRAYS, AND SHEAR BLOCK PACKAGES

necessary for product improvement.

END LOAD ARM PACKAGE for Double Acting Door Price includes: Arm, block, and screws	050712	COC RETROFIT MOUNTING BRACKET for Pre 1998 Closers Accessory Package for TrifabTM 400 Price includes: Pivot jamb bracket, lock jamb bracket, fasteners, lock washers, nuts, and installation instructions	050771
SIDE-LOAD ARM PACKAGE for Double Acting door Price includes: Arm, block, and screws	050702	COC RETROFIT MOUNTING BRACKET for Pre 1998 Closers Accessory Package for TrifabTM 450 Price includes: Pivot jamb bracket, lock jamb bracket, fasteners, lock washers, nuts, and installation instructions	050772
OFFSET ARM PACKAGE for Single Acting Door Price includes: Arm assembly package, bumpers, track, and screws	050719	COC RETROFIT MOUNTING BRACKET for Pre 1998 Closers Accessory Package for TrifabTM 451 Price includes: Pivot jamb bracket, lock jamb bracket, fasteners, lock washers, nuts, shim, and installation instructions	050773
SIDE LOAD ADAPTER PLATE for Mounting Arm to Door top Rail Price includes: Adapter plate	050709	CENTER HUNG MOUNTING BRACKET PACKAGE Price includes: Closer bracket, screws, lock washers, and nuts	050759
CENTER HUNG DRESS PLATE Price includes: Dress plate and weathering	450396	CENTER HUNG SHEAR BLOCK PACKAGE for TrifabTM 400 and TrifabTM 450 Price includes: Shear block and fasteners	450440
S/A OFFSET ARM DRESS PLATE Price includes: Dress plate	450398	CENTER HUNG SHEAR BLOCK PACKAGE for TrifabTM 451 Price includes: Shear block, fasteners, and shims	451440
COC RETROFIT DRESS PLATE for Pre 1998 Closers Price includes: Tray and weathering	450147	S/A OFFSET ARM MOUNTING BRACKET PACKAGE for TrifabTM 400 Price includes: Mounting brackets, fasteners, and nuts	050760
COC BLANK HEADER/T-BAR FILLER for TrifabTM VG 450/451 3'0" Door Opening Price includes: Filler tray and weathering	450388	S/A OFFSET ARM MOUNTING BRACKET PACKAGE for TrifabTM 450 and TrifabTM 451 Price includes: Mounting brackets, fasteners, and nuts	050761
COC BLANK HEADER/T-BAR FILLER for TrifabTM VG 450/451 6'0" Door Opening Price includes: Filler tray and weathering	450390

CLOSER ARMS

SHEAR BLOCK PACKAGES

EC-97912-040

S/A OFFSET ARM SHEAR BLOCK PACKAGE (Offset Pivot) for TrifabTM 400 Price includes: Shear Block and Fasteners	400548
S/A OFFSET ARM SHEAR BLOCK PACKAGE (Offset Pivot) for TrifabTM 450 Price includes: Shear block and fasteners	450548
S/A OFFSET ARM SHEAR BLOCK PACKAGE (Offset Pivot) for TrifabTM 451 Price includes: Shear block, fasteners, and shim	451548
S/A OFFSET ARM SHEAR BLOCK PACKAGE (Butt Hung) for TrifabTM 400 Price includes: Shear block and fasteners	400549
S/A OFFSET ARM SHEAR BLOCK PACKAGE (Butt Hung) for TrifabTM 450 Price includes: Shear block and fasteners	450549
S/A OFFSET ARM SHEAR BLOCK PACKAGE (Butt Hung) for TrifabTM 451 Price includes: Shear block, fasteners, and shim	451549

NAPCA180EN

and assumes no responsibility therefor.

kawneer.com

Service Parts

EC-97912-040 SLIDING DOOR AND MALL FRONT HARDWARE INTERLOCK WEATHERING for 990 Sliding Door Price includes: Interlock weathering (Order quantity by the foot) 027108 EXTRUDED BLANK PULL PACKAGE for 990 Sliding Door Price includes: (1) interior pull, (1) exterior pull, barrel nuts, and screws 911673 INTERLOCK SILENCER/BUMPER for 990 Sliding Door Price includes: Silencer / bumper (Packed in 8 ft. length) 027109 EXTRUDED PULL PACKAGE with Thumbturn and Cylinder for 990 Sliding Door (XO, OXOR) Price includes: (1) interior pull, (1) exterior pull, lock cylinder, barrel nuts, and screws 911686 FIXED GASKET for 990 Sliding Door Price includes: Fixed gasket (Packaged in 14 ft. length) 027110 EXTRUDED PULL PACKAGE with Thumbturn and Cylinder for 990 Sliding Door (OX, OXOL) Price includes: (1) interior pull, (1) exterior pull, lock cylinder, barrel nuts, and screws 911687 EXTRUDED PULL PACKAGE with Slide Operator for 990 Sliding Door (OX, XO, OXO) Price includes: (1) interior pull, (1) exterior pull, slide assembly, barrel nuts, and screws 911617 EXTRUDED PULL PACKAGE with Thumbturn and Cylinder for 990 Sliding Door (OXXO) Price includes: (1) interior pull, (1) interior blank pull, (1) exterior pull, (1) exterior blank pull, lock cylinder, barrel nuts, and screws 911688 EXTRUDED PULL PACKAGE with Slide Operator for 990 Sliding Door Price includes: (2) interior (2) exterior pulls, slide assembly, dummy slide bar, barrel nuts, and screws 911618 EXTRUDED PULL PACKAGE with Thumbturn for 990 Sliding Door (OX, XO, OXO) Price includes: (1) interior pull, (1) exterior blank pull, barrel nuts, and screws 911689 EXTRUDED PULL PACKAGE with Slide Operator for 990 Sliding Door (Latch Panel Only) Price includes: (1) interior pull, (1) exterior pull, dummy slide bar, barrel nuts, and screws 911619 EXTRUDED PULL PACKAGE with Thumbturn for 990 Sliding Door (OXXO) Price includes: (1) interior pull, (1) interior blank pull, (2) exterior pulls, barrel nuts, and screws 911690 SLIDING DOORS

911620

911621

LOCK CYLINDER 5-Pin Standard Used with Slide Operator for 990 Sliding Door Price includes:

STAINLESS STEEL LOCK for 990 Sliding Door Price includes:

STANDARD LOCK for 990 Sliding Door Price includes:

Lock cylinder ⁹¹¹⁶⁹²

A.R. #1847-9 lock, and screws 911581

A.R. #1848A-9 lock, and screws 911582

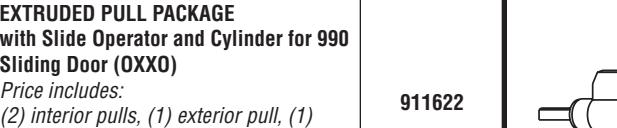

EXTRUDED PULL PACKAGE with Slide Operator and Cylinder for 990 Sliding Door (XO, OXOR)

barrel nuts, and screws

EXTRUDED PULL PACKAGE

(1) interior, (1) exterior pull, slide assembly, cylinder kit, lock cylinder,

exterior blank pull, slide assembly, dummy slide bar, cylinder kit, lock cylinder, barrel nuts, and screws

Sliding Door (OX, OXOL) Price includes:

barrel nuts, and screws

(1) interior pull, (1) exterior pull, slide assembly, cylinder kit, lock cylinder,

with Slide Operator and Cylinder for 990

Price includes:

and assumes no responsibility therefor.

LOCK CYLINDER 5-Pin Keyed Alike Used with Slide Operator for 990 Door Price includes: Lock cylinder	911693	M.S. HOOKBOLT LOCK PACKAGE for 990 and 1010 Sliding Door Price includes: Hookbolt lock, face plate, mounting clip, and screws	912267
LOCK CYLINDER 5-Pin Keyed Different Used with Thumbturn for 990 Sliding Door Price includes: Lock cylinder	913412	BOTTOM RAIL LOCK for 1010 Sliding Door Price includes: Lock, anti-lift block, extension angle, face plate, cylinder, cylinder ring, sex bolt, and screws	912882
LOCK CYLINDER 5-Pin Keyed Alike Used with Thumbturn for 990 sliding Door Price includes: Lock Cylinder	913413	DOOR BUMPER BUTTON for 990 and 1010 Sliding Door Price includes: Bumper button	038324
BLANK EXTERIOR FLUSH PULL for 990 and 1010 Sliding Door Price includes: Blank flush pull	912256	BUMPER PACKAGE for 1010 Sliding Door Price includes: Bumper and screws	912315
ACTIVE EXTERIOR FLUSH PULL for 990 and 1010 Sliding Door Price includes: Active flush pull and cylinder	912254	FACE DOOR PULL ASSEMBLY for 1040 Sliding Door Price includes: Door pull and cover plate	091115
DUMMY INTERIOR FLUSH PULL for 990 and 1010 Sliding Door Price includes: Dummy flush pull and screws	912255	EDGE PULL ASSEMBLY for 1040 Sliding Door Price includes: Edge pull	091180
ACTIVE INTERIOR FLUSH PULL for use without Exterior Pull for 990 and 1010 Sliding Door Price includes: Active flush pull	912253	SPECIAL EDGE PULL on R.H. Center Panel of Two Directional Parallel Stack for 1040 Sliding Door Price includes: Edge Pull	091205
ACTIVE INTERIOR FLUSH PULL for use with 912256 on 990 and 1010 Sliding Door Price includes: Active flush pull and screws	912259	BOTTOM RAIL LOCK for 1040 Sliding Door Price includes: Lock, anti-lift block, extension angle, shims, keeper, face plate, cylinder, anchor, and screws	091331
ACTIVE INTERIOR FLUSH PULL for use with 912254 on 990 and 1010 Sliding Door Price includes: Active flush pull, spindle, and screws	912260	BOTTOM PIVOT FRAME PORTION for 1040 Egress Door Price includes: Pivot assembly, plastic anchors, pivot shim, and screws	050370

SLIDING DOOR AND MALL FRONT HARDWARE

EC-97912-040

SLIDING DOORS





necessary for product improvement.

BOTTOM CENTER PIVOT Door Portion for 1040 Egress Door Price includes: Door portion assembly and screws	050351
FLOOR TYPE DOOR STOP for 1040 Sliding Door Price includes: Door stop, stud, and expansion shield	091167

DOOR

CASTERS / ROLLERS

EC-97912-040


Laws and building and safety codes governing the design and use of glazed	entrance, window, and curtain wall products vary widely. Kawneer does not control	the selection of product configurations, operating hardware, or glazing materials,

and assumes no responsibility therefor.























Kawneer reserves the right to change configuration without prior notice when deemed	necessary for product improvement.


STAINLESS STEEL CASTER for 990 Sliding Door Price includes: Caster	590411	OUTBOARD HEAD GUIDE HOUSING for 1040 Sliding Door Price includes: Head guide housing	091279
WHEEL ASSEMBLY with Stainless Steel Wheels for 1010 Sliding Door Price includes: Wheel assembly	912145	INBOARD HEAD GUIDE HOUSING for 1040 Sliding Door Price includes: Head guide housing	091280
OUTBOARD & RECESSED CASTER ASSEMBLY for 1040 Sliding Door Price includes: Caster assembly	091281
INBOARD CASTER ASSEMBLY for 1040 Sliding Door Price includes: Caster assembly	091282
INBOARD HEAD GUIDE PIN for 1040 Sliding Door Price includes: Pin and screws	091319
RECESSED or OUTBOARD HEAD GUIDE PIN for 1040 Sliding Doors Price includes: Pin and screws	091320

MISC. HARDWARE

and assumes no responsibility therefor.

THRESHOLDS

	THRESHOLD for 3'0" C/H Single Door with Concealed Overhead Closer and Standard Locking Price includes: Threshold	037400	Extrusion# 069139	THRESHOLD for O/P Pair of Doors up to 8'0" with Surface Closer and Standard Locking Price includes: Threshold	037870
	THRESHOLD for 3'6" C/H Single Door with Concealed Overhead Closer and Standard Locking Price includes: Threshold	037401		THRESHOLD for 3'0" B/H Single Door with Surface Closer and Standard Locking Price includes: Threshold	037872
Extrusion# 069143	THRESHOLD for C/H Single Door up to 4'0" with Concealed Overhead Closer and Standard Locking Price includes: Threshold	037402	Extrusion# 069139	THRESHOLD for 3'6" B/H Single Door with Surface Closer and Standard Locking Price includes: Threshold	037873
	THRESHOLD for 6'0" C/H Pair of Doors with Concealed Overhead Closer and Standard Locking Price includes: Threshold	037403	Extrusion# 069139	THRESHOLD for B/H Single Door up to 4'0" with Surface Closer and Standard Locking Price includes: Threshold	037874
	THRESHOLD for C/H Pair of Doors up to 8'0" with Concealed Overhead Closer and Standard Locking Price includes: Threshold	037404		THRESHOLD for 6'0" B/H Pair of Doors with Surface Closer and Standard Locking Price includes: Threshold	037876
	THRESHOLD for 3'0" O/P Single Door with Surface Closer and Standard Locking Price includes: Threshold	037862 (R.H.) 037865		THRESHOLD for B/H Pair of Doors up to 8'0" with Surface Closer and Standard Locking Price includes: Threshold	037877
		(L.H.)
	THRESHOLD for 3'6" O/P Single Door with Surface Closer and Standard Locking Price includes:	037863 (R.H.)		THRESHOLD CLIP for Center Hung Doors Price includes: Clip and screws	038332
	Threshold	037866 (L.H.)
Extrusion# 069139	THRESHOLD for O/P Single Door up to 4'0" with Surface Closer and Standard Locking	037864 (R.H.)		THRESHOLD CLIP for Offset Pivot or Butt Hung Doors Price includes:
Price includes: Threshold Locking Price includes: Threshold		037867 (L.H.)		Clip and screws	038376
Price includes: Threshold Locking Price includes: Threshold	THRESHOLD for 6'0" O/P Pair of Doors with Surface Closer and Standard	037869

THRESHOLDS

MISC. HARDWARE

EC-97912-040

and assumes no responsibility therefor.






























Kawneer reserves the right to change configuration without prior notice when deemed	necessary for product improvement.

			Canadian Thresholds
	THRESHOLD for 3'0" Offset Pivot, Single Acting, Single Door (For open back frames)	249350 (R.H.)		THRESHOLD for Variable Size Butt Hung, Single Acting, Pair of Doors (For tubular frames) Price includes: Threshold (Requires 038606 clip)
	Price includes: Threshold (Requires 038606 clip)	249352 (L.H.)	Extrusion# 450055		249390
	THRESHOLD for 3'6" Offset Pivot, Single Acting, Single Door (For open back frames)	249351 (R.H.)		THRESHOLD (Screw Spline) for 3'0" Offset Pivot, Single Acting, Single Door	450350 (R.H.)
	Price includes: Threshold (Requires 038606 clip)	249353 (L.H.)		(For open back frames) Price includes: Threshold	450352 (L.H.)
	THRESHOLD for Variable Size Offset Pivot, Single Acting, Single Door (For open back frames)	249360 (R.H.)		THRESHOLD (Screw Spline) for 3'6" Offset Pivot, Single Acting, Single Door	450351 (R.H.)
Extrusion# 450055	Price includes: Threshold (Requires 038606 clip)	249361 (L.H.)		(For open back frames) Price includes: Threshold	450353 (L.H.)
	THRESHOLD for 6'0" Offset Pivot, Single Acting, Pair of Doors (For open back frames)	249354		THRESHOLD (Screw Spline) for Variable Size Offset Pivot, Single Acting, Single Door (For open back frames) Price includes: Threshold	450360 (R.H.)
Price includes: Threshold (Requires 038606 clip) THRESHOLD for Variable Size Offset Pivot, Single Acting, Pair of Doors (For open back frames) Price includes: Threshold (Requires 038606 clip) THRESHOLD for 3'0" Butt Hung, Single Acting, Single Door (For tubular frames) Price includes: Threshold (Requires 038606 clip) THRESHOLD for 3'6" Butt Hung, Single Acting, Single Door (For tubular frames) Price includes: Threshold (Requires 038606 clip) Extrusion# THRESHOLD for Variable Size Butt 450055 Hung, Single Acting, Single Door (For tubular frames) Price includes: Threshold (Requires 038606 clip) THRESHOLD for 6'0" Butt Hung, Single Acting, Pair of Doors (For tubular frames) Price includes: Threshold (Requires 038606 clip)			Extrusion# 450053		450361 (L.H.)
	249366		THRESHOLD for 6'0" O/P Pair of Doors with Surface Closer and Standard Locking Price includes: Threshold	450354
		249386		THRESHOLD for O/P Pair of Doors up to 8'0" with Surface Closer and Standard Locking Price includes: Threshold	450366
		249387		THRESHOLD CLIP for TrifabTM VG 451T Screw Spline Frames Price includes: Clip and screws	038606
		249388
		249389

EC-97912-040

Kawneer reserves the right to change configuration without prior notice when deemed necessary for product improvement.


BACK to BACK ALUMINUM BUMPER BAR PACKAGE for 3'0" Doors Price includes: Front bar, back bar, screw stud, and barrel nut	037365
BACK to BACK ALUMINUM BUMPER BAR PACKAGE for 3'6" Doors Price includes: Front bar, back bar, screw stud, and barrel nut	037366
BACK to BACK ALUMINUM BUMPER BAR PACKAGE for Variable Size Doors Price includes: Front bar, back bar, screw stud, and barrel nut	037367
SINGLE ALUMINUM BUMPER BAR PACKAGE for 3'0" Door Price includes: Bumper bar, screw stud, and barrel nut	037652
SINGLE ALUMINUM BUMPER BAR PACKAGE for 3'6" Door Price includes: Bumper bar, screw stud, and barrel nut	037653
SINGLE ALUMINUM BUMPER BAR PACKAGE for Variable Size Doors Price includes: Bumper bar, screw stud, and barrel nut	037654
FASTENER PACKAGE for Aluminum Bumper Bar on InsulcladTM Door Price includes: (4) Screw studs and (2) threaded barrels	249382

MISC. HARDWARE

BUMPER BARS / DOOR STOPS / OTHER

EC-97912-040

GASKET DRILL for Flush Door Gasket Price includes: Drill	237416	DOOR HOLDER Price includes: Door holder and screws	037214
TOP ADJUSTABLE SETTING BLOCK Price includes: Setting block	027379	DOOR HOLDER - Wall Type Price includes: Door holder, strike, and screws	037215
GLASS JACK for 1/4" infill Price includes: Glass jack (Package quantity is 4 each)	027558	DOOR HOLDER Price includes: Door holder and screws	037216
GLASS JACK for 1" Infill Price includes: Glass jack (Package quantity is 4 each)	027559	DOOR STOP Price includes: Door stop and screws	091167
		EXIT INDICATOR HEADER DECAL Price includes: Exit indicator English decal	035185
		CASTER ASSEMBLY for Auto Showroom Price includes: Caster, mounting bracket, lock washer, nut, and screw	048104
		ALUMINUM RISER BLOCK for Auto Showroom Price includes: Riser block	048510
		PLASTIC RISER BLOCK for Auto Showroom Price includes: Riser block	047699
		RISER BLOCK FASTENER for Auto Showroom Price includes: 1/4"-20 x 1-9/32" FHMS	028557

and assumes no responsibility therefor.

GASKETS AND WEATHERING

STANDARD ADJUSTABLE ASTRAGAL for Standard Doors Price includes: Astragal (108" long), springs, and screws	200762	STANDARD DOOR GLAZING GASKET for Double Glazing Price includes: Fixed gasket (Packaged in 250 ft. roll)	027557
HIGH PILE ADJUSTABLE ASTRAGAL for Standard Doors Price includes: Astragal (108" long), springs, and screws	200763	STANDARD DOOR GLAZING GASKET for Single Glazing Price includes: Glazing gasket (Packed in 500 ft. roll)	027563
ASTRAGAL for Stock Height Panic GuardTM Doors Price includes: Astragal (83-1/16" long) and fasteners	233727	PILE WEATHERSTRIP for EntaraTM Entrance Framing Price includes: Pile weatherstrip (Order quantity per foot)	104787
ASTRAGAL for Variable Height Panic GuardTM Doors Price includes: Astragal (109" long) and fasteners	233728	BOTTOM RAIL WEATHERING SWEEP for Variable Size Door up to 4'0" Price includes: Mounting strip, filler strip, and screws	200799
BULB DOOR FRAME WEATHERING Price includes: Bulb weathering (Packaged in 1,000 ft. roll)	027078	BOTTOM DOOR WEATHERING SWEEP (Rubber) 3'0" Long Price includes: Mounting strip, rubber sweep, and screws	037092
PILE WEATHERING for C.O.C. Transom Bar (TrifabTM 400/450/451) Price includes: Pile weathering (Packaged in 2,500 ft. roll)	027088	BOTTOM DOOR WEATHERING SWEEP (Rubber) 4'0" Long Price includes: Mounting strip, rubber sweep, and screws	037093
STANDARD WEATHERING for Narrow Stile Doors Price includes: Weathering (Packaged in 500 ft. roll)	027205	PILE WEATHERING for Tuffline Doors Price includes: Weathering	027278
EXTRA HIGH WEATHERING STRIP for Narrow Stile Doors Price includes: Weathering strip (7'0" long)	027206
PILE WEATHERSTRIP for Entrance Framing Price includes: Pile weatherstip (Order quantity per foot)	027207

MISC. HARDWARE

GASKETS AND WEATHERING

EC-97912-040

and assumes no responsibility therefor.




necessary for product improvement.

		REPLACEMENT GLASS STOP PACKAGE for Variable Size to 4' x 8' (1" Infill) Price includes: Glass stops and glazing gaskets	200768
REPLACEMENT BEVELED GLASS STOP PACKAGE for 3' x 7' (1/4" Infill) Price includes: Glass stops and glazing gaskets	200722	GLASS STOP SECURITY ADAPTOR PACKAGE Price includes: (2) Glass stop security adaptors and (2) screws	200769
REPLACEMENT BEVELED GLASS STOP PACKAGE for 3'6" x 7' (1/4" Infill) Price includes: Glass stops and glazing gaskets	200723	NUCORE STRUCTURAL GLAZING CLIP (1/4" Infill)	027050
REPLACEMENT BEVELED GLASS STOP PACKAGE for Variable Size to 4' x 8' (1/4" Infill) Price includes: Glass stops and glazing gaskets	200766	NUCORE STRUCTURAL GLAZING CLIP (1" Infill)	027051
REPLACEMENT SQUARE GLASS STOP PACKAGE for 3' x 7' (1/4" Infill) Price includes: Glass stops and glazing gaskets	200734	NUCORE STRUCTURAL GLAZING CLIP WITHOUT DUTCHMAN (1" Infill)	027071
REPLACEMENT SQUARE GLASS STOP PACKAGE for 3'6" x 7' (1/4" Infill) Price includes: Glass stops and glazing gaskets	200735
REPLACEMENT SQUARE GLASS STOP PACKAGE for Variable Size to 4' x 8' (1/4" Infill) Price includes: Glass stops and glazing gaskets	200767
REPLACEMENT GLASS STOP PACKAGE for 3' x 7' (1" Infill) Price includes: Glass stops and glazing gaskets	200746
REPLACEMENT GLASS STOP PACKAGE for 3'-6" x 7' (1" Infill) Price includes: Glass stops and glazing gaskets	200747

necessary for product improvement.

Kawneer reserves the right to change configuration without prior notice when deemed

THIS PAGE LEFT INTENTIONALLY BLANK

HARDWARE

EC-97912-040 BLANK PAGE

THIS PAGE LEFT INTENTIONALLY BLANK

and assumes no responsibility therefor.
