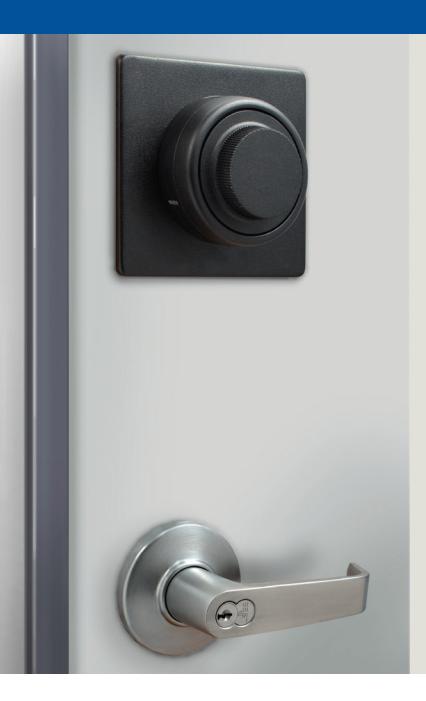

Kaba Mas DKXL-10

High Security Pedestrian Door Lock FF-L-2890C Type II

Integrated system includes GSA approved CDX-10 and BEST 9K cylindrical lock

Electronic access control - Type II

Simultaneous retraction of the CDX-10 deadbolt and latchbolt

Overview

Kaba Mas has been a trusted partner of the United States Government since the X-0 Series was first introduced in 1992.

Kaba Mas High Security combination locks used on GSA approved security containers and CDX series pedestrian door locks used on doors to secure rooms and Secure Compartmented Information Facilities (SCIFs) have been preferred by U.S. Government agencies and Government contractors.

The Kaba Mas DKXL-10 was developed to meet changes to Federal Specification FF-L-2890C. These changes added lifesafety requirements to locking devices used to protect secure areas occupied by Government/Cleared Contractor personnel.

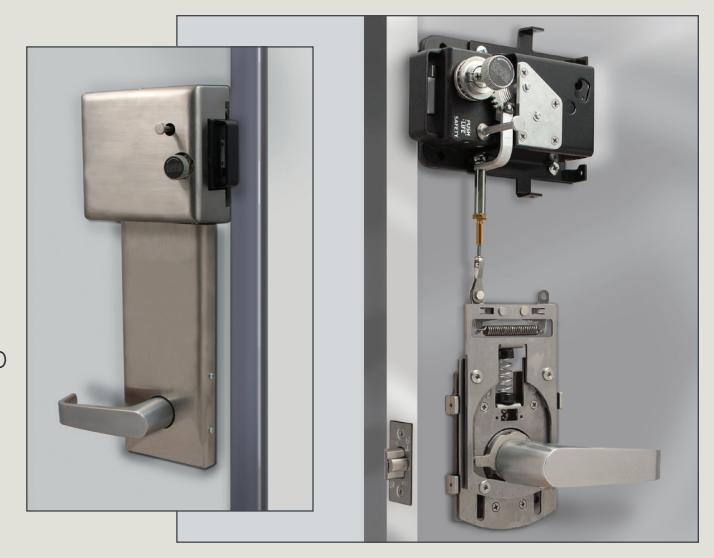

The General Services Administration (GSA) has approved the Type II DKXL-10, which is comprised of a CDX-10, attached – through linkage – to a BEST Grade 1, heavy duty cylindrical lock. The linkage ensures simultaneous retraction of both the secondary cylindrical lock latch bolt and the CDX-10 primary lock bolt. The combination of two proven products ensures compliance with codes for security, fire, and life safety and requirements of the American with Disabilities Act (ADA). The DKXL-10 is for use on both inswing and outswing doors.

The DKXL-10 Type II includes integrated electrified trim that allows through-the-door wiring for electronic access control and a request to exit switch.

Specifications/Standards/Regulations

Federal

Fully compliant with, and GSA approved under Federal Specification FF-L-2890C, Type II

Life Safety

Meets/Compliant with:

• ANSI/BHMA A156.2, Series 4000, Grade 1
• UFAS, ADA, IBC, NFPA Code 80/101 compliant
• ANSI/BHMA A117.1

Security

The Kaba Mas X-10 High Security Combination Lock used with the DKXL-10 product line meets/exceeds performance requirements of Federal Specification FF-L-2740B for protection of Classified and National Security Information (NSI).

Features

• Combines two time-tested, industry/Government proven products - Kaba Mas CDX-10 and BEST 9K
• Straight forward installation and operation
• 9K available with 2-3/4", 3-3/4" and 5" backsets
• All black dial and dial ring mounting plate
• X-10 back-lit LCD to assist in low light opening conditions
• The DKX-10 is designed to accept all GSA approved FF-L-2740B combination locks
• 9K available with either small format interchangeable core (SFIC) or large format removeable core configurations
• Easy upgrade for existing CDX devices. Refer to installation instructions at www.kabamas.com.
