LA GARD

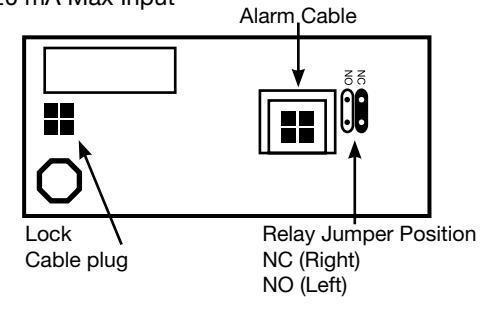

ALARM/BATTERY BOX CONNECTIONS

To Alarm to Lock Can be configured as NC or NO by changing the internal jumper. INSTRUCTIONS 4002 LARGE ALARM/BATTERY BOX Connection to Alarm to Lock Connect to Lock through BAT Port. Can be configured as NC or NO by changing the internal jumper.

2789 ALARM CABLE CONNECTIONS

4 Wires 26 AWG

Alarm Relay Connections

Red and Black

Normally Open (NO) or Normally Closed (NC)

Relay Contacts: Settable 50V DC @ 250 mA Max Load

Switches 1 sec.

Remote Input to Disable or Override Lock

Yellow: Positive Input (+) Green: Negative Input (-) 5-12V DC @ 20 mA Max Input

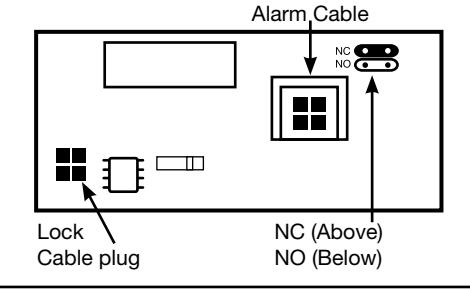

New Version

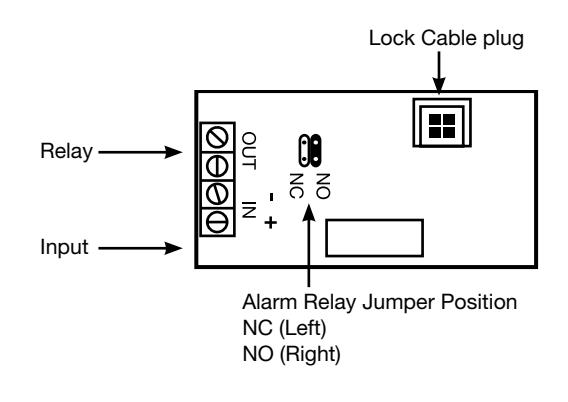

4002 ALARM CONNECTIONS

Alarm Relay Connections

Connect OUT to Alarm

Normally Open (NO) or Normally Closed (NC)

Relay Contacts: Settable 50V DC @ 250 mA Max Load Switches 1 sec.

Remote Input to Disable or Override Lock

Connect IN to Remote Control 5-12V DC @ 20 mA Max Input

Kaba Mas LLC 749 W. Short Street, Lexington, KY 40508 USA Phone: (859) 253-4744 FAX: (859) 255-2655 Technical Support: (800) 950-4744 www.kaba-mas.com
