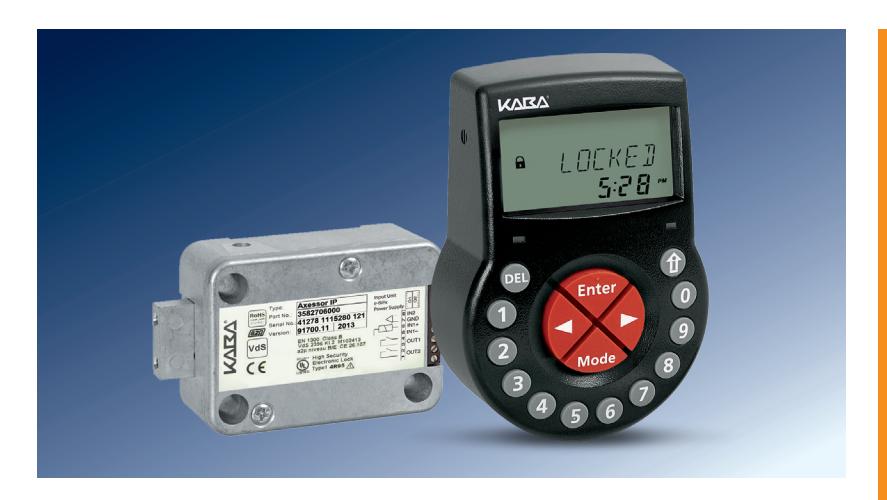

Kaba Axessor® IP safe lock Functional Scope

Motorized lock

• Patented motorized lock with automatic locking
• Sensor monitored deadbolt and motor
• Definable bolt open time
• Standard footprint
• 2 inputs (one potential 12V, one switch)
• 2 outputs
• Input/output polarity invertible
• 10,000 Audit Events
• External power supply optional

Input unit

• High quality, robust metal input unit with USB interface
• High contrast LCD display
• 10 display languages (EN, FR, DE, NL, IT, ES, HU, PT, PL, TR)
• Battery operated (3 AA)Software

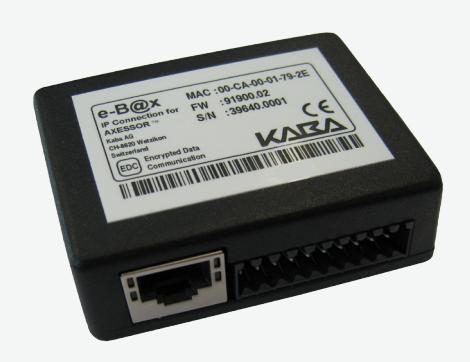

eBox network module

• AES-256 data encryption
• 5 contact-controlled inputs
• 5 potential-free outputs
• Input/output polarity invertible
• Power supply 9 to 24 VDC
• LAN port 1 x 10/100 Mbps (RJ45)

Software

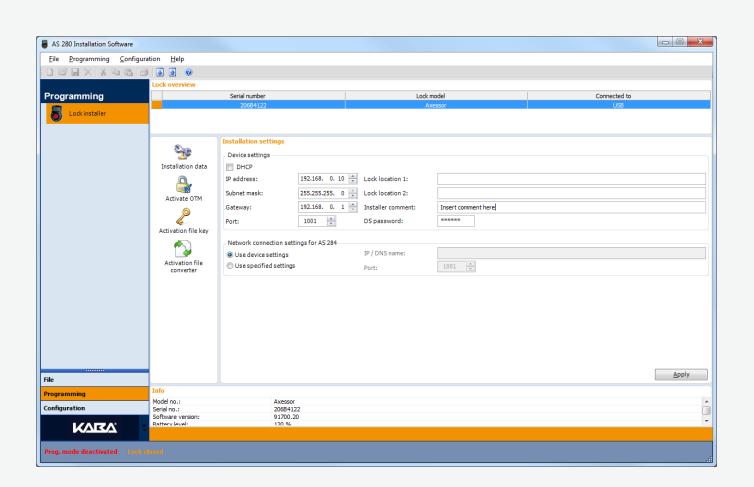

• AS280-INSW installation software
• ASx83-SDK:
  • Software development package
  • Enables custom application
• AS284-NETW programming software:
  • Supports USB and LAN/WAN
  • Grouping and batch function
  • Audit reading
• Network and access security dongle and password protected
• Windows operating systems (32/64 bit) XP SP3 and latest versions

Code functions

• 4 hierarchy levels: 1 master, 4 managers, 36 operators, 1 courier
• Code 45 and 46 can be selected for control of interior compartments
• Code 47optional time code
• Code 48/49 for lock disabling/enabling
• One shot codes for Group 4
• Dual mode for group / user opening
• Optional dual manager mode for programming
• Individual code / group disabling
• Duress code can be selected, +/- 0..9
• Penalty after four incorrect codes

• Master/manager can/cannot open lock
• Optional time lock override for master
• Time lock interruption for managers and operators - optional
• Manager cross access for user groups
• Optional time delay override for courier code

• Daylight Savings Time (DLST)
• 35 weekly locking periods
• 22 holiday and annual locking periods
• Immediate time lock [hh:mm]
• 8 time lock interruption periods
• Display of next opening time can be selected
• Remote disabling
• Non-return time delay

Opening delay

• Definable Time delay and duress delay by Group/Time related time delay
• Time related dual mode
• Time related code disabling
• Time delay count up, down or off

• EN 1300 B, VdS class 2
• UL type 1
• CNPP a2p pending

Great flexibility – security of investment

Like all products of the Axessor series, the network lock Axessor IP features a USB 2.0 port directly on the input unit for connection to the software. Utilizing the eBox and AS284-NETW software any number of locks can be remotely managed and audited.

For specific needs, the KSSLP protocol or the SDK function library provides a software developer with very flexible integration into existing environments / systems.

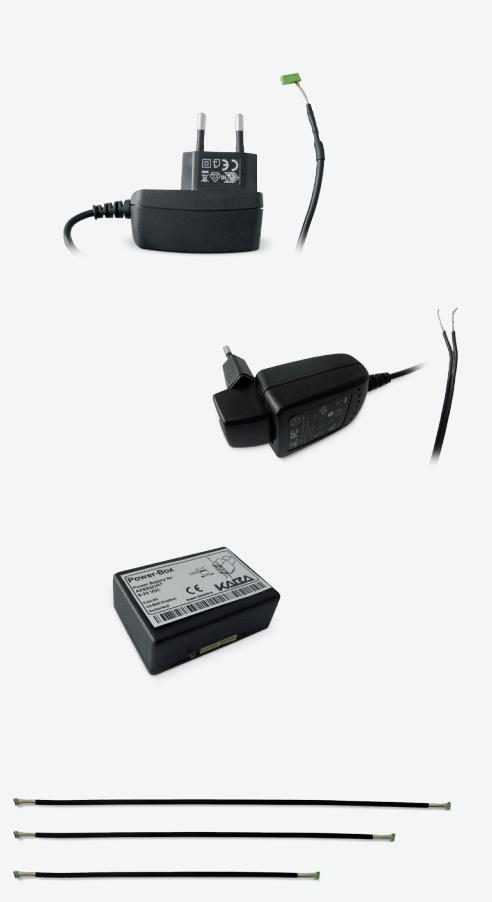

Accessories

External plug-in power supply units

Plug-in power supply unit for standalone operation. Direct connection to an Axessor ® lock EU, 100—240 V/50—60 Hz/6 V.

Plug-in power supply unit for network operation. Connection to an eBox (EU, 100—240 V/50—60 Hz/12 V stabilized).

Power Box for standalone operation. Direct connection to an Axessor® lock, 9—24 VDC/6 VDC.

Connection cable

55/120/200 cm cable lengths available
