Killeen Machine Tool Co., Inc.
33 Hermon Street
Worcester, MA 01610
1-800-KSP-KEYS www.iccore.com
e-mail : sales@iccore.com
phone: 508-798-3200
fax: 508-753-2183
AT KSP, CUSTOMER SERVICE IS SECOND TO NONE!

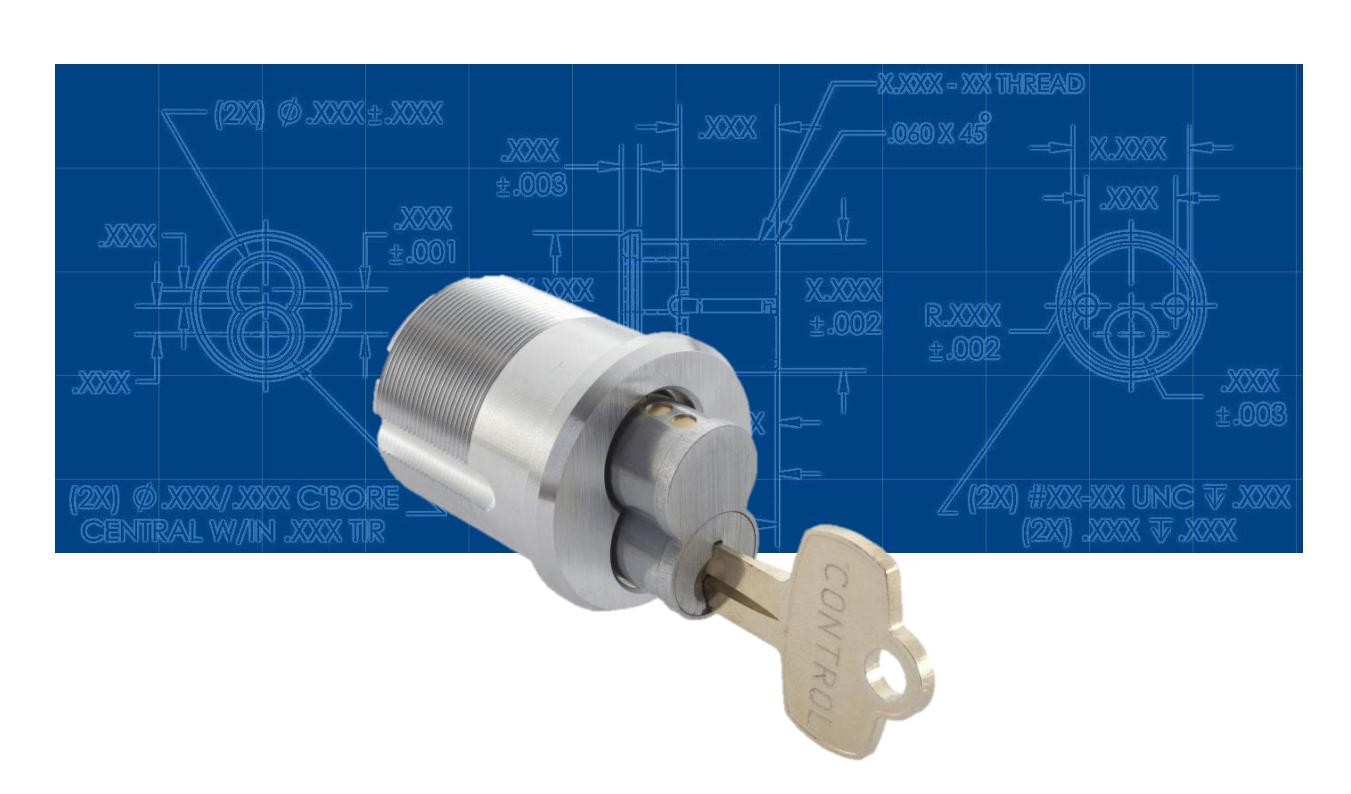

Located in Worcester, Massachusetts, Killeen Security Products (KSP), proudly manufactures Small Interchangeable Cores, Mortise and Rim Housings. All of our products have been made in the USA since 1983.

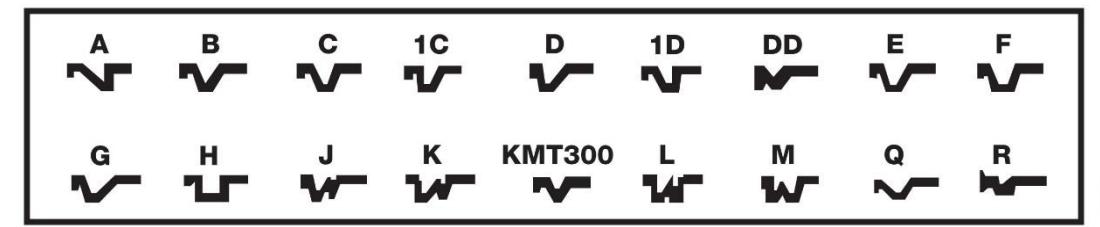

We manufacture over 15 different keyways for the Small Interchangeable Core products that are interchangeable with Best, Arrow, Falcon & GMS. We have key blanks available for every keyway we supply. KSP manufactures Mortise housings that have both the staked on and screw on cams available. Recently, we have added a convertible Mortise/Rim housing in the following styles: Medeco, Sargent, Schlage, Yale, Corbin Russwin, and our own KSP (SFIC). We supply locksmith tools such as capping blocks, housing wrenches, and staking tools.
KSP can assist your company in setting up keying systems providing the utmost security for your business. We can set up systems for all levels, from something as complex as a Great Great Grand Master Key system to something as simple as keying alike to a Control Key. We can combinate cores to fit all of your needs and maintain these records for you. KSP is known for cores & housings but we also have the ability to assist our customers with custom applications. If you have a special project, please give us a call. We would welcome any opportunity to be of assistance.
Table of Contents
|
Cores –
Uncombinated |
3 |
|---|---|
|
Cores –
Combinated |
4 |
| Mortise Housings |
5 -
6 |
| Rim Housings | 7 |
| Spacers and Collars | 7 |
| 408 Convertible Housings | 8-9 |
| Schlage LFIC Mortise Housings | 10 |
| Schlage LFIC Rim Housings | 12 |
| I/C Core Pin Kits | 12 |
| I/C Core Pin, Caps, Springs | 12 |
| K-Series Cam Kit | 13 |
| I/C Housings Drive Pins | 13 |
| I/C Tools | 14 |
| I/C Brass Padlocks | 14 |
Interchangeable Core Locks
Special finishes available. Contact us for pricing and lead-times.
Now offering R Keyway!

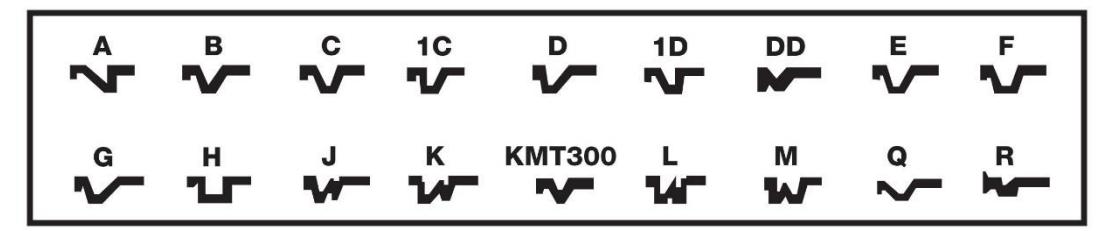

Cores - Uncombinated
| Part Number | Description | Keyway | Finish |
|---|---|---|---|
| 206 | 6 Pin | X | 4 / 26D |
| 207 | 7 Pin | X | 4 / 26D |
Order Example: 206-A-26D
Above cores are also available in Slide Cap (FALCON style cores)
Slide Cap (Falcon Style Core – Uncombinated)
Available in the same keyways and finishes as our best style cores.
Cores – Sliding Glass / Showcase Lock
Part Number 207SPL Description 7 Pin Keyway X Finish US04 / 26D
Available in all keyways. Cores only.
Quality – Price – Delivery That's what KSP is all about!

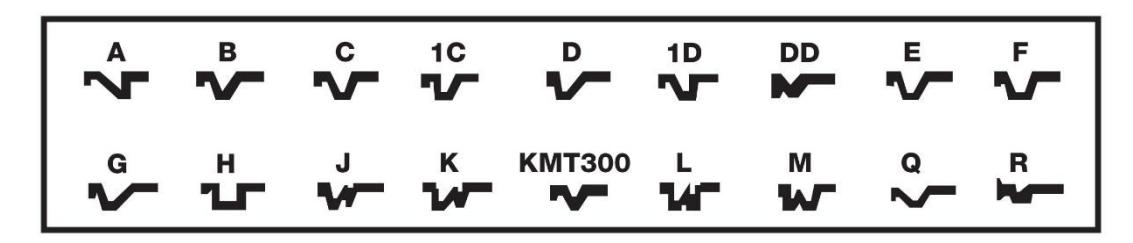

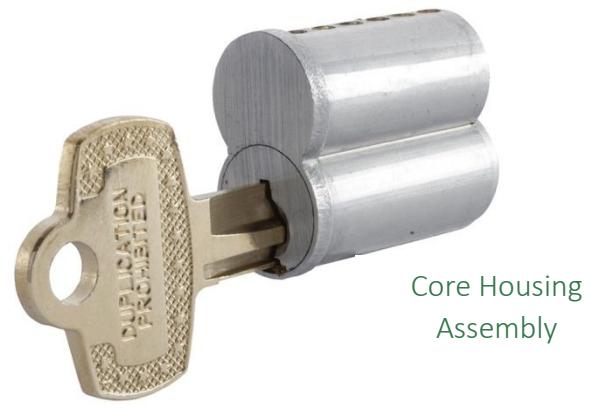

Cores - Combinated
| Part Number | Description | Keyway | Finish |
|---|---|---|---|
| 206 | 6 Pin | X | 4 / 26D |
| 207 | 7 Pin | X | 4 / 26D |
Order Example: 206-A-26D Combinated
Key Blanks
Part Number
400K-(Keyway)
Key Blank Samples
Order Example: 400K-A, 400K-B, etc.
1-800-ksp-keys www.iccore.com
Housings SFIC
Special finishes available. Contact us for pricing and lead-times.
Mortise Housings with Staked-on Cams
| Part Number | Length | Description |
|---|---|---|
| 306 | 1-1/4" | 6 Pin Mortise Housing |
| 307 | 1-3/8" | 6/7 Pin Mortise Housing |
| 307 Long | 1-3/4" | 6/7 Pin Mortise Housing |
| 316 | 6 Pin Tapered Head Housing | |
| 317 | 6/7 Pin Tapered Head Housing |
Available Finishes
602-L
03 04 10 10B 26 26D Bright Brass Satin Brass Satin Bronze Duro Bright Chrome Satin Chrome (306-600-26D)
(306-601-26D)
(316 / 317 Example)

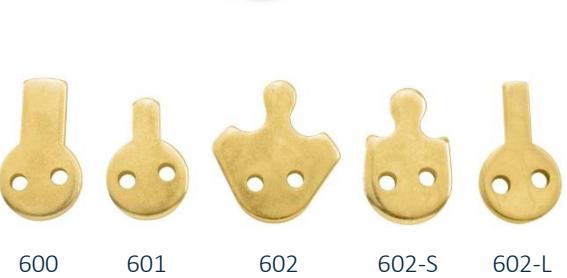

(Sold in bags of 20) Staked-on Housing Cams
| Part Number | Description | |
| 600 | Standard Cam | |
| 601 | Adams Rite Cam | |
| 602 | Clover Cam | |
| 602-S | Sargent Cam |
Schlage Cam
Quality – Price – Delivery That's what KSP is all about!
(307-602-04)

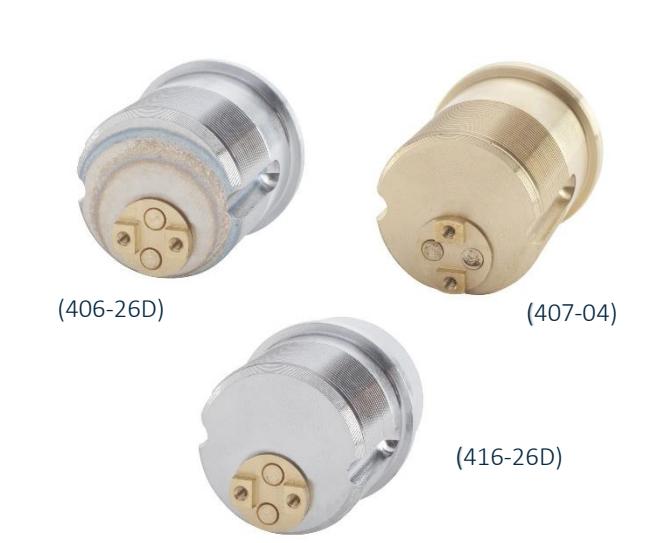

Mortise Housings for Screw-on Cams
| Part Number | Length | Description |
|---|---|---|
| 406 | 1-1/4" | 6 Pin Mortise Housing |
| 407 | 1-3/8" | 6/7 Pin Mortise Housing |
| 407 Long | 1-3/4" | 6/7 Pin Mortise Housing |
| 416 | 6 Pin Tapered Head Housing | |
| 417 | 6/7 Pin Tapered Head Housing |
Available Finishes
| 03 | Bright Brass |
|---|---|
| 04 | Satin Brass |
| 10 | Satin Bronze |
| 10B | Duro |
| 26 | Bright Chrome |
| 26D | Satin Chrome |
Screw-on Housing Cams
(Sold in bags of 20)
| Part Number | Description | |||||
|---|---|---|---|---|---|---|
| K700 | Standard Cam | |||||
| K701 | Adams Rite Cam | |||||
| K702 | Clover Cam | |||||
| K702-S | Sargent Cam | K700 | K701 | K702 | K702-S | K702-L |
| K702-L | Schlage Cam |
Rim Housings
| Part Number | Description |
|---|---|
| 308 | 6/7 Pin Rim Housing |
| 308-6 | 6 Pin Housing |
Available Finishes
| 03 | Bright Brass |
|---|---|
| 04 | Satin Brass |
| 10 | Satin Bronze |
| 10B | Duro |
| 26 | Bright Chrome |
| 26D | Satin Chrome |

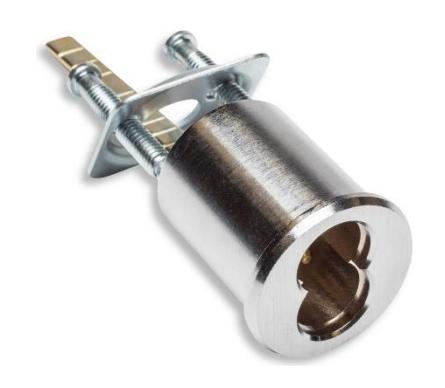

308 Rim Housing 26D Finish
Spacers and Collars
| Part Number | Description | Size | |
|---|---|---|---|
| 500 | Rim | ||
| 501 | Step Mortise |
1/8" –
1/4" |
|
| 502 | Solid Collar |
1/8" –
1/4" – 3/8" |
(400-CA-26D) |

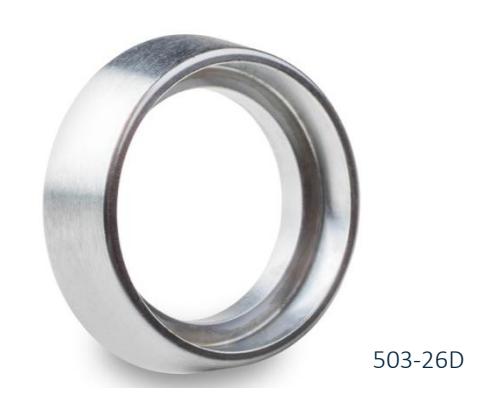

| 503-26D | Solid Tapered Collar | 3/16" Spacer | |
| 400-CA-26D | Hardened Spring Collar | ||
Available Finishes
| 03 | Bright Brass | (3/8") | |
| 10 | Satin Bronze | (1/8") | |
| 10B | Duro | ||
| 26D | Satin Chrome | (1/4") |
408 Convertible Housings
408 Convertible Housing Rim and Mortise Function in one!
All Housings Less Cam
- Eliminate excess inventory and SKU's
- Provides for flexibility
- No need to disassemble drive assembly
- Compatible with these LFIC & SFIC cores (individually boxed)
| Manufacturer | Part Number | Length |
| Sargent | P/N 408 Sargent (finish) | 1.24" |
| Schlage | P/N 408 Shclage (finish) | 1.37" |
| Medeco | P/N 408 Medeco (finish) | 1.22" |
| Corbin Russwin | P/N 408 Corbin Russwin (finish) | 1.12" |
| Yale | P/N 408 Yale (finish) | 1.40" |
| KSP (SFIC) | P/N 408 KSP (finish) | 1.24" |
Compatible with Best, Arrow, Falcon, GMS
Extra 408 Hardware Kit
408-CB-Extra : Tailpiece, Adapter and Screws (Rim Function), Collars, Back Plate, Break-
away Screws – Individually Wrapped
Part Number CKS-5
1 each – K700, K701, K207, K702S, K702L)
408 Housing with Hardware

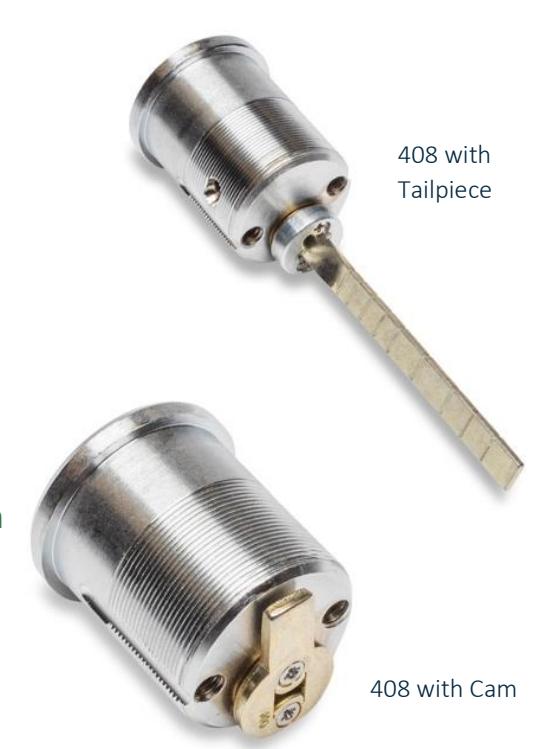

408 with Cam
408 with Tailpiece
1-800-ksp-keys www.iccore.com
408 Convertible Housing Kit
All Housings Less Cam
Convertible Housings
- Eliminate excess inventory and SKU's
- Provides for flexibility
- No need to disassemble drive assembly
- Designed with the locksmith in mind

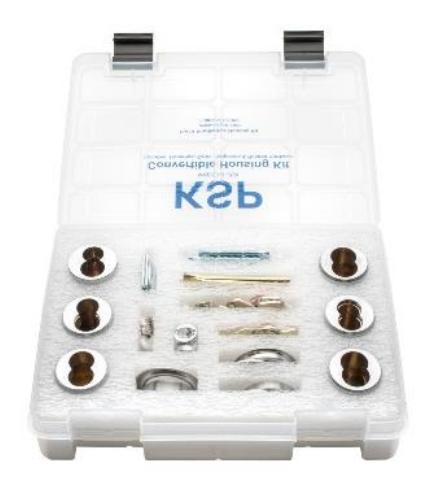

408 Housing Kit
Contents:
- Qty. 6, 408 Housing, Choose from SFIC, Schlage, Sargent, Corbin Russwin, Yale, and Medeco styles
- Qty. 6 each cam: K700, K701, K702, K702S, K702L
- Screws for assembling tailpiece or cam, with Loctite pre-applied
- Qty. 3 Tailpieces, Adapter (patent pending), for rim installation
- Qty. 3 sets of breakaway screws and back plates of trim installation
- Miscellaneous Collars
SFIC Schlage Sargent Corbin Russwin Yale Medeco
1-800-ksp-keys www.iccore.com Quality – Price – Delivery That's what KSP is all about!
Housings Schlage
Schlage LFIC Mortise Housings
All Housings Less Cam
Part Number Description
407-LFIC Large format mortise
cylinder housings
Available Finishes
| 03 | Bright Brass |
|---|---|
| 04 | Satin Brass |
| 10 | Satin Bronze |
| 10B | Duro |
| 26 | Bright Chrome |
| 26D | Satin Chrome |

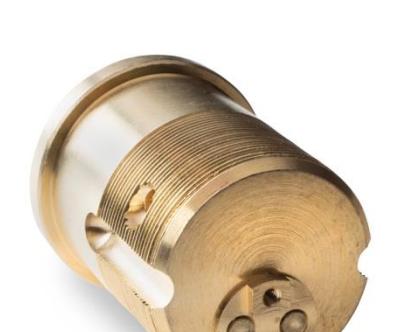

407-LFIC-04 (front view)
407-LFIC-04 (back view)
Screw-on Housing Cams
| Part Number | Description | |
|---|---|---|
| K700 | Standard Cam | |
| K701 | Adams Rite Cam | |
| K702 | Clover Cam | |
| K702-S | Sargent Cam | |
| K702-L | Schlage Cam | |
K700 K701 K702 K702-S K702-L
(Each Cam sold in bags of 10)
E-mail us: sales@iccore.com E-mail us: sales@iccore.com

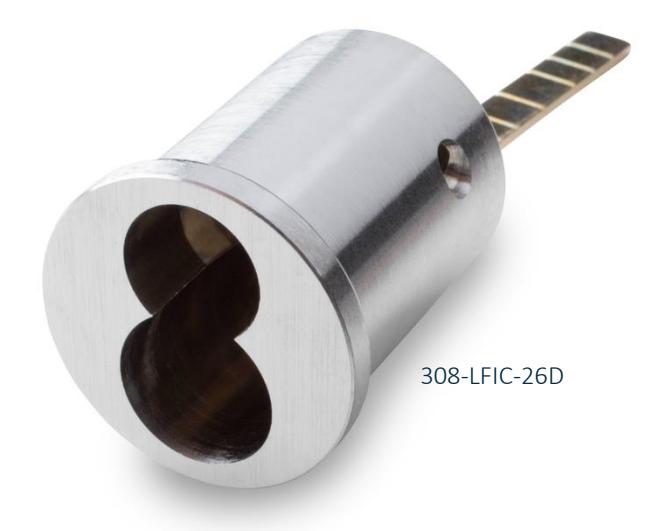

Schlage LFIC Rim Housings
All Housings Less Cam
Part Number Description
308-LFIC Large format mortise
cylinder housings
Available Finishes
| 03 | Bright Brass | |
|---|---|---|
| 04 | Satin Brass | |
| 10 | Satin Bronze | |
| 10B | Duro | |
| 26 | Bright Chrome | |
| 26D | Satin Chrome | |

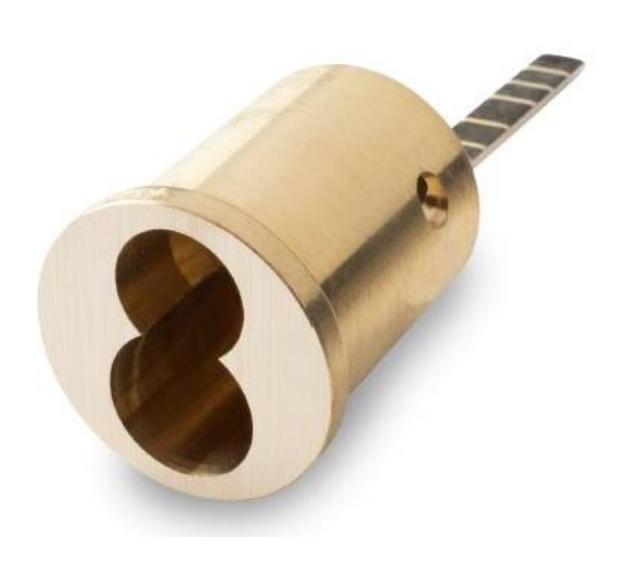

308-LFIC-04
Interchangeable Lock Core Accessories

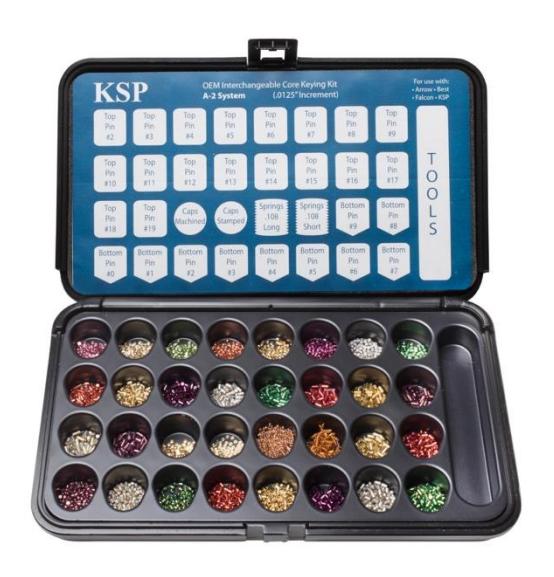

I/C Core Pin Kits
Part Number A2-Kit
Pin Kit
I/C Core Pin, Caps, Springs
Part Description
Quantity
0.108 Diameter
1000 / Pack Only
A2 Top Pins
SFIC Chamber Springs
A2 Bottom Pins

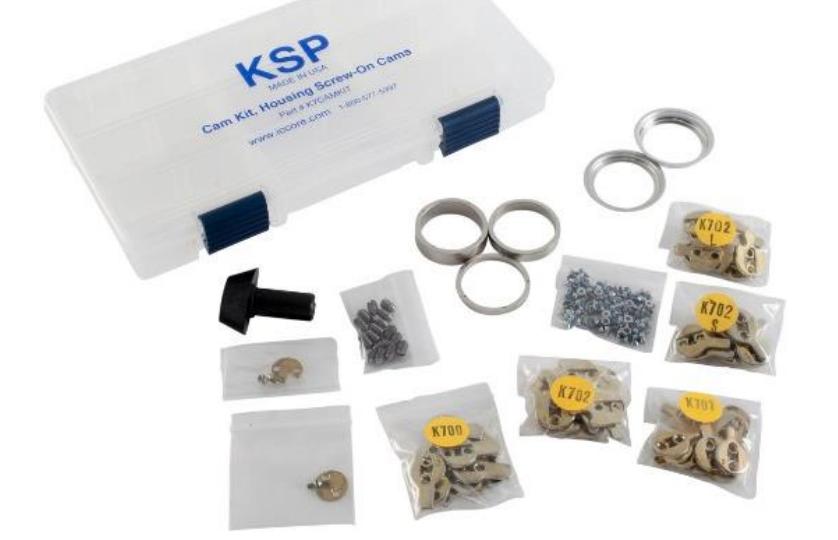

K-Series Cam Kit
Part Number: K7CAMKIT
Description: Cam Kit with various cams and
accessories
Includes the following:
Qty. 10 ---K700 screw-on cams
Qty. 10 ---K701 screw-on cams
Qty. 10 ---K702 screw-on cams
Qty. 10 ---K702S screw-on cams
Qty. 10 ---K702L screw-on cams
K-Series Cam Kit
100 pcs --- Cam Screws (pre-applied Loctite)
Variety of solid spacers
Variety of step spacers
SFIC Turn Knob

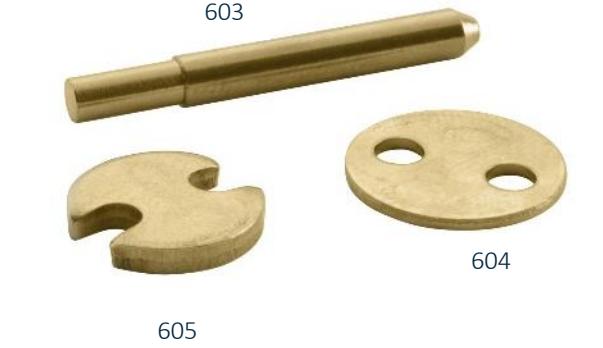

I/C Housings Drive Pins
| Part Number | Description | Quantity |
|---|---|---|
| 603 | Studs | 100 / pack |
| 604 | Small Spacer | 100 / pack |
| 605 | Large Spacer | 100 / pack |
1-800-ksp-keys www.iccore.com Quality – Price – Delivery That's what KSP is all about!

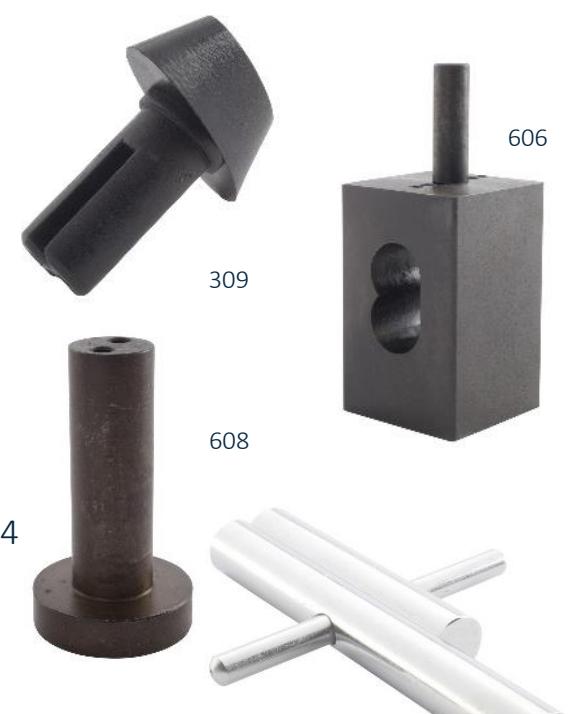

I/C Tools
| Part Number | Description | ||
|---|---|---|---|
| 309 | SFIC Core Turn Knob | ||
| 606 | Capping Block & Punch | ||
| 608 | Staking Tool | ||
| 609 | SFIC Housing Wrench | ||
| 610 | Ejector Punch | ||
| 611 | Y Cut – Decoding Gauge – A2, A3, A | 4 | |

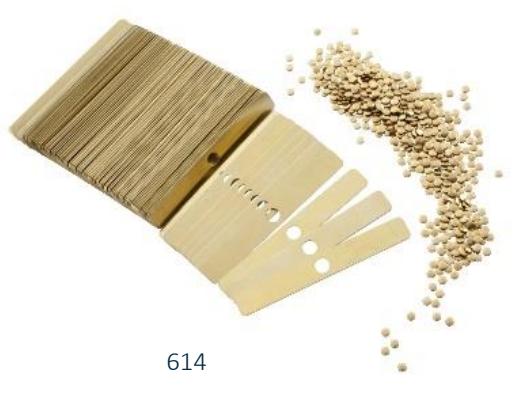

| 614 | Capping Strips | ||
| For new A1 style Security Capping Press | |||
611

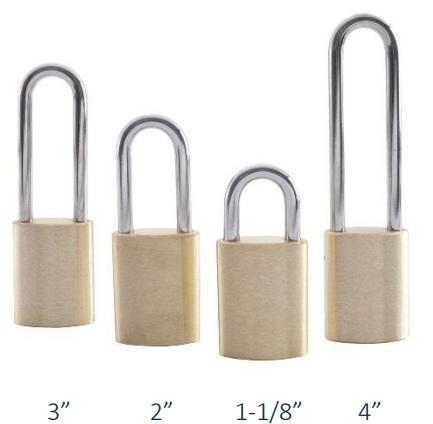

I/C Brass Padlocks
| - 1 0.00 | ||
|---|---|---|
| Part Number | Shackle Diameter | Shackle Lengt |
| 801 | 5/16" | 1-1/8" |
| 802 | 5/16" | 2" |
| 803 | 5/16" | 3" |
| 804 | 5/16" | 4" |
Killeen Machine Tool Co., Inc. 33 Hermon Street Worcester, MA 01610
1-800-KSP-KEYS
www.iccore.com
e-mail: sales@iccore.com
phone: 508-798-3200
fax: 508-753-2183
About Us
In 1983, Norman Doucet brought Doug Maston on board and created KSP. Within a year of its concept, KSP shipped its first order. Now, over 35 years later, KSP has built a strong reputation in the security industry and its products can be found all over the world. Both Norman and Doug have since passed away, but we believe that they would be proud of the legacy left behind.
Whatever levels of complexity your business requires, our security and satisfaction are our foremost concerns.
Gene Degre
President Killeen Security Products
Karen Zawalich
Sales & Marketing Killeen Security Products
1-800-ksp-keys www.iccore.com
