CU41xY Series Control Unit
CU41xY series
Electrical characteristics Características eléctricas E Elektrische Eigenshaften Specificationss électriques Caracteísticas eléctricas Eng E D F P
Power Supply
| V | 12v +-10% |
|---|---|
| Imax | 300mA (including WR) |
Output relays
| Rated load (resistive) | 2A-30VDC |
|---|---|
Operation conditions
| Min | Max | Unit | |
|---|---|---|---|
| Temperature | 0 | 40 | ºC |
2.4Ghz RF Characteristics
| Frequency Range | 2400-2483.5 Mhz (ISM band) |
|---|---|
| RF Standard | IEEE 802.15.4 |
| Indoor Radio Range | 10/15m |
| Max. output power | 5dBm |

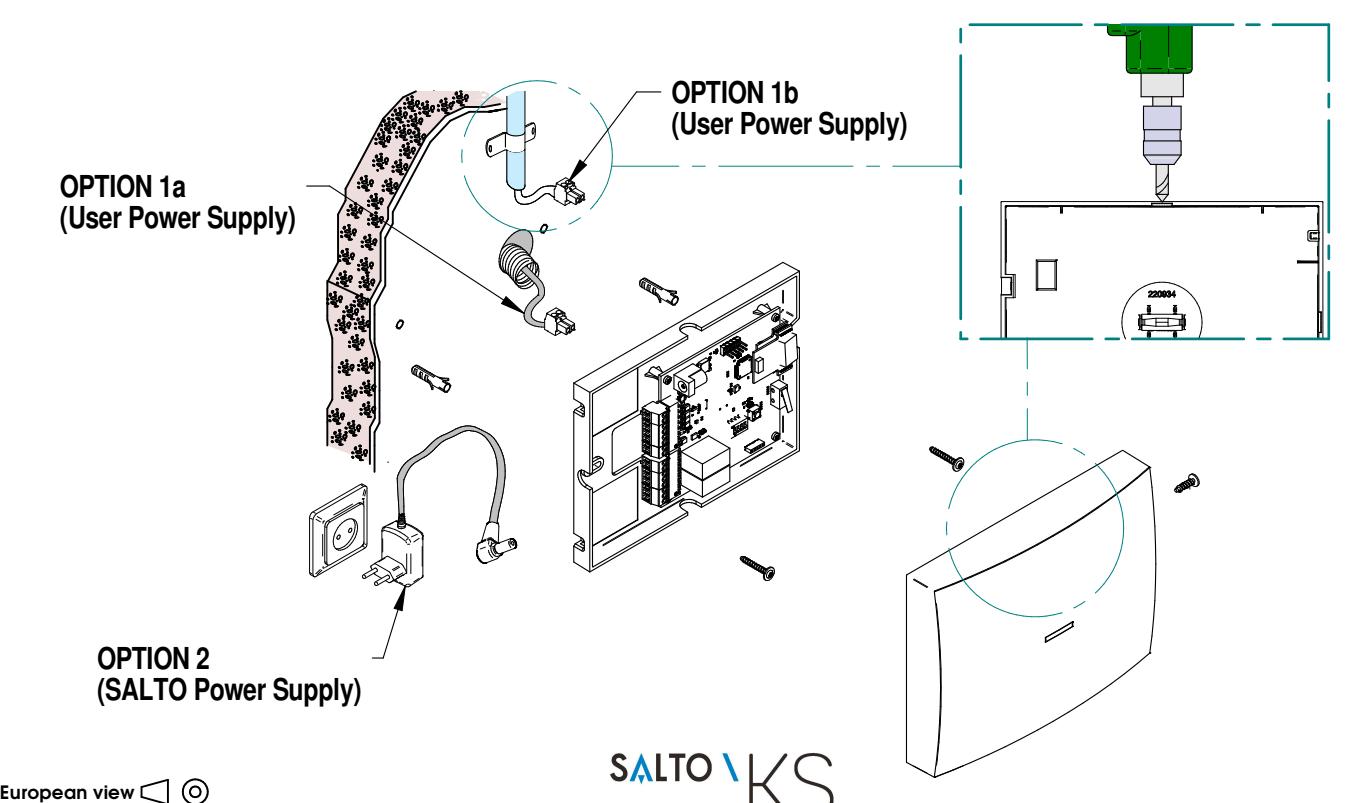

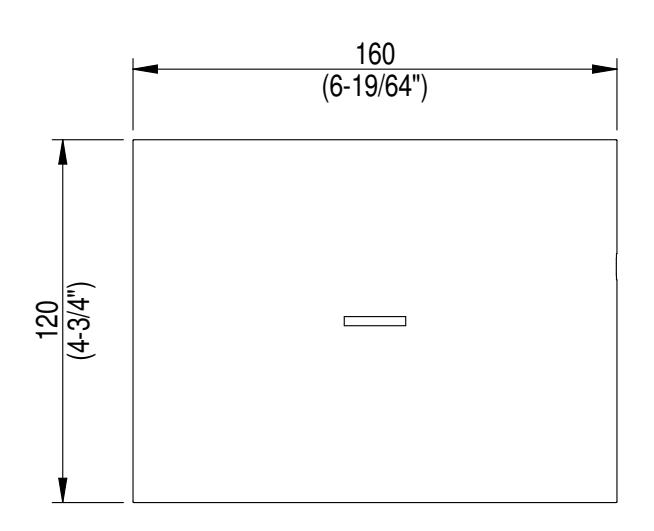

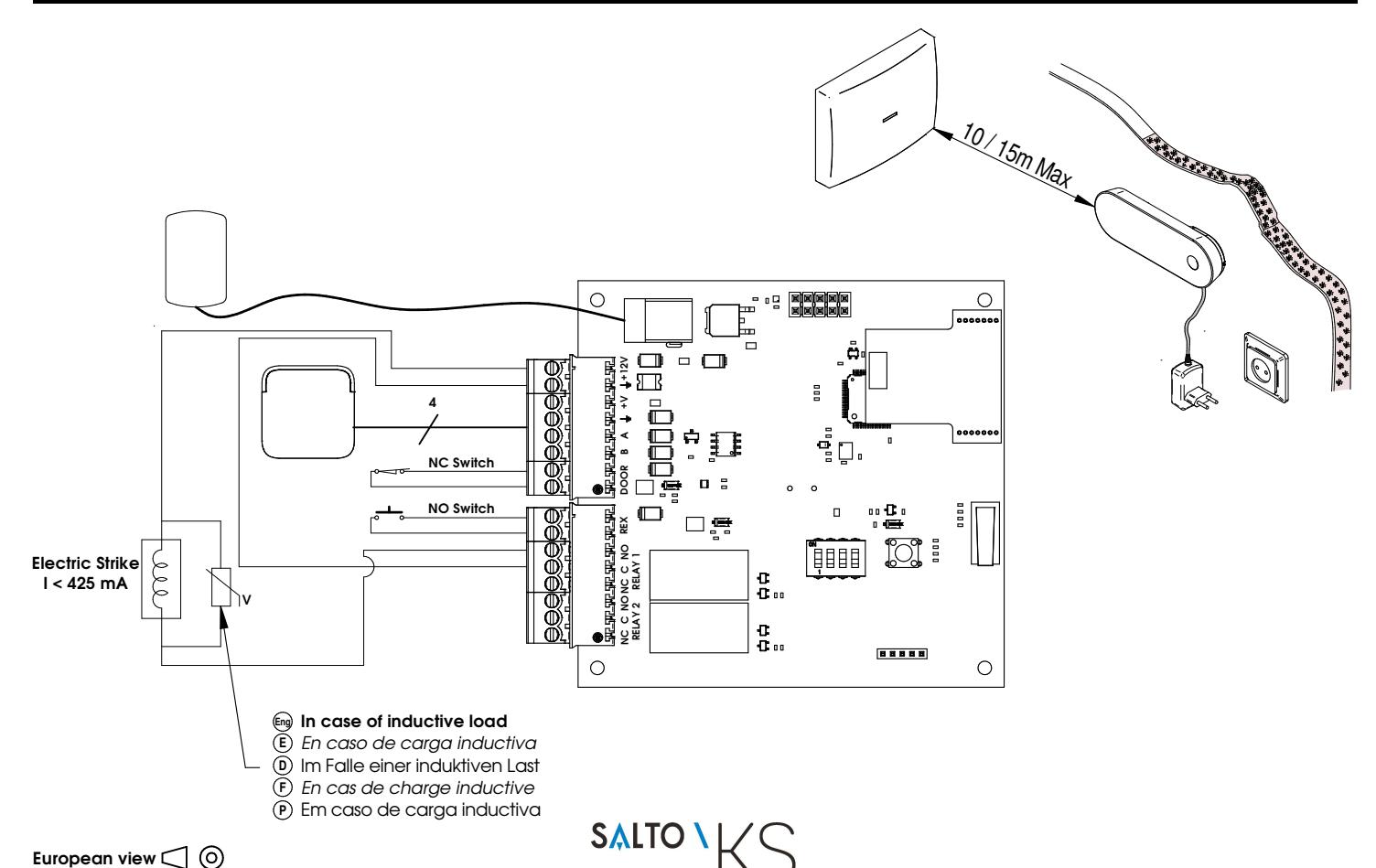

Mechanical installation Instalación E mecánica Mechanische Montage Eng E D F P
- Installation mécanique Instalaçao mecânica
item in this catalog, its design, construction, and/or materials.
Installation guide
CU41xY Series Control Unit
l
Installation guide
CU41xY Series Control Unit

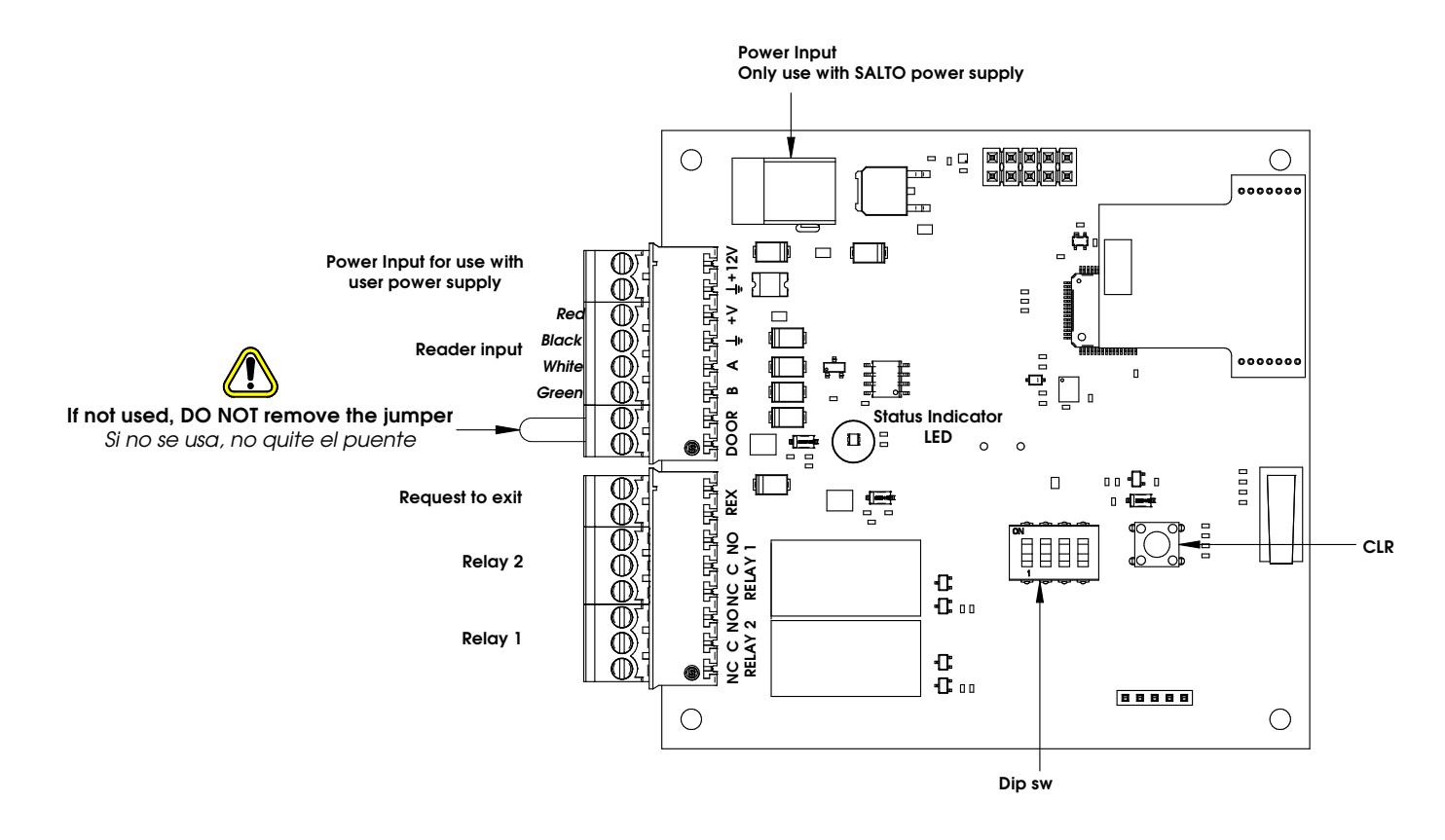

Dip Switch configuration Configuración Dip Switch E Dip Switch Konfiguration Configuration du Dip Switch Configuração do Dip Switch Eng E D F P
| Dipswitch 1-4 | Description | ||
|---|---|---|---|
| 0000 | Follows Relay #1 |
Intrusion alarm inhibited. In doors with inside
handle, people can open the door without REX |
|
| 0001 | Follows the door detector | ||
| 0010 | Activated during 3 seconds when tag is | ||
| 0011 |
rejected
Intrusion or Tamper alarm |
||
| 0100 | Door Left Open Alarm | producing false intrusion alarms. | |
| Activated during 3 seconds when happens | |||
| 0101 | an offline tag authorization | ||
| Alarm mode | Offline behavior: Relay #2 will not be activated | ||
| 0110 | automatically on tamper nor input #1 (DOOR) | ||
| 0111 | Future use | ||
| 1000 | Follows Relay #1 | ||
| 1001 | Follows the door detector | ||
| Activated during 3 seconds when tag is | |||
| 1010 | rejected | ||
| 1011 | Intrusion or Tamper alarm | Intrusion alarm enabled | |
| 1100 | Door Left Open Alarm | ||
| 1101 | Activated during 3 seconds when happens | ||
| an offline tag authorization | |||
| 1110 | Alarm mode |
Offline behavior: Relay #2 will be automatically
activated on tamper or input #1 (DOOR) |
|
| 1111 | Future use | ||
Firmware version 01.70 or never
LED Signalization Señalización LED LED Signalisierung Signalisatino du LED E Signalação LED Eng E D F P
| LED status | |
|---|---|
| Green | Connected to a IQ |
| Red | Not connected to a IQ |
