Installation guide

IQ2.0

• E Guía de instalación
• Montageanleitung
• F Guide d'installation
• P Guia de instalação

Installation guide

IQ2.0

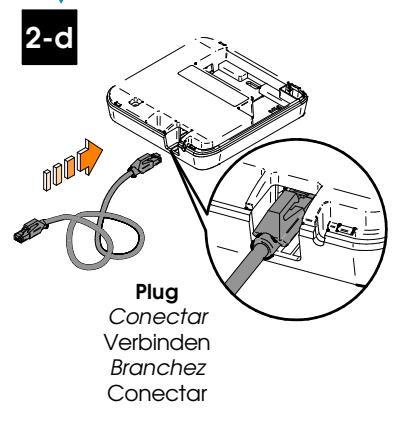

ETHERNET + POE MODEL

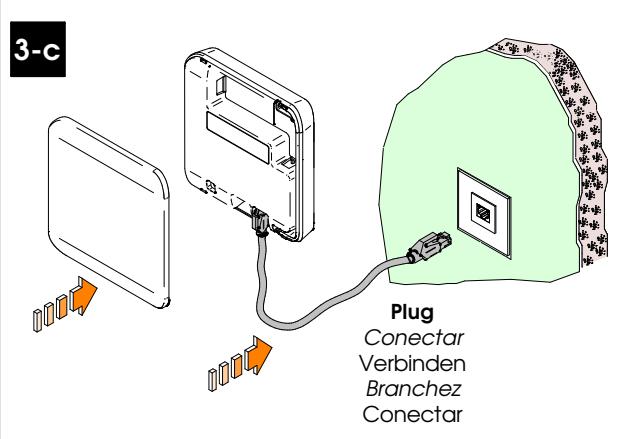

ETHERNET MODEL

Engl Electrical features

• E Características eléctricas
• D Electrische espezifikationen
• F Caracteristiques electriques
• P Características eléctricas

OPERATION CONDITIONS

	Min	Max	Unit
Temperature	0	40	ōС

2.4 Ghz RF CHARACTERISTICS

Frequency Range	2400-2483,5 Mhz (ISM band)
RF Standard	IEEE 802.15.4
Indoor Radio Range	10/15 m
Max output power	58 dBm

POWER SUPPLY CHARACTERISTICS

(Only for use with KS's power supply)

		Unit
Input Voltage	12	٧
Max Current	750	mA

OTHER CHARACTERISTICS:

WIFI
IEEE 802.11 b/g/n radio
Frecuency range 2400-2483,5 Mhz (ISM band)
Max output power 21,1 dBm

BLE Bluetooth 4.2 Compliant Integrated antenna TX power: up to +8dBm RX sensitivity: down to -92dBm Frecuency range 2400-2483,5 Mhz (ISM band)

POE
The POE connection complies to IEEE 802.3af
(max 15.40W, also known as 802.3a Type 1)

To ensure a correct operation, do not install the device near a metallic surface.

Para asegurar un correcto funcionamiento, no instalar el dispositivo cerca de una superficie metálica. Um einen einwandfreien Betrieb zu gewährleisten, installieren Sie das Gerät dann nicht in der Nähe von einer metallischen Oberfläche.

Pour assurer un fonctionnement correct, n'installez pas l'appareil près d'une surface métallique. Para assegurar o funcionamento adequado, não instale o aparelho perto de uma superfície de metal
