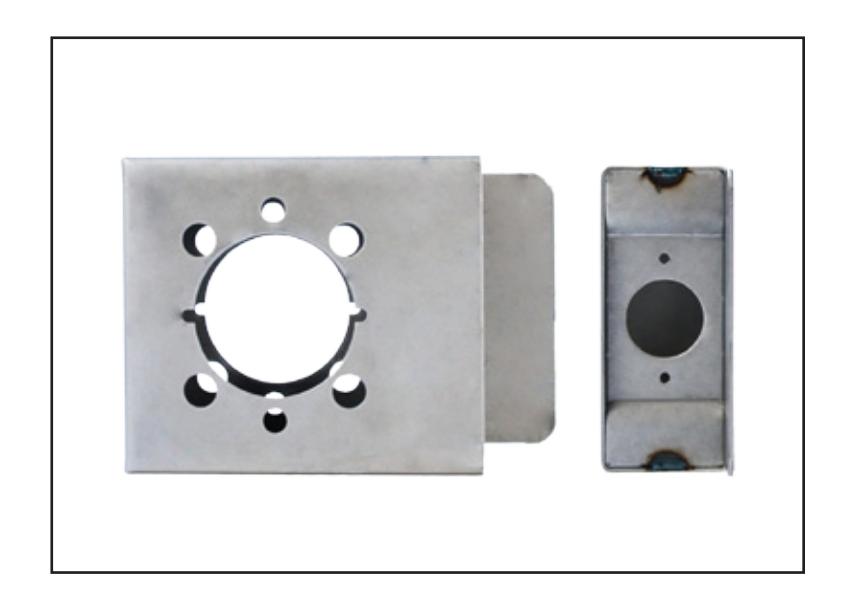

K-BXRHO weldable box gate closer accessory

Open the original PDF document

View PDF

FEATURES

• TYPE: Cylindrical

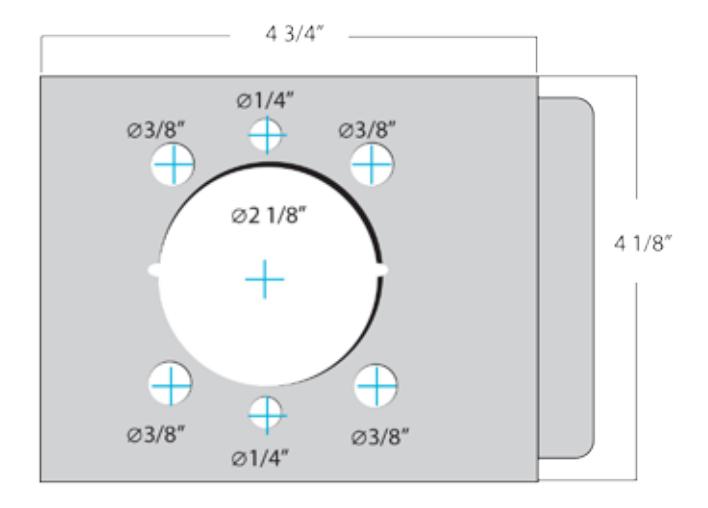

• DIMENSIONS:

4 3/4 "W x 4 1/8"H x 1 3/4"D

• MATERIALS AVAILABLE:

14 Gauge Steel K-BXRHO.125 .125 Aluminum K-BXRHO-AL

• NOTE: Through Bolt Levers

This rendering is NOT to scale and dimensions are NOT exact. For precise technical information, please refer to the template for the lock you are using.
