PRODUCT DESCRIPTION

The 59J Series jamb style switches are designed to provide reliable, unobtrusive activation of any automatic door.

The 59J Series features 1 1/2" x 4 1/4" face plates in either stainless steel or blue powder coated aluminum with etched and paint filled legends. A formed stainless steel back plate eliminates possible wall damage from standard use.

Mount the 59J Series directly onto the jamb of an automatic door (fits a 1 3/4" frame) or in MS SEDCO's optional surface mount box.

Each unit is built utilizing heavy gauge stainless steel, aircraft quality rivets and screws, durable finishes and the most reliable microswitch in the industry.

American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/BHMA A156.10 & A156.19.

TECHNICAL DATA

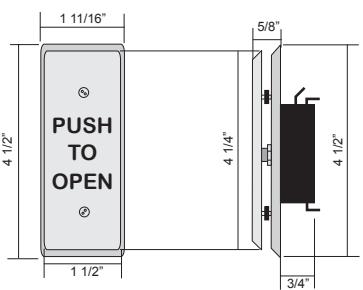

• 1 1/2" x 4 1/4" All Active FacePlate
• 1 11/16" x 4 1/2" Formed Stainless Steel Back Plate
• UL Listed "Cherry Switch", SPDT, Mom., 15 Amp @ 125V AC

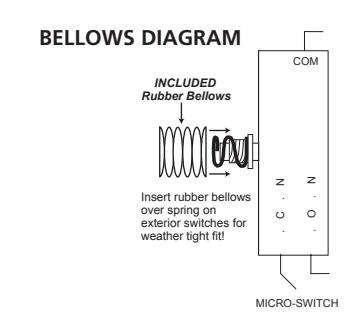

• Rubber "Bellows" Increases Weather Protection (included)
• Fits 1 3/4" Frame or MS SEDCO Surface Mount Box
• Special Finishes: US3, US4, US10, US10B, US32
• Radio Control Versions Available

Jamb Style

PUSH PLATE SWITCHES

#59J-H (Blue Powder Coat with White Paint Filled Legend)

#59J-P (Stainless Steel with Black Paint Filled Legend)

#59J-HSS (Stainless Steel with Blue Paint Filled Legend)

#59J-W (Blue Powder Coat with White Paint Filled Legend)

#59J-WSS (Stainless Steel with Blue Paint Filled Legend)

NOT SHOWN #59J-Plain (Stainless Steel with No Legend)

International Door Closers, Inc.
