Jackson CRL9077 & CRL9079 3by4 inch Offset Bottom Arm Template
Open the original PDF document
View PDF
NOTES:

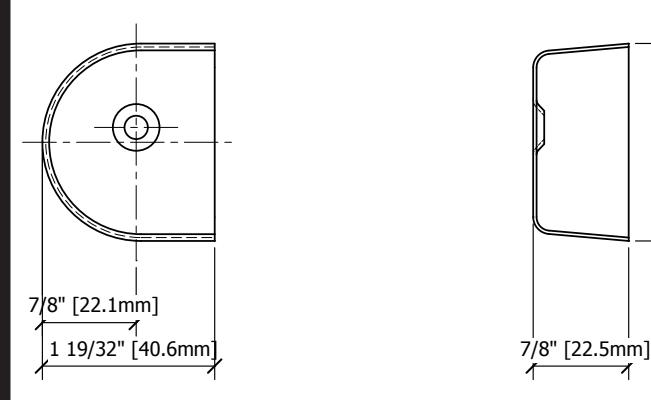

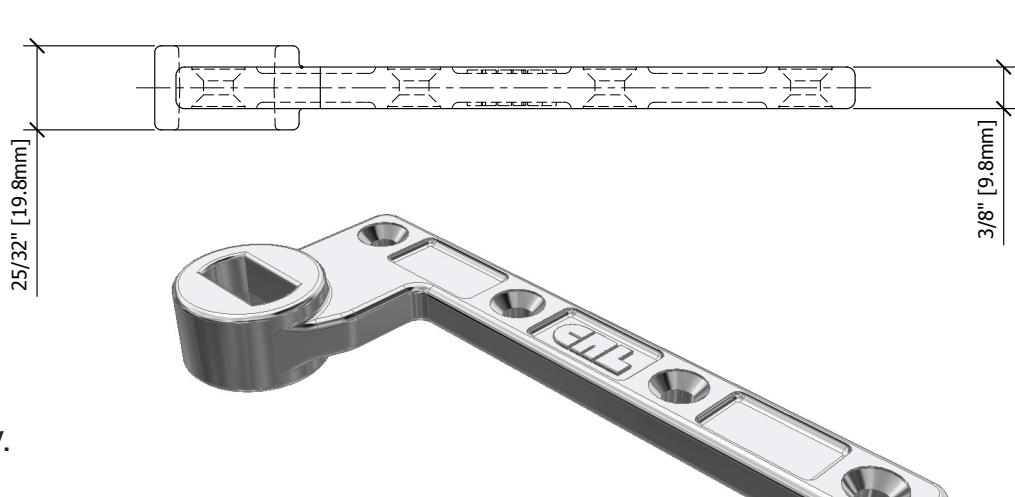

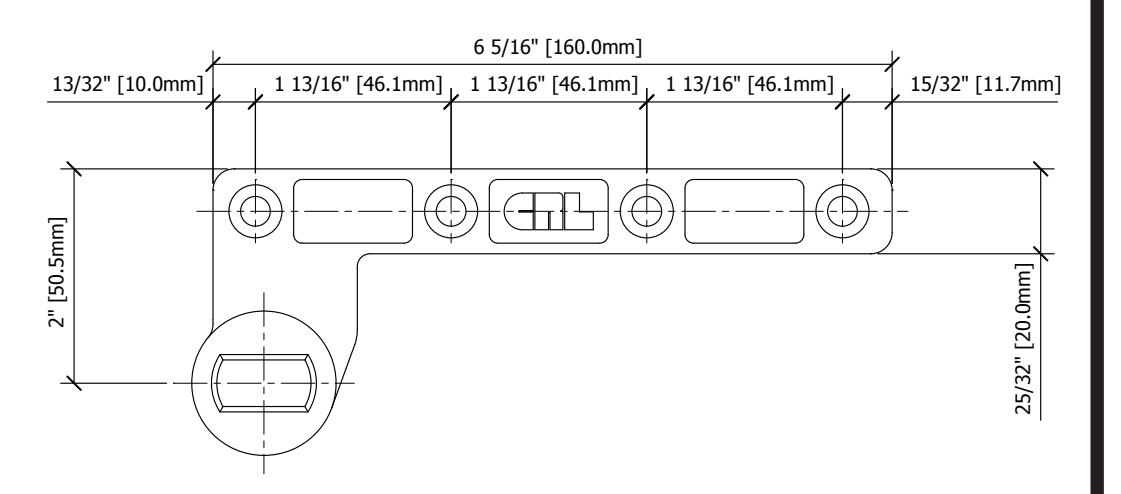

- 1. Do Not Scale Drawing For Reference Only.
- 2. Right Hand (LHRB) Shown
- 3. Dimensions are Given in Inches (mm)
- 4. Pivot Drilled for 1/4" F.H.M.S. or #14 F.H.W.S.
Phone: (800) 421-6144 • Fax: (866) 587-7501 crlaurence.com • usalum.com • crl-arch.com
CRL9077 & CRL9079 3/4" OFFSET BOTTOM ARM
