Jackson 3by4 inch Offset Top Pivots Template – DH9075
Open the original PDF document
View PDF
- 1. Do not scale drawing.
- 2. Right hand shown.
Notes:
- 3. All dimensions are in inches. Conversion to metric = inch x 25.4.
- 4. Template drawing for reference only.
CRL C.R. Laurence Co., Inc.

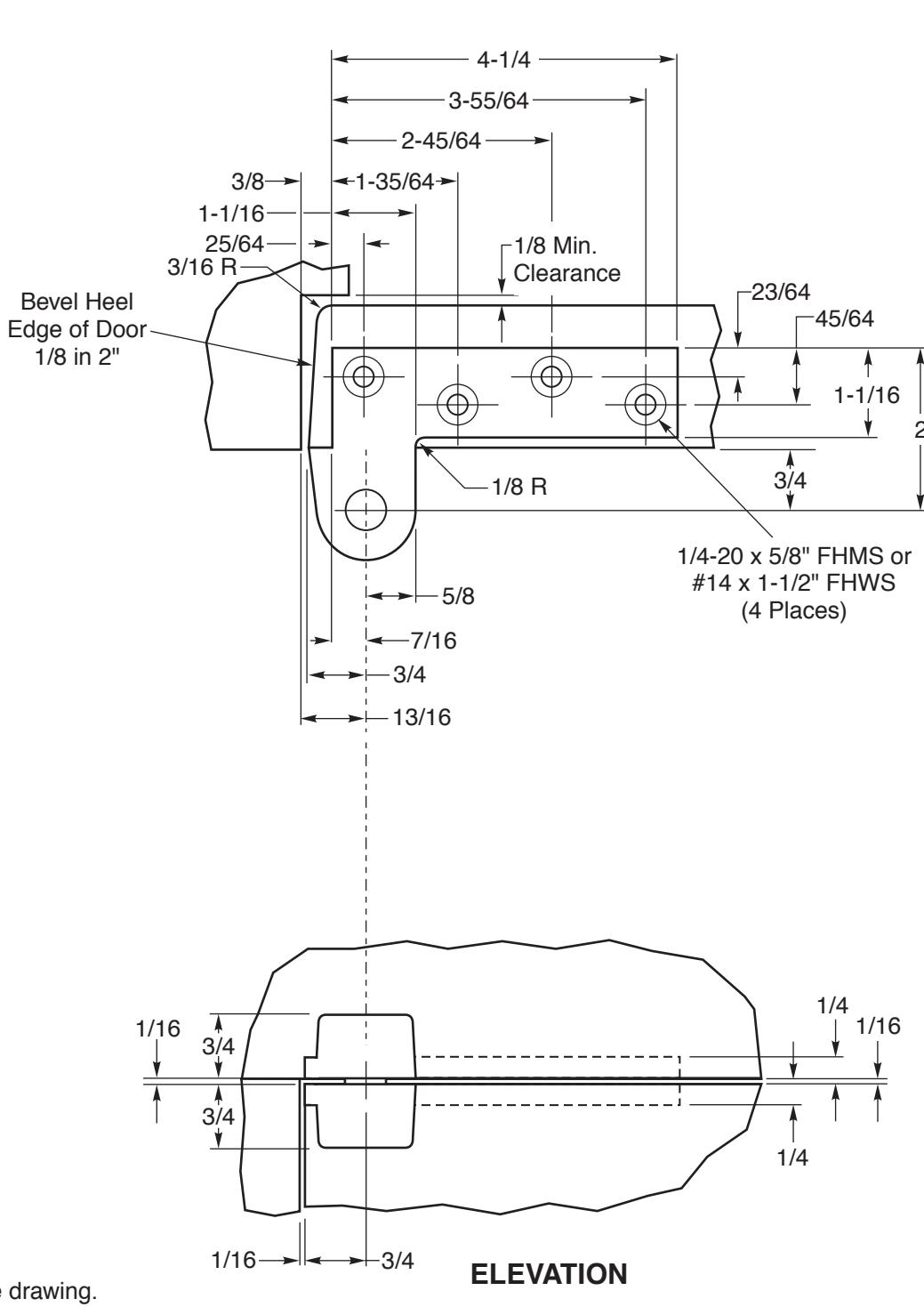

DH9075 3/4" OFFSET TOP PIVOT
