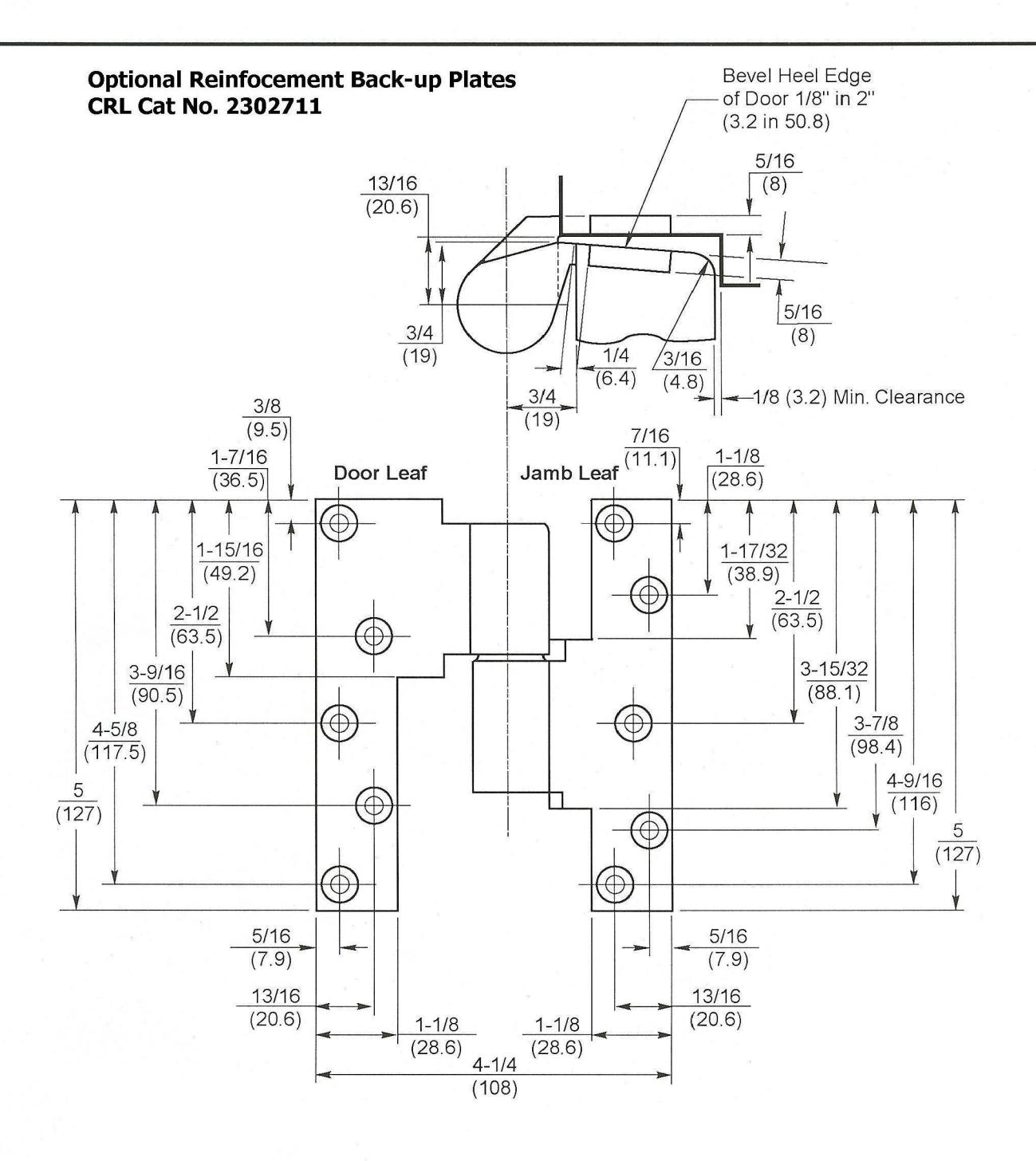

Jackson 3by4 inch Offset Left Hand and Right Hand Intermediate Pivots Template – CRL19

Notes

• 1. Do not scale drawing Template drawing for reference only.
• 2. Dimensions are given in inches (mm).
• 3. Pivot drilled for 1/4-20 x 5/8" FHMS.
• 4. Right Hand (Left Hand Reverse Bevel) Shown.

CRL19 3/4" OFFSET INTERMEDIATE PIVOT

CRL C.R. Laurence Co., Inc.
