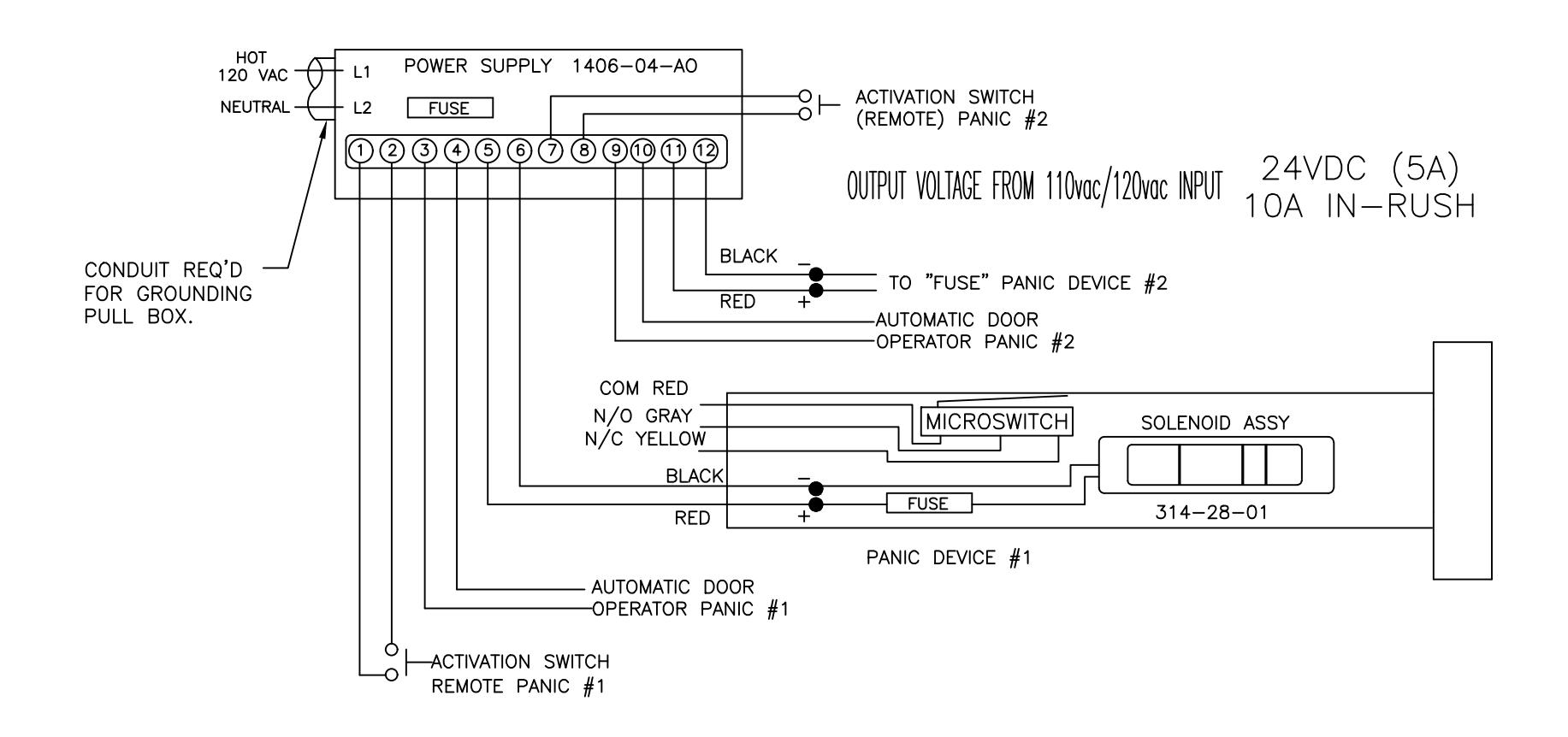

SCHEMATIC FOR JACKSON 302616/1406 POWER SUPPLY WITH SOLENOID LATCH RETRACTION PANIC DEVICES

NOTE:

1. USED WITH JACKSON 20E SERIES ELECTRIFIED SOLENOID LATCH RETRACTION PANIC DEVICES MANUFACTURED BEFORE AUGUST 15, 2016.

NOTES

• I.) WHEN CONTACTS OF TIME CLOCK OR OVERRIDE SWITCH CLOSE. EXIT DEVICE LATCH BOLTS WILL CLOSE.
• 2.) DENOTES A FIELD WIRE CONNECTION.
• 3.) RECOMMENDED WIRE GA FROM POWER SUPPLY TO PANIC:

16 GA UP TO 40' 14 GA " " 60'

12 GA " " 100'

ALLAINJAN EXTRUSION NOTES UNLESS OTHERNISE SPECIFIED: - STANDAND ALLAINJAN ASSOCIATION TOLERANCES - TYPFOL UNMARKED CORNER AND FILLET ROIL: - TYPFOL WALL THICOMESS: - ESTIMATED AREA: - ESTIMATED AREA: - ESTIMATED WIT. / FT: - LBS - ESTIMATED PERMETER:						C.R. LAURENCE CO., INC. CRL MANUFACTURING 2100 E. 38TH STREET LOS ANGELES, CA 90058
	G	ADDED OU	FETC 0 1 7	10.00.10	LUD.	-11
	٥	ADDED SH	EETS 2 & 3	12.08.16	MR	PART NUMBER: 10-1003-1
	F	UPDATE NO	TES, WIRE GA	8.14.08	RM	PART NAME: SCHEMATIC 20E SER.
	REV		SCRIPTION	DATE	BY	PRODUCT LINE: JACKSON EXIT DEVICE
UNLESS OTHERWISE SPECIFIED: - DIMENSIONS ARE IN INCHES [mm] - TOLERWINCES: DIMENSIONAL 324.03 3054.01 3004.005 ANGURA 45307 - SURFACE TEXTURE VALUES IN MICROINCHES Ro	DWN E	™ RM	DATE 1.16.01	SCALE: N	TS	MATERIAL:
	THIS DRAWING AND THE DESIGN SHOWN THERBIN IS THE PROPERTY OF C.R. LAURENCE CO., INC. AND USE OR COPIES THEREOF CANNOT BE MADE WITHOUT WRITTEN CONSENT					SHEET NO. 1 OF 3 DRAWING NUMBER: 10-1003-1 F

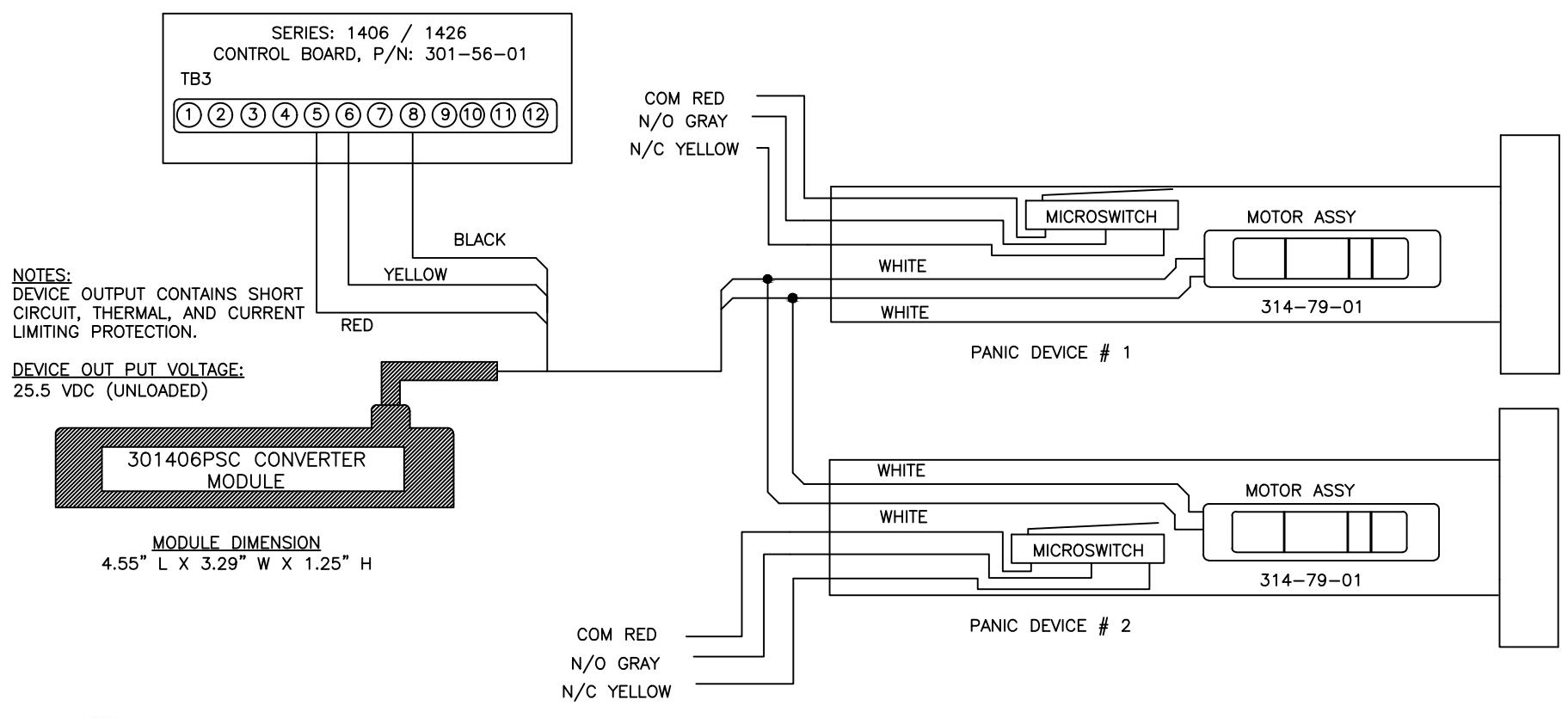

USE 301406PSC POWER SUPPLY CONVERTER MODULE ONLY WHEN USING 20E MOTORIZED LATCH RETRACTION PANIC WITH 302616/1406 POWER SUPPLY"

NOTE:

1. USED WITH JACKSON 20E SERIES ELECTRIFIED MOTORIZED LATCH RETRACTION PANIC DEVICES MANUFACTURED AFTER AUGUST 15, 2016.

WIRE DIAGRAM

NOTES

• WHEN CONTACTS OF TIME CLOCK OR OVERRIDE SWITCH CLOSE. EXIT DEVICE LATCH BOLTS WILL CLOSE.
• 2.) DENOTES A FIELD WIRE CONNECTION.

RECOM	RECOMMENDED WIRE Ga
22	70 FEET
20	110 FEET
18	180 FEET
16	280 FEET
14	450 FEET
12	720 FEET

ALUMINUM EXTRUSION NOTES UNLESS OTHERWISE SPECIFIED: STROMANG ALUMINUM ASSOCIATION TOLERANCES APPLY AND LINIMPKED CORNER AND FILLET RODE. TYPICAL UNIAMPKED CORNER AND FILLET RODE. ESTIMATED AREA. SSILMATED WIT. / FT. LBS ESTIMATED WIT. / FT. LBS ESTIMATED WIT. / FT. LBS									C.R. LAURENCE CO., INC. CRL MANUFACTURING 2100 E. 38TH STREET
									ericulance.com LOS ANGELES, CA 90058
	G	ADDED	ETS	2 & 3 12.0		12.08.16	MR	PART NUMBER: 10-1003-2
	F	UPDATE	NOTE	ES,	WIRI	E GA	8.14.08	RM	PART NAME: SCHEMATIC 20E SER.
	REV	DESCRIPTION					DATE	BY	PRODUCT LINE: JACKSON EXIT DEVICE
UNLESS OTHERMISE SPECIFIED: - DIMENSIONS ARE IN INCHES [mm] - TOLERANCES:	DWN BY: RM			DATE	1.16	16.01 SCALE:		TS	MATERIAL:
	THIS DRAWING AND THE DESIGN SHOWN							3rd ANGLE PROJECTION SHEET NO. 2 OF 3

E IN INCHES [mm] THIS DRAWING AND THE DESIGN SHOW THEREIN IS THE PROPERTY OF C.R. LAURENCE CO., INC. AND USE OR COPIES THEREOF CANNOT MADE WITHOUT WRITTEN CONSENT

d ANGLE PROJECTION SHEET NO. DRAWING N 10-

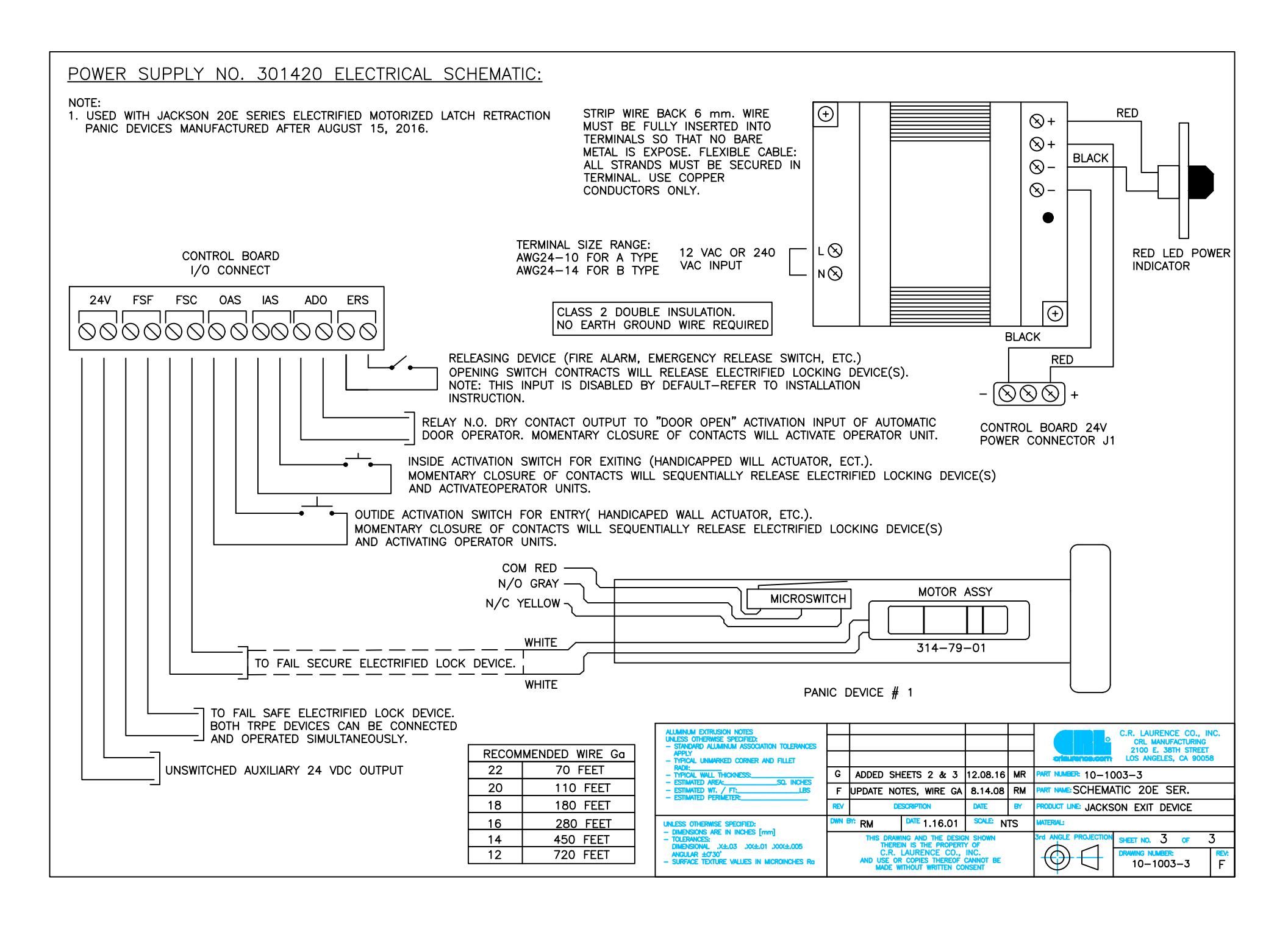

DRAWING NUMBER: 10-1003-2 F
