Jackson 1295 Rim Panic Device Cylinder Dogging Instructions
Open the original PDF document
View PDFCYLINDER INSTALLMENT
- 1. REMOVE CAM FROM NEW LOCK CYLINDER AND REPLACE WITH PART NUMBER 302284 (SEE ILLUSTRATION A). IT WILL BE INCLUDED IN THE C.R. LAURENCE DOGGING KIT. ASSURE THE CYLINDER CAM ORIENTATION IS POSITION PARALLEL TO PUSH BAR (SEE ILLUSTRATION C).
- INSERT CYLINDER WITH KEY INTO CYLINDER POCKET (B) ON PUSH BAR PAD, TURN THE CYLINDER CLOCKWISE (C.W.) UNTIL IT IS TIGHTEN, THEN SECURE CYLINDER BY INSERTING A HEX KEY INTO SIDE HOLE AND TIGHTEN SET SCREW PART NUMBER 301164BLK (SEE ILLUSTRATION C).
- 3. MAKE SURE TO LINE-UP A GROOVE ON THE CYLINDER DIRECTLY INTO THE SET SCREW. IF NEEDED BACK THE CYLINDER COUNTERCLOCKWISE (C.C.W.) UNTIL LINES-UP TO A CYLINDER GROOVE TO THE SET-SCREW.
- 4. TEST AND VERIFICATION OF DOGGING FUNCTION SEE DRAWING 10-974 SHEET 1
- 2. TURN HEX KEY COUNTER CLOCKWISE (CCW) TO RELEASED CYLINDER, THEN ONCE THE 4-40 SCREW HAS BEEN LOSEN WITH CONTROL KEY TURN CYLINDER BODY COUNTER CLOCKWIDE (C.C.W.) TO REMOVE.
- 3. REMOVE CAM PROVIDED WITH CYLINDER, AND REPLACE WITH CAM (302284). ASSURE CAM POSITION IS IS PARALLEL TO BUSH BAR.
- 4. RE-INSTALL CYLINDER BY PLACING IN CYLINDER PACKET (B) ON PUSH BAR PAD, THEN TURNING CLOCKWISE (C.W.) UNTIL CYLINDER SITS SEMI-FLASH WITH PUSH BAR SURFACE.
- 5. RE-TIGHTEN 4-40 SET SCREW ON PUSH BAR HOLE (A) UNTIL SNAG
CAUTION: DO NOT DEPRESS PUSH BAR, WHILE THE HEX KEY IS INSERTED.
| ALIMINUM EXTRUSION NOTES UNLESS OTHERWISE SPECIFIED: - STANDARD ALIMINUM ASSOCIATION TOLERANCES APPLY - TYPICAL UNMARKED CORNER AND FILLET RADIE: - TYPICAL WALL THICKNESS: - ESTIMATED AREA: - ESTIMATED WIT. / FT: - LBS - ESTIMATED PERIMETER: | C.R. LAURENCE CO., INC. CRL MANUFACTURING 2100 E. 38TH STREET | |||||
|---|---|---|---|---|---|---|
| Crisurence.com LOS ANGELES, CA 90058 | ||||||
| PART NUMBER: 10-979 | ||||||
| PART NAME: CYLINDER DOGGING KIT | ||||||
| REV | DATE | BY | INSTRUCTIONS | |||
| UNLESS OTHERWISE SPECIFIED: | DWN BY: MR DATE 3.14.13 | SCALE: 1 | :1 | PRODUCT LINE: JACKSON, PANIC DEVICE | ||
| - DIMENSIONS ARE IN INCHES [mm] - TOLERANCES: DIMENSIONAL .X±.03 .XX±.01 .XXX±.005 ANGULAR ±0°30' - SURFACE TEXTURE VALUES IN MICROINCHES Ra | THIS DRAWING AND THE DESIGN SHOWN THEREIN IS THE PROPERTY OF C.R. LAURENCE CO., INC. AND USE OR COPIES THEREOF CANNOT BE MADE WITHOUT WRITTEN CONSENT | 3rd angle projection | Sheet no. 1 of 1 | | | | | | | | | | | | | | | | | | | ||||

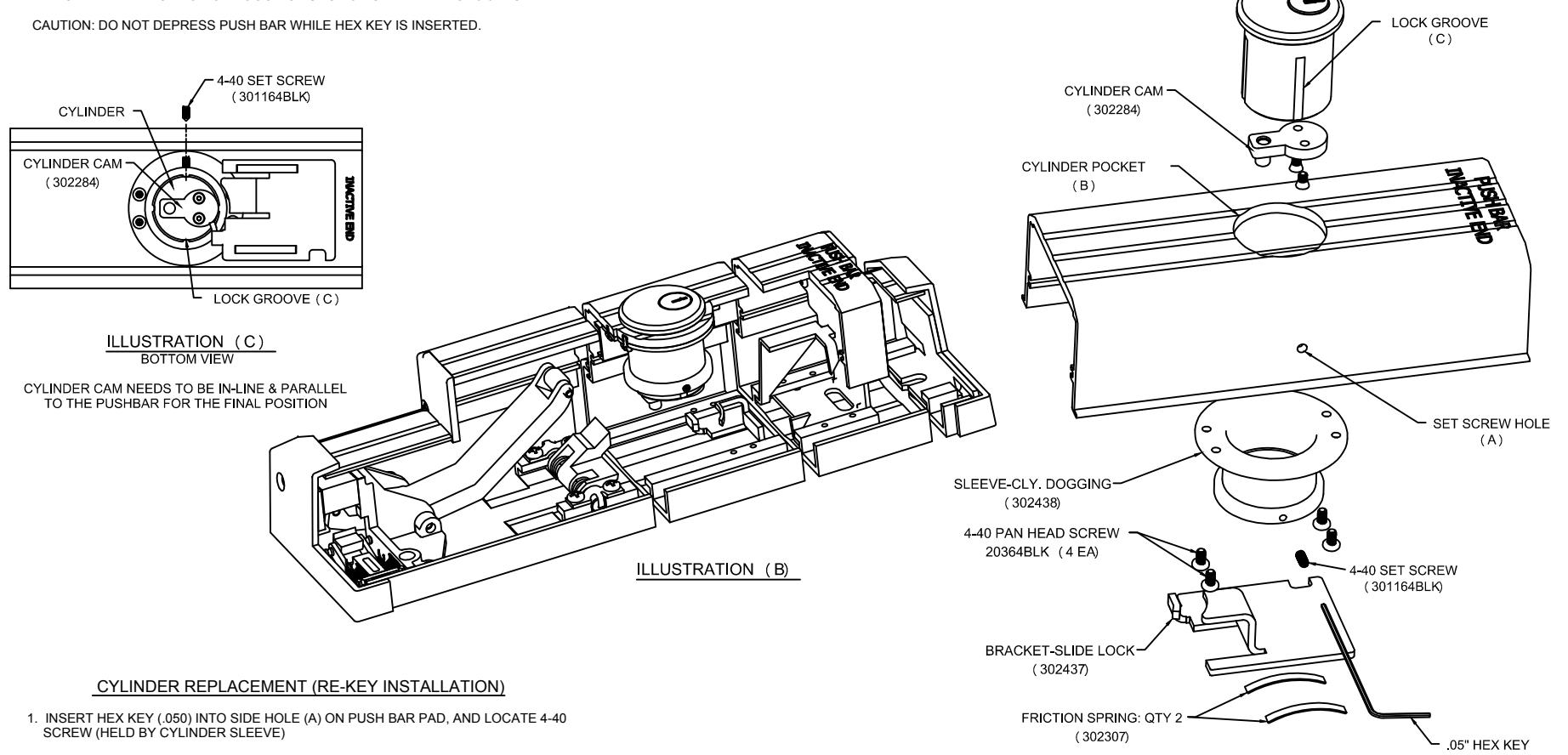

ILLUSTRATION (A)
EXPLODED VIEW
CYLINDER LOCK
