Jackson 1275 Packaged Parts List
Open the original PDF document

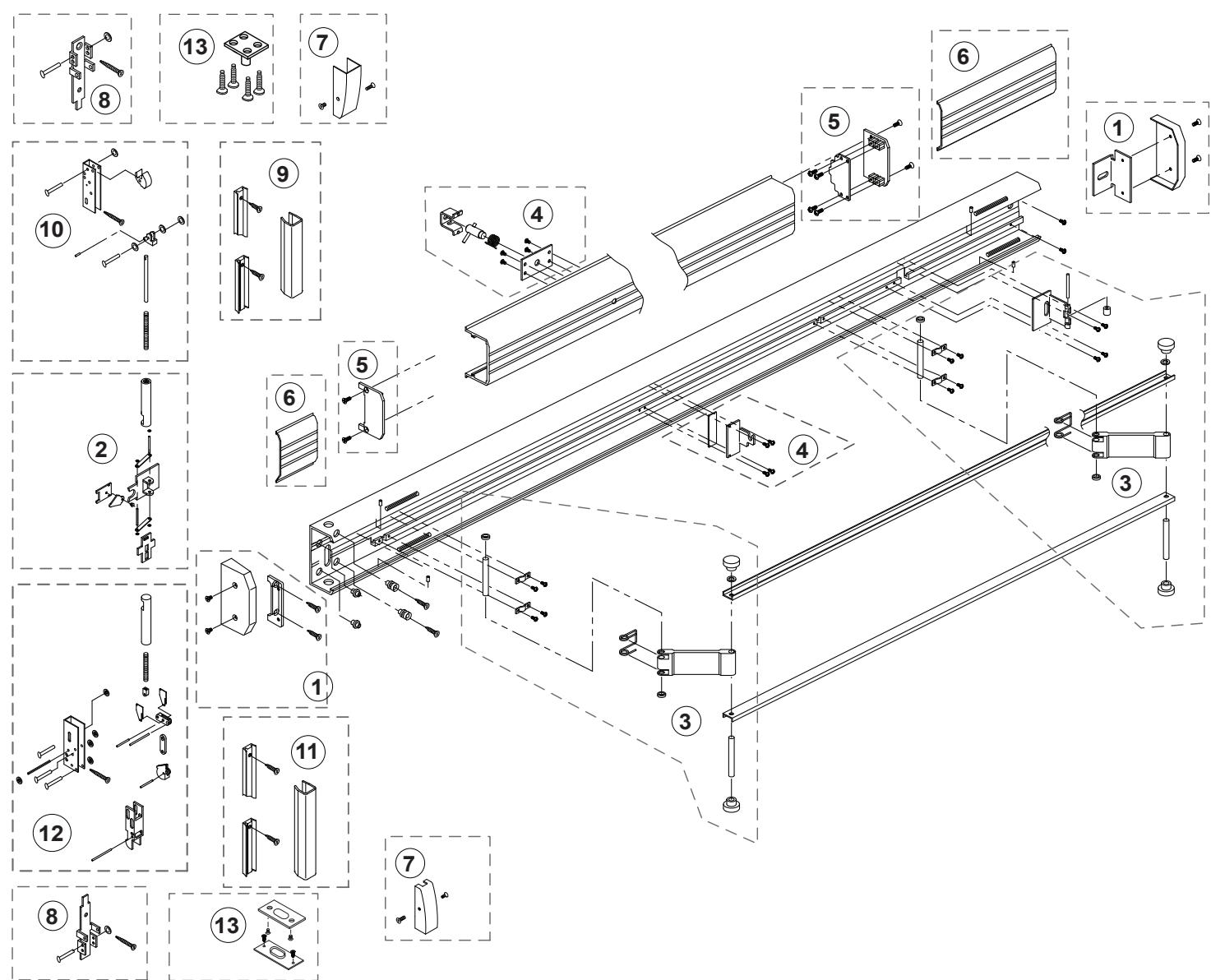

View PDFPACKAGED PARTS AVAILABLE
|
Assem.
No. |
Part No. | Description |
Assem.
No. |
Part No. | Description |
|---|---|---|---|---|---|
| 1 | 302652 | Base End Cap Package | 9 | 3028528 | Top Rod Cover Assembly - 8/0 |
| 2 | 302741ASM | Cruciform Activation Assembly | 9 | 3028529 | Top Rod Cover Assembly - 9/0 |
| 3 | 302664 | Control Arm Hardware Package | 10 | 3028477 | Upper Rod and Latch Assembly - 7' |
| 4 | 302670 | Dogging Assembly | 10 | 3028478 | Upper Rod and Latch Assembly - 8' |
| 5 | 302650 | Push-Pad End Cap Package | 10 | 3028479 | Upper Rod and Latch Assembly - 9' |
| 6 | 302674 | Base Cover Plate -Ribbed - 3/0 | 11 | 302856 | Bottom Rod Cover Assembly |
| 6 | 30267448 | Base Cover Plate -Ribbed - 4/0 | 12 | 302854 | Bottom Rod and Latch Assembly |
| 6 | 302674S | Base Cover Plate -Smooth - 3/0 | 13 | 302113 | Upper and Bottom Strike Package |
| 7 | 302841 | Latch Covers (Upper and Bottom) | |||
| 8 | 301856 | Latch Bracket Package | |||
| 9 | 3028527 | Top Rod Cover Assembly - 7/0 |
