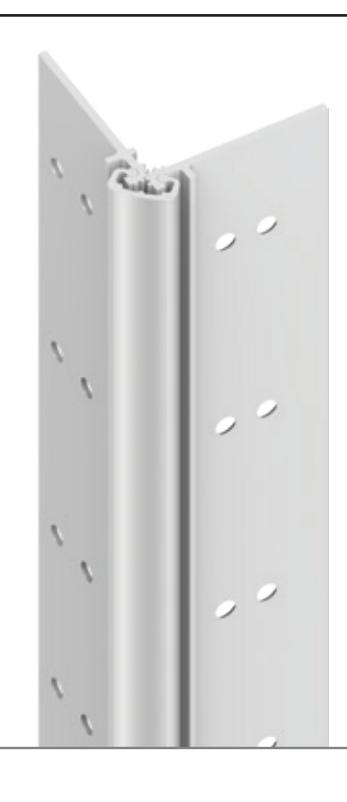

Aluminum geared hinges

027XY Full mortise - wide door leaf

• Wide door leaf for 2" and 2 1/4" doors
• Recommended for gasketing and weatherstripping applications
• Patented center loaded, interlocking bearing design
• Non handed for custom cut lengths

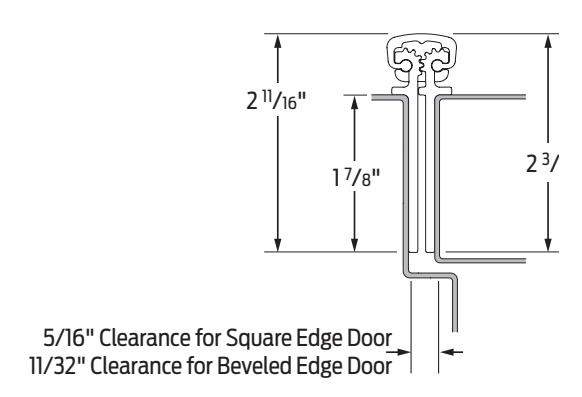

• Flush mounted, no inset
• 48" Maximum door width
• Beveled or square edge doors
• Frame guidance lip is extended further for retrofit applications to cover existing heavy weight architectural hinge preps
• For doors weighing up to 450 pounds without reinforcing. 600 pounds with reinforcing
• For lead-lined application consult factory for engineering specials

Certifications

• Meets ANSI 156.26 for 150lbs and 300lbs
• UL10C certified

Standard lengths

83", 85", 95", 119"

Standard mounting hardware

12-24 x 3/4" Steel self drilling / self tapping phillips head screw

Finishes

Clear Anodized (US28), Dark Bronze Anodized (313AN), Black Anodized (315AN) Custom anodizing and painting are available, consult factory.

Options:

• HT. . Hospital tip
• EPT. . Electric power transfer
• TWP CON. . Electrical through wire panel with allegion connect

Optional mounting hardware:

• SECHM. . Security screws hollow metal door and frame
• SECWDHM. . . . . . .Security screws 1/2 wood, 1/2 hollow metal
• SECWDWD. . Security screws wood door and frame
• TEKWD. . 1/2 self drill, self tap 1/2 wood
• WD. . Wood door and frame

For single door applications:

For pairs of doors see chart and general information
