THE ULTIMATE INTEGRATED ACCESS CONTROL ID SOLUTION

Entrust Datacard TruCredential Software is a flexible software solution that integrates with ISONAS Pure Access to deliver an easy-to-use ID card design, issuance and management solution that provides:

• Distributed capture, enrollment, and Printing
• Smart Card encoding card issuance
• Easy to use drag and drop card designer
• Server-based installation for scalability for one to multiple printer and site deployments

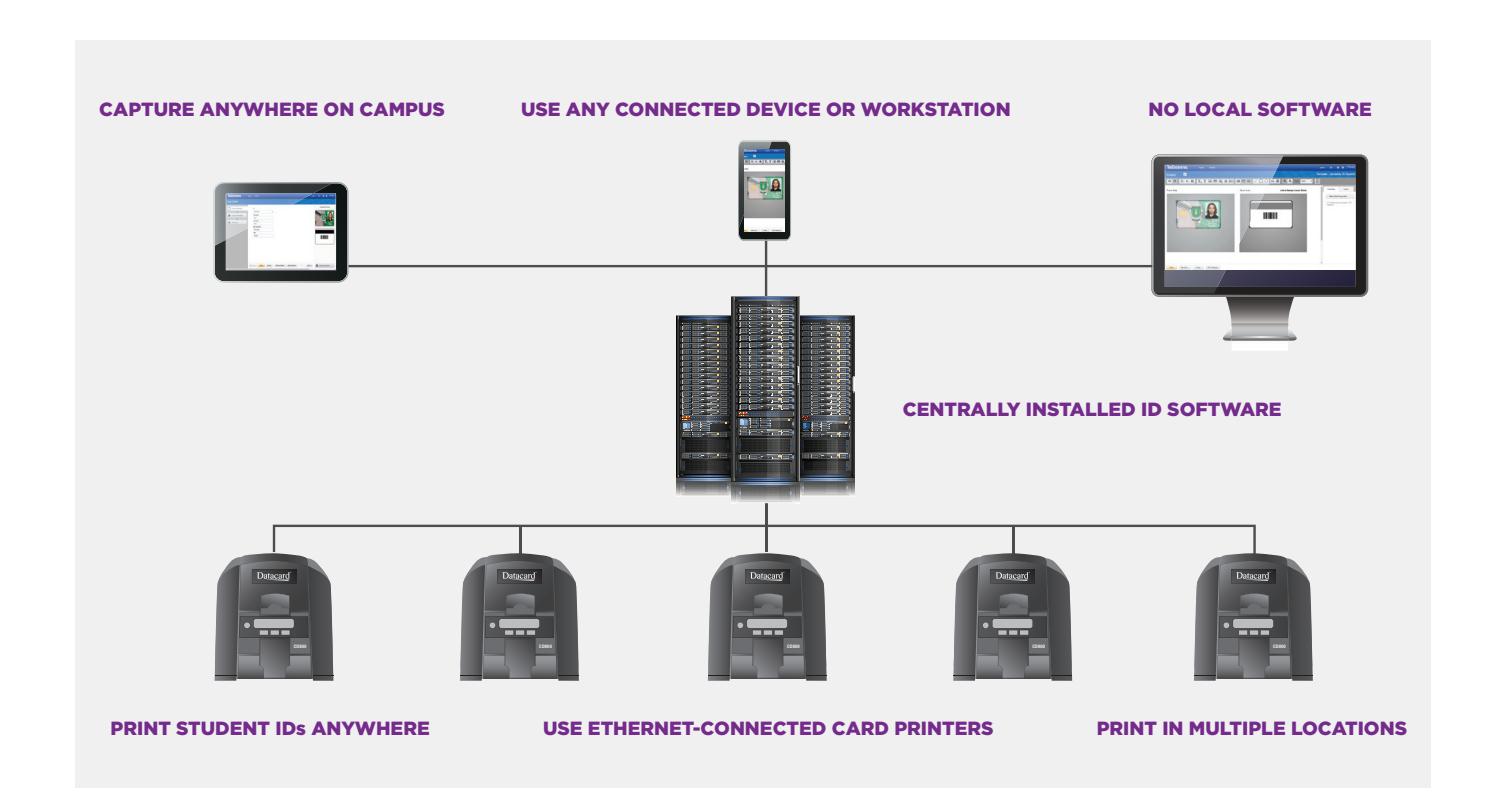

SERVER-BASED INSTALLATION

TruCredential software is deployed on a central server, not on dedicated work stations. This enables you to capture photos and enroll users from any connected device, anywhere, even mobile devices. Not to mention, all templates can be accessed from any of these connected devices, only requiring one central install and freeing up vital IT resources. You can also print ID cards from any connected printer.

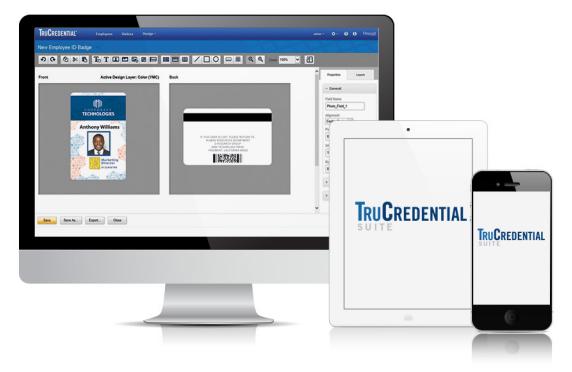

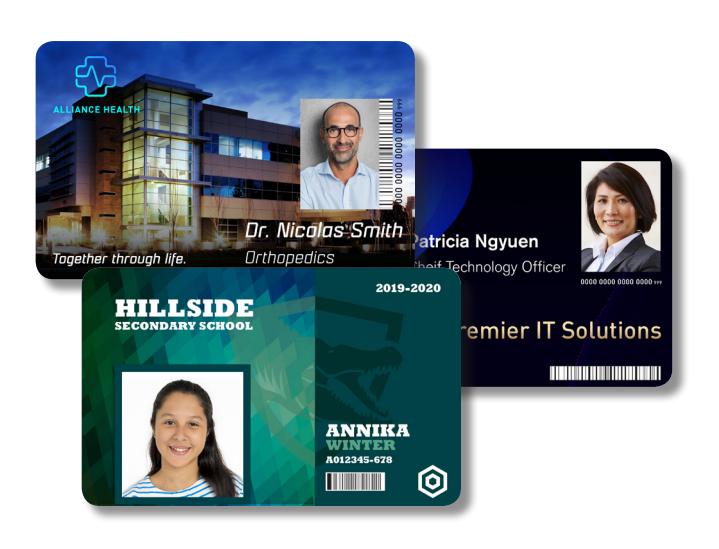

DRAG-AND-DROP DESIGN

Easily create custom designs and print best-in-class images with 600 dpi printing capabilities for ultimate card flexibility, enhanced branding and personalization. Add security and encoding elements for utmost access control.

CONFIGURABLE

Create custom designs and workflows to meet your specific needs.

SCALABLE TO FIT YOUR PROGRAM

TruCredential software scales quickly to support changes in your ID card program. It's easy to create any ID program you envision, from basic single-printer configurations to deployments that span multiple sites and include mobile capture options.

COMPATIBLE WITH THE LATEST TECHNOLOGY

Ensure that your technology investments are futureproofed. TruCredential software is compatible with the latest versions of major technology, including Windows 10, Microsoft Edge, IE and Chrome.

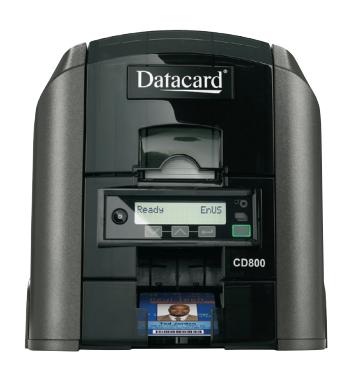

SUPPORT FOR MULTIPLE PRINTERS

Our central server deployment model allows you to locate card printers anywhere you choose. Supports printing on 3rd party card printers like Fargo™, Zebra™, Matica™, and Evolis™.

TRUCREDENTIAL PURE ACCESS EDITIONS

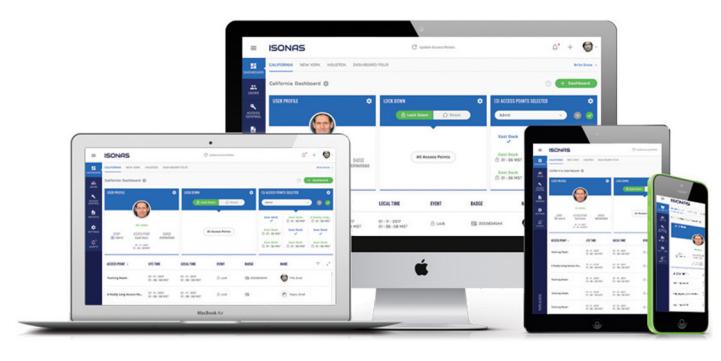

ISONAS and Entrust Datacard have partnered together to offer a unique version of TruCredential that integrates with Pure Access!

The ISONAS Pure Access Editions of TruCredential (Express, Plus, Professional and Enterprise Editions) include all of the specific edition features plus web service integration to Pure Access.

This allows you to choose the right version to meet your ongoing unique needs.

PURE ACCESS AND TRUCREDENTIAL PROCESS FLOW

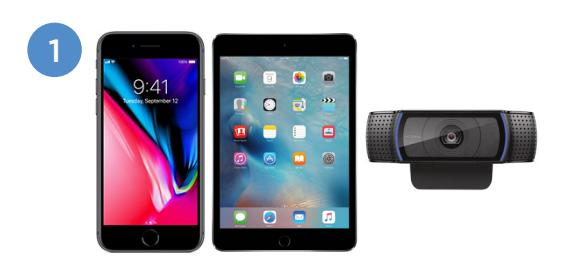

Capture and enroll from any connected device

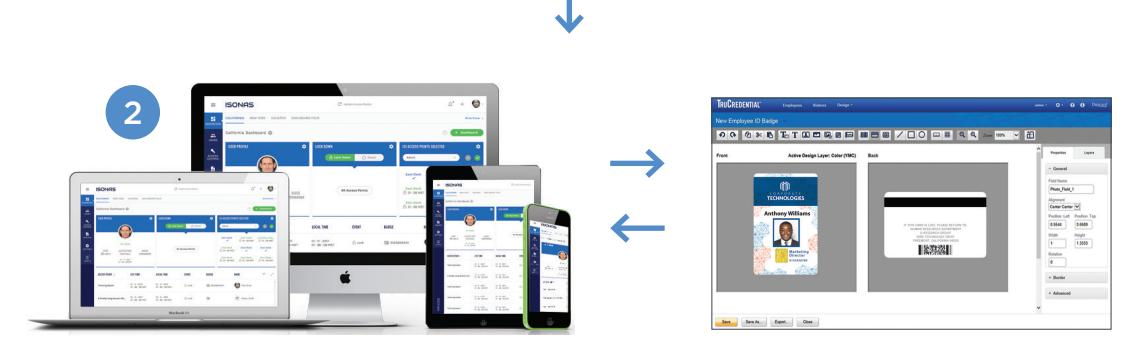

Add or sync user information into Pure Access in real time

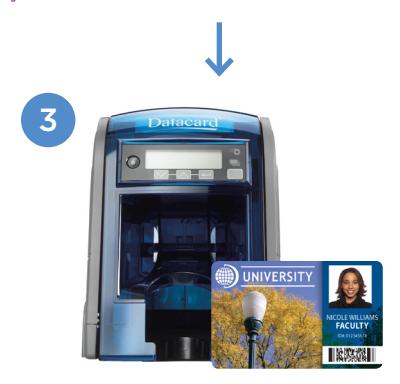

Print badges on any ethernetprinter, from anywhere

Enter the new users into Pure Access

• First/Last Name
• Access Levels/Groups
• Can be by individual or via a csv import

Login to TruCredential

• Search for single records or batches of records
• Print individual or batches of badges

Login to Pure Access

• Run a compile from Pure Access to push new badges and rules to the readers

SYSTEM REQUIREMENTS

Operating System: Microsoft Windows 7/8.1 (32-bit or 64-bit) or Windows 10

Web Browser: Chrome, Internet Explorer version 11 or Microsoft Edge

Memory: 4GB (8GB recommended) Hard Drive: 1GB of computer drive space

Screen Resolution: 1360 x 768

TRUCREDENTIAL STANDARD FEATURES

Credential design

Front and back card design, pre-designed card templates

Variable/static text field, photo graph field, variable/static graphic field, date field

QR code, magnetic stripe code, bar code support

Workflow

Text field, static text field, static graphic field, date field, print count field

Auto-sequence field, check box field, list field

Text field mask, field option – read only, hidden, mandatory, searchable

Martcard Stock supported

MiFARE Classic

MiFARE DESFire EV1

HID Prox

HID iClass

Smartcard reader supported

Identiv

DUALi (single-wire)

DUALi (two-wire)

Database and Data Import

Import data from CSV, ASCII file

Text field, static text field, static graphic field,

date field, print count field

Photo capture

File input, TWAIN, Microsoft Video for Windows

Languages support: English, French, German, Japanese, Portuguese (Brazilian), Simplified

Chinese, Spanish

Localization utility for other languages

TruCredential Features	Express	PLUS	PROFESSIONAL	ENTERPRISE
Magnetic stripes & bar codes	•	•	•	•
QR code	•	•	•	•
CSV/ASCII data file import (MS Excel)	•	•	•	•
Multiple data sources	•	•	•	•
Embedded database	•	•	•	•
Import/Export card designs, workflow templates	•	•	•	•
Quick Start Wizard	•	•	•	•
Webcam support	•	•	•	•
Camera support - DSLR		•	•	•
Signature capture		•	•	•
Microsoft Access database support		•	•	•
Composite field		•	•	•
Camera support		•	•	•
Microsoft SQL Server support		•	•	•
Reporting		•	•	•
Batch Printing		•	•	•
Central user management			•	•
Smart card support			•	•
Oracle DB and DB2 support			•	•
Active directory support			•	•
Optical character recognition (OCR) enabled data entry			•	•
Pure Access integration support	•	•	•	•
Number of concurrent users	1	1	1-20	Unlimited
Number of credential designs	10	15	25	Unlimited
