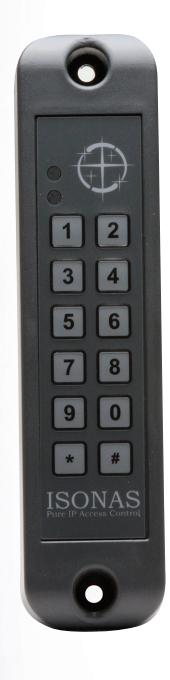

PowerNet TM IP Reader-Controller

Back View

PowerNetTM IP

PN: RC-03 PRX PN: RC-03 PRX K PN: RC-03 MCT PN: RC-03 MCT K

• Proven Innovation Our patented PowerNet™ Reader-Controller provides the fi rst "pure IP" to-the-door solution that eliminates the need for a separate power supply, control panel and dedicated hard wiring.
• Greater Value Compared to traditional systems that require more equipment, labor and maintenance, the total cost of ownership is far less.
• Total Flexibility The ability to easily integrate with other systems and go where other access control solutions can't gives you the freedom to adapt to changing needs.
• Intelligence at the door A single PowerNet™ is capable of storing 64,000 cardholders, 5000 access events and 32 time zones which can be confi gured and accessed by an external host system.
• IP architecture allows management of thousands of Reader-Controllers on a single computer across a geographically disbursed network.
• Use our DHCP functionality or call home capability to seamlessly connect to the host computer to create a simpler installation.
• The Open Systems platform enables seamless integration with other systems, including SQL, and TCP/IP. The powerful integration with Video Management Systems allows a fully comprehensive security solution.
• Our local mode feature allows readers to function without the host. This results in faster user response times, less network traffi c and reduced host system loading.
• Our DB Crystal Matrix Software is included with the price of the reader; there are no additional licensing fees for an unlimited number of users.
• Proximity is the most commonly used technology in the market, but our MultiCard Reader(MCT) is compatible with smart cards (MiFare, iClass, PIV).

SPECIFICATIONS

CONSTRUCTION

• Mullion Form Factor
• Flame Retardent ABS
• Potted for greater weather resistance
• Dimensions: 1.625" X 6.750" X .940" (mullion)

POWER OPTIONS (fi eld selectable)

• Power Over Ethernet (PoE), (IEEE 802.3af, Class 0)
• DC power: <125 mA @ 12 volts DC, < 70 mA @ 24 volts DC

NETWORK COMMUNICATIONS

• Ethernet, TCP/IP, standard RJ45
• Network Host or Client modes supported
• ASYNCH communications no polling
• Field fl ashable microcode

ENVIRONMENTAL

• UL-294 and rated for Outdoor use
• Meets FCC Part 15 certifi cation, ambient operating temperature -40 to 50º C (-40 to 120º F), operating humidity is 0 – 100%
• Exposure Ratings: IP56 and NEMA Type 4X

OUTPUTS

• 12 wire pigtail detachable
• 2 TTL outputs
• 1 Lock control circuit (NC&NO Supported)
• Power Output; 0.6amps at 12V

INPUTS

• Three confi gurable inputs:
• Door Sense
• Request to Exit (REX)
• Optional Input (AUX)
• RS232 interface to connect serial devices like Pin Pads and Wiegand readers

VISUAL INDICATOR

• Two LED signals for reader status
• Network LEDs for connected and receiving status

SECURITY FEATURES

• Optical tamper switch
• Power Up Diagnostics
• AES-256 bit Encryption

READ RANGE

• 2" 5" typical on RFID cards
• Proximity read speed: <250msec

OPERATING FREQUENCY

• 125 kHz (FSK modulation)
• MCT Model: 13.56 MHz (ISO 14443 A & B)
