PowerNet TM IP–Bridge

PowerNet TM IP–Bridge

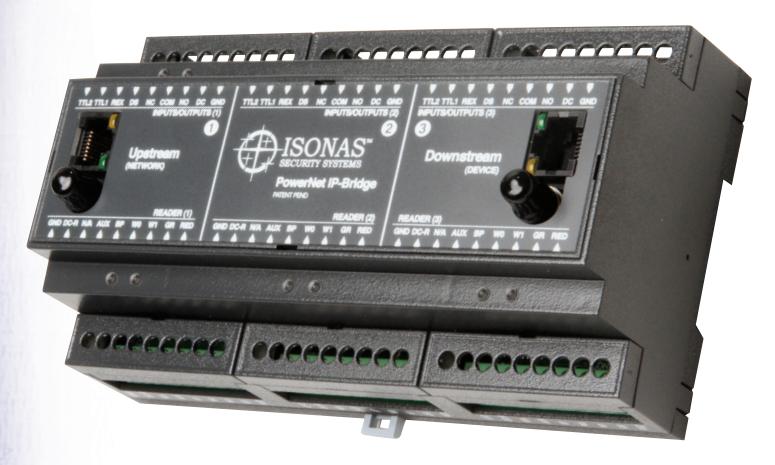

2-Door Model – PN: IPBridge-2 3-Door Model – PN: IPBridge-3

• Replaces existing panels and eliminates the need to rip and replace existing hardware to upgrade system.
• Seamlessly allows migration to a Pure IP Access Control Solution by bridging Wiegand systems with Pure IP Systems.
• Leverages existing IT network and legacy security infrastructure.
• Direct IP-Network connectivity.
• Supports both Power Over Ethernet (PoE) and PoE-Plus.
• Open System Ethernet network appliance.
• Supports standard door hardware, including Wiegand readers.
• Dual network port allows interconnection of multiple IP-Bridges.
• Creates a fl exible solution to grow with future needs.
• Scale from 1 access point to 1,000s on a single server.
• Each door is capable of storing 20,000 cardholders, 5000 access events and 32 time zones which can be confi gured and accessed by an external host system.
• Our local mode feature allows readers to function without the host. This results in faster user response times, less network traffi c and reduced host system loading.

SPECIFICATIONS

CONSTRUCTION

• Flame-retardant ABS
• DIN rail mountable
• Dimensions: 6.28" X 3.55" X 2.26"

POWER OPTIONS (fi eld selectable)

• Power Over Ethernet (PoE) (IEEE 802.3af, Class 0)
• Power Over Ethernet Plus (IEEE 802.3at, Class 0)
• DC power: < 260 mA @ 12 volts DC
• < 180 mA @ 24 volts DC

NETWORK COMMUNICATIONS

• Ethernet, TCP/IP, standard RJ45.
• Network-Server mode or Network-Client mode
• Field fl ashable microcode
• ASYNCH communications no polling

ENVIRONMENTAL

• Ambient operating temperature -40 to 50º C (-40 to 120º F)
• Operating humidity is 0 90% (non-condensing)

"DOOR" OUTPUTS (occurs 2 or 3 times)

• Electric lock control relay, rated 2.0A @ 30VDC, form C
• Powers Wiegand reader
• Control for Wiegand reader's two LEDs and buzzer
• Two TTL outputs (confi gurable default state)
• Auxiliary Power output PoE-Plus supplies 19 watts (1.6 amps @12 VDC)
• 10VDC output for Wiegand device, independent of input power source

"DOOR" MONITOR INPUTS (occurs 2 or 3 times)

• Three confi gurable inputs:
• Door Sense
• Request to Exit (REX)
• Optional Input (AUX)
• Accepts Wiegand reader's credential data
• Wiegand connection supports 500ft cable length

VISUAL INDICATORS

• IPBridge Power and network status indicator
• Door control status indicator for each door

SECURITY FEATURES

• Power up diagnostics
• AES-256 bit encryption
